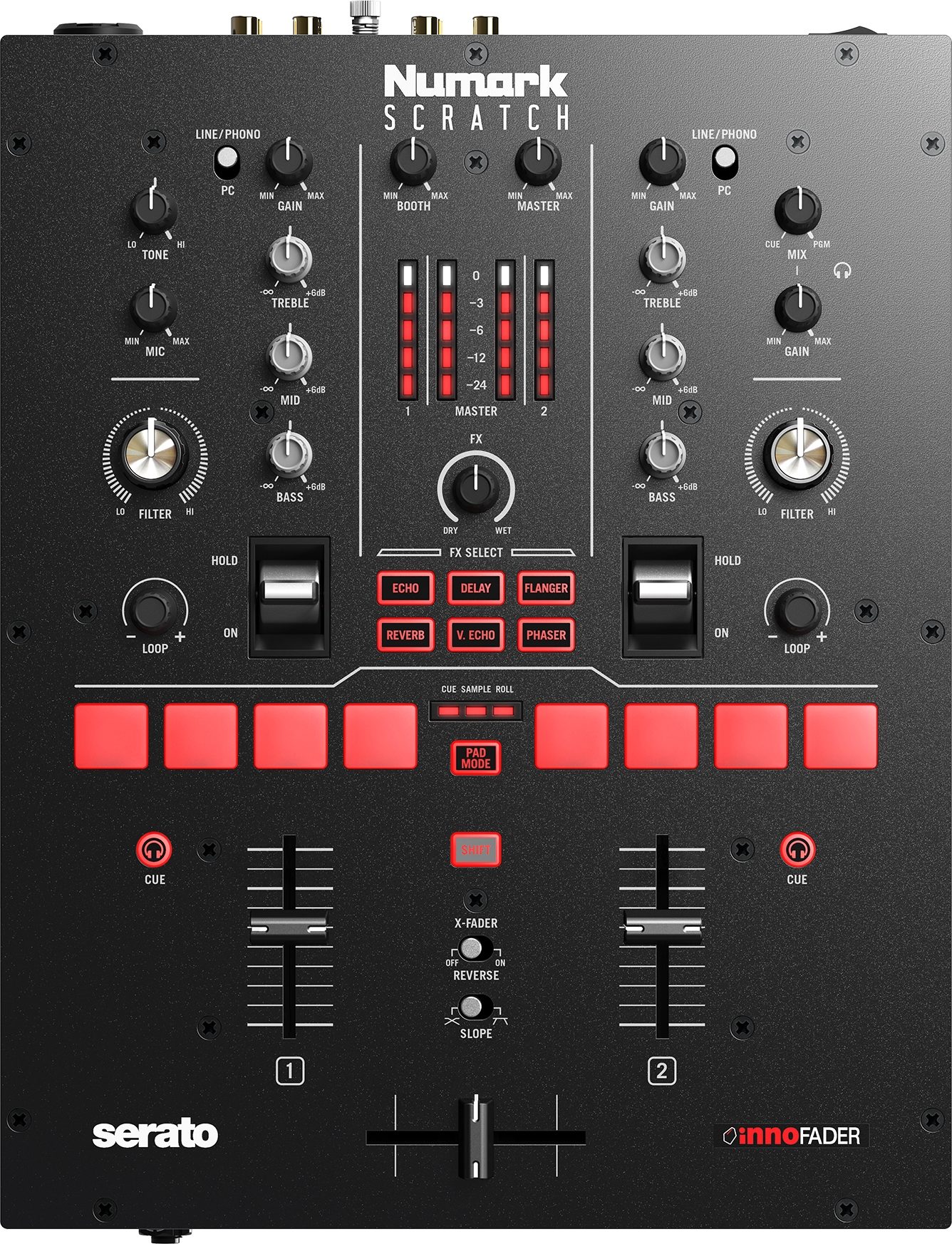

Numark Scratch DJ Mixer

- Master Outputs
- (balanced XLR):
- Frequency Response: 20Hz - 20kHz (+0.2dB)
- Signal-to-Noise Ratio: 108dB (A-weighted, max output)
- THD+N: 0.007% (1 kHz, -1dBFS)
- Maximum Output: Level +20dBu
- Output Impedance: 300O

- Master and Booth
- Outputs (RCA):
- Frequency Response: 20Hz - 20kHz (+0.2dB)
- Signal-to-Noise Ratio: 107dB (A-weighted, max output)
- THD+N: 0.005% (1kHz, -1dBFS)
- Maximum Output Level: +6dBV (2Vrms)
- Output Impedance: 300O

- Headphone Outputs
- (1/4" and 1/8" TRS):
- Frequency Response: 20Hz - 20kHz (+0.2dB)
- Signal-to-Noise Ratio: 108dB (A-weighted, max output, unloaded)
- THD+N: 0.005% (1kHz, 10mW per channel into 32)
- Maximum Output Level: +14dBu (unloaded)
- Power Output: 115mW RMS (per channel into 32O)
- Output Impedance: 32O

- Line Inputs (RCA):
- Frequency Response: 20Hz - 20kHz (+0.3dB)
- Signal-to-Noise Ratio: 102dB (A-weighted, max input level)
- THD+N: 0.008% (1kHz, +6.8dBV, -1dBFS)
- Max Input Level: +7.8dBV (2.45Vrms)
- Input Impedance: 47kO

- Phono Inputs (RCA):
- Frequency Response: RIAA Curve
- Signal-to-Noise Ratio: 99dB (A-weighted, max input level)
- THD+N: 0.01% (1kHz, -3dB input)

- Other Specifications:
- USB: USB 2.0 High-Speed
- ADC / DAC: 24-bit, 48kHz
- DSP: 32-bit fixed point
- Drivers PC: ASIO and Windows Audio
- Mac: UAC2 Class Compliant (no add'l driver needed)
- Power Input Typical: 120VAC / 240VAC / 50Hz / 60Hz Auto-Switching
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 10.25 lbs
Shipping Dimensions: 17 x 16 x 9 in
Manufacturer Part Number (MPN): Scratch
If you have additional warranty questions, please contact the manufacturer at 401-658-3131
(2 ratings)
Submitted July 13, 2020 by Erik F in ventura, CA
"MISSING KEY FEATURES"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Just purchased mixer. looks great. extremely light. doesnt feel very sturdy. Had pioneer s3 with same size and flet heavier and more stable. Buttons for switching from line phono were hidden behind mixer. The biggest missing feature is the fact that all effects are not avail during vinyl play. Big missing feature. Will be returning for S9.
Musical Background:
dj record collector 30+ years.
Musical Style:
all
2 of 2 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
