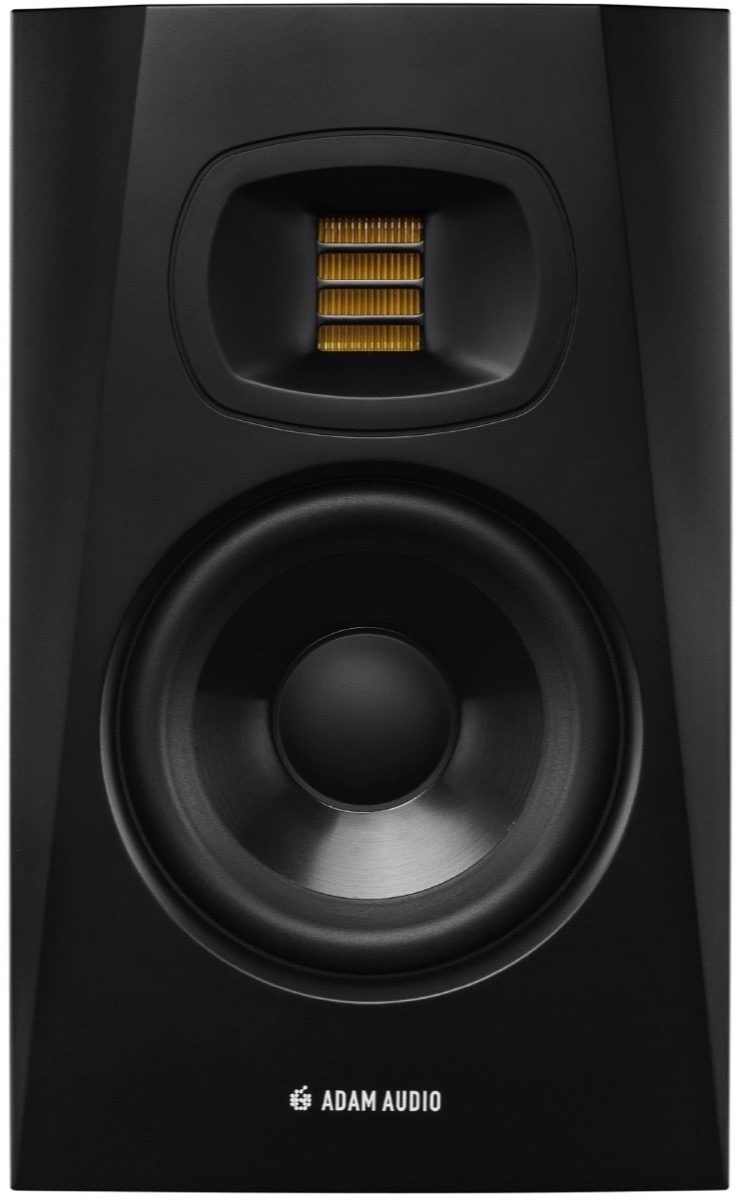

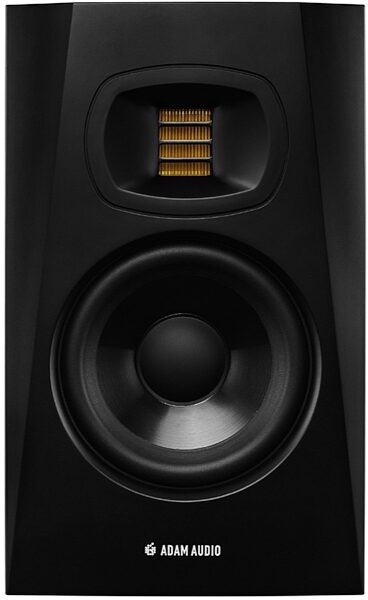

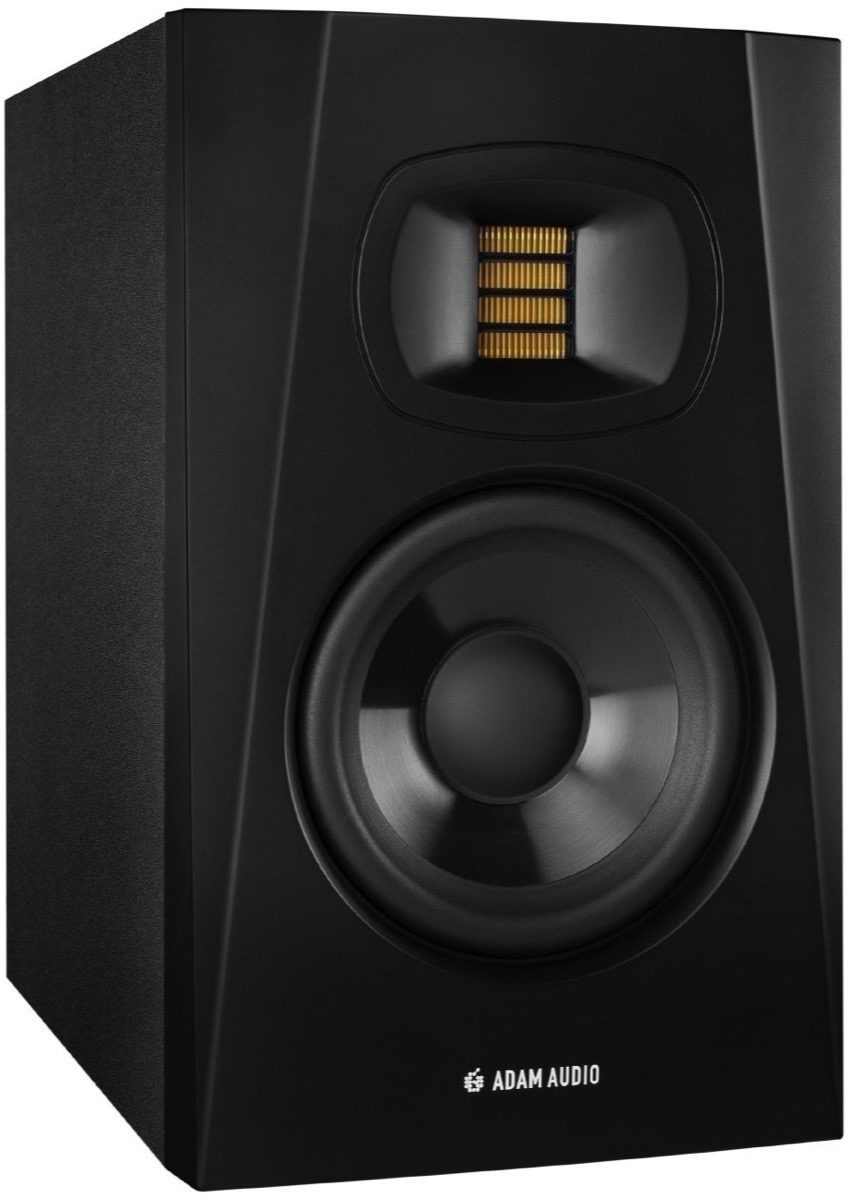

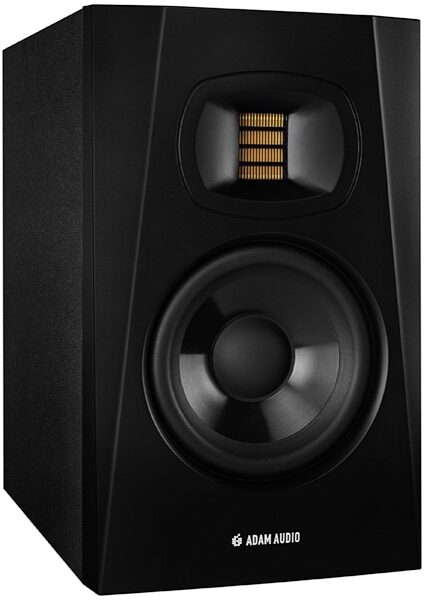

ADAM T5V Active Studio Monitor

With a ribbon tweeter that reaches 25 kHz and waveguide inherited from ADAM's flagship S Series, the T5V brings pro monitoring to an affordable price point.

The Adam Audio T5V is a highly affordable two-way nearfield monitor, optimized for small control rooms. With its 5" woofer the bass-frequency response of the T5V extends to 45 Hz. The U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio's flagship S Series monitors. The waveguide's highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

Doom metal artist and engineer Katie Gilchrist explains how she uses Adam T5V monitors:

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

Electro producer Grid Division on the Adam T5V monitors:

Producer/engineer Chris Hughes talks about mixing through Adam T5Vs:

If you need read more to hear more bottom end, the T5V is compatible with the ADAM Sub7 and Sub8 subwoofers.


- U-ART 1.9" Accelerated Ribbon Tweeter
- Allows longer operation with fewer signs of fatigue
- Breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
- Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
- Air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
- Direct, fast response in the high-range even with complex transients
- HPS waveguide from the S Series
- Makes dispersion more consistent and imaging more stable over a wider area
- Reduction of early reflections on the surfaces of mixing consoles, desks, and more
- Lightweight polypropylene construction of the woofer
- Excellent transient response even at high sound levels without breakup of the diaphragm
- Vertical 2-way system with 5" woofer
- High resolution of the stereo image
- Rear-firing bass reflex port
- Bass reproduction with very low compression
- Linear frequency response of 45 Hz to 25 kHz
- Unbiased reproduction in a wide frequency band
- Maximum peak sound pressure per pair in 3.3' (1 m) 106 dB
- Powerful, compression-free sound reproduction even at very high sound levels
- DSP-powered crossover design
- Smooth frequency response without interference between the drivers in the critical midrange
- Simple room acoustic adjustments via high- and low-shelf filters
- Allows optimal adaptation to acoustically difficult listening environments or individual preferences

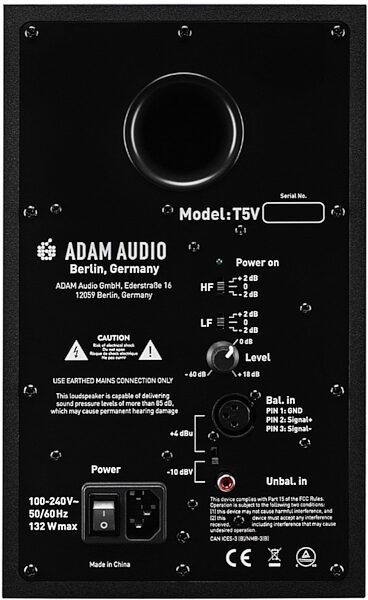

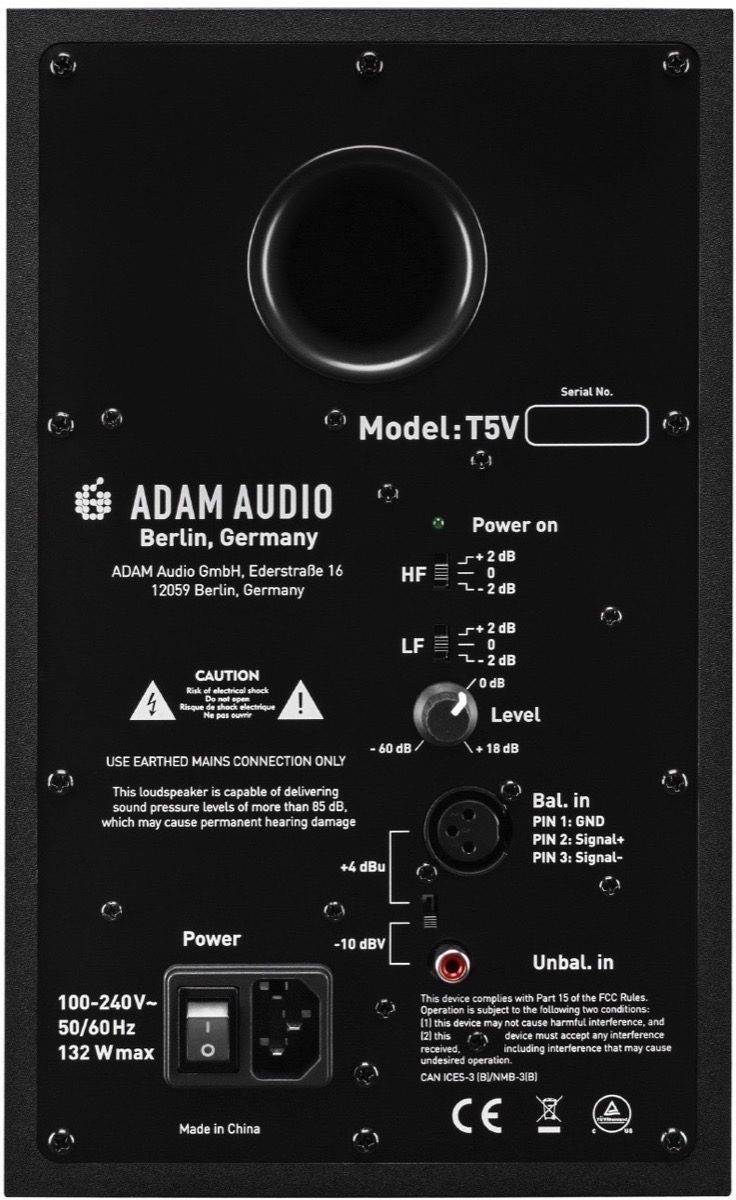

- Analog inputs over XLR and RCA
- Optimized for balanced and unbalanced line signals
- Acoustically optimized cabinet geometry
- Reduction of unwanted reflections on the cabinets
WARNING: Cancer and Reproductive Harm -
read less

Dimensions: 11.7" x 7" x 11.7"

Woofer: 5" Polypropylene
Tweeter: U-ART 1.9" Accelerated Ribbon
Waveguide: HPS from the S-Series
Amplifier: Bi-Amped Class-D
Total Output: 70W
Filters: High & Low Shelf
Frequency Response: 45 Hz to 25 kHz
Maximum SPL: 106 dB
Accessories: Includes Power Cord
Warranty: Limited 5-Year
Dimensions and Weight in Packaging
Single Speaker
Shipping Weight: 15 lbs
Shipping Dimensions: 16 x 15 x 10 in
Manufacturer Part Number (MPN): AMS-T5V
Shipping Weight: 30 lbs
