Neutrik NL4MP 4-Pole Panel Mount
zZounds Gear Experts Say...
You'll get a crystal-clear sound when you use this Neutrik Speakon chassis with silver-plated contacts to connect your Speakon cables to a supported source.
Overview

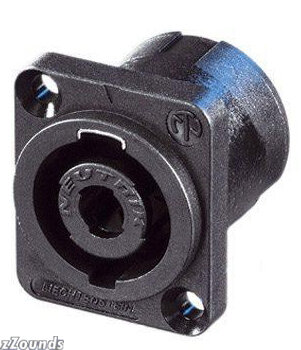

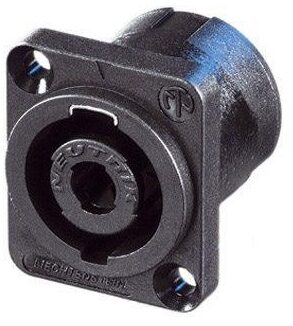

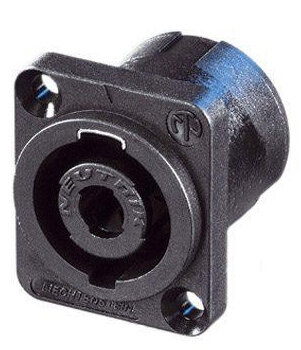

The Neutrik NL4MP is 4-pole chassis connector with black D-size flange, countersunk thru holes, and 3/16-inch flat tabs. The Neutrik NL4MP is a state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Neutrik NL4MP Features
- Standard current rating 30 Amp- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Electrical
Rated current/contact: 30 A rms continuous, 40 A rms 1 min.
Dielectric strength: 4kV peak
Rated voltage: 250 V ac
Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
Insulation resistance
- initial: > 2 G
- after damp heat test: > 500 M
Inrush/outrush current capability (12 V source): 300/30 A/200 ms
Creepage distance: according to IEC 664-1
Mechanical
Retention method: Quick Lock with latch
Cable anchoring: NEUTRIK chuck principle
Cable O.D. range:
6-10 mm (2-pole)
5-15 mm (4-pole)
8-20 mm (8-pole)
Cable retention force: = 220 N Subject to cable die and material
Wiring
Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8-pole version or soldering (12 AWG stranded)
Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)
Materials
Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8
Securing element: ZnAI4Cu1, CuNi plated
Spring element: Neoprene ring
Housing: PA 6 30% GR
Insert (FC part): PBTP 20% GR
Bushing: PA 6 15% GR
Chuck: POM
Temperature range: -30 degrees C to +80 degrees C
Amplifier
Stereo (HiFi): one NL4MP socket left channel pins 1+/1- right channel pins 2+/2-
Power (PA) Standard: 3 NL4MP sockets "A" socket: left channel pins 1+/1- "B" socket: right channel pins 1+/1-
Bridged mono: "M" socket: left channel pins 1+/1- right channel pins 2+/2-
BI-Amp: one NL4MP socket low frequency pins 1+/1- high frequency pins 2+/2-
Cable
Stereo (HiFi): NL4FC on amplifier end, 4-conductor cable splits into 2 pairs with NL4FC on each end
Power (PA) Standard: a 2-conductor cable for each channel with NL4FC on both ends
Bridged mono: a special 2-conductor cable, on both ends wired to pin 1+/2+ of NL4FC
BI-Amp: a 4-conductor cable on both ends wired to pins 1+/1-, 2+/2- of NL4FC
Speaker
Stereo (HiFi): one NL4MP per speaker left speaker pins 1+/1- right speaker pins 2+/2-
Power (PA) Standard: NL4MP pin 1+ to speaker coil "+" NL4MP pins 1- and 2+ to speaker coil
Bridged mono: NL4MP pin 1+ to speaker coil "+" NL4MP pins 1- and 2+ to speaker coil "-"
BI-Amp: one NL4MP socket low frequency pins 1+/1- high frequency pins 2+/2-
Rated current/contact: 30 A rms continuous, 40 A rms 1 min.
Dielectric strength: 4kV peak
Rated voltage: 250 V ac
Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
Insulation resistance
- initial: > 2 G
- after damp heat test: > 500 M
Inrush/outrush current capability (12 V source): 300/30 A/200 ms
Creepage distance: according to IEC 664-1
Mechanical
Retention method: Quick Lock with latch
Cable anchoring: NEUTRIK chuck principle
Cable O.D. range:
6-10 mm (2-pole)
5-15 mm (4-pole)
8-20 mm (8-pole)
Cable retention force: = 220 N Subject to cable die and material
Wiring
Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8-pole version or soldering (12 AWG stranded)
Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)
Materials
Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8
Securing element: ZnAI4Cu1, CuNi plated
Spring element: Neoprene ring
Housing: PA 6 30% GR
Insert (FC part): PBTP 20% GR
Bushing: PA 6 15% GR
Chuck: POM
Temperature range: -30 degrees C to +80 degrees C
Amplifier
Stereo (HiFi): one NL4MP socket left channel pins 1+/1- right channel pins 2+/2-
Power (PA) Standard: 3 NL4MP sockets "A" socket: left channel pins 1+/1- "B" socket: right channel pins 1+/1-
Bridged mono: "M" socket: left channel pins 1+/1- right channel pins 2+/2-
BI-Amp: one NL4MP socket low frequency pins 1+/1- high frequency pins 2+/2-
Cable
Stereo (HiFi): NL4FC on amplifier end, 4-conductor cable splits into 2 pairs with NL4FC on each end
Power (PA) Standard: a 2-conductor cable for each channel with NL4FC on both ends
Bridged mono: a special 2-conductor cable, on both ends wired to pin 1+/2+ of NL4FC
BI-Amp: a 4-conductor cable on both ends wired to pins 1+/1-, 2+/2- of NL4FC
Speaker
Stereo (HiFi): one NL4MP per speaker left speaker pins 1+/1- right speaker pins 2+/2-
Power (PA) Standard: NL4MP pin 1+ to speaker coil "+" NL4MP pins 1- and 2+ to speaker coil
Bridged mono: NL4MP pin 1+ to speaker coil "+" NL4MP pins 1- and 2+ to speaker coil "-"
BI-Amp: one NL4MP socket low frequency pins 1+/1- high frequency pins 2+/2-
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.03 lbs
- Shipping Dimensions: 4 x 2 x 1 in
- Manufacturer Part Number (MPN): BC-NL4MP
