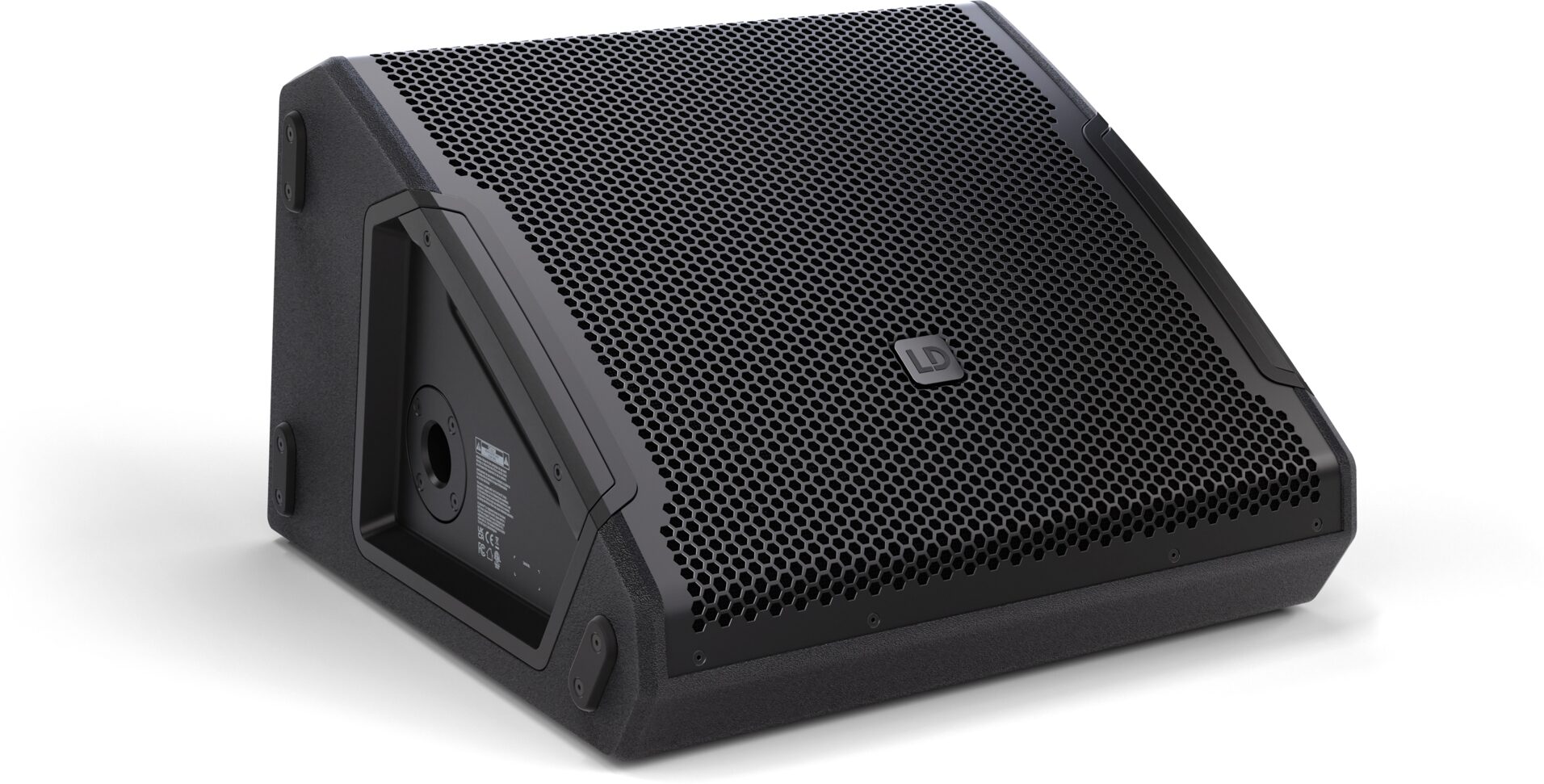

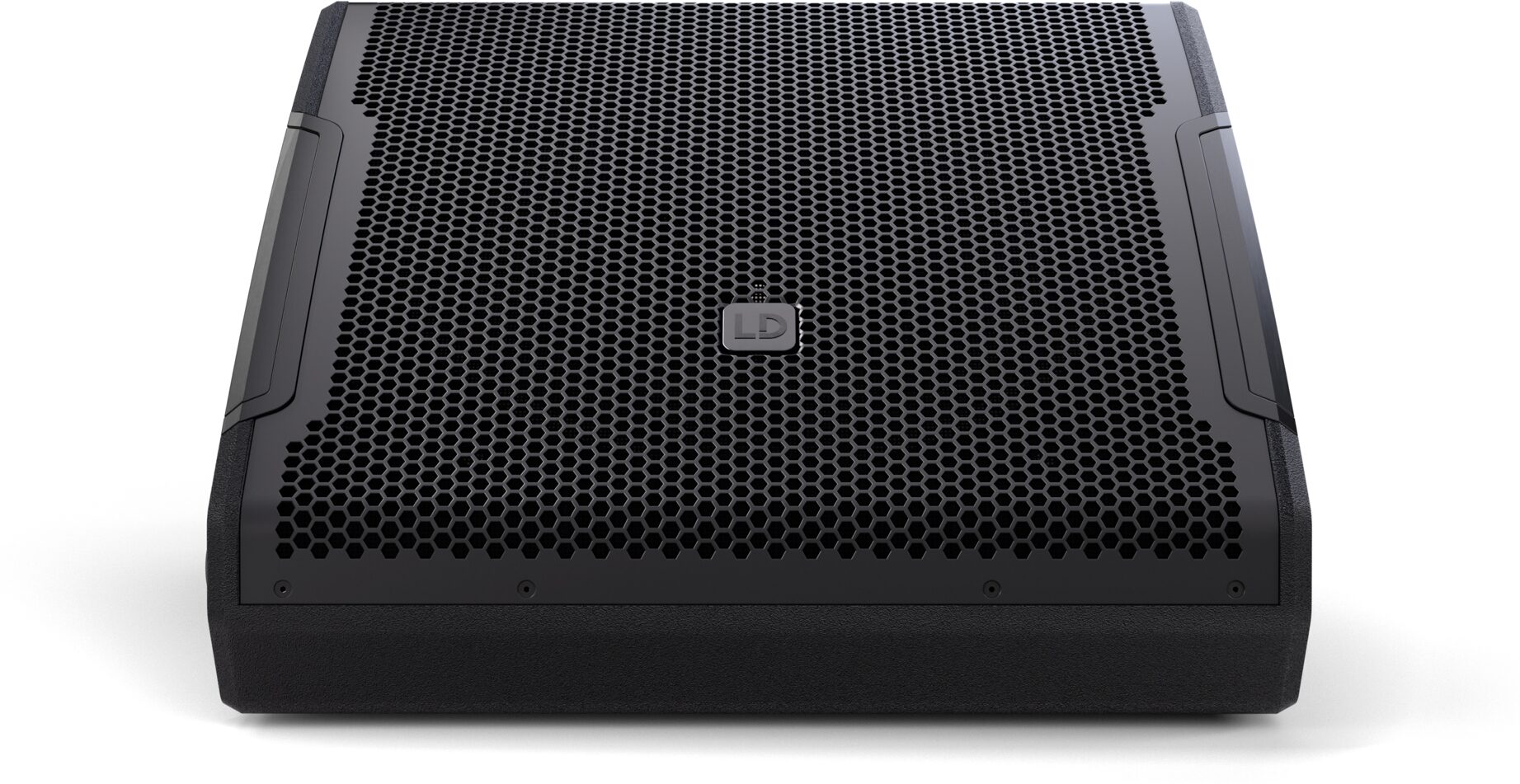

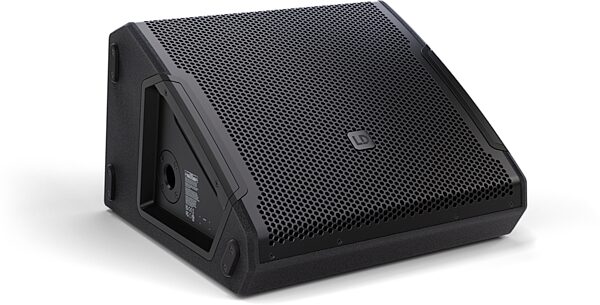

LD Systems MON 15 A G3 Powered Coaxial Stage Monitor PA Speaker (1x15")

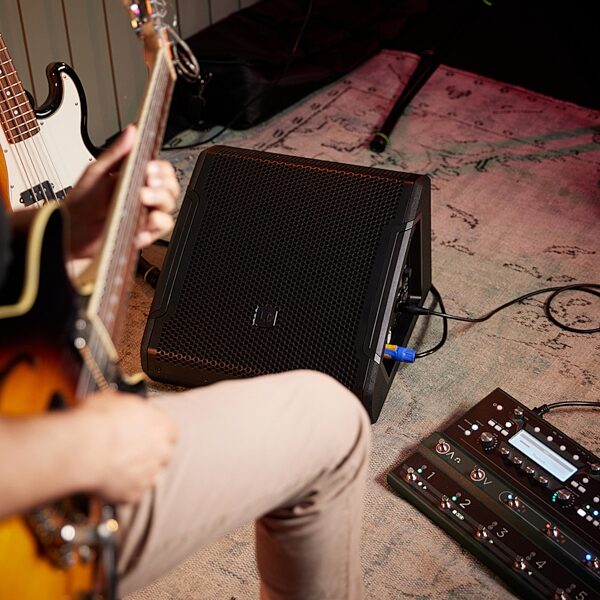

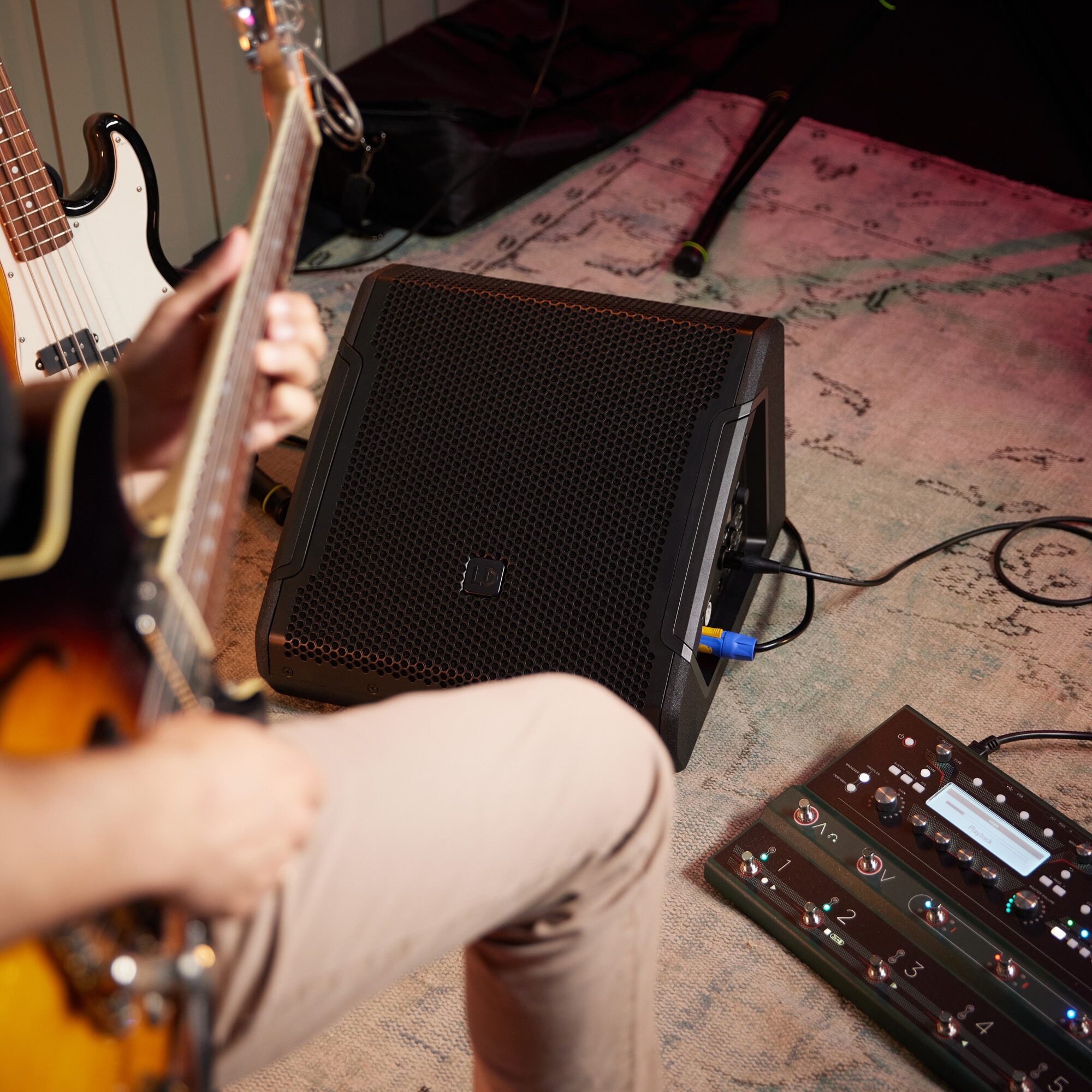

With a coaxial design for phase-aligned sound even at short distances, the MON 15 A G3 stage monitor delivers enough low end for bass players and drummers.

The LD Systems MON 15 A G3 is part of a family of powered stage monitors built for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50* x 90* CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

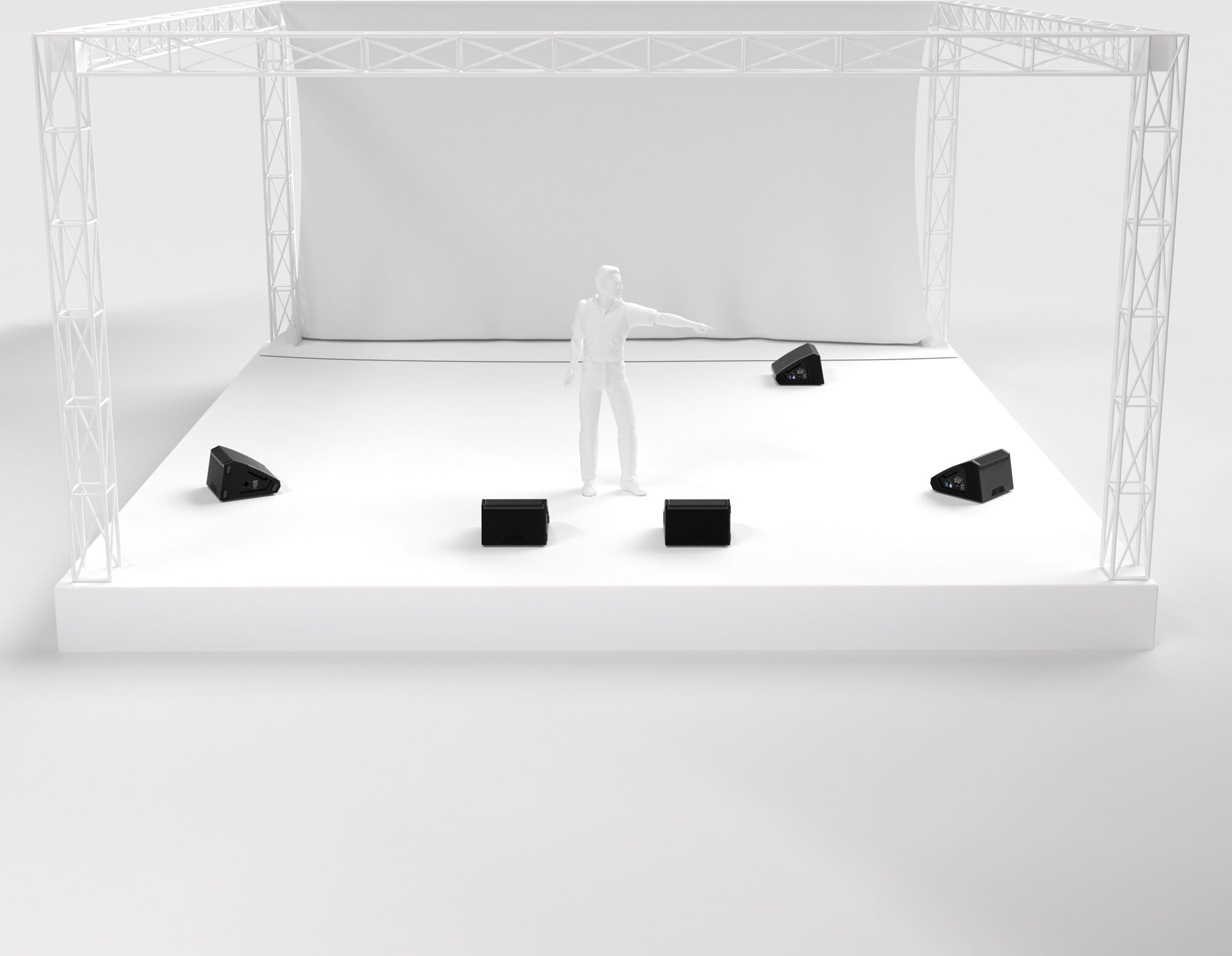

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

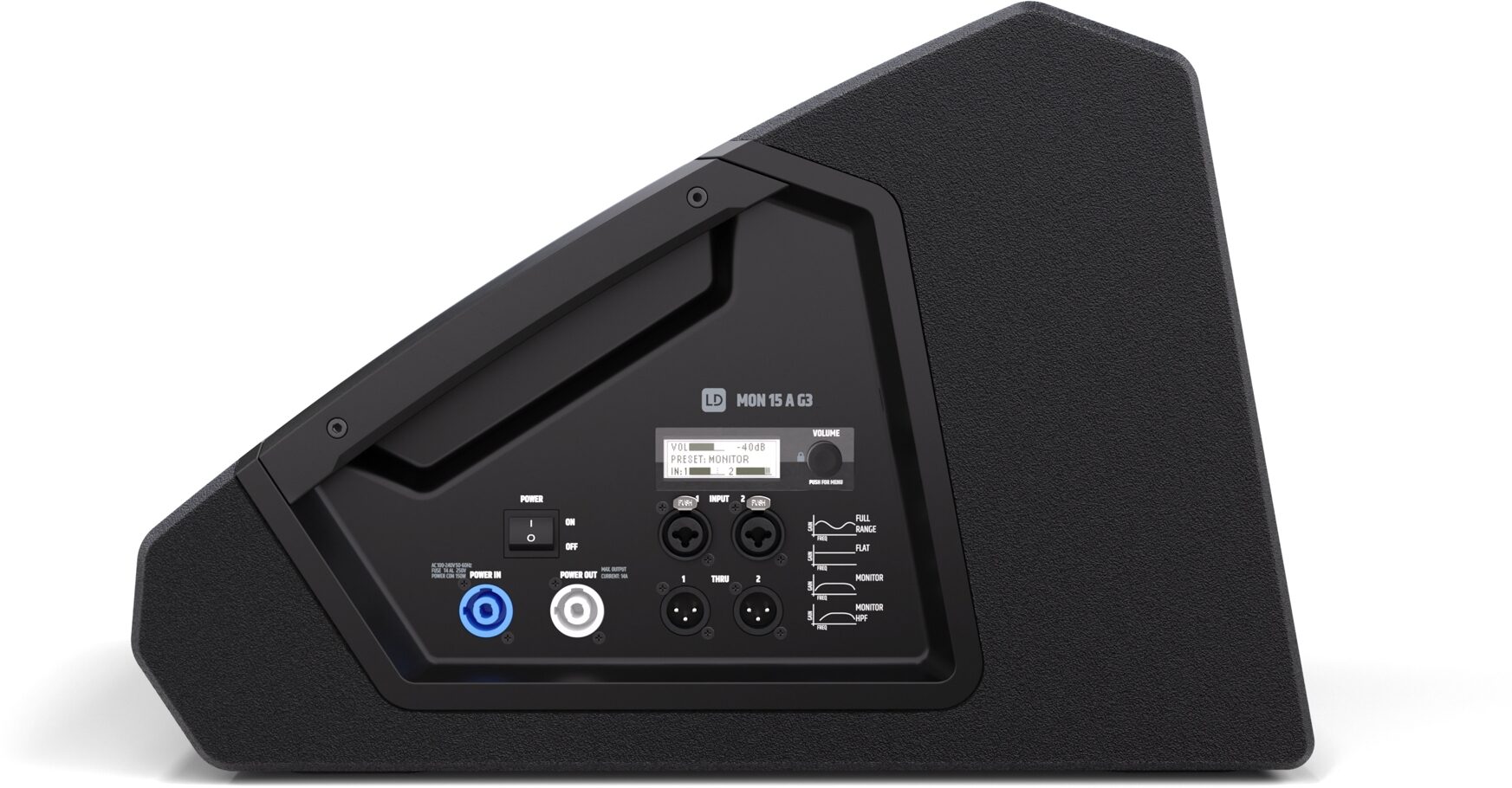

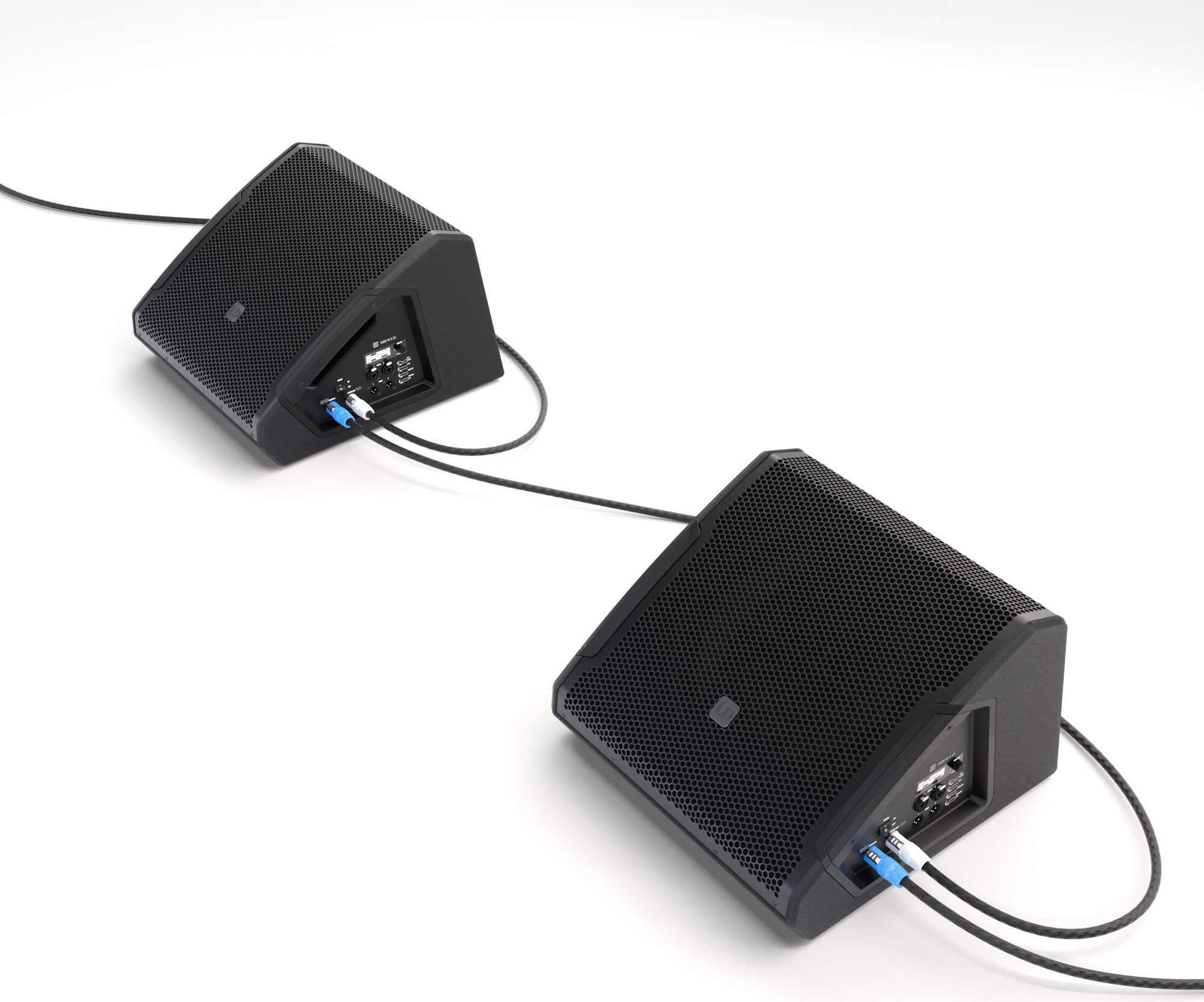

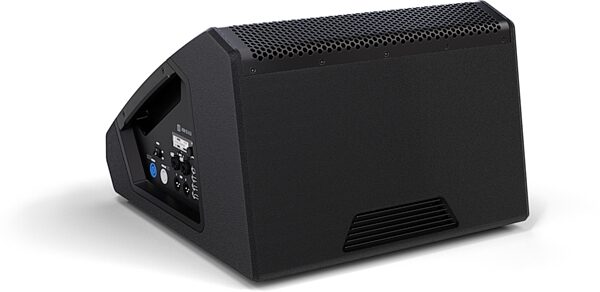

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Features:

- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max SPL

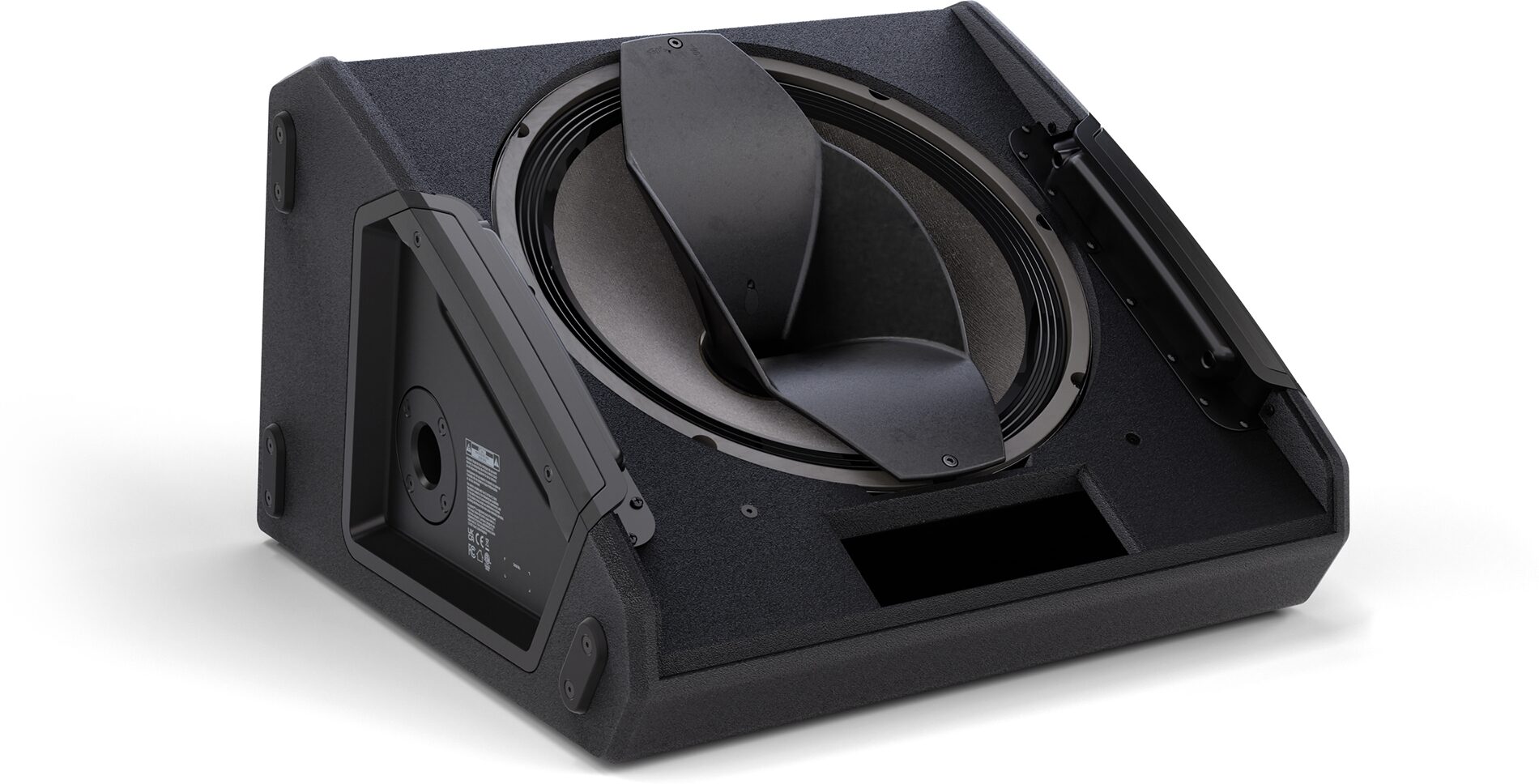

- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
- 15" woofer with 3" voice coil
- read more Optimized, practical radiation pattern due to 50* x 90* CD horn
- DynX(R) DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection

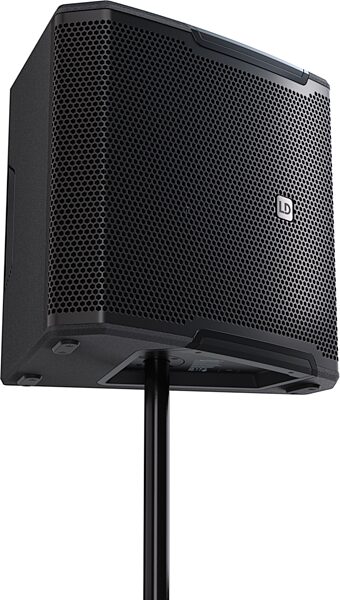

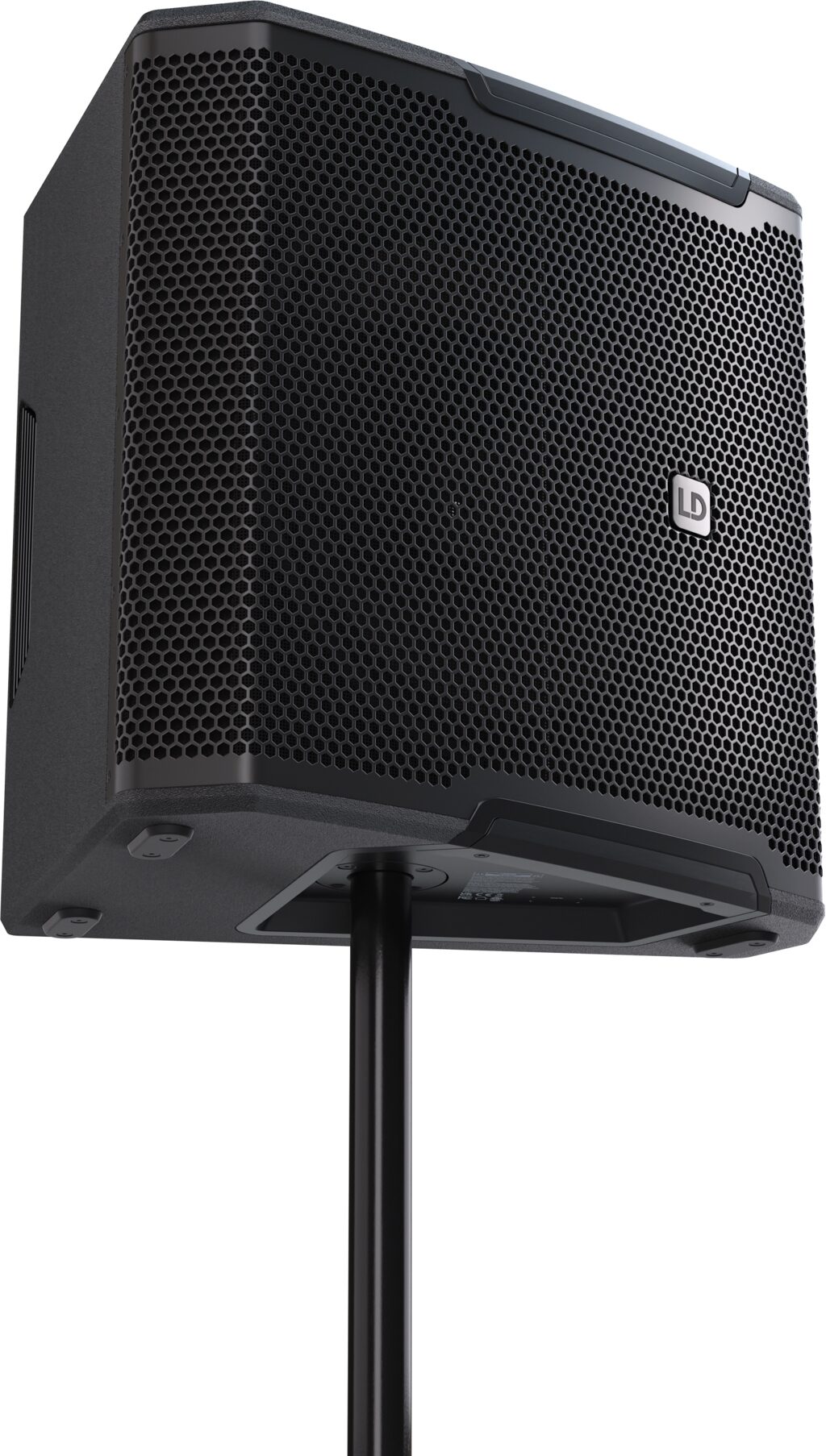

- 35 mm speaker stand flange for FOH applications

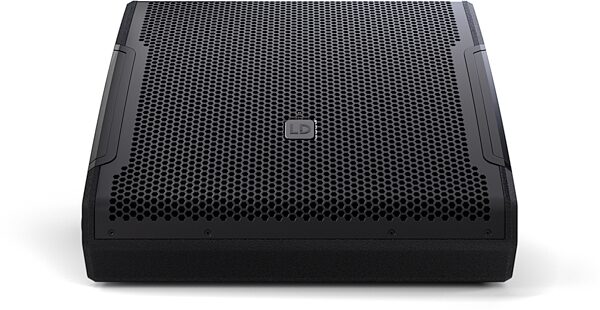

- Durable Polyurea coating and heavy-duty front grille
read less

- Product type: Stage monitors
- Type: Powered
- Color: Black
- System output (RMS): 300 W
- System output (Peak): 1200 W
- Max. SPL Average (Sine burst): 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
- Max. SPL Peak (Sine burst): 129 dB (fullspace @1m, 10% THD)
- Frequency response (-3 dB): 58 - 18000 HZ
- Frequency response (-10 dB): 48 - 20000 Hz
- Crossover frequency: 1300 Hz
- Monitor angle: 33*
- Dispersion (H x V): 50* x 90*
- Width: 505 mm
- Depth: 517 mm
- Height: 340 mm
- Features: 3-band EQ (High, Mid, Low), Delay line, Notch filter
- Weight: 23,15 kg

Low/mid woofer
- Low/mid Woofer dimensions: 15"
- Woofer dimensions (mm) : 381 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer type: Coaxial loudspeaker
- Woofer voice coil: 3 "
- Woofer voice coil (mm): 75 mm
- Cabinet construction: Bass Reflex
- Cabinet material: 15 mm Birch Plywood, 15 mm MDF

HF
- Horn: CD Horn
- Tweeter dimensions: 1"
- Tweeter dimensions (mm): 25.4 mm
- Tweeter magnet: Ferrite
- Tweeter brand: Custom-made
- Tweeter voice coil: 1.75 "
- Tweeter voice coil (mm): 44.45 mm

Amplifier module (integrated)
- Amplifier: Class D
- Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
- Operating Temperature: 0 - 40 *C
- Humidity Range: < 80 % ( non-condensing )
- Fuse: T4AL 250 V

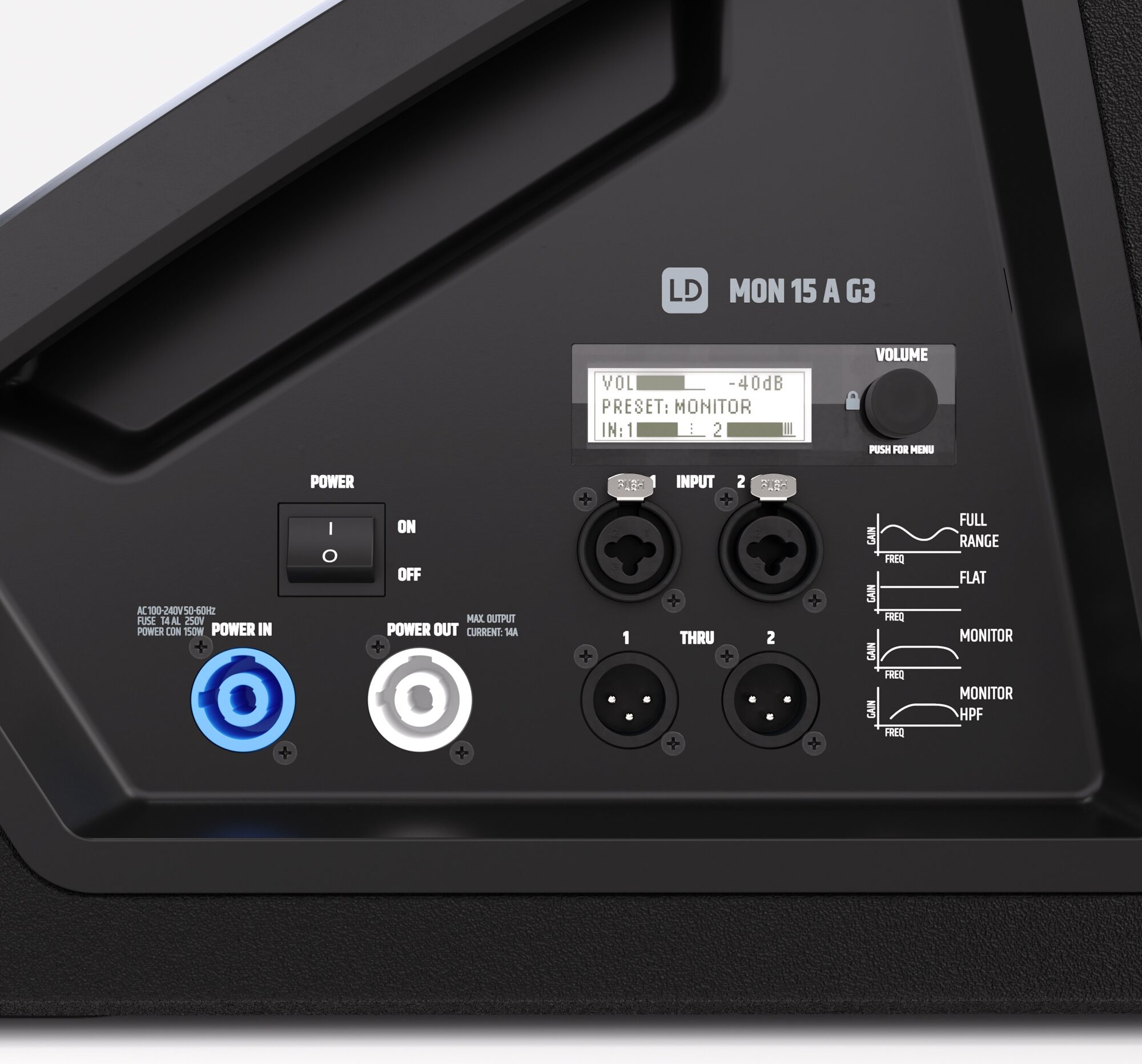

- Controls: On / off switch, Rotary/push encoder
- Indicators: LC display
- Operating voltage: SMPS
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 150 W
- Power in / out: PowerCON compatible
- Line inputs: 2
- Line input connectors: 6.3 mm jack, XLR - combo
- Line thru: 2
- Line through connector: XLR
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 63.75 lbs
Shipping Dimensions: 25 x 25 x 18 in
Manufacturer Part Number (MPN): LDS-MON15AG3(US)

For support or warranty questions, please contact the manufacturer:
Phone: 973-335-7888 x 207
Email: service.us@adamhall.com

Reviewers gave this product an overall rating of 2 out of 5 stars. (1 ratings)
Submitted October 19, 2023 by a customer from gmail.com

"Great quality - SEVERLY UNDERPOWERED - Very low value for the money"

Overall: 2 out of 5 stars
(see rating details)
Why the heck LD would put out the new G3 monitors with such underpowered amplifiers is beyond me! Tried a few out. Had to crank them ALL THE WAY UP to get half of the volume that a Mackie Thump or Turbosound TFX would put out. If they were $300 it would be ok, but at this price you could buy a Thump215 for $450, save money, and have FOUR TIMES the power!Really LD?
