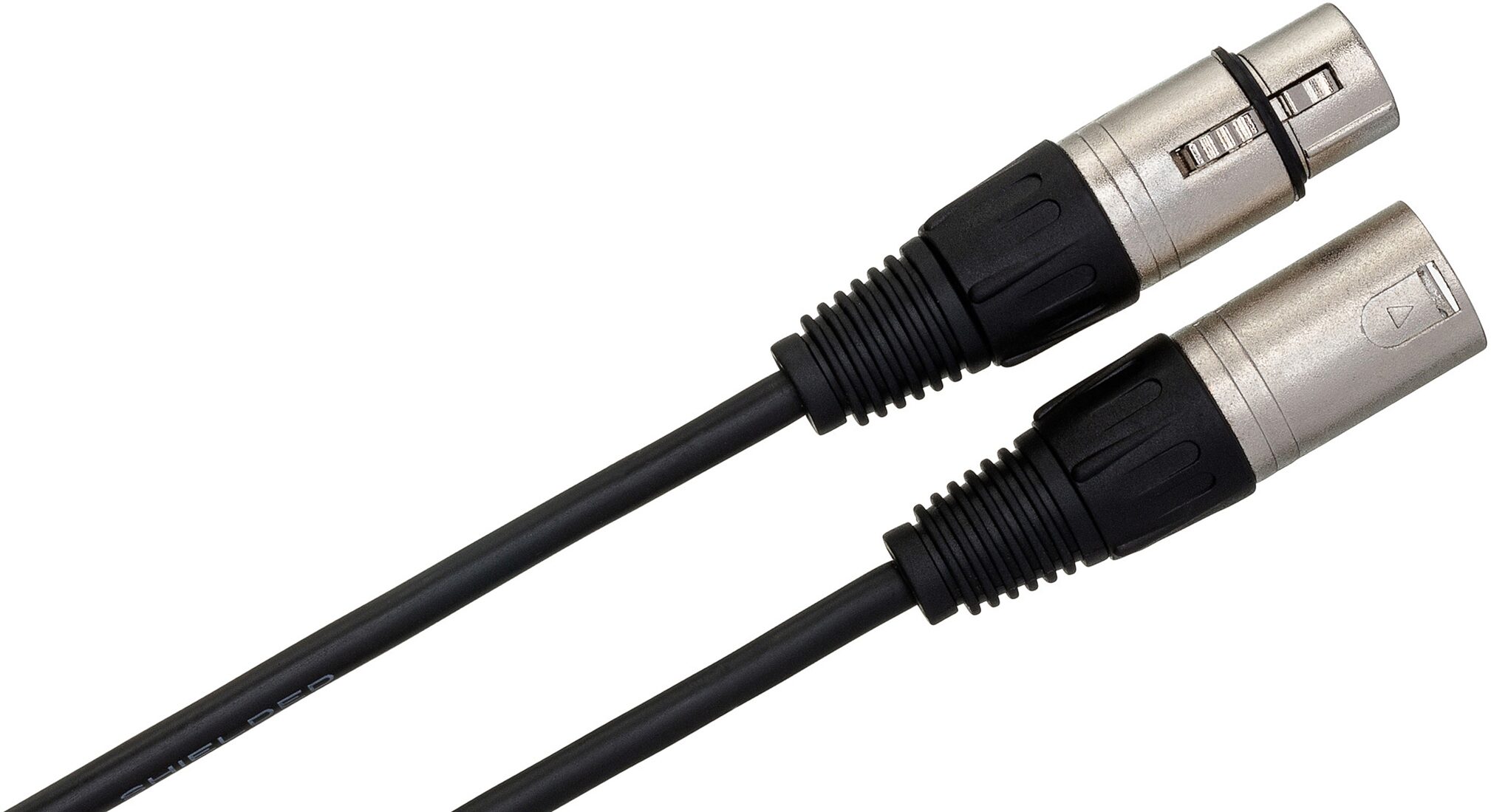

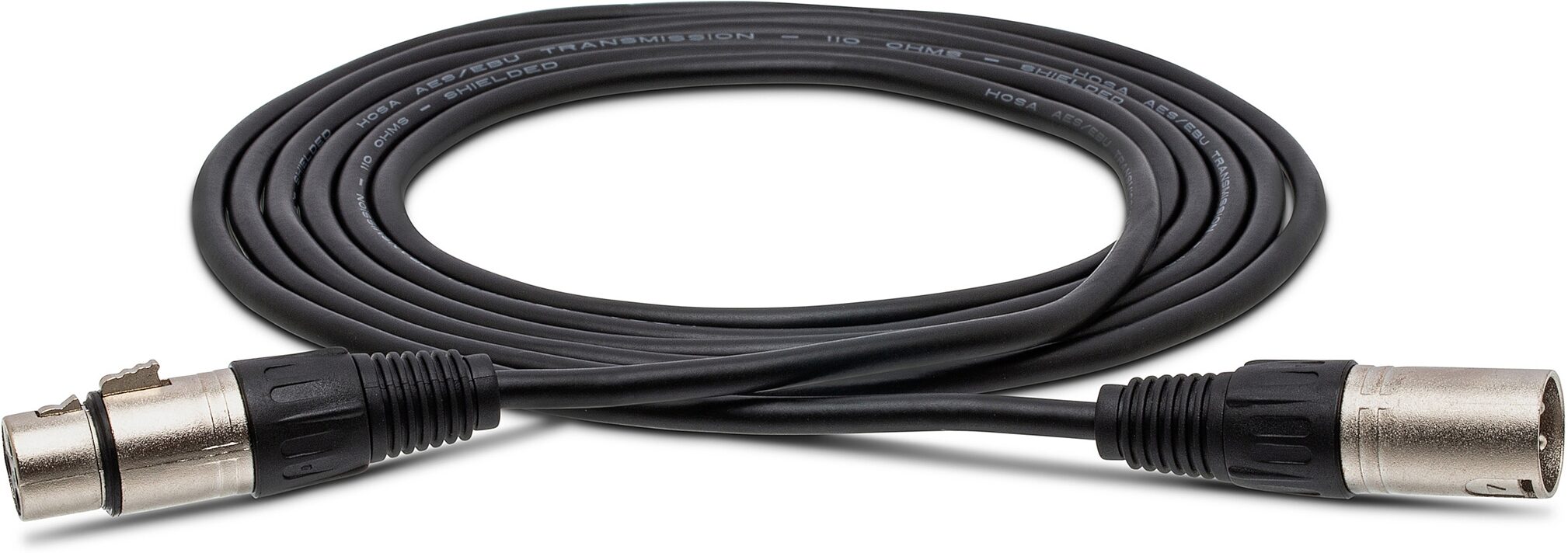

Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back
open zoom image for Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back
open zoom image for Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back
open zoom image for Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back
open zoom image for Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Main
Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Action Position Back Hosa DMX512 2-Conductor XLR3-M to XLR3-F Cable, 5 foot, DMX-305, Main
zZounds Gear Experts Say...
Got 3-pin DMX cables, and a DMX controller with 3-pin output? Easily connect a 3-pin male XLR output to a 3-pin female XLR with this Hosa adapter cable.

The Hosa DMX512 2-Conductor XLR3M to XLR3F Cables are designed to provide years of dependable service. High-quality components and world-class manufacturing combine to deliver products of exceptional value. Features include:

Features

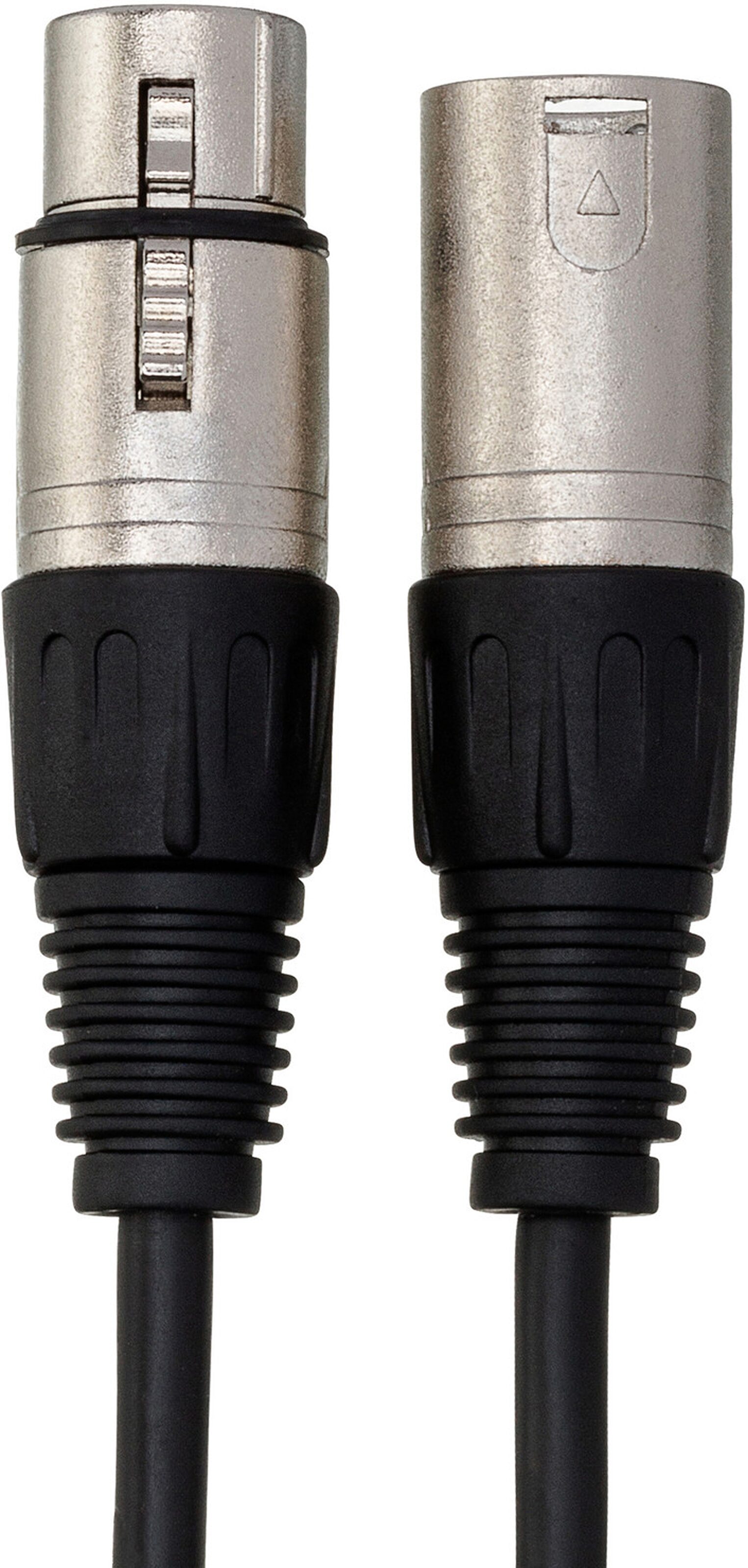

- XLR connectors with internal strain relief for rugged reliability
- Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
- Hi-density OFC braided shield for superior EMI and RFI rejection

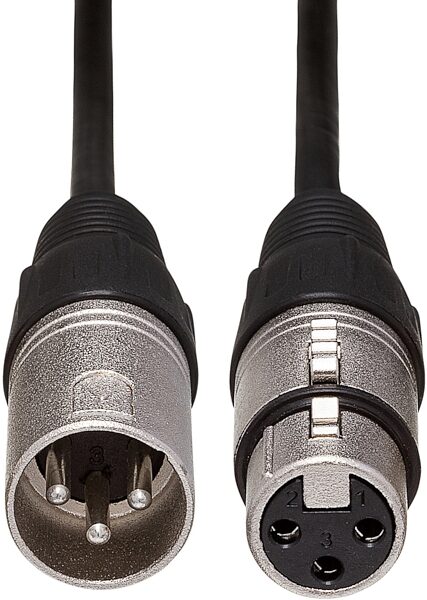

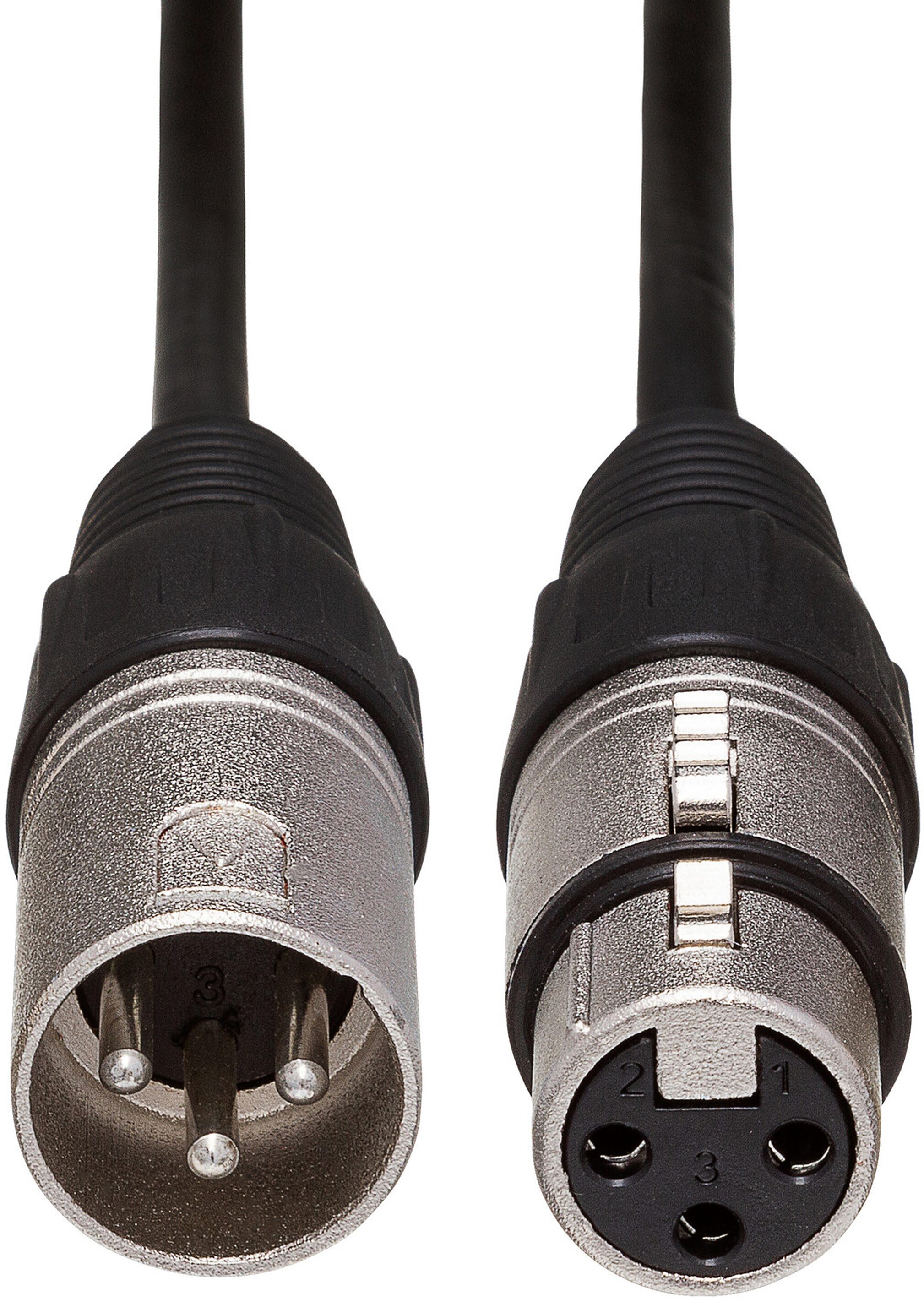

- XLR3M to XLR3F Connectors
- 110-ohm Impedance
- 2 OFC Conductors
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Connector Type A: XLR3-M (XLR3 Male)
- Connector Type B: XLR3-F (XLR3 Female)
- Cable Type: DMX512
- Wire Gauge (AWG): 24 AWG
- Number of Conductors: 2
- Conductor Material: OFC (Oxygen-Free Copper)
- Shielding Type: Hi-density OFC braided shield
- Impedance: 110-ohm

Dimensions and Weight in Packaging

5 foot, DMX-305

  • Shipping Weight: 0.29 lbs
  • Shipping Dimensions: 7 x 6 x 1 in
  • Manufacturer Part Number (MPN): DMX-305

3 foot, DMX-303

  • Shipping Weight: 0.24 lbs
  • Shipping Dimensions: 7 x 6 x 1 in
  • Manufacturer Part Number (MPN): DMX-303

10 foot, DMX-310

  • Shipping Weight: 0.44 lbs
  • Shipping Dimensions: 7 x 7 x 1 in
  • Manufacturer Part Number (MPN): DMX-310

15 foot, DMX-315

  • Shipping Weight: 0.58 lbs
  • Shipping Dimensions: 7 x 8 x 1 in
  • Manufacturer Part Number (MPN): DMX-315

50 foot, DMX-350

  • Shipping Weight: 1.55 lbs
  • Shipping Dimensions: 9 x 7 x 3 in
  • Manufacturer Part Number (MPN): DMX-350

25 foot, DMX-325

  • Shipping Weight: 0.85 lbs
  • Shipping Dimensions: 8 x 7 x 2 in
  • Manufacturer Part Number (MPN): DMX-325

30 foot, DMX-330

  • Shipping Weight: 0.97 lbs
  • Shipping Dimensions: 8 x 7 x 2 in
  • Manufacturer Part Number (MPN): DMX-330

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-8878 or 800-255-7527
Web: https://hosatech.com/support/
