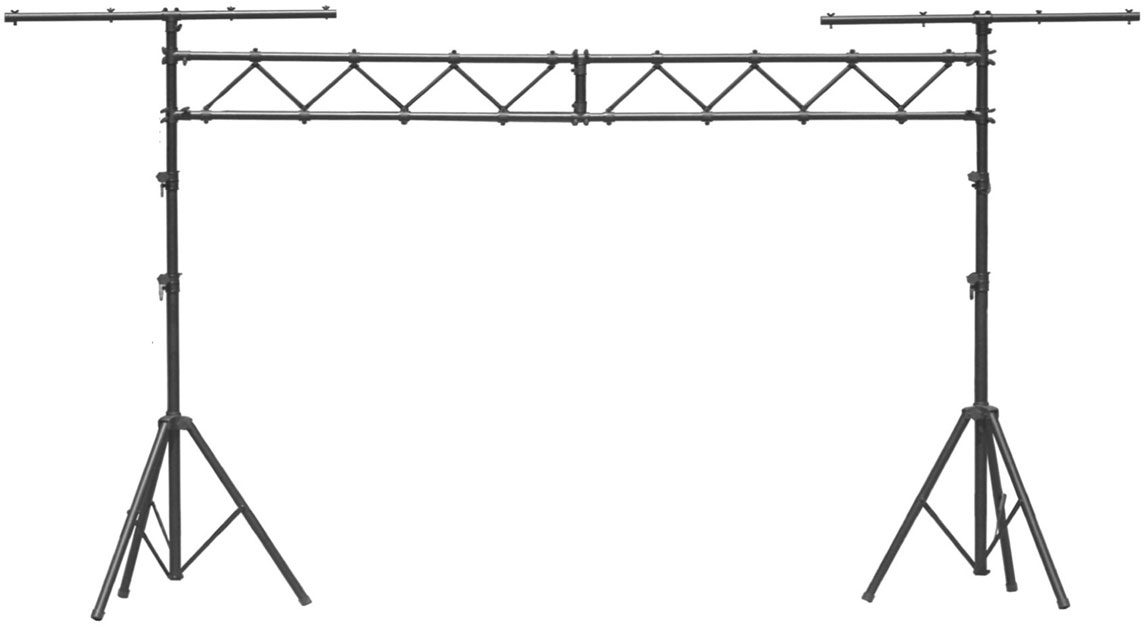

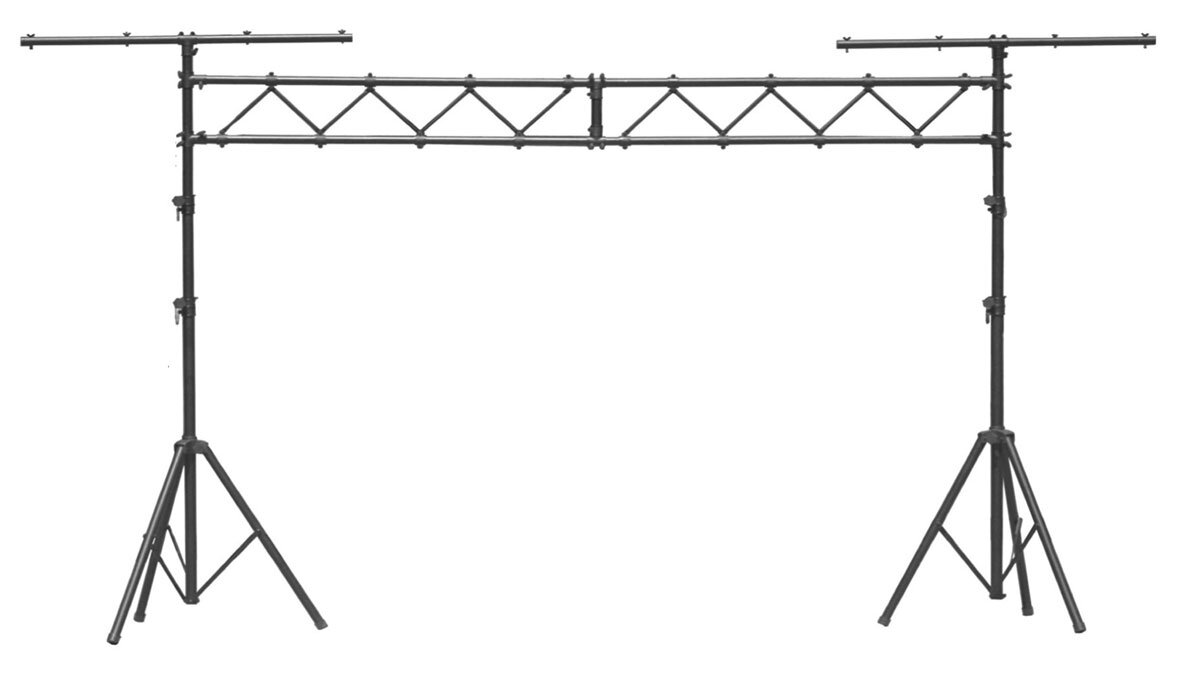

On-Stage LS7730 Light Stand with Truss

Hang up to 16 light fixtures on this ultra-sturdy On-Stage lighting stand. At under 35 pounds, the LS7730 stand and truss easily travels from gig to gig.

The On-Stage LS7730 Light Stand with Truss is a rock-solid, lightweight, and low-cost solution for mobile lighting setups. From rock shows to DJ sets to wedding bands, a sweet lighting setup is that final element that takes a great performance and makes it unforgettable. Music goes a long way to set an emotional backdrop, but the right lighting transforms any space -- small club, event hall, backyard -- into a live performance temple, and gives your audience permission to completely lose themselves in the moment.

Safety First!

While it's good to project an element of danger via your stage persona, actual danger via your lighting elements is best avoided. The On-Stage LS7730 easily supports up to 200 pounds of lighting equipment, and with a tripod base width of 48", it'll take a direct linebacker tackle to bring it down. Even at its full 11.5-foot height, the On-Stage LS7730 is a reliable stage partner. Yet the entire assembly folds down to fit in a lighting gig bag and weighs less than 35 pounds for maximum gig-ability.

Room For Lots of Lights

Do you have, let's say, sixteen lights? You're in luck: the On-Stage LS7730 can hold your entire collection! The main horizontal truss can expand out to 10 feet across, accommodating up to eight par-cans to help you spread light all around the stage. Additionally, atop each stand is a "T" bar that can hold four more cans each (or other special effect devices like dynamic LED or laser units). A fully-loaded, fully-extended read more On-Stage LS7730 at the back of a stage and at its nearly 12-foot elevation is truly an awesome sight to behold.

There's a lot you can do to impress an audience, but if you want to make each gig unforgettable, you're going to have to take your show to the next level. Let zZounds and the On-Stage LS7730 help you get there.

Note: Some assembly required.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Vertical Shaft Specifications:
- Top shaft diameter: 38 mm
- Middle shaft diameter: 41 mm
- Lower shaft diameter: 45 mm

Vertical Shaft Height adjustment: Maximum height 124 inches

Upper shaft:
- 2 preset adjustment holes 8 inches on center
- 33 inches Useable shaft length

Middle shaft:
- 5 preset adjustment holes 8 inches on center
- 38 inches useable shaft length

Lower shaft: 51 inches fixed height from floor

Truss Specifications:
- Diameter: 38 mm
- Each Truss: 60 inches fixed length
- Total length: 120 inches

Base leg spread: 36 to 48 inches

Weight Capacity: 200 lbs

Max Height: 11.5 Feet

Construction: Hi-grade aluminum

Gross Weight: 39.67 lbs
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 36 lbs
Shipping Dimensions: 60 x 15 x 9 in
Manufacturer Part Number (MPN): LS7730

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-8889

On-Stage LS7730 Light Stand with Truss

The On-Stage LS7730 lighting stands with truss is a low-cost alternative that can hold a total of 16 PAR cans! LS7730 includes two tripod base lighting stands with 3 section shafts, T-bars, and two 5 feet Truss sections. Easy assembly for traveling musicians, the On-Stage LS7730 comes with screw on plastic brackets and thumb screws which allow for quick height adjustments. Use only for static lights. The On-Stage LS7730 lighting stands with Truss is a complete set to get started on presenting your show!


- T-bars hold 4 PAR cans each
- Two 5 Foot truss sections hold 4 PAR cans each
- Two tripod base lighting stands with 3 telescoping vertical shafts
- Tension locking knobs and locking pin adjust and secure height to a max of 11.5 Feet
- Holds up to 200 lbs
- Easy assembly
- Use only for static lights

Note: Some assembly required.

Reviewers gave this product an overall rating of 5 out of 5 stars. (7 ratings)
Submitted September 22, 2014 by Terry L in Miami, FL
"Awesome Truss System"
Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I'm a beginner mobile DJ with a decent budget to spend. This is my first stand/truss and it suits me well for the time being. Holds my lights and has plentry of room for more. I have the jellydome for the center piece and a REVO III on each side, also lasers on each side as well. It supports well, no bowing, easy set up (possible with one, two is better). Even though its a truss, the extension bars can also allow you to use it as two seperate T-stands if the venue wouldn't work with using it as the truss. The unit is very transformable, lightweight, easy to assemble, idiot proof really. I really like this truss system and don't see it being replaced anytime soon.
Musical Background:
beginner mobile DJ
16 of 16 people (100%) people found this review helpful. Did you?
