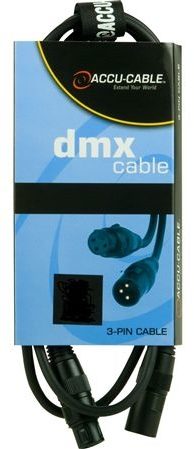

ADJ AC3PDMX 3-Pin DMX Cable

Conductor: Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354"
Conduct or Material: TC-Tinned Copper
Insulation: Insulation Material PE Polyethylene
Lay Length: 2.5"
Direction: Left Hand Lay
Twists: 4.8 per foot
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055"
Pair Color Code: Black/White
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Layer Number: 1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter: .229"
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2"
Maximum Recommended Pull Tension: 72 lbs.
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
Dimensions and Weight in Packaging
5 Foot
Shipping Weight: 0.25 lbs
Shipping Dimensions: 9 x 4 x 1 in
Manufacturer Part Number (MPN): AC3PDMX5
10 Foot
Shipping Weight: 0.5 lbs
Shipping Dimensions: 12 x 4 x 1 in
Manufacturer Part Number (MPN): ADJ AC3PDMX10
15 Foot
Shipping Weight: 0.5 lbs
Shipping Dimensions: 11 x 4 x 1 in
Manufacturer Part Number (MPN): AC3PDMX15
25 Foot
Shipping Weight: 0.75 lbs
Shipping Dimensions: 13 x 4 x 1 in
Manufacturer Part Number (MPN): AC3PDMX25
50 Foot
Shipping Weight: 1.25 lbs
Shipping Dimensions: 12 x 10 x 2 in
Manufacturer Part Number (MPN): AC3PDMX50
If you have additional warranty questions, please contact the manufacturer at 323-582-2650
(3 ratings)
Submitted September 6, 2017 by Joshua Prentice in Dayton, NV
"Good Quality DMX for the Price"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Nothing much to review. Cable is pretty rugged; haven't had it degrade at all and it's been used in various environments (Extreme Hot/Cold, Rain). For the price, great cable.
Musical Background:
Guitar/Drummer/DJ/Electronic Music Producer
Musical Style:
Electronic, Rock
5 of 5 people (100%) people found this review helpful. Did you?
