Goodwood Audio RCV Passive Junction Box

RCV is a passive junction box that converts a stereo or mono XLR signal from the Goodwood Audio LongLine and converts it to unbalanced 1/4" outputs.

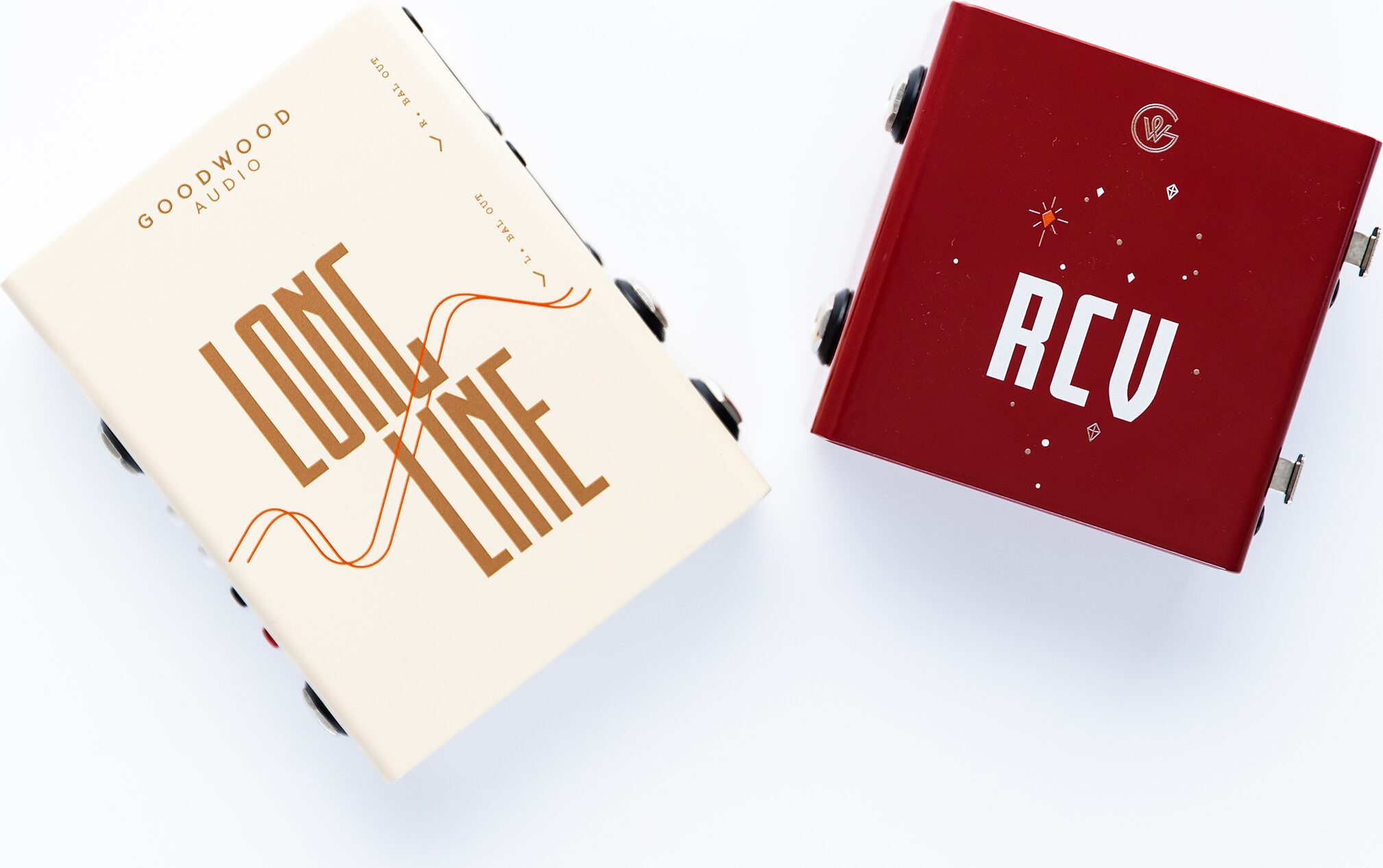

RCV is a passive box designed to receive balanced signal from the Goodwood Audio LongLine. RCV can receive a stereo or mono XLR signal from LongLine and convert it to unbalanced 1/4" outputs so you can plug your signal directly into your amp(s). RCV is designed to work in three configurations -- all receiving signal from LongLines XLR outputs.

A stereo XLR inputs - sending to two amps via RCV.
A dual mono signal - LongLine would be using it's summing or splitting options for this and still sending signal to two amps via RCV.
A Mono signal - Sending one XLR output from LongLine, you would now plug into RCV's left XLR input and it's left 1/4" output to your amp input.

RCV Inputs and Outputs:

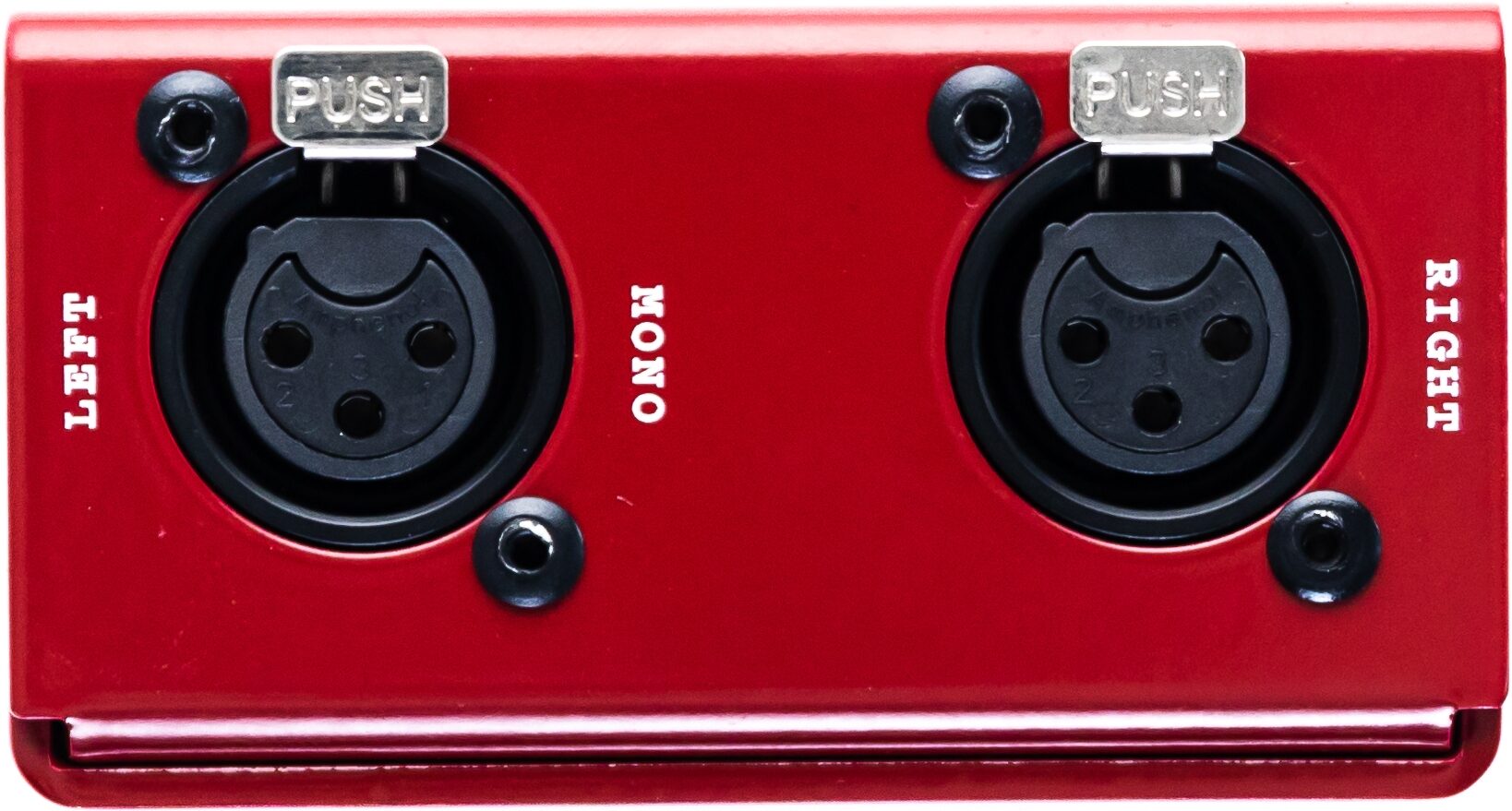

- Female XLR inputs: These XLR inputs are fed via XLR by the LongLine XLR outputs. On RCV, the Left female XLR input connects to the Left 1/4" output after being converted from balanced XLR to unbalanced 1/4". The same goes for the Right female XLR to right unbalanced 1/4" onboard RCV. If using mono, use the left input and output on RCV.

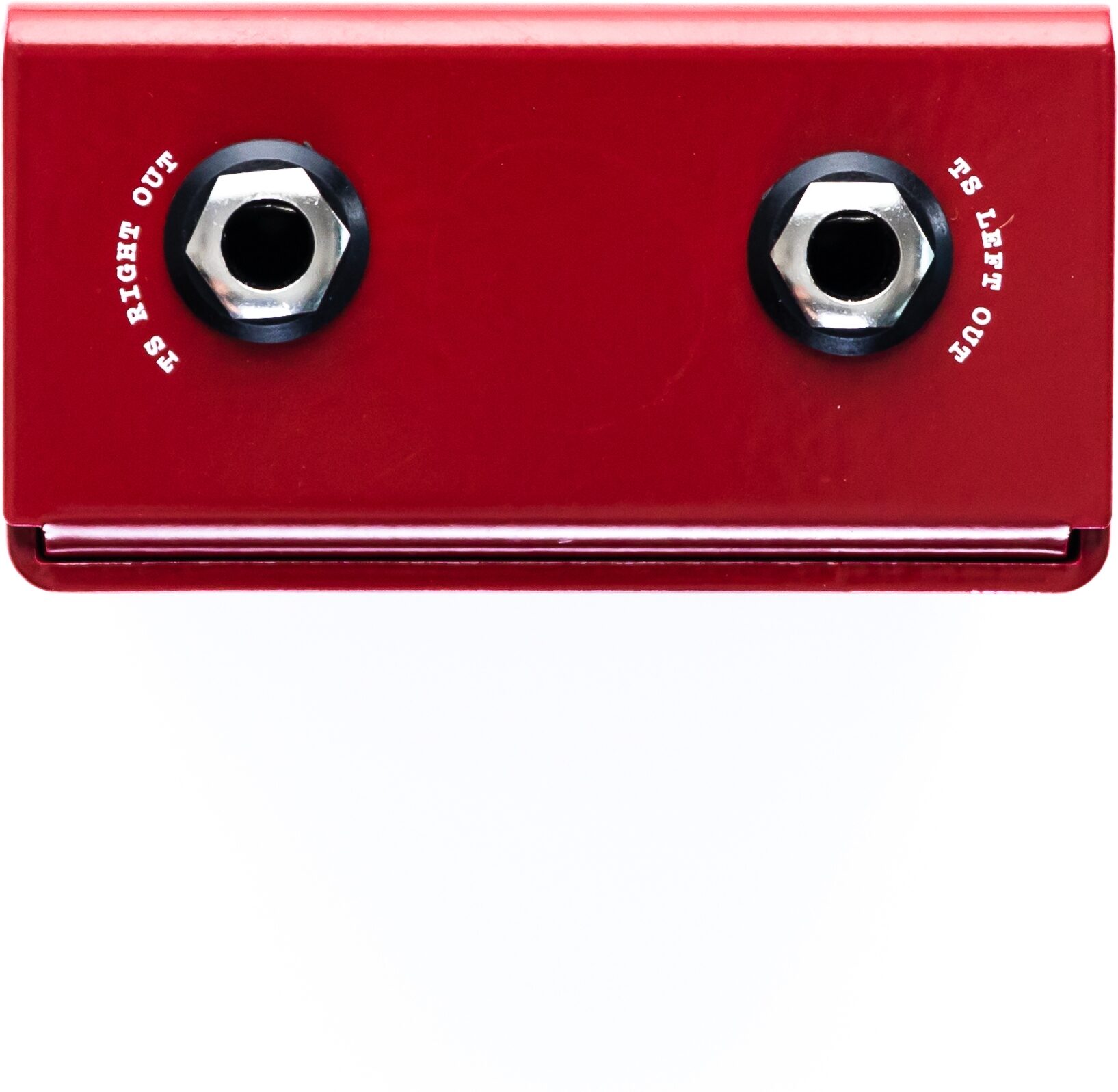

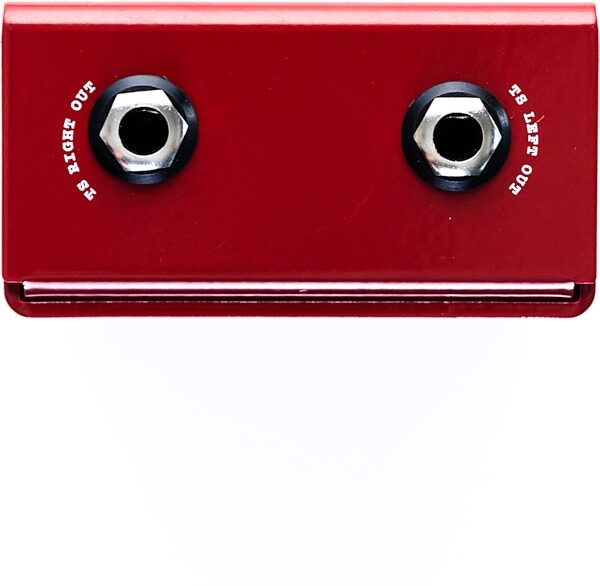

- Left and Right 1/4" unbalanced TS outputs: Plug these into your amp(s). If using in mono, plug in and out of the left input and output. Use a standard unbalanced guitar instrument lead or patch cable to connect to your amp. Best practice would suggest keeping this cable as short as possible, 5 feet being ideal.


- Use with LongLine only
- RCV is completely passive (no power required)
- Receives stereo or mono XLR signal from LongLine
- read more Converts signal to unbalanced 1/4" output
- Two XLR Inputs, two 1/4" Outputs
WARNING: Cancer and Reproductive Harm -
read less

- Inputs: Left and Right Female XLR inputs (balanced)
- Output: Left and Right 1/4" outputs (unbalanced)
- Power: N/A - Unit is passive
- Dimensions: 85mm x 85 x 43 (3.5" x 3.5 x 1.7)
- Weight: 180g (0.4lbs)
- Impedance: Low
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.75 lbs
Shipping Dimensions: 5 x 4 x 2 in
Manufacturer Part Number (MPN): RCV
