Fuchs ODH112 Hybrid Guitar Amplifier Combo (1x12", 150 Watts)
zZounds Gear Experts Say...
Grab the ODH 112 combo for complex, punchy tones in an ultra-portable package! Its reliable Class D power amp offers plenty enough power for almost any gig.
Overview

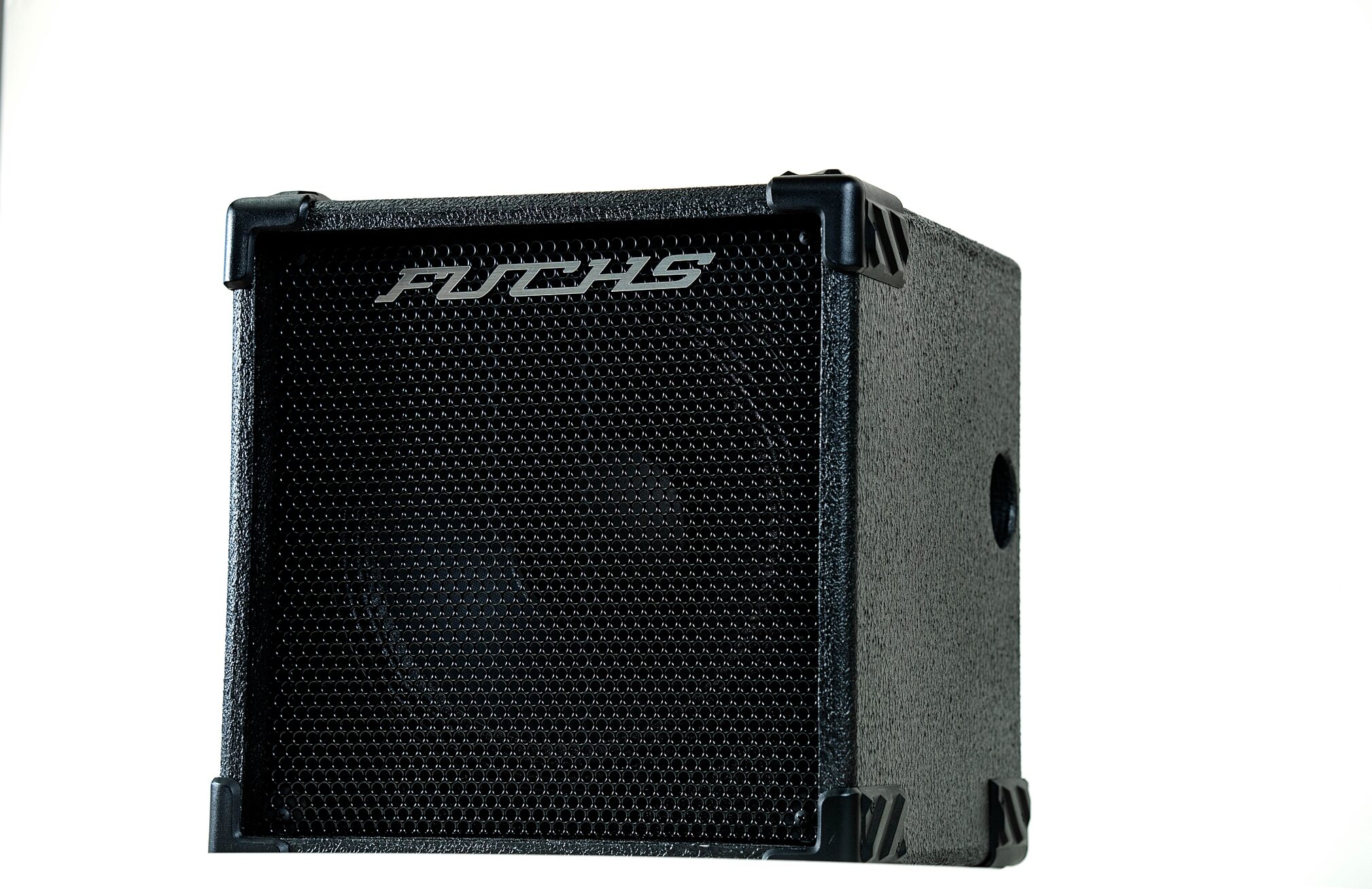

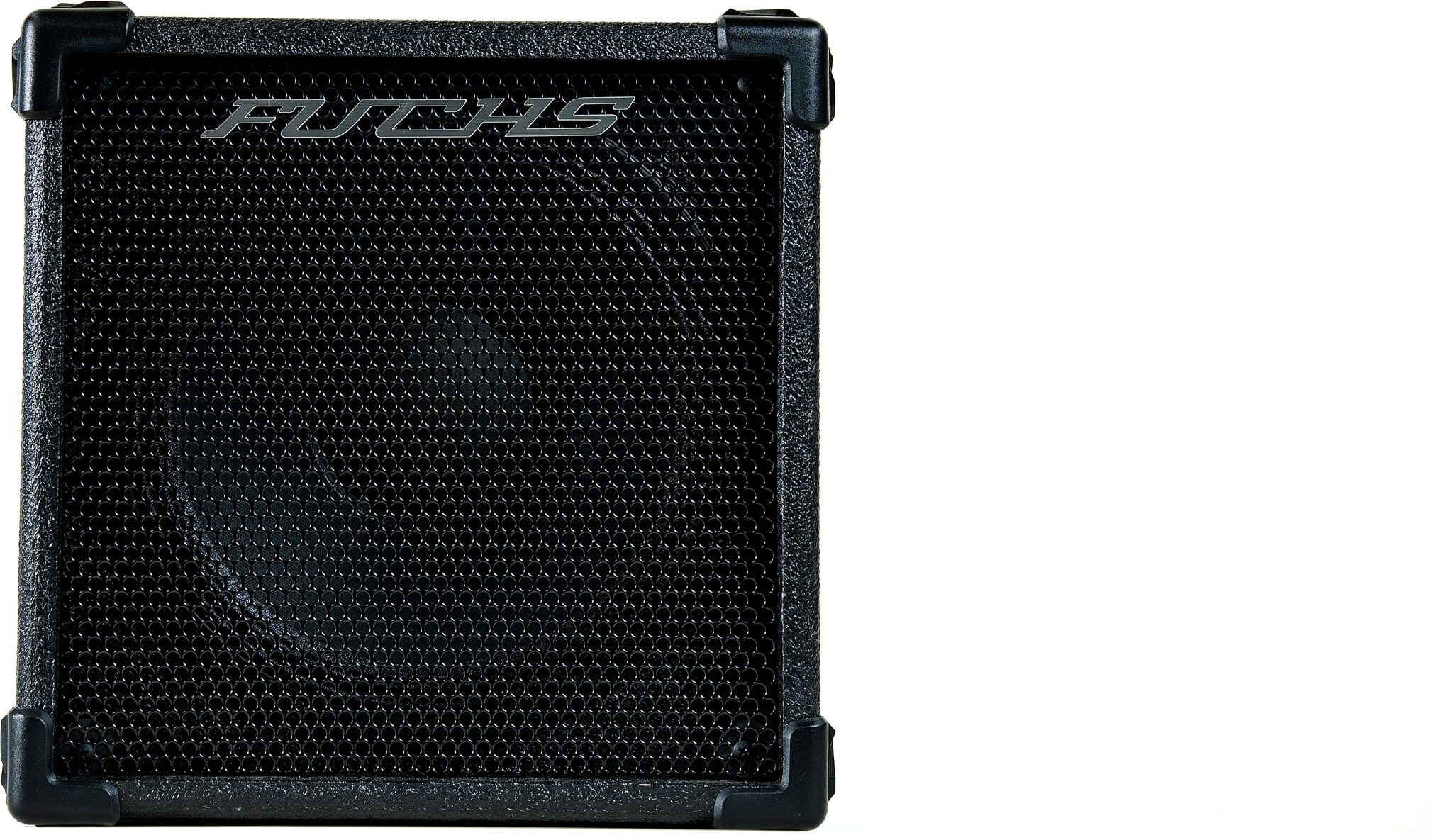

THE ODH 112 Combo: By popular demand, Fuchs' ODH is finally now available as a 112 combo! Since Fuchs introduced the ODH, Fuchs has been getting inquiries for a combo version. It took a while to find a form-factor Fuchs liked that delivered the tones Fuchs wanted. Fuchs' ODH amp is top mounted, recessed to protect the knobs, with vents on both sides to allow flow-through cooling of the preamp tubes. Loud and clean tones are delivered by a Celestion Neo 12" driver with 300-watt capacity.
The amp is 150 watts as a single speaker combo but add another 8-ohm cabinet for double the power and headroom. Like Fuchs' bass and guitar cabs the combo is covered in sprayed-on textured acrylic coating which won't tear, peel off or discolor. A stamped steel grille protects the speaker and cannot tear or fade over time like cloth would. A recessed steel handle will last a lifetime. A compartment at the rear ports the speaker portion for maximum low-end projection and also provides space for the included line cord and footswitch as well as access to the external speaker connection.
NOTE: The ODH 110 is 150-watts into the 8 ohm 200-watt rated internal speaker. The ODH 112 is a 300-watt rated 8-ohm speaker. Due to the built-in tube limiter, the likelihood of blowing speakers is reduced, but do use caution to protect both your ears and your speakers. When adding external cabinets, an 8-ohm load will yield a total of 300 watts, so the external cabinet should be at-least 150-w rated. When adding… read more external cabinets, be mindful of the power increase. With a 4-ohm external cabinet (or two more 8-ohm cabinets in parallel), you will have nearly 500 watts available, so use a cabinet with acceptable power handling and/or use caution.
- Ported cabinet optimizes low end performance
- Fan cooled
- Steel reinforced handle
- Acoustically treated interior
- Includes dual footswitch (channel and gain boost)
read less
The amp is 150 watts as a single speaker combo but add another 8-ohm cabinet for double the power and headroom. Like Fuchs' bass and guitar cabs the combo is covered in sprayed-on textured acrylic coating which won't tear, peel off or discolor. A stamped steel grille protects the speaker and cannot tear or fade over time like cloth would. A recessed steel handle will last a lifetime. A compartment at the rear ports the speaker portion for maximum low-end projection and also provides space for the included line cord and footswitch as well as access to the external speaker connection.
NOTE: The ODH 110 is 150-watts into the 8 ohm 200-watt rated internal speaker. The ODH 112 is a 300-watt rated 8-ohm speaker. Due to the built-in tube limiter, the likelihood of blowing speakers is reduced, but do use caution to protect both your ears and your speakers. When adding external cabinets, an 8-ohm load will yield a total of 300 watts, so the external cabinet should be at-least 150-w rated. When adding… read more external cabinets, be mindful of the power increase. With a 4-ohm external cabinet (or two more 8-ohm cabinets in parallel), you will have nearly 500 watts available, so use a cabinet with acceptable power handling and/or use caution.
- Features:
- 150-Watts @ 8-ohm internal speaker (power doubles into 4-ohms)- Ported cabinet optimizes low end performance
- Fan cooled
- Steel reinforced handle
- Acoustically treated interior
- Includes dual footswitch (channel and gain boost)
Specs
- Amplifier Type: Hybrid (Tube Preamp/Class-D ICE Power Amplifier)
- Speaker: Celestion Neo 12"

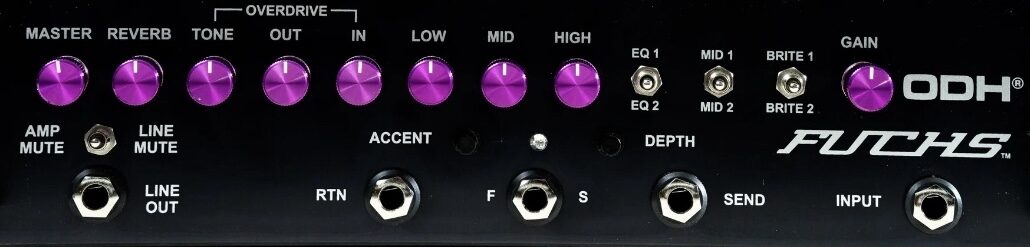

- Controls: 3-Position Brite switch, 3-position Mid-Boost switch, a 3-position EQ switch (two EQ's and Tone Bypass/Gain Boost), High, Mid and Low tone controls
- Power Ratings: 150-watts RMS into 8 ohms 300-watts RMS into 4 ohms 450-watts at 2.65 ohms (4 and 8 in parallel)
- Reverb: Spin Digital Reverb, interfaced through its own active reverb mixer
- Channels: Two (Clean and Overdrive)
- Effects Loop: Fully Buffered Series Effects Loop
- Outputs: Line Out and Dual Speaker Jacks
- Covering: Sprayed-on Textured Acrylic Coating
- Grill Cover: Stamped Steel
- Dimensions: 15"x 15"x 13.5"
- Weight: 23lbs
- Speaker: Celestion Neo 12"
- Controls: 3-Position Brite switch, 3-position Mid-Boost switch, a 3-position EQ switch (two EQ's and Tone Bypass/Gain Boost), High, Mid and Low tone controls
- Power Ratings: 150-watts RMS into 8 ohms 300-watts RMS into 4 ohms 450-watts at 2.65 ohms (4 and 8 in parallel)
- Reverb: Spin Digital Reverb, interfaced through its own active reverb mixer
- Channels: Two (Clean and Overdrive)
- Effects Loop: Fully Buffered Series Effects Loop
- Outputs: Line Out and Dual Speaker Jacks
- Covering: Sprayed-on Textured Acrylic Coating
- Grill Cover: Stamped Steel
- Dimensions: 15"x 15"x 13.5"
- Weight: 23lbs
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 25 lbs
- Shipping Dimensions: 21 x 21 x 21 in
- Manufacturer Part Number (MPN): ODH 112
Open Box (Very Good)
- Shipping Weight: 25 lbs
- Shipping Dimensions: 21 x 21 x 21 in
- Manufacturer Part Number (MPN): ODH 112
