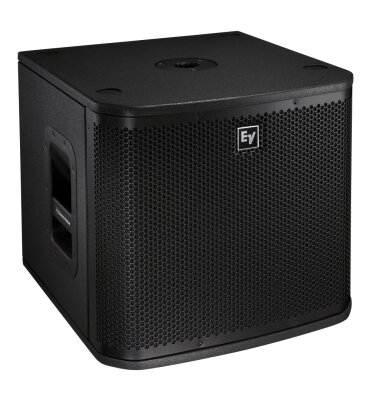

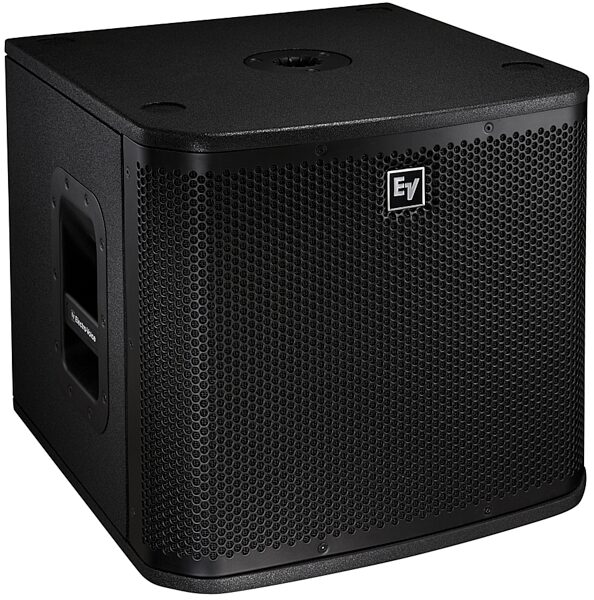

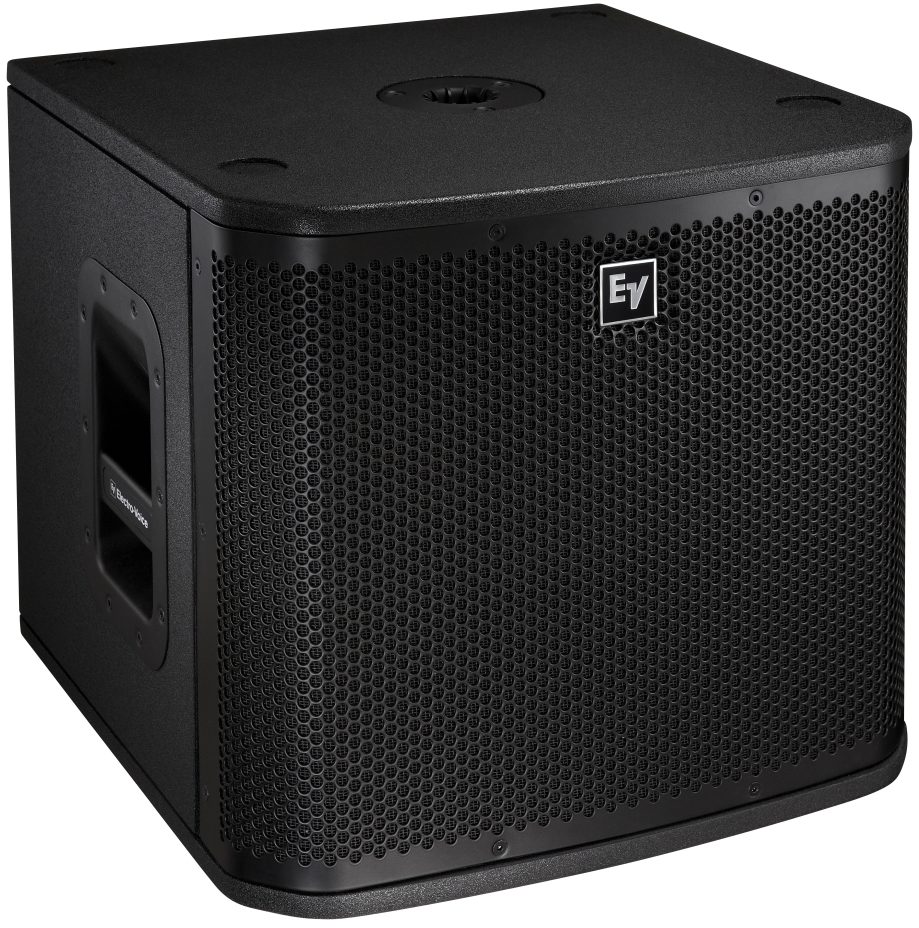

Electro-Voice ZXA1-Sub Powered Subwoofer

Extend your PA system's low-end punch with this powered 700-watt subwoofer from Electro-Voice -- a perfect sub to pair with your ZXA full-range loudspeakers.

The Electro-Voice ZXA1-Sub powered subwoofer gives you an excellent, articulate active sub in an extremely portable design. Overall, it is surprisingly light and powerful for its 700-watt power rating.

Don't Let The Size Fool You

Measuring less than 16 x 18 x 18 inches, and weighing in under 50 pounds, the ZXA1-Sub subwoofer still manages to deliver 700 watts of room-shaking power. It does this largely with its use of a cleverly designed Class D amplifier inside, which cuts down on the weight of the circuitry and also runs cooler and more efficiently.

Sounds Great at Any Level

The EV ZXA1-Sub's 9-ply 15 mm wood cabinet is uniquely designed to faithfully reproduce your low-end frequencies without getting "boxy" sounding when you push the volume to the limit. The excellent amplifier inside the ZXA1-Sub, running through the single EVS-12S 12-inch woofer, delivers a bass tone that is clearly defined and retains the tonal detail that you've spent your time crafting. An impressive maximum SPL rating of 126 dB makes it one of the more efficient amps for its size and weight as well.

XLR I/O and Easy-To-Use Controls

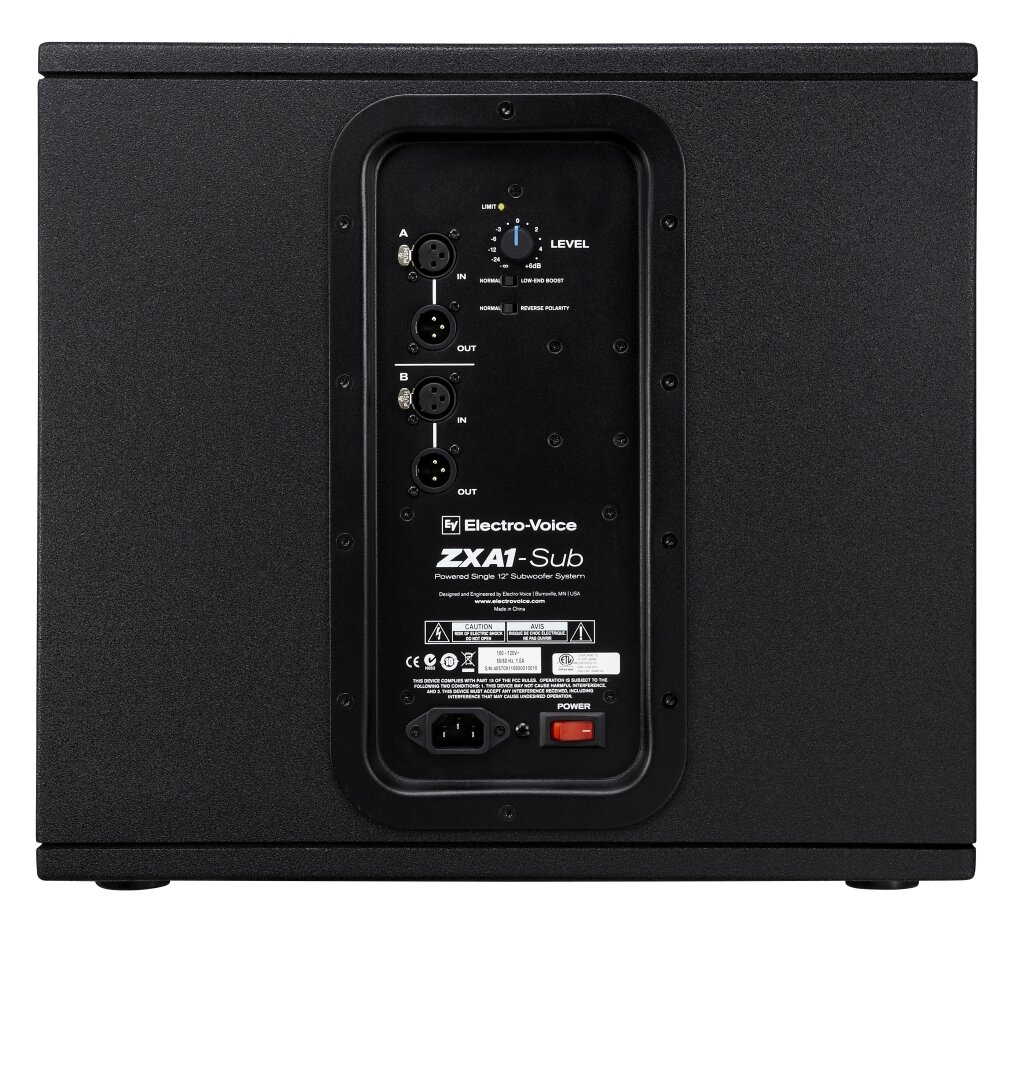

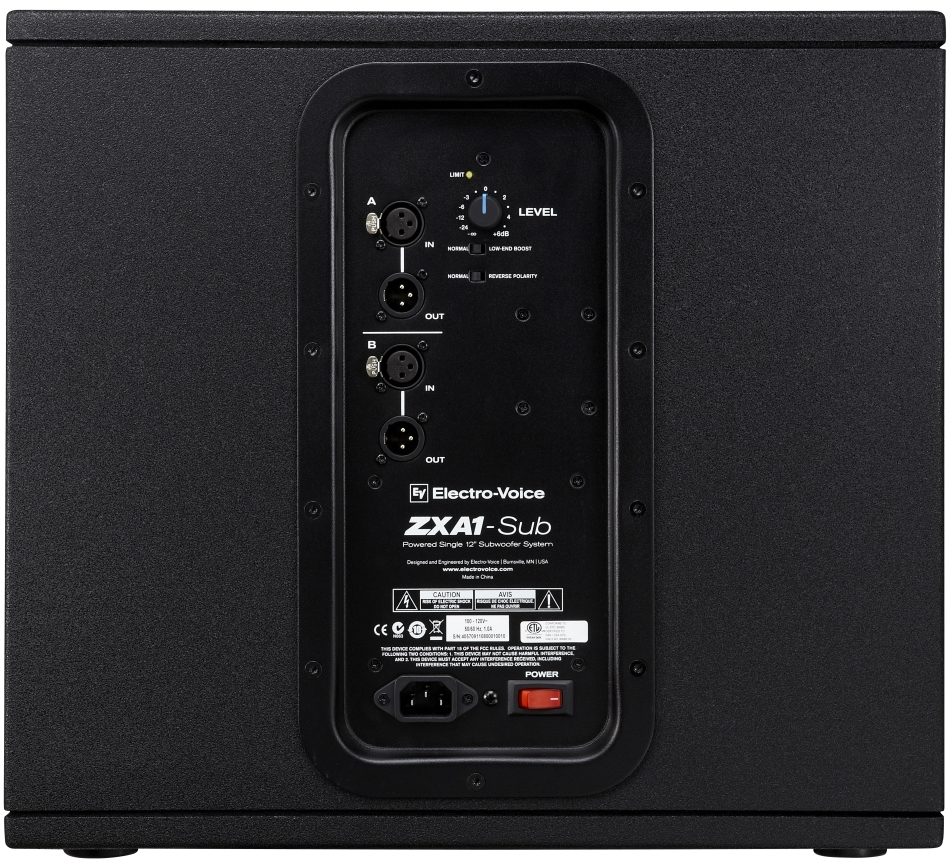

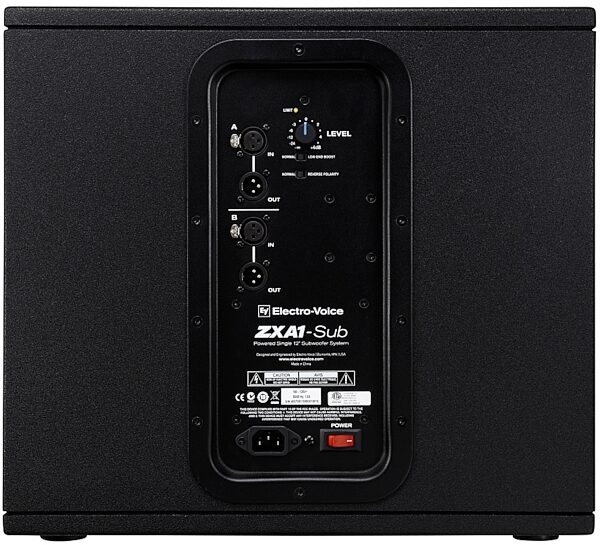

The controls on the ZXA1-Sub are totally straightforward. It has 2 x XLR balanced stereo inputs, as well as 2 x XLR balanced stereo outputs. It has its own Volume Level knob on the back panel. It can be run in Normal or Bass Boost modes. A handy Polarity Switch knob is also provided here.

Use With Other ZXA1s or Other Powered Speakers

Overall, the read more ZXA1-Sub was voiced and designed to be the perfect complement to your full-range Electro-Voice ZXA powered speakers. But if you want to integrate its tone with a pre-existing speaker rig, it'll serve well in any situation where you need a 700-watt subwoofer to hold down the low end. It's got an integrated handle to make lugging it around easy, and a built-in pole mount when you want to get it off the ground in a full-range setup.

Check out our exclusive run-down of the Electro-Voice ZXA1-Sub Powered Subwoofer:


Features:

- Integrated 700-Watt Class D amplifier
- EVS-12S 12-inch woofer
- Dual XLR stereo inputs and outputs
- Pole-mounting cup for full-range systems
- 126 dB maximum SPL
- 9-ply/15-mm wood enclosure
- Internally braced for durability
- Integrated handle
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Pole-Mount Socket Size: 1-3/8" (35 mm)

- Frequency Response (-3dB): 53Hz-93Hz1
- Frequency Range (-10dB): 44Hz-118Hz1
- Max. Measured SPL: 126dB1, 2
- Coverage (Horizontal x Vertical): Omnidirectional
- Power Rating: 700W
- LF Transducer: (1) EVS-12S, 305mm (12 in.) Woofer
- Crossover Frequency: 100Hz

Connectors:
- (2) XLR Stereo Input
- (2) XLR Stereo Output

- Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint

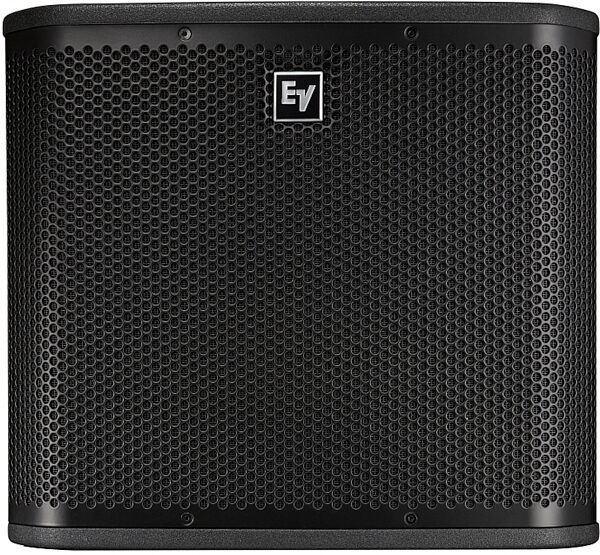

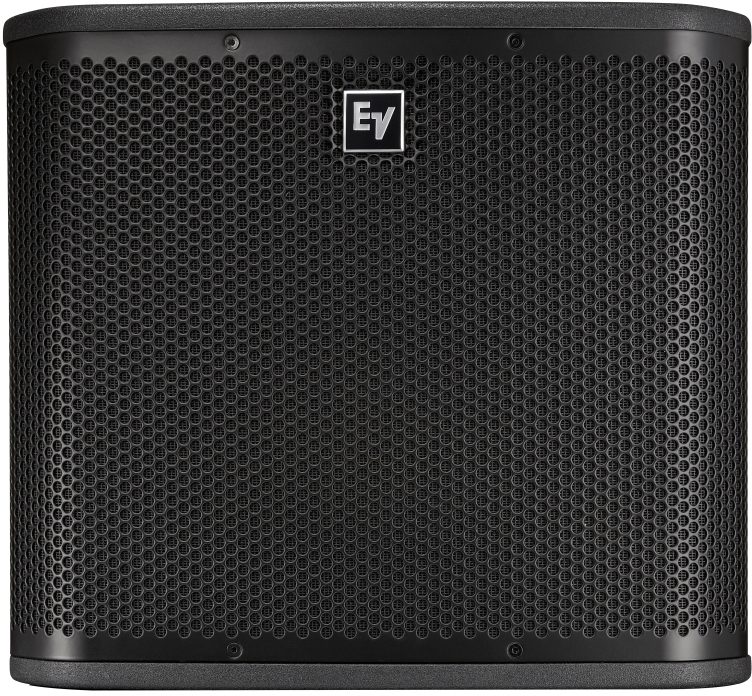

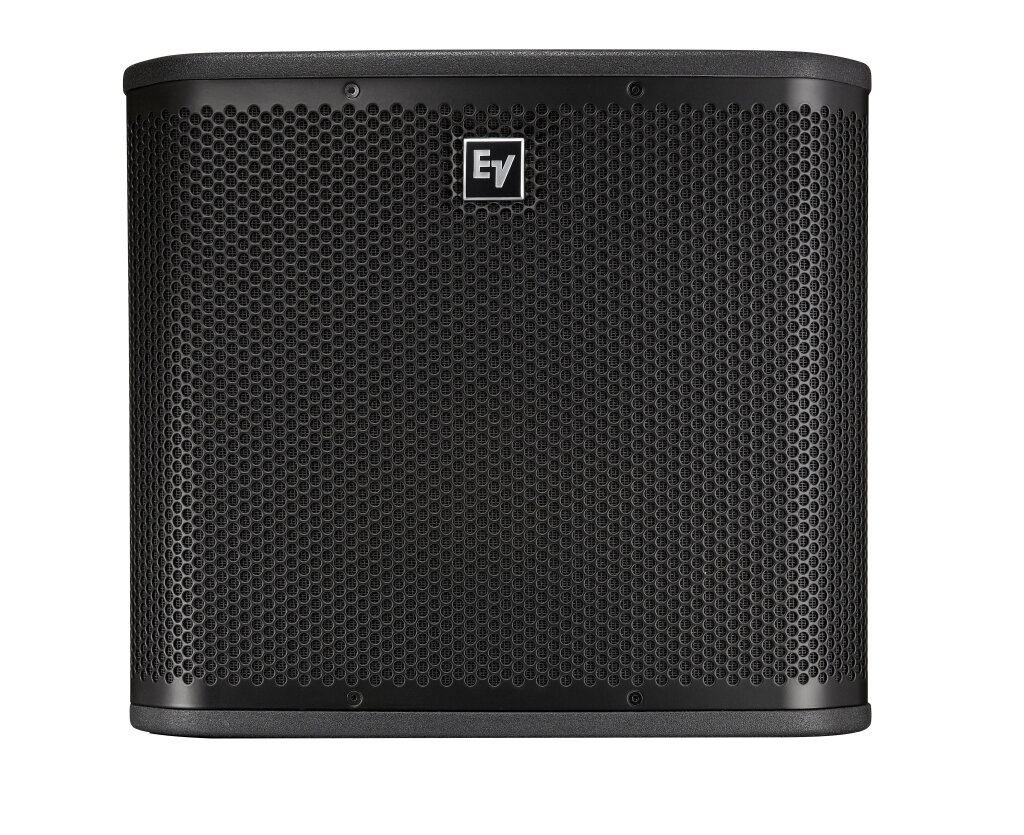

- Grille: 16GA Steel with Black Powdercoat
- Mains Requirements: 120V: 90V-132V, 1.0A3, 50-60Hz
- 1-3/8" (35 mm) pole-mount socket
- Dimensions (H x W x D): 15.7" x 17.50" x 18.00"
- Net Weight: 46 lbs
- Shipping Weight: 56.5 lbs
Dimensions and Weight in Packaging
Single
Shipping Weight: 59.25 lbs
Shipping Dimensions: 22 x 20 x 18 in
Manufacturer Part Number (MPN): F.01U.247.468
Pair
Shipping Weight: 118.5 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/

Electro-Voice ZXA1 Powered Subwoofer

The ZXA1-Sub is designed to provide the ultimate combination of portability, performance, and power in a lightweight, stylish, small-format package. Though equipped with a heavy-duty EV-engineered woofer, a state-of-the-art 700-watt amplifier, a durable 15-mm wood enclosure, and a maximum SPL rating of 126 dB, the ZXA1-Sub weighs-in at just 46 lbs and sports a trim 15.75 x 17.5 x 18 inch profile.

Add easy-to-use controls and connectivity to the equation and a ZXA1-Sub makes enhancing a compact sound system with professional-quality low-end easier than ever.

Features:

- Integrated 700-W Class-D amplifier
- EVS-12S 12-inch woofer
- 126-dB maximum SPL
- Dual XLR stereo inputs and outputs
- Pole mount for full-range systems
- 9-ply/15-mm wood enclosure, internally braced, with textured paint
- DSP with low-end boost and polarity control
- 46 pounds, with integral handle for easy carriage
- Compact 15.75" x 17.5" x 18" profile

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (32 ratings)
Submitted May 13, 2013 by a customer from hotmail.com in Pickerington, OH
"a mobile DJ's Dream Sub come true"
Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I've been a mobile DJ for years. Got rid of my SUV last year so I decided to switch my older larger gear to smaller gear (laptop, controller, powered speakers, etc.) which I loved being able to DJ being able to carry everything in my Nissan Sentra. I originally purchased the Mackie Thumps TH15A's and then later upgraded to the SRM450v2's (which I love both sets of speakers) but all of my DJ buddies were always saying that I should get a sub. I never used a sub before and didn't ever think about it because they are mainly big huge and heavy then someone told me about this one and I did my research, went to the local Guitar Center to check it out and I was blown away. I narrowed down my choices to this sub and the Mackie DLM12S and I went with this one because of the price (the Mackie one had all of the bells and whistles but sound and quality-wise there wasn't really that much of a difference as far as I could tell.) I love it and it really adds some lows to my system. One sub works perfectly fine for my needs but I'm planning to eventually get a 2nd just for any larger gigs I may get.
Musical Background:
20 plus year veteran DJ
Musical Style:
mobile DJ so I play a bit of everything
19 of 19 people (100%) people found this review helpful. Did you?
