Electro-Harmonix Battalion Bass Preamp and Direct Box

Give your bass rig some extra firepower with the Battalion. This preamp and DI combines compression, EQ, distortion, and a gate to sculpt formidable tones.

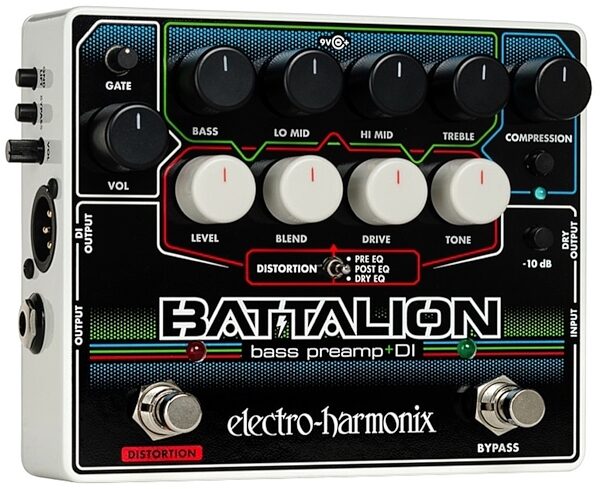

The Electro-Harmonix Battalion Bass Preamp and DI is a compact, flexible pedal that delivers powerful tone shaping capabilities in a rugged pedalboard-friendly package. The Battalion is loaded with features that will appeal to tone conscious bass players and includes a four-band equalizer, fully-featured MOSFET distortion section with three signal path options, a compressor, a noise gate and comprehensive I/O.

Features:

- Four-band EQ tailored specifically for bass guitar. Includes controls for Bass (below 200Hz), Lo Mid (boost/cut at 280Hz Mid (boost/cut at 750Hz) and Treble (boost/cut above 2kHz).
- The Battalion's distortion section delivers an awesome array of distorted bass sounds.
- Distortion section features Level, Blend, Drive and Tone controls plus a dedicated footswitch.
- Three signal flow modes yield unique tonal variations. Pre EQ, distortion comes before EQ. Post EQ, distortion comes after EQ and Dry EQ, only the dry signal mixed in with the Blend control is affected by the EQ
- Compressor with dedicated pushbutton, amount control and LED adds thump and sustain to your bass sound
- Noise Gate with adjustable threshold control eliminates noise and hum while preserving your attack and original tone
- Flexible I/O allows the Battalion to fit perfectly in any bass rig or application
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- 1/4" input jack includes switchable 10dB pad
- Includes a headphone ready 1/4" output jack plus a hardwired 1/4" dry output jack
- Balanced XLR output for use as a DI. The DI features dedicated level, bypass and ground lift controls

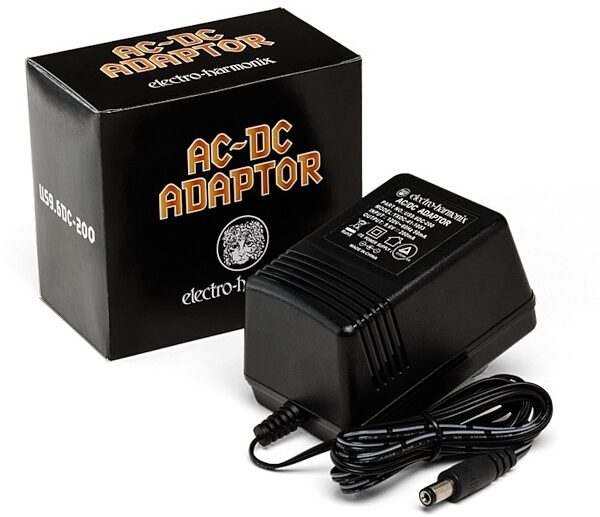

- The Battalion features all-analog circuitry and comes with an EHX9.6DC-200mA AC adapter
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.25 lbs
Shipping Dimensions: 8 x 7 x 4 in
Manufacturer Part Number (MPN): BATTALION

For support or warranty questions, please contact the manufacturer:
Phone: 718-937-8300
Email:
Web:

Reviewers gave this product an overall rating of 5 out of 5 stars. (6 ratings)
Submitted December 21, 2021 by a customer from gmail.com
"Fantastic for the money"
Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Disclaimer: I am NOT a pro bassist, nor even especially skilled at it - I'm a guitarist who likes playing bass, and recording parts when I'm writing. With that in mind, I really wanted an all-in-one pedal for my bass that will cover everything I need in case I have to go lay down tracks somewhere without lugging my giant Kustom 1x15 cab around, and this one checked all the boxes: - All-analog - 4-band EQ - Footswitchable OD/distortion with "Blend" control - flexible DI I'll talk about the unit overall, then touch on each feature briefly, so this review doesn't go on forever ;) Is it 5 stars if price was no object? No. But this thing costs less than pedals that don't do half of what it does, or sound as good doing it, so yea.First, the pedal itself is well-constructed. Heavy duty enclosure and footswitches, solid-feeling knobs and jacks, and overall good build quality means I don't worry about stomping on it. Lots of controls, but they're laid out in labeled, color-coded sections to keep things organized. Push-button switches to engage the compressor, -10dB pad, XLR ground lift and bypass, and two stomp switches to engage the pedal and switch distortion on or off.First up in the signal chain: a -10dB pad button for active or high-output basses. Pretty straightforward, but the first pedal I received was missing this button - luckily I had ordered from zZounds, who sent a replacement before I even shipped the first one back. The second one is in perfect shape, and the input pad read more works as expected.Next is a one-knob compressor with an on/off button and blue LED to tell you if it's engaged. This is one thing that I think many dedicated bassists won't care much for; it works fine, but some people would probably want more control. I've noticed that it slams the signal hard enough to distort if I turn it up past about 10 o'clock on the dial, but I'm using high-output pickups, and I've read that there's an internal trim pot to adjust the signal level going into it, so I'll try that eventually. For now, it works as I expect it should, and wasn't why I bought the thing anyway.After that, you have a 3-way switch that re-orders the EQ and distortion circuits in one of 3 configurations: "Pre-EQ" (distortion before EQ), "Post-EQ" (EQ before distortion), and "Dry EQ" (distortion and clean EQ'd signal in parallel, blended with the distortion's "Blend" knob). This gives you a LOT of flexibility in how you want your distorted signal to sound. Personally I like the "Dry EQ" option best, but play with it and see what you can come up with.From there, depending how you set the 3-way switch, is a 4-band EQ with knobs for Bass, Lo-Mid, Hi-Mid, and Treble. Again pretty self-explanatory, but VERY effective in getting different sounds. There are pedals that cost the same amount of money for just a 4-band EQ alone, and this one does the job really well.Next up: Distortion! Again, I've seen bass pedals with less control than this cost more for OD/distortion alone, and again, this one does a very good job. Knobs for Level, Blend, Drive, and Tone, with a REALLY wide range on each. The drive control in particular will go from just a little gritty texture to full-on stoopid levels of fuzz that nobody could possibly need, and the whole range sounds musical. I like setting it to a fairly crunchy overdrive, then using the "Blend" control to get a lot of the clean EQ'd signal with the "Dry EQ" switch engaged.Last in the signal chain is a single-knob noise gate, which I don't see much use for. The pedal really isn't very noisy, so unless your signal is noisy going in, you might wind up just ignoring the gate like I do. The single threshold knob works fine, but there is a noticeable click when the gate closes - probably fine for live stuff, but I would turn it all the way down for recording.From there, the output section. There's a master output volume control for the wet 1/4" output, dedicated volume, ground-lift and effect-bypass buttons for the XLR DI output, plus separate dry (no-effect) and wet (including stereo headphone support, cool bonus!) 1/4" outputs. Again mostly self-explanatory, but worth knowing they're there - especially the XLR controls. The bypass button gives you the option to output the sound of the pedal through the XLR out, or push the dry signal through with no processing if you want to use it only as a DI. The dry 1/4" out lets you send an unaffected signal wherever you like, and the wet output can go to an amp, audio interface, or even headphones for silent practice - and it sounds good!Cons: Not many, especially considering the price tag. I do think the noise gate could have been skipped to make room for more controls on the compressor, and I would prefer an additional footswitch to toggle the EQ on and off for even more flexibility, but neither of these complaints are serious deal-breakers.Overall: Ummmmm, yea. It's awesome. It's a quality all-analog EQ, OD/distortion, and DI with tons of flexibility at a price that nobody else is even coming close to. It's burly, flexible, affordable, and it sounds great. If it broke, I would get another one.

read less
2 of 2 people (100%) people found this review helpful. Did you?
