8 ohms Stereo: 275 watts (per channel)
4 ohms Stereo: 500 watts (per channel)
2 ohms Stereo: 700 watts (per channel)
8 ohms Bridge - Mono: 1000 watts
4 ohms Bridge - Mono: 1,400 watts
Input EQ: 6 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes +/- 15 dB bandpass gain and polarity control.
Output EQ: 8 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. This 8-filter EQ section can be bypassed.
Delay: For signal alignment of driver; 50 mS of total delay.
SubHarmonic Synth: Takes the low-frequency content of the input signal and "synthesizes" a signal that is the same as the input signal but one octave lower. The synthesized signal is then mixed with the original signal to create the effect: users now have control over frequency, gain, and filter type.
Peakx(TM) Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times.
Presets: 30 total presets, 29 of which are user-definable.
Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, -1 dB
Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):
- XTi1002/2002/4002: 100 dB (A weighted)
Total Harmonic Distortion (THD): < 0.5%
Damping Factor 20 Hz to 1 kHz: > 500
Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal: +22 dBu typical
AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
AC Line Current: (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)
- XTi1002: 6.8A; no more than 38W at idle
- XTi2002: 8.3A; no more than 38W at idle
- XTi4002: 10.5A; no more than 38W at idle
- XTi6002: 15.3A; no more than 180W at idle
Operating Temperature: 0*C to 40*C at 95% relative humidity (non-condensing)

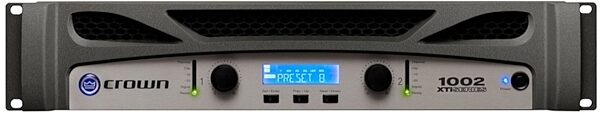

Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifier
Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status
Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.
-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip.
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.
Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditions
Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power

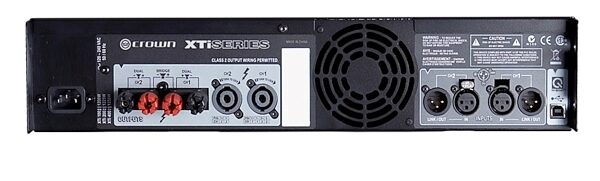

Input Connectors: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors: Two Neutrik(R) Speakon(R) NL4MP output connectors. Channel-1 Speakon(R) is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon(R) connectors).
HiQnet(TM) USB Connector: Type B, connects to HiQnet(TM) network.
Front Panel: Cast-aluminum
Cooling: Proportional speed fan with front-to-rear airflow.
XTi 1002/2002/4002: 19" (W) x 3.5" (H) x 12.25" (D)
Net Weight: XTi 1002/2002/4002: 18.5 lbs (8.4kg)
Shipping Weight: XTi 1002/2002/4002: 21.5 lbs (9.8kg)
