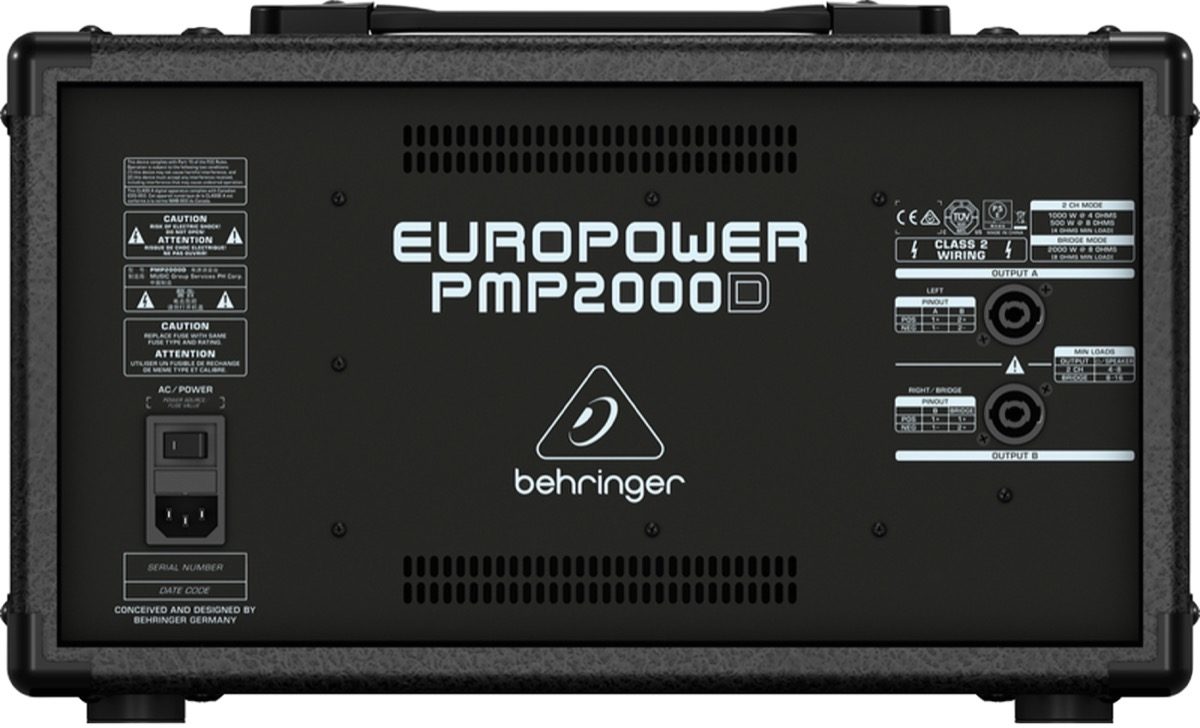

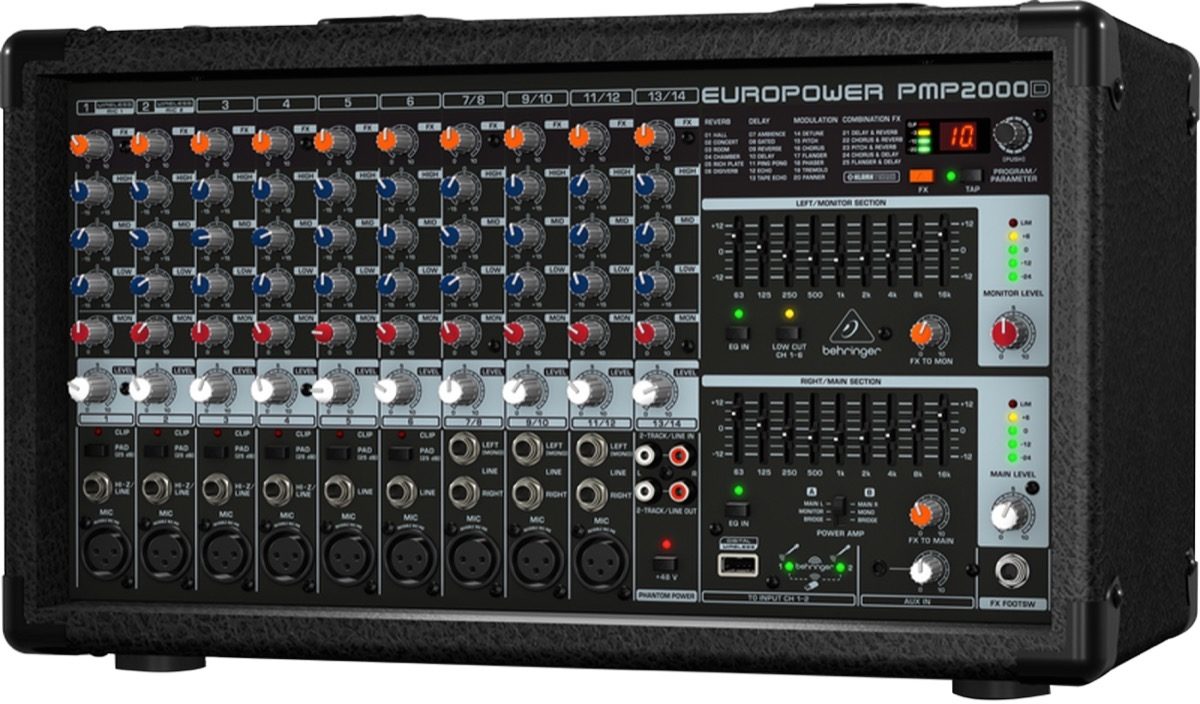

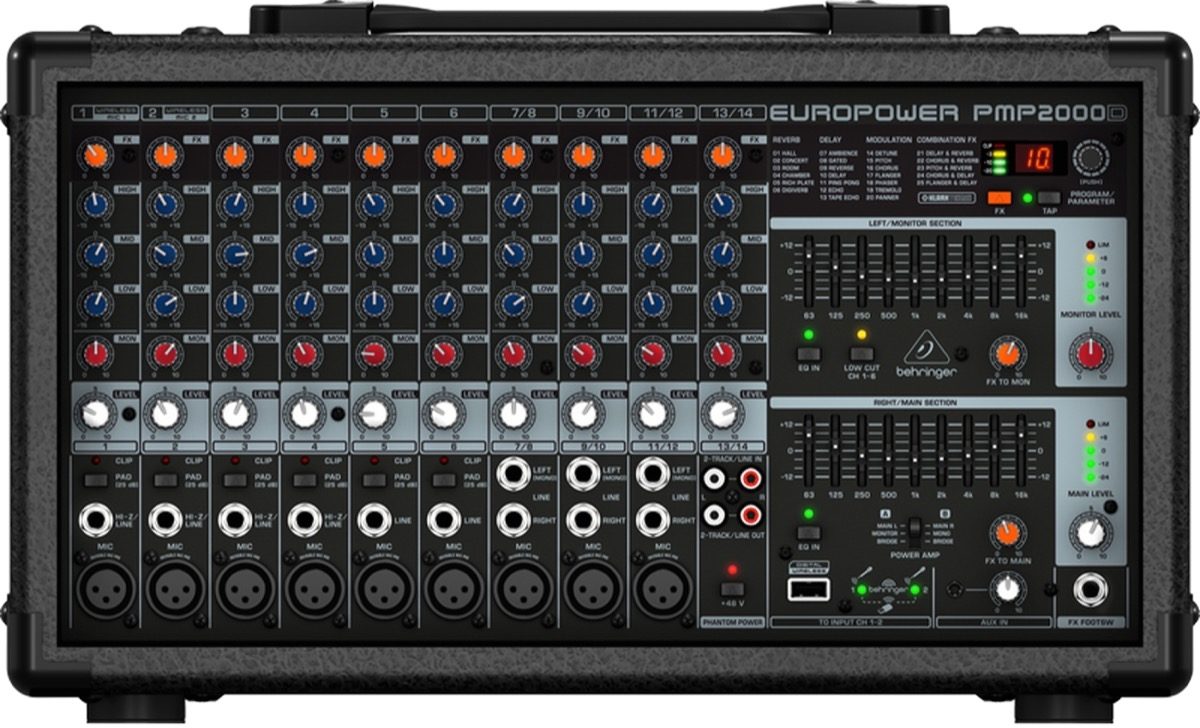

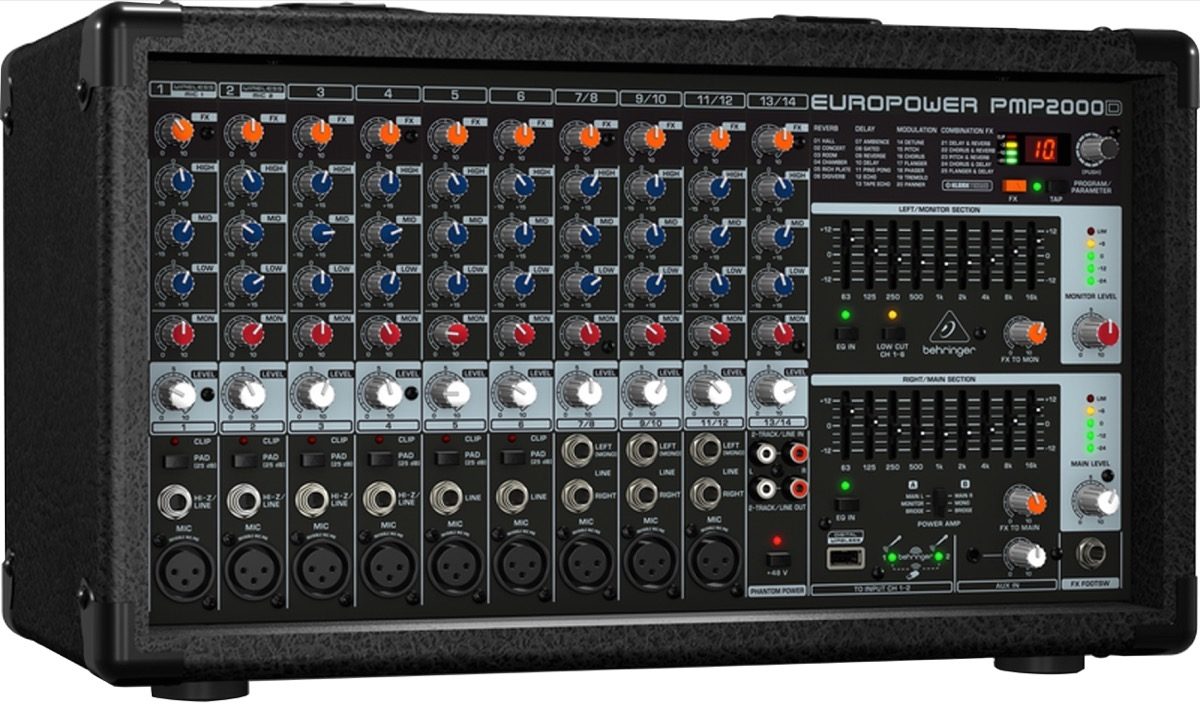

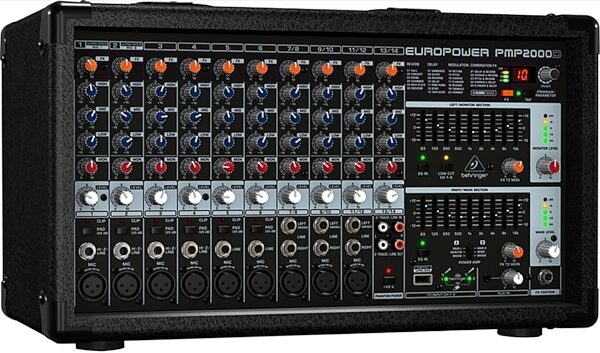

Behringer PMP2000D Powered Mixer (2000 Watts)

Note: When using in Monitor/Main mode, Channel EQs do not affect the monitor output.

Microphone Inputs:
Type: 9x XLR, electronically balanced
Mic Input Noise (E.I.N.): 20 Hz to 20 kHz
At 0 Ohms Source Impedance: -108 dB / -110 dB A-weighted
At 50 Ohms Source Impedance: -108 dB / -110 dB A-weighted
At 150 Ohms Source Impedance: -106 dB / -107 dB A-weighted
Frequency Response: < 20 Hz to 22 kHz (-1 dB)
< 20 Hz to 35 kHz (-3 dB)
Maximum Input Level: +13 dBu with PAD
Impedance: 1.5 kOhms, balanced
Signal-to-Noise Ratio (SNR): 98 dB / 100 dB A-weighted (-15 dBu In @ +35 dB gain)
Distortion (THD): 0.002%, A-weighted
Pad: -25 dB, channels 1-6
Phantom Power: Switchable +48 V

Hi-Z / Line Inputs:
Type: 4x 1/4" / 6.35 mm TRS, balanced (channels 1-4)
Impedance: 1.8 MOhms balanced, 1 MOhm unbalanced
Max Input: + 22 dBu
Mono Input Channels
Type: 2x 1/4" / 6.35 mm TRS connector, channels 5-6
Impedance: 20 kOhms balanced, 10 kOhms unbalanced
Maximum Input Level: + 22 dBu

Stereo Inputs:
Type: 6x 1/4" / 6.35 mm TRS connector, balanced channels 7-12
Impedance: 20 kOhms balanced, 10 kOhms unbalanced
Maximum Input Level: + 22 dBu

Track:
Line In: 2-Track / Line In: 2x RCA, unbalanced, channels 13-14
Impedance: 20 kOhms unbalanced
Gain Range: - ∞ dB to + 20 dB
Maximum Input Level: + 22 dBu
Equalizer
Equalizer: Low: 60 Hz (± 15 dB)
Mid: 700 Hz (± 15 dB)
High: 6 kHz (± 15 dB)

Aux Inputs:
Type: 1/8" / 3.5 mm TRS connector, unbalanced
Impedance: 10 kOhms
Gain Range: - ∞ dB to +20 dB

Line Output:
Type: 2x RCA, unbalanced
Impedance: 2.4 kOhms
Maximum Output Level: + 9 dBu

Equalizer:
Graphic EQ: Type: Analog 9-band equalizer
Frequency Range: 20 Hz to 20 kHz in 9 1-octave bands (ISO frequencies)
Bandwidth: 1 octave
Control Range: ± 12 dB
Low Cut Frequency: Type: 18 dB/oct, Butterworth, channels 1-6
Frequency: 100 Hz

Wireless:
USB: USB Dongle (Not Included): USB socket accepts signals from a maximum of two Behringer ULM microphones
Signal Indicator: LED: 2x green

Main Mix:
Noise: Main Mix at - ∞, Channel Fader at - ∞: - 59 dBu / - 59 dBu A-weighted
Main Mix at 0 dB, Channel Fader at - ∞: - 56 dBu / - 56 dBu A-weighted
Main Mix at 0 dB, Channel Fader at 0 dB: - 56 dBu / - 56 dBu A-weighted

Amplifier:
Maximum Output Power: Both Channels Driven
8 Ohms Per Channel: 500 W
4 Ohms Per Channel: 1000 W
Bridged Mode
8 Ohms: 2000 W

Speaker:
Type: Speakon connector
Load Impedance: Left/Monitor: Minimum 4 Ohms
Right/Mono: Minimum 4 Ohms
Bridge: Minimum 8 Ohms

General:
Display: 2-digit, 7-segment LED
Power: Mains voltage
120 VAC, 50/60 Hz
Mains Connection: Standard IEC receptacle
Fuse: T 8 A H 250 V

Power Consumption:
Power Consumption at 4 Ohms, 1/8 Rated Power: 180 W

Dimensions (H x W x D): 10.9 x 17.9 x 9.8" / 27.6 x 45.5 x 25.0 cm
Weight: 19.8 lb / 9.0 kg
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 23.25 lbs
Shipping Dimensions: 21 x 14 x 13 in
Manufacturer Part Number (MPN): PMP2000D
(7 ratings)
Submitted February 14, 2017 by Jim L in Lake Bluff, IL
"Just what I needed - Power, ease, portability"
Received this unit and Power a massive Peavey Speaker Array, in a 40 by 80 garage. Clean, crisp power with awesome effects. Hook your phone or ipad dial your favorite songs, sit back ad relax. Have miked the lead guitar, base, drums, and B3 up - blown it through the Peavey array with 4 vocal mikes - the Behringer PMP2000 brought it!!!
Musical Background:
30 years - lead guitarist
Musical Style:
Rock
22 of 22 people (100%) people found this review helpful. Did you?
