Audio-Technica ATW-3211N 3000 Series Wireless Bodypack System (Network-Enabled)

Add a lav mic or cable with cH-style connector to complete this wireless system, including the ATW-R3210N network-enabled receiver and ATW-T3201 bodypack.

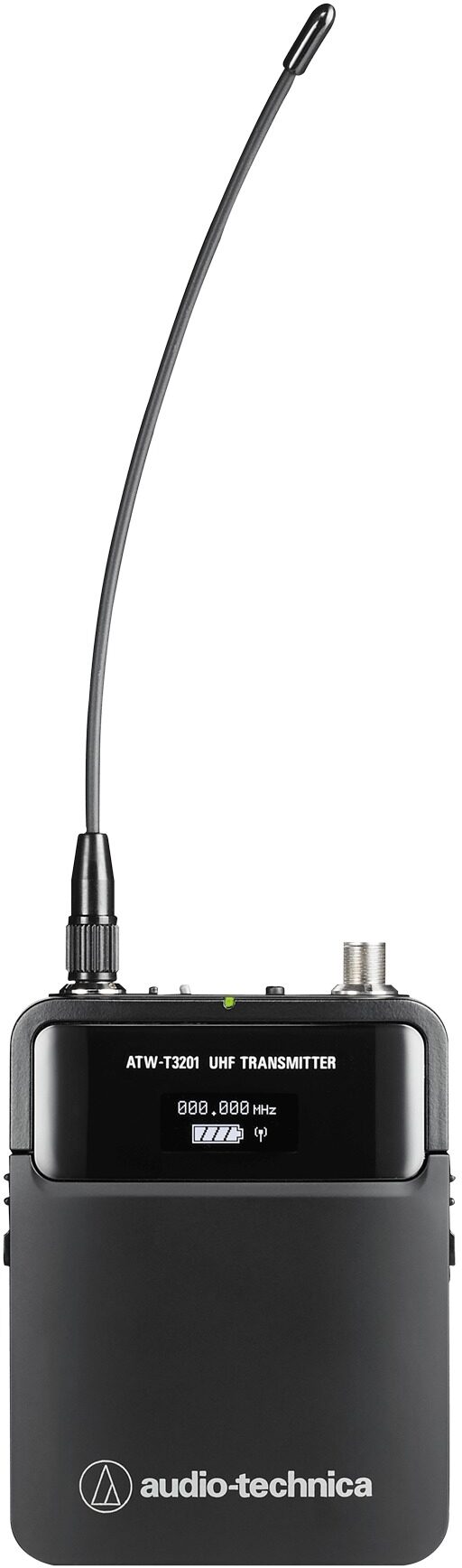

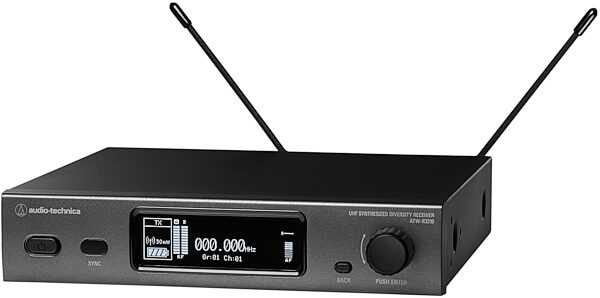

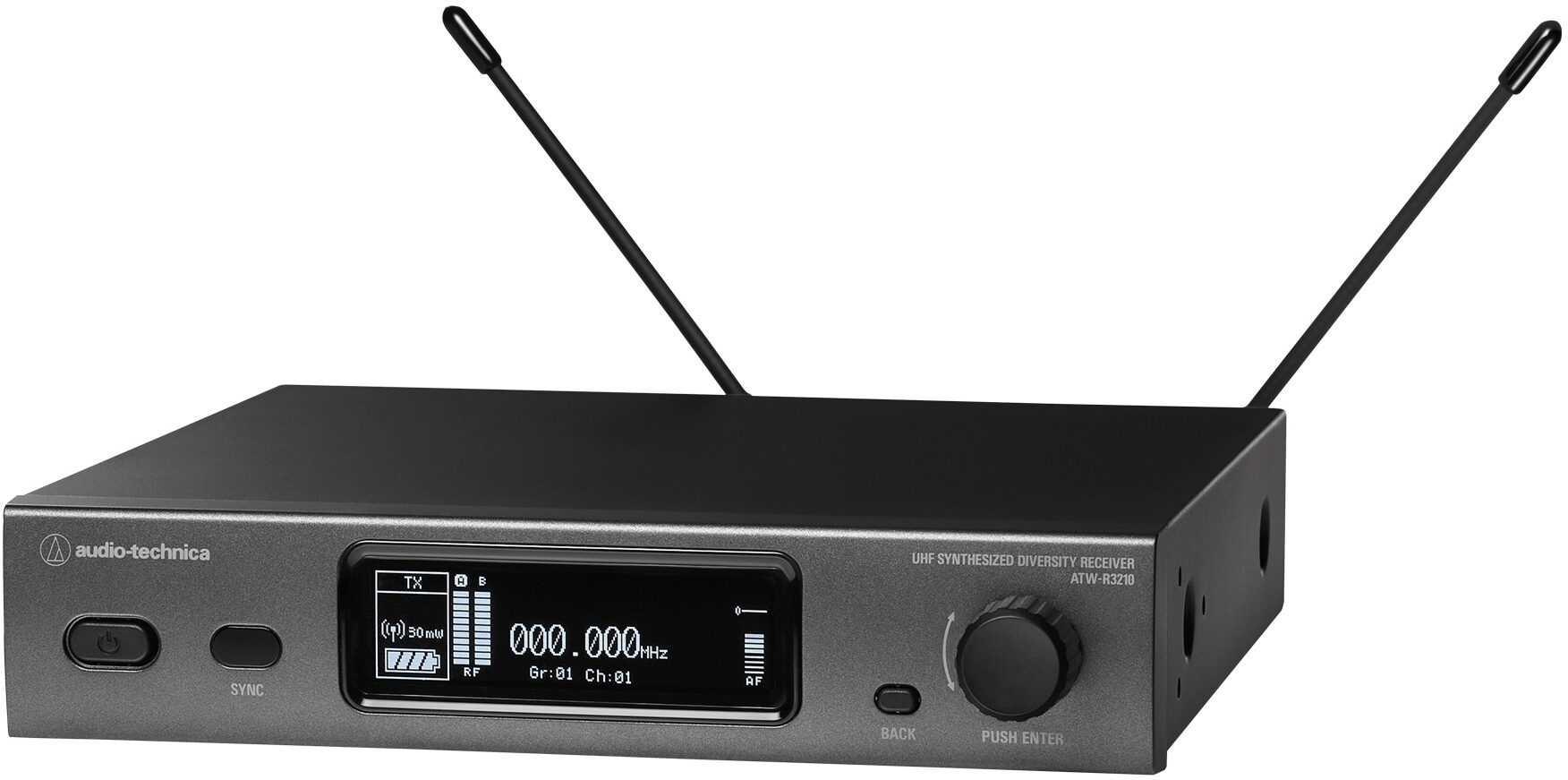

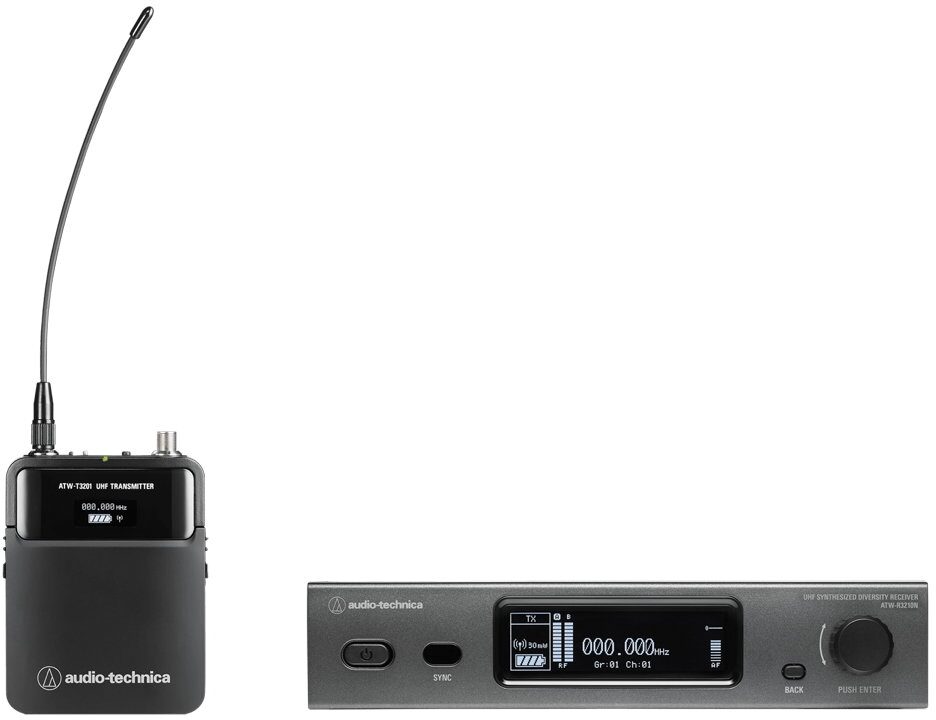

This Audio-Technica wireless system includes the ATW-R3210N network-enabled receiver and ATW-T3201 bodypack transmitter with cH-style screw-down 4-pin connector. Select a microphone or cable with a cH-style screw-down 4-pin connector to complete the system. Available separately, the AT-cWcH Adapter Cable enables wireless microphones with a cW-style locking 4-pin connector to be used with bodypack transmitters that have a cH-style screw-down 4-pin connector.

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands -- DE2 (470-530 MHz) and EE1 (530-590 MHz) -- that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld and bodypack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

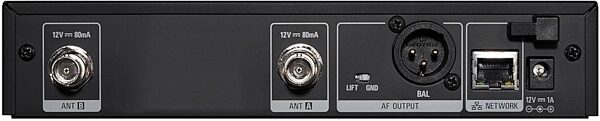

- Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
- True Diversity operation reduces dropouts
- Auto Squelch feature read more automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup

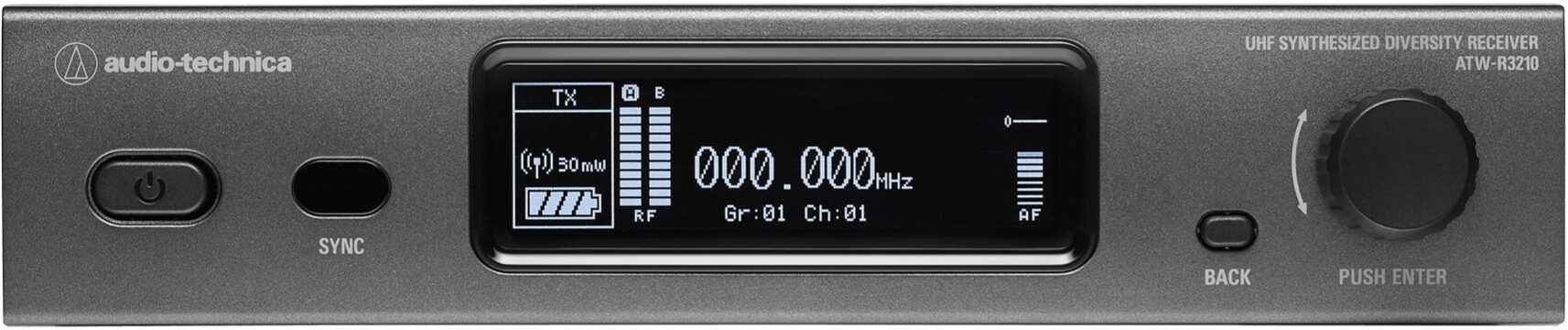

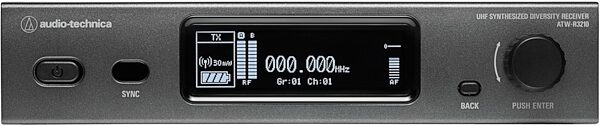

- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- Rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries

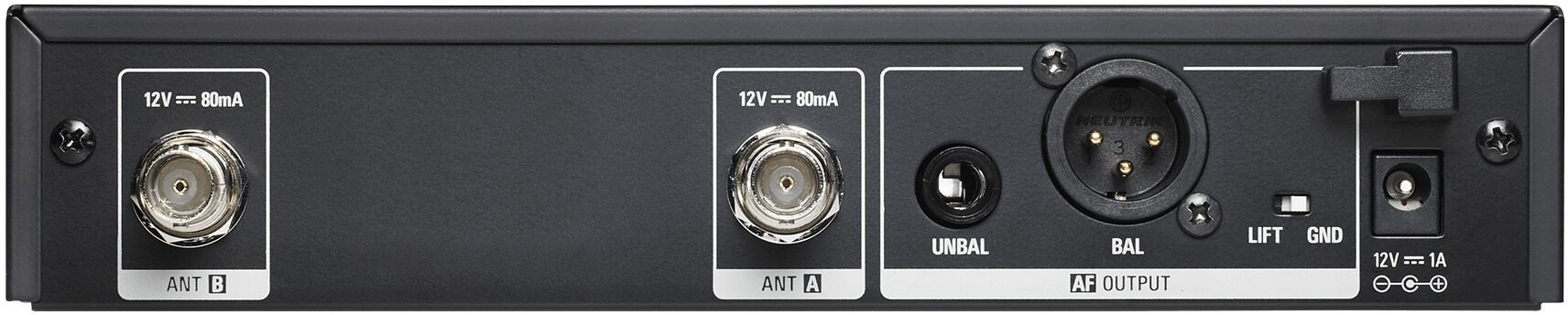

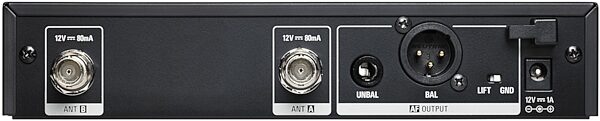

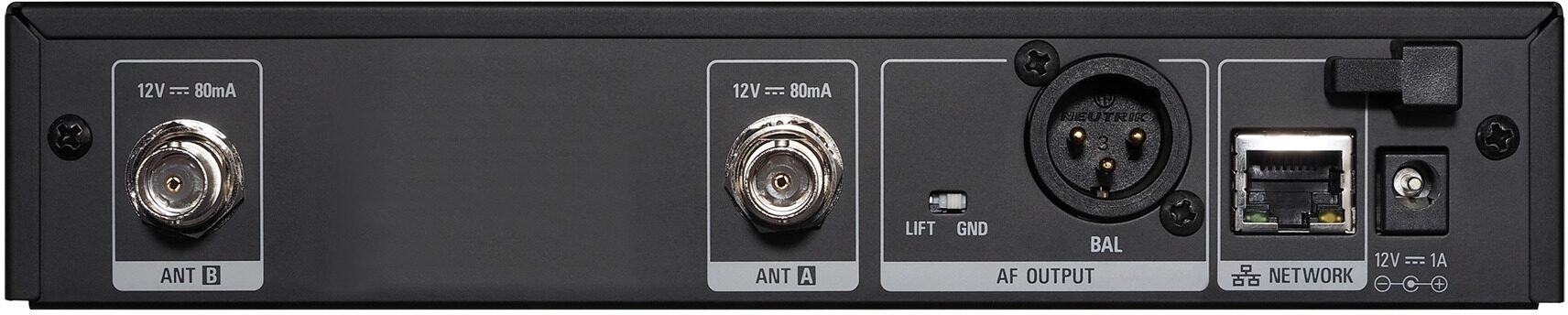

- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Operating Frequencies:
- Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
- Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
- Band FG1: 650.000 to 699.875 MHz (1996 frequencies)

- Operating Frequencies:
- Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
- Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
- Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.

- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: +/-38 kHz (THD:10%)
- ATW-T3202: +/-36 kHz (THD:10%)
Dimensions and Weight in Packaging
Band DE2: 470.125 to 529.975 MHz
Shipping Weight: 5.5 lbs
Shipping Dimensions: 15 x 14 x 3 in
Manufacturer Part Number (MPN): ATW-3211NDE2
Band EE1: 530.000 to 589.975 MHz
Shipping Weight: 5.5 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): ATW-3211NEE1

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com

Band EE1: 530.000 to 589.975 MHz
