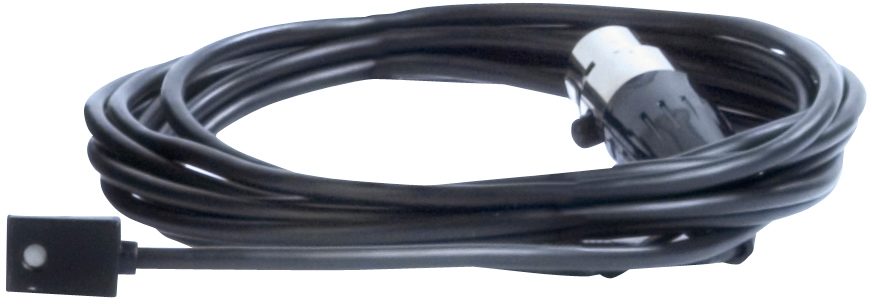

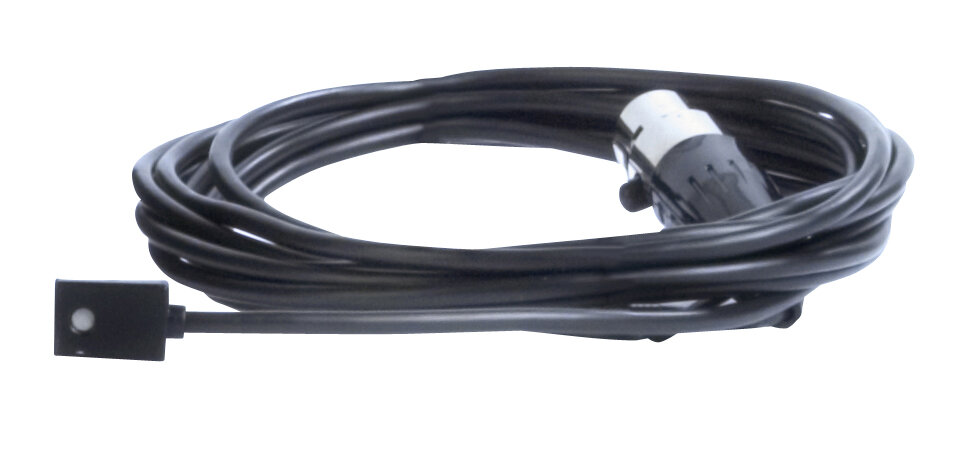

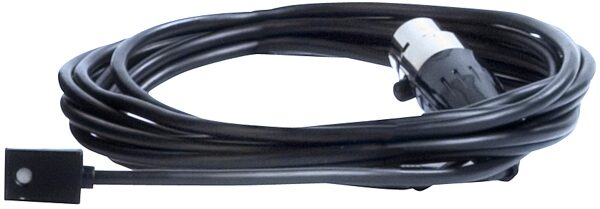

Shure WL93 Omnidirectional Lavalier Microphone

This Omnidirectional Lavalier Microphone is designed for speech applications where a visually unobtrusive clear sounding microphone is favorable.

Shure WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All Shure WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All Shure WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

Features

- Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
- Small, inconspicuous mounting hardware
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency rolloff reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Uniform omnidirectional polar pattern
- Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
- Wide-range phantom powering (SM93) accepts all commonly used voltages

Shure WL93 Models

WL93: Black, w/ 4-foot (1.2 m) Cable
WL93-6: Black, w/ 6-foot (1.9 m) Cable
WL93T: Tan, w/ 4-foot (1.2 m) Cable
WL93-6T: Tan, w/ 6-foot (1.9 m) Cable
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Type: Condenser (electret bias)
- Frequency Response: 50 to 20,000 Hz
- Polar Pattern: Omnidirectional, uniform with frequency
- Output Impedance: 3000 ohms
- Output Level (1 Pascal = 94 dB SPL)
- Open Circuit Voltage: -38 dBV/Pa (13 mV)
- Output Clipping Level (at 1,000 Hz): 0.25 V at 120 dB
- Total Harmonic Distortion: Less than 1% at 120 dB
- Maximum SPL: 120 dB
- Dynamic Range (maximum SPL to A-weighted noise level): 102 dB
- Output Noise (equivalent SPL): 18 dB typical, A-weighted
- Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)

Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*

*Produces positive voltage at pin 2 of Shure wireless receiver three-pin connector
Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)

Current Drain: 40 microA typical

Environmental Conditions:
- Operating Temperatures: -18 to 57 degrees C (0 to 135 degrees F)
- Storage Temperatures: -29 to 74 degrees C (-20 to 165 degrees F)

Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature connector type TA4F (WL93T: Tan 1.27 m [4.17 ft])

Case: Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille

Net Weight: Microphone: 16 g (0.57 oz)
Dimensions and Weight in Packaging
Black, WL93, with 4 Foot Cable
Shipping Weight: 0.25 lbs
Shipping Dimensions: 7 x 5 x 4 in
Manufacturer Part Number (MPN): SHU WL93
Tan, WL93T, with 4 Foot Cable
Shipping Weight: 0.5 lbs
Shipping Dimensions: 7 x 4 x 3 in
Manufacturer Part Number (MPN): SHU WL93T
Black, WL936, with 6 Foot Cable
Shipping Weight: 0.5 lbs
Shipping Dimensions: 7 x 5 x 3 in
Manufacturer Part Number (MPN): WL93-6
Tan, WL936T, with 6 Foot Cable
Shipping Weight: 0.5 lbs
Shipping Dimensions: 7 x 4 x 3 in
Manufacturer Part Number (MPN): WL93-6T
