Audio-Technica System 10 ATW-1701 Camera-Mount Digital Wireless System

This wireless set includes a UniPak bodypack transmitter and a camera-mountable receiver. Just add an Audio-Technica mic or cable with a UniPak connector.

The Audio-Technica System 10 Camera-Mount ATW-1701 digital wireless system includes a ATW-R1700 receiver and a ATW-T1001 UniPak transmitter. To complete the system, add a microphone that's compatible with the ATW-T1001 UniPak transmitter, or add a cable with a UniPak connector to use as an instrument wireless system.

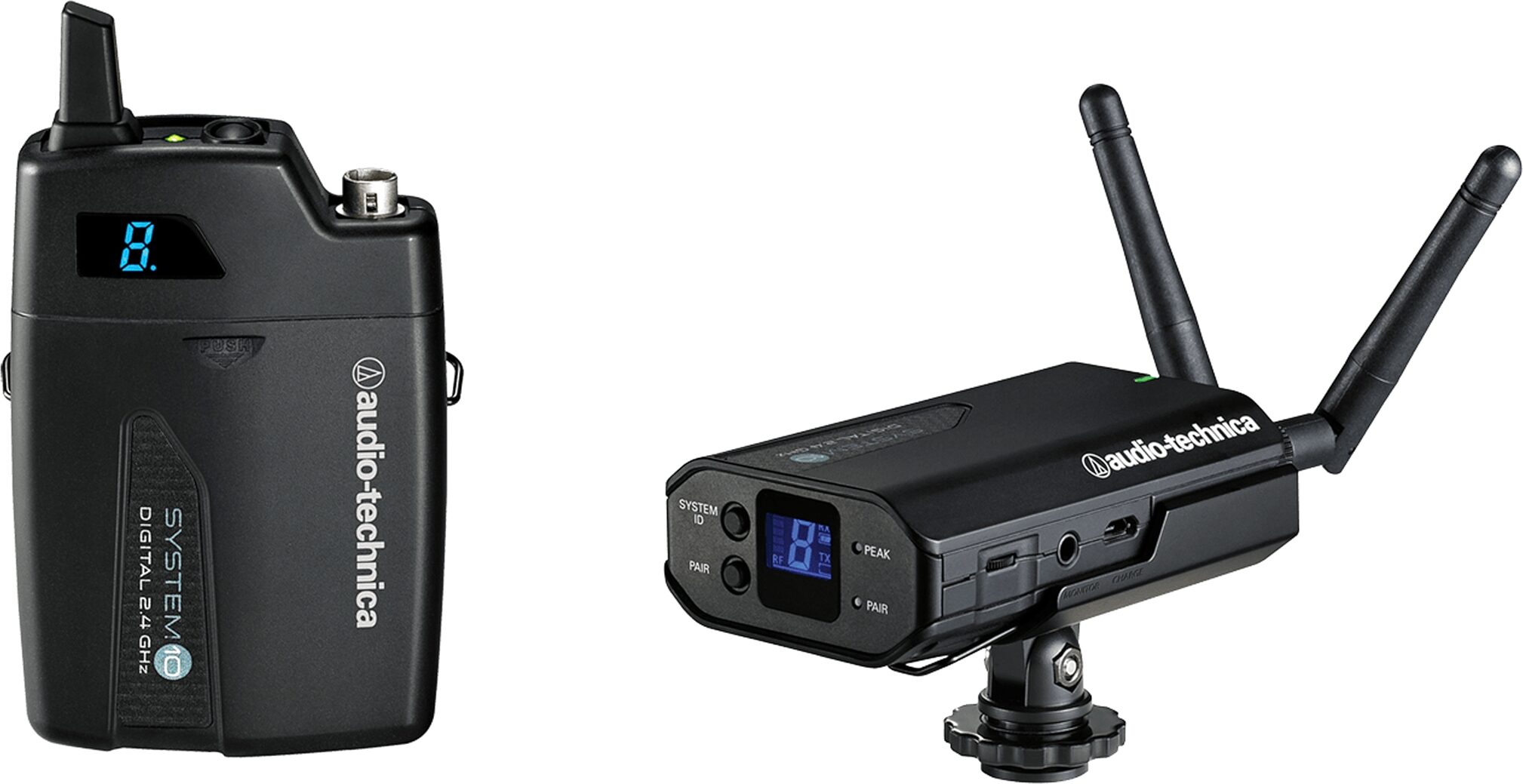

ATW-1701 Package Includes:

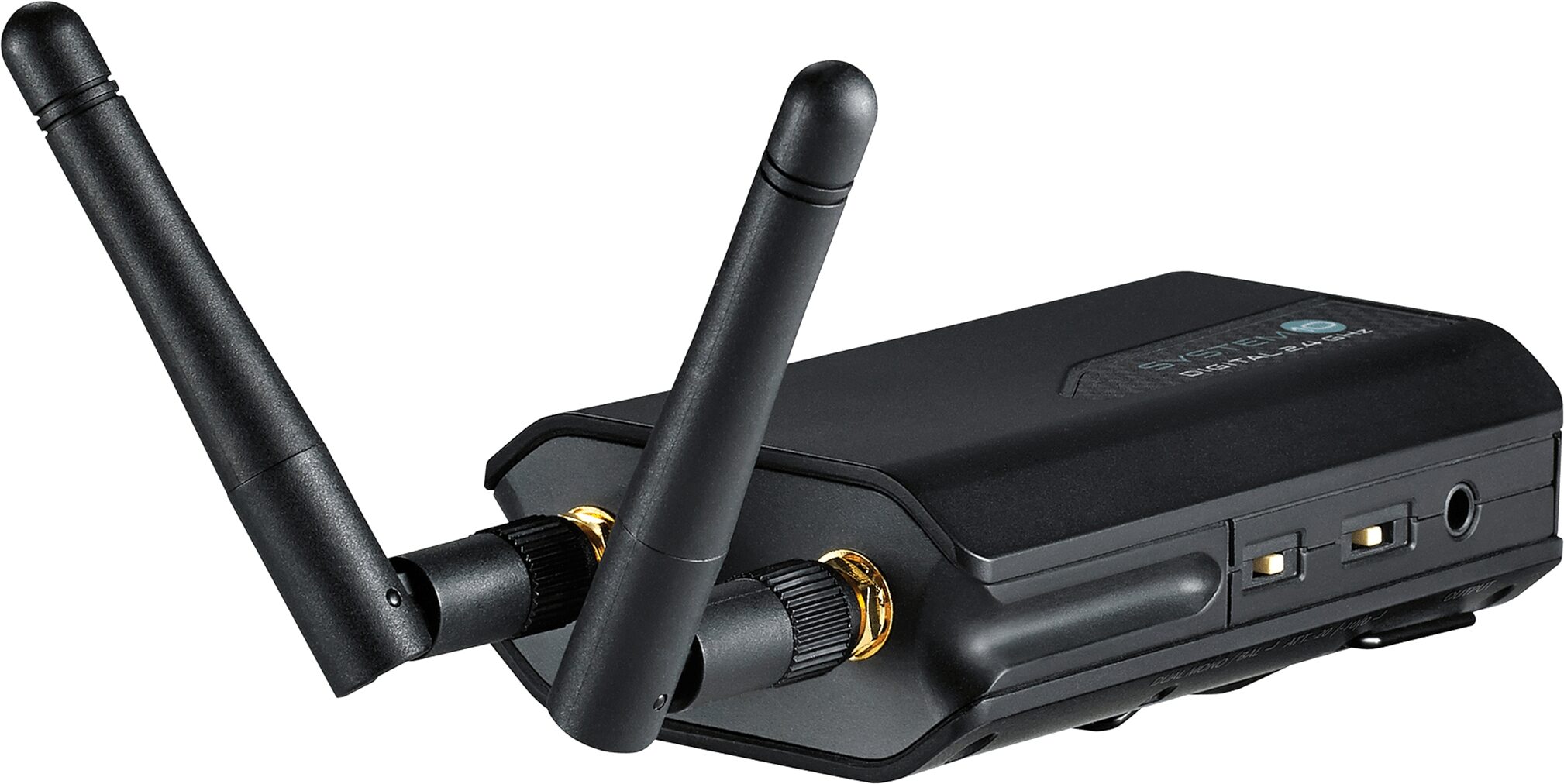

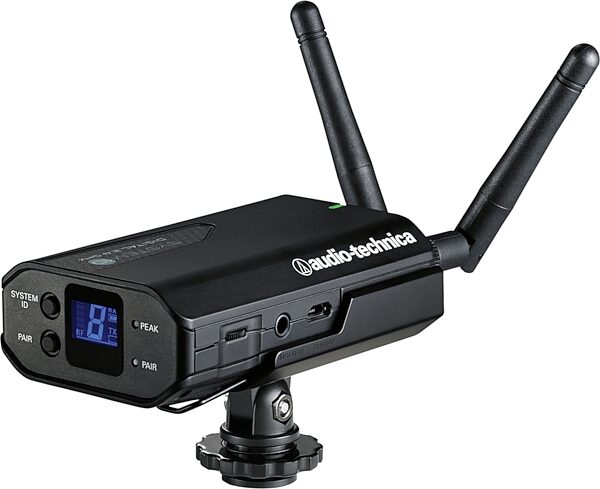

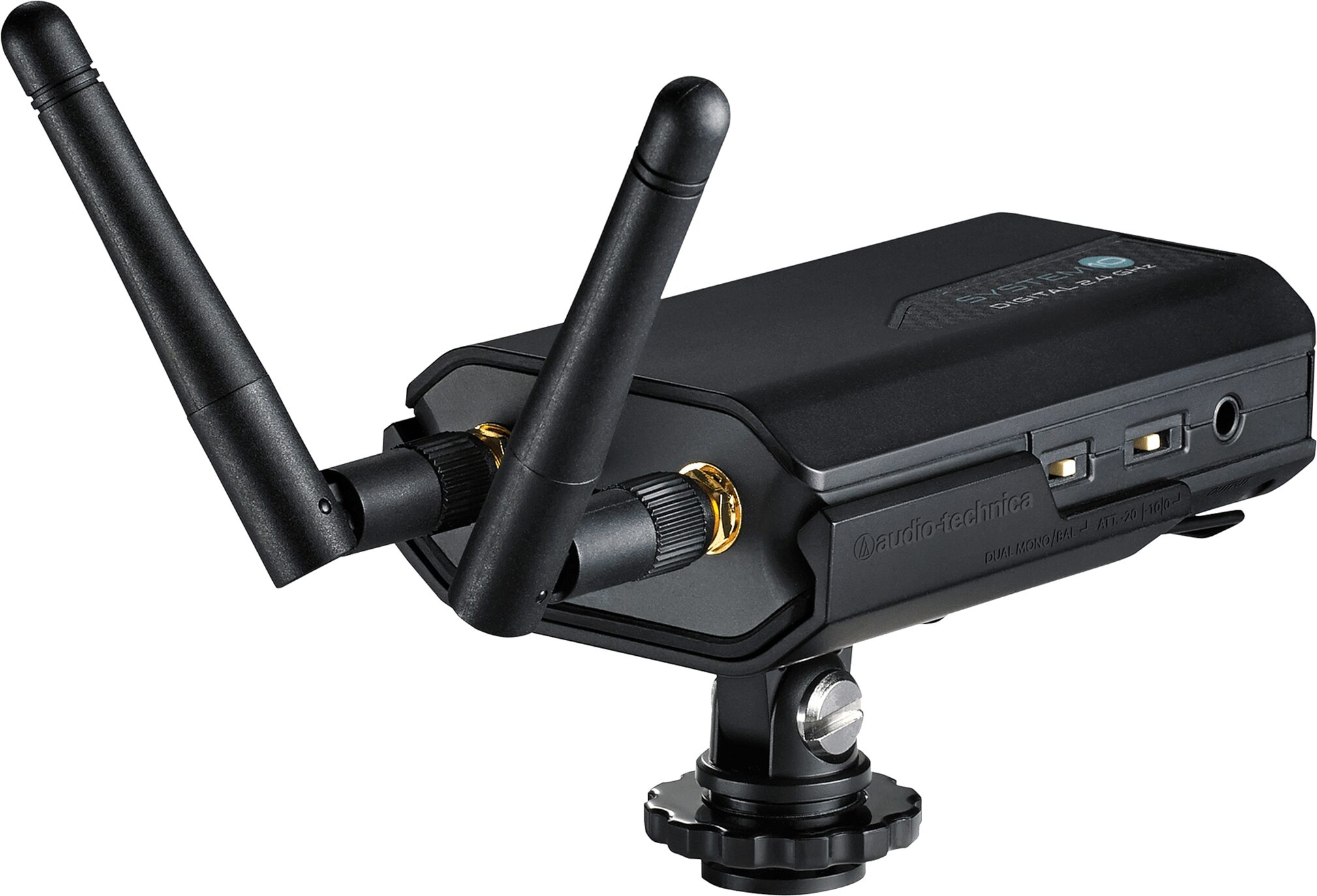

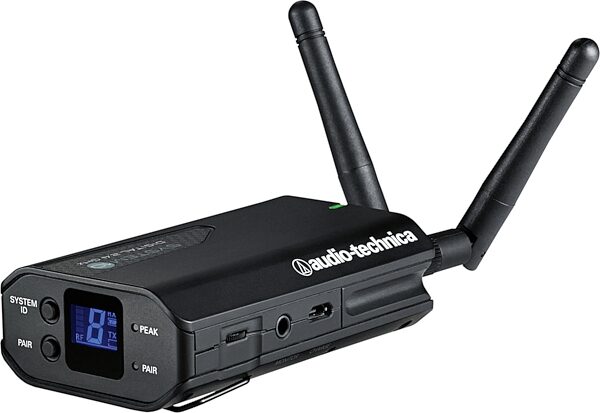

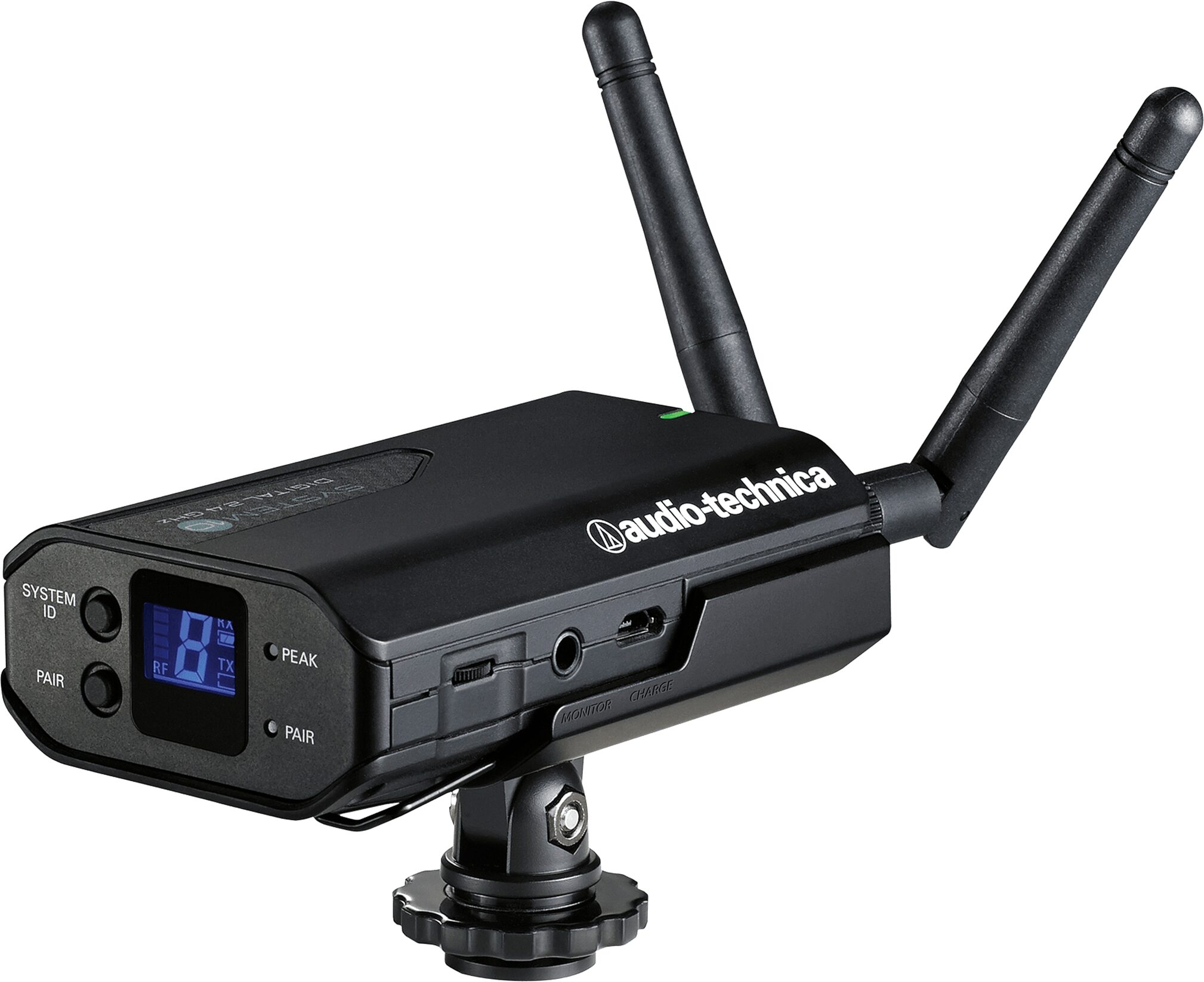

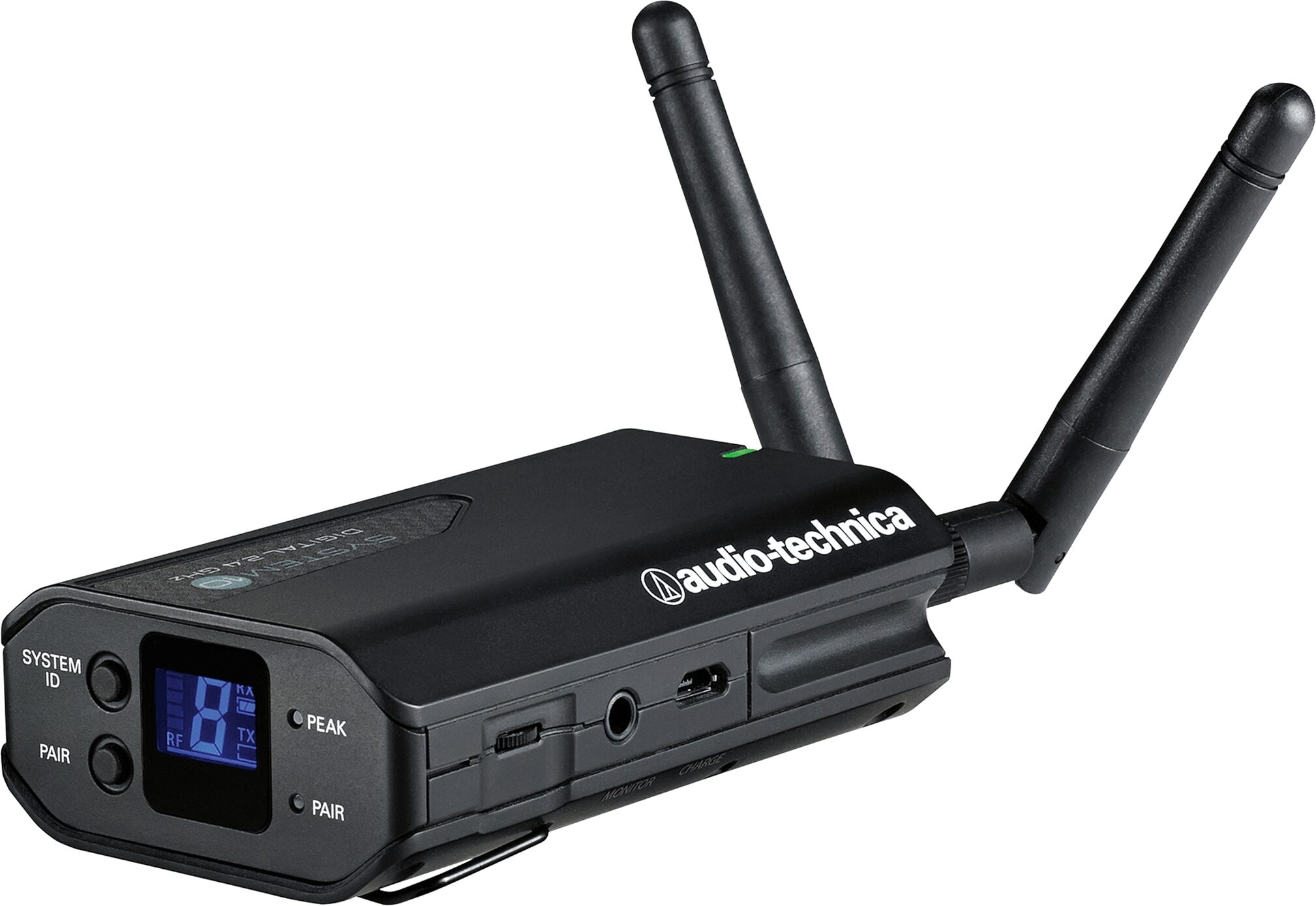

- ATW-R1700 camera-mount receiver

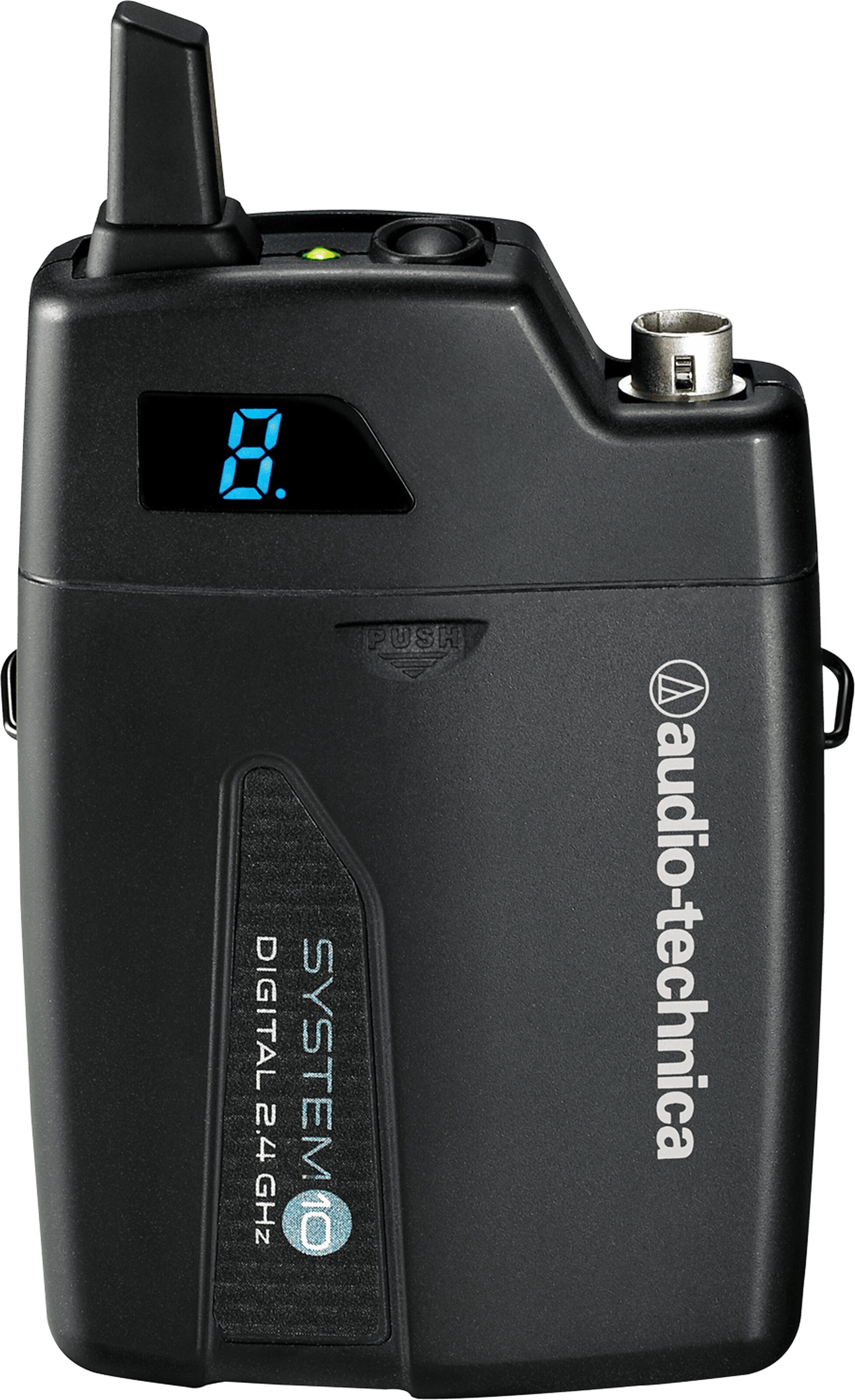

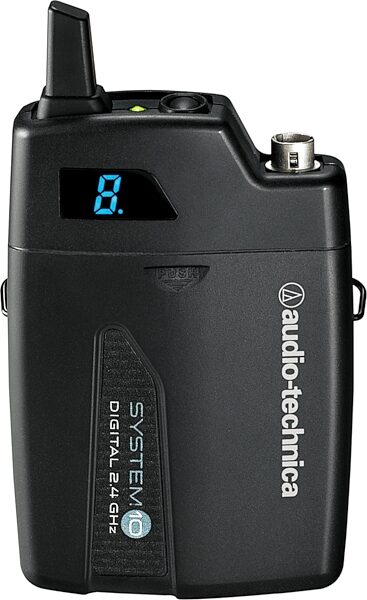

- ATW-T1001 UniPak bodypack transmitter

With its compact, portable design, the Audio-Technica System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.

Like all of the products in the System 10 wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

Audio-Technica gives you an overview of the features of the ATW-1701 Wireless System:


Features:

- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Operates read more in the 2.4 GHz range - completely free from TV interference
- Ultra compact receiver size with multiple mounting options
Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- Internal rechargeable 12-hr battery
- Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
- Three levels of diversity assurance: frequency, time & space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync and setup


Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones



NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') radius, 60 m (200') diameter typical
- Operating Temperature Range: 0* C to +40* C (32* F to 104* F)
- Frequency Response : 20 Hz to 20 kHz

Receiver Specifications:
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Battery: Internal Battery: 3.7V rechargeable Li-ion battery
- Battery Life: 12 hours
- Battery Charging Time: 4 hours 30 minutes
- Charging Temperature Range: 5* C to +35* C (41* F to 95* F)
- Dimensions: (W x H x D) 56.0 x 91.4 x 27.8mm (2.2 x 3.6 x 1.09")
- Net Weight: 105 grams (3.7 oz)

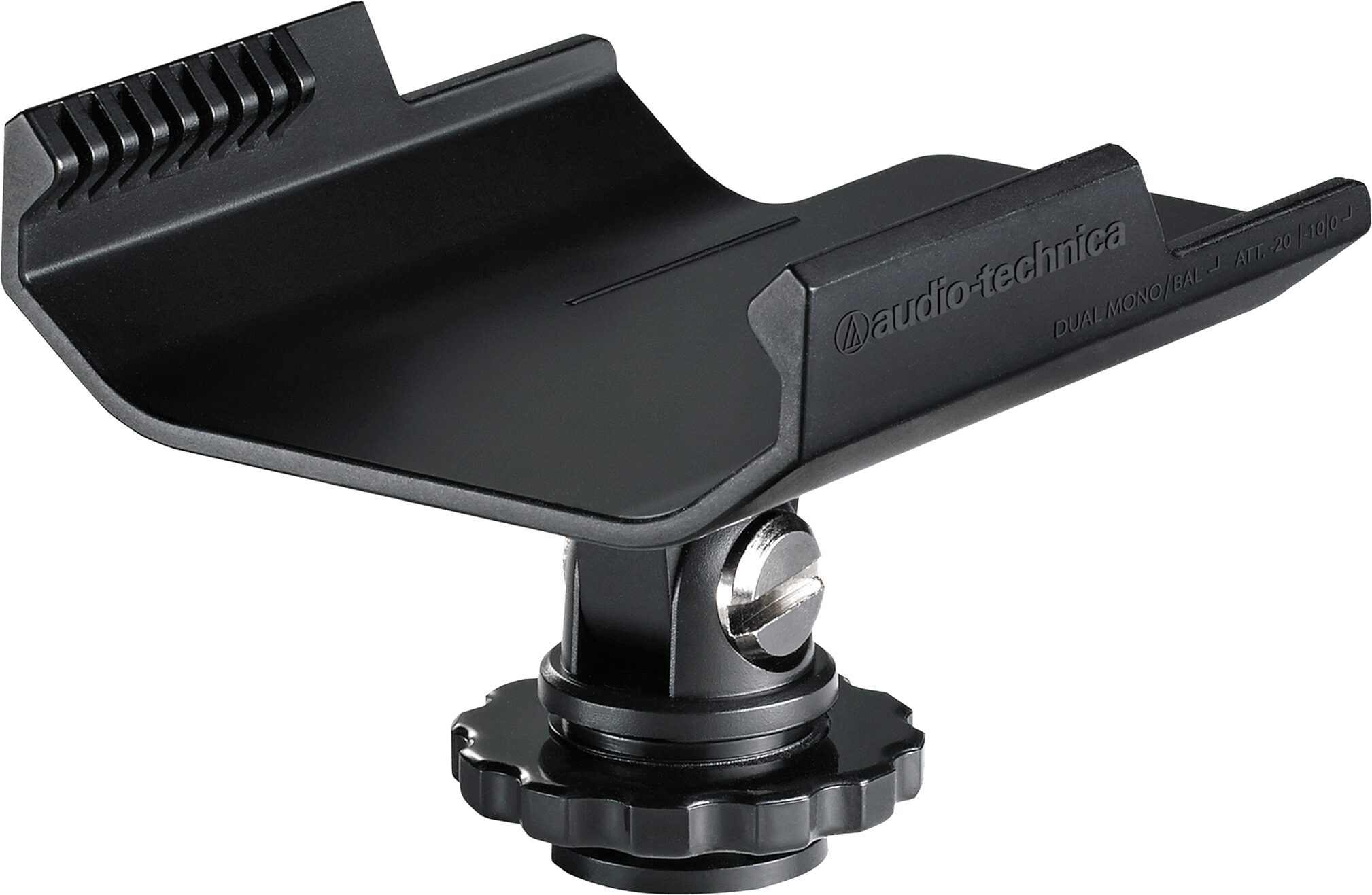

- Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

Body-pack Transmitter Sprecifications:
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: Four-pin Locking Connector:
-Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA (not included)
- Battery Life: >7 hours (alkaline)
- Dimensions: (W x H x D) 70.2 x 107.0 x 24.9mm (2.76 x 4.21 x 0.98")
- Net Weight: 100 grams (3.5 oz)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.5 lbs
Shipping Dimensions: 14 x 7 x 3 in
Manufacturer Part Number (MPN): AUD ATW1701
