Audio-Technica ATW-2110c Wireless Bodypack System

zZounds Gear Experts Say...

Reliable, affordable, and easy to set up, Audio-Technica's ATW-2110c wireless system comes with the bodypack and receiver. Just add your own cW mic or cable.

Overview

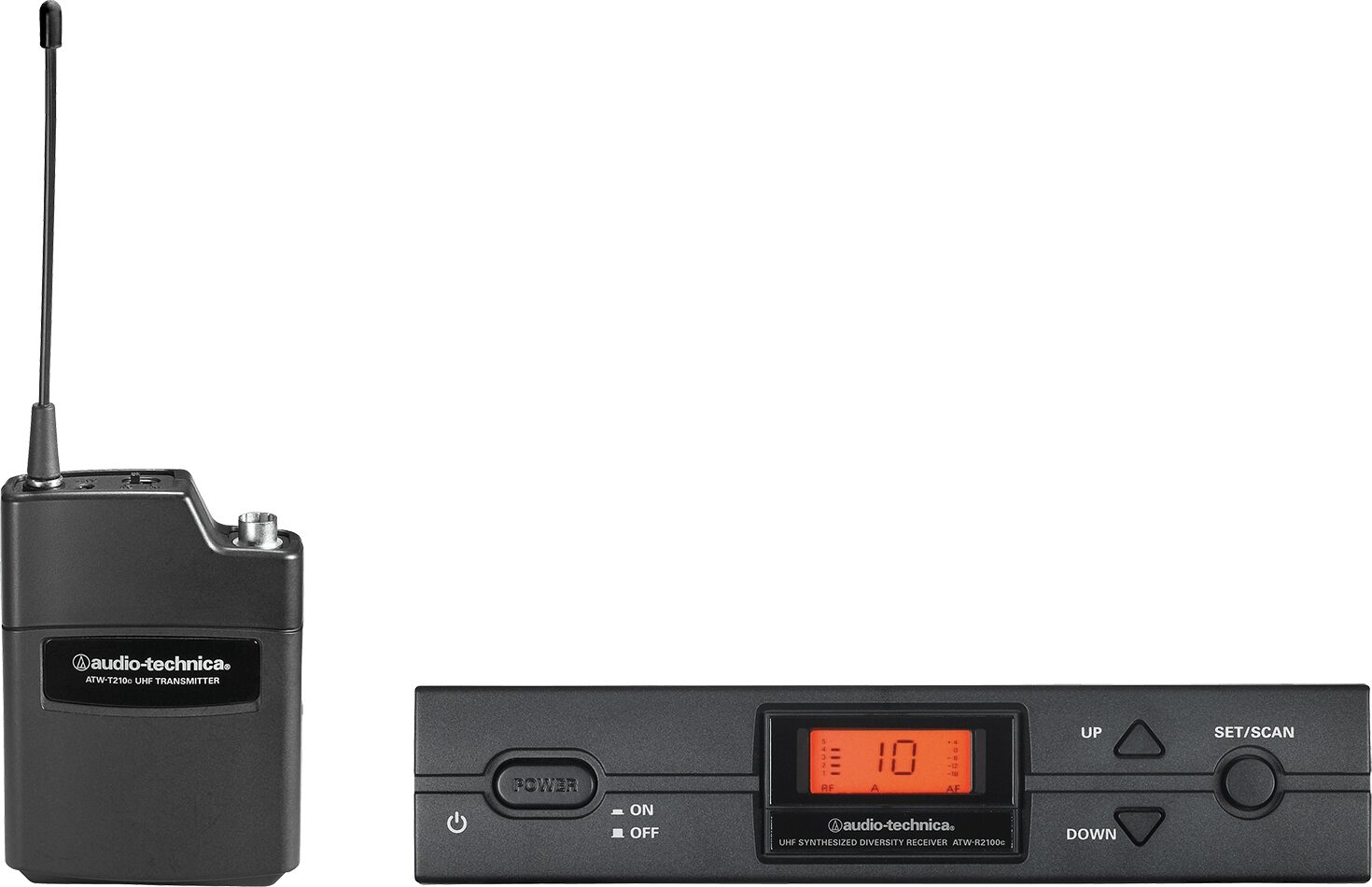

ATW-2110c 2000 Series wireless body-pack system includes the ATW-R2100c receiver and ATW-T210c body-pack transmitter. Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.

Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220c handheld transmitters and/or ATW-T210c body-pack transmitters in any combination. Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock(TM) squelch plus an easy-to-read LCD information display.

Features:

- Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning
- 10 compatible user-switchable channels
- Antenna power available for… read more powered antennas & other in-line RF devices
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock(TM) tone squelch system fights interference

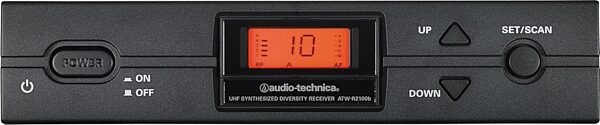

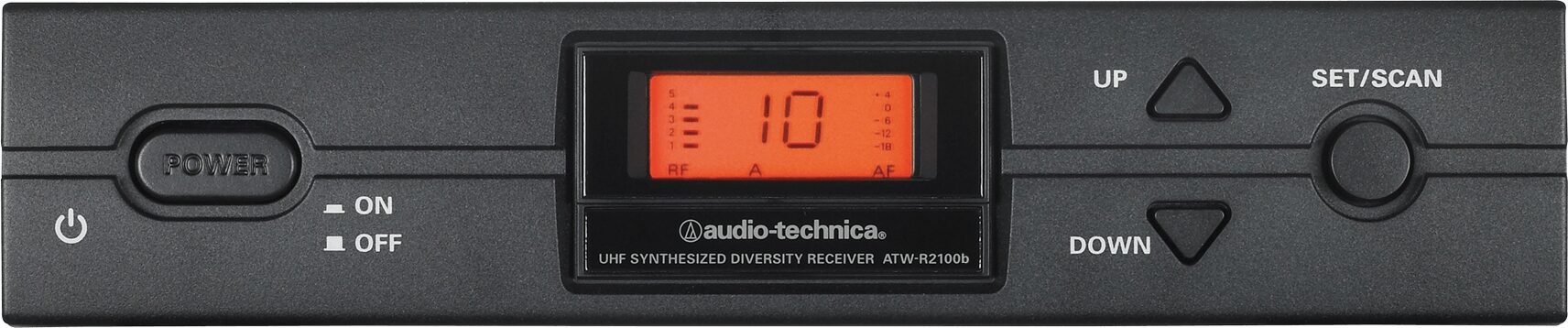

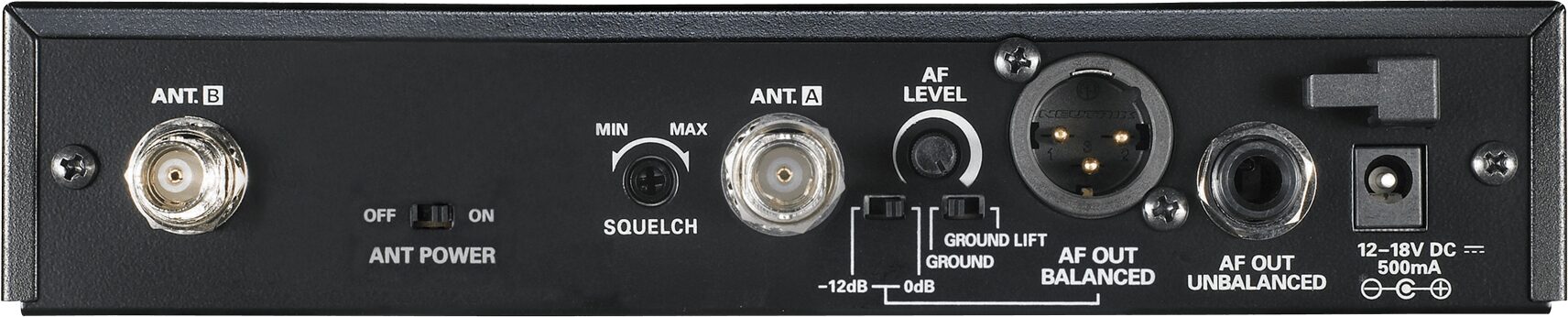

- Rugged metal half-rack receiver with soft-touch controls and LCD display

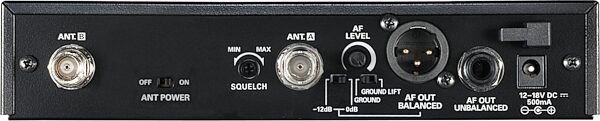

- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Includes rack-mount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
- ATW-CHG2 charger available for ATW-T220c & ATW-T210c transmitters

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Operating Frequencies: Band I: 487.125 to 506.500 MHz; Band S: 508.125-526.825 MHz
Modulation Mode: FM
Maximum Deviation: +/-40 kHz
Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range: 100 m (300'), typical (Open range environment with no interfering signals.)
Total Harmonic Distortion: < 1% (at 1 kHz, +/-20 kHz deviation)
Operating Temperature Range: 5°C to 45°C (41°F to 113°F)
Number Of Channels: 10 total
Notes: Fourth-generation 2000 Series ("c" version) components:
Receiver: ATW-R2100c
Body-Pack Transmitter: ATW-T210c
Microphone/Transmitter: ATW-T220c Cardioid Dynamic

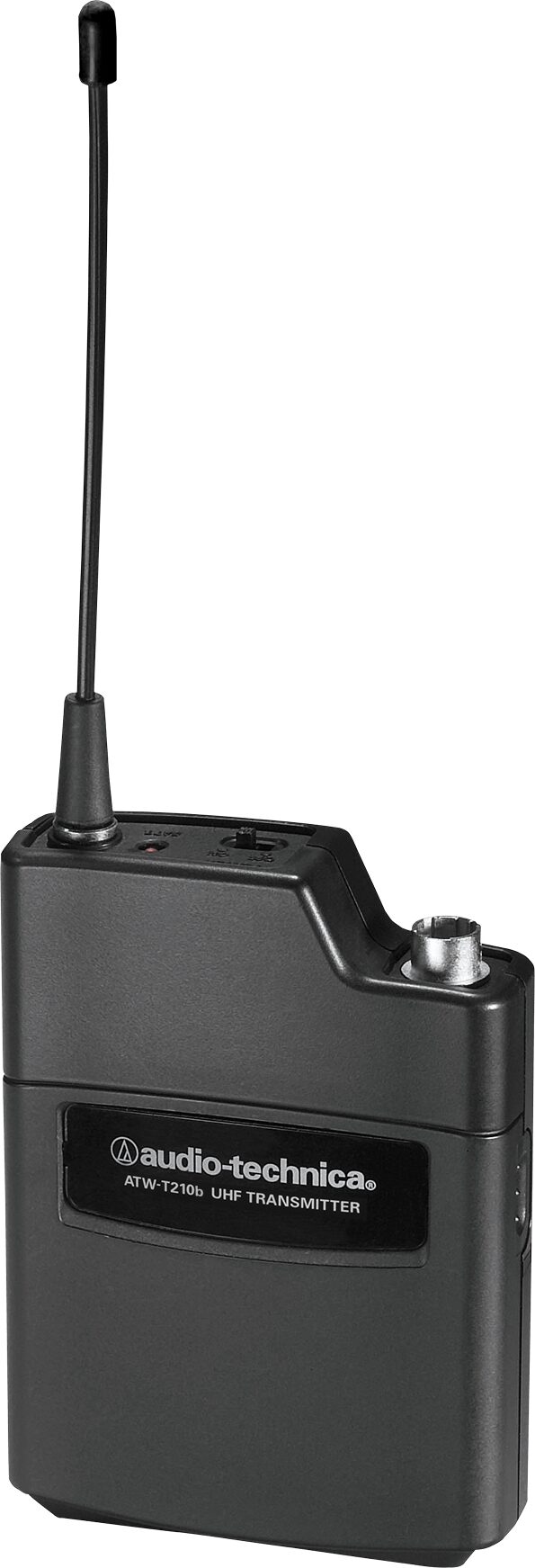

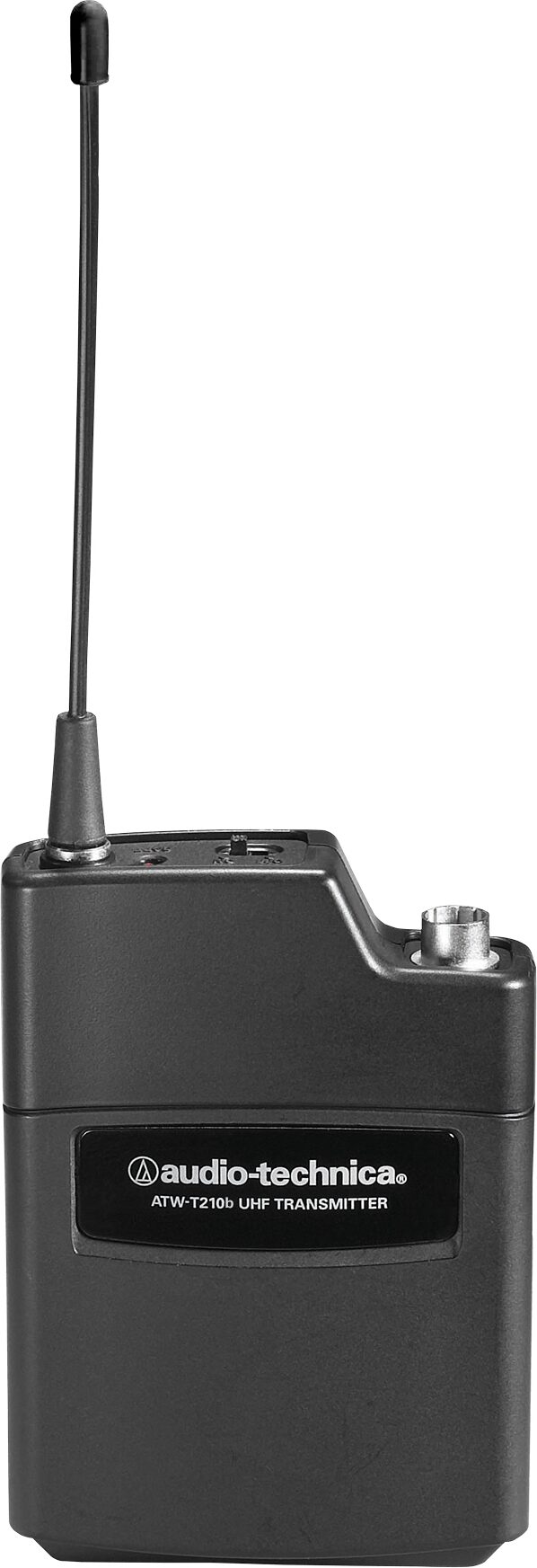

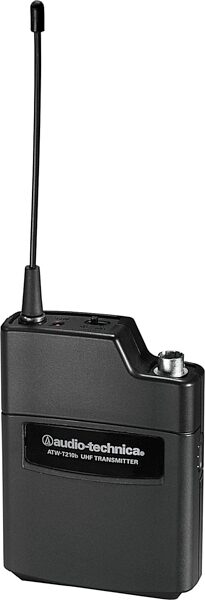

Body Pack:
RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life:
- High: 7 hours (alkaline)
- Low: 9 hours (alkaline)
- Depending on battery type and use pattern.
Battery Type: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging power for NiMH batteries (with ATW-CHG2):
- U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
- Other world areas: 3.2 V DC, 320 mA x2
Dimensions: 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Input Connections: Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
Net Weight: 81 g (2.9 oz), without batteries
Spurious Emissions: Following federal and national regulations

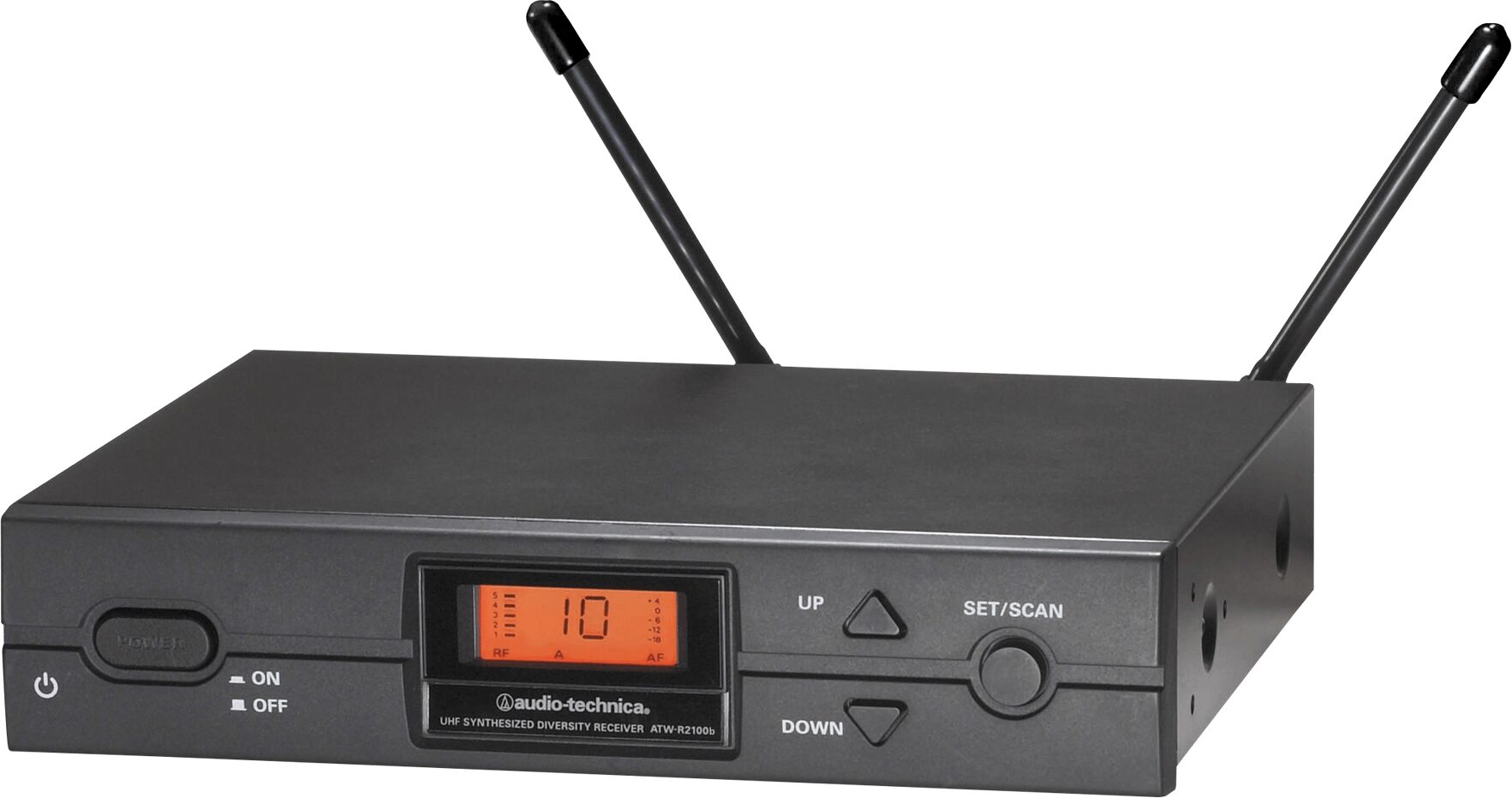

Receiver:
Receiving System: True diversity
Image Rejection: 60 dB nominal, 55 dB minimum
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level:
- XLR, balanced: +9 dBV
- 1/4" (6.3 mm), unbalanced: +4 dBV
Antenna Input: BNC-type, 50 ohms
Bias voltage: 12V DC, 60 mA, each
Power Requirements: 12-18V DC, 500 mA
Dimensions: 210.0 mm (8.27") W x162.2 mm (6.39") D x44.0 mm (1.73") H (Not including BNC connectors or feet.)
Weight: 1.0 kg (35.3 oz), without accessories
Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB

Dimensions and Weight in Packaging
S Band: Shipping Weight: 5 lbs; Shipping Dimensions: 15 x 13 x 4 in; Manufacturer Part Number (MPN): ATW-2110CS

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
