Gigging bands, mobile DJs and houses of worship have helped make the first four generations of Yamaha Club Series Speakers incredibly popular. The refinements of generation V continue this success story: larger enclosures for improved low-frequency performance, improved drivers for higher power handling, redesigned crossovers, stronger grilles, and dual Speakon and 1/4 in. connectors. Once again, with professional features, excellent sonic performance and great value, Club Series loudspeakers deliver premium quality night after night.
Features
18 in. cast frame driver
Response down to 30Hz
Efficient Bass reflex design
Great for use with dance music
Continuing to build on successful sound reinforcement products targeted to gigging musicians, mobile DJs, houses of worship and small-to-medium sized venues, Yamaha presents the Club V loudspeaker systems.

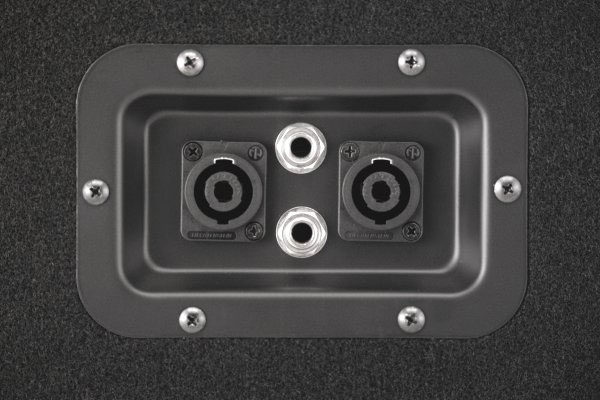

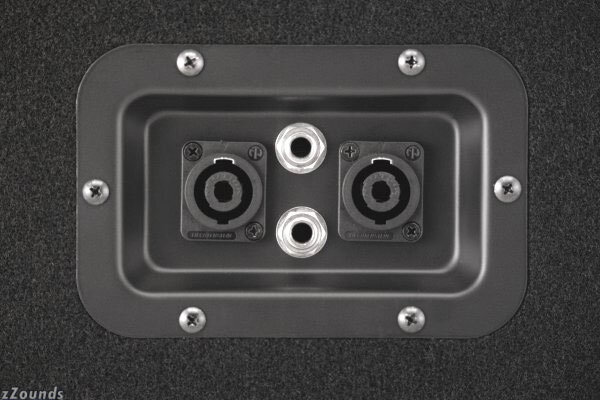

New cabinet tunings yield improved low frequency performance, and newly developed transducers allow higher power capacities for use with larger amplifiers. An improved, constant-directivity horn was also developed to further enhance high frequency dispersion and response. Durable steel input panels contain both dual 1/4-in. and dual Neutrik Speakon? connectors.

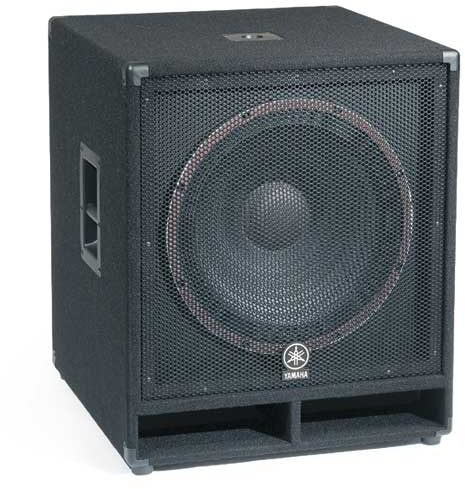

The new Club V loudspeakers continue to offer performance and selection normally only available at substantially higher prices. These rugged, carpet covered cabinets feature heavy gauge, arced steel grilles and steel corner protectors.
The hallmarks of the Yamaha Club speakers are great sound, rugged cabinetry, and value - in other words, more bang for the buck.
Technical Info
Specifications
Woofer: 18 in.
Frequency Response (-10dB): 30Hz - 2kHz
Nominal Impedance: 8 ohms
Power Handling (noise/program/peak): 300/600/1200 watts
Sensitivity: 99dB
Dimensions (approximate): 22 x 32 x 25 in.
Weight (approx.): 71 lbs.
Enclosure Covering: Carpet
