Vestax VDA1000 Portable Digital Power Amplifier (1000 Watts)

The Vestax VDA1000 is a digital power amplifier designed for the new generation of computer DJs. It is, highly portable and provides a powerful 1000W output suitable for sound systems of computer remix DJs, bedroom DJs, restaurant PA's and mobile DJs. The unique compact design and multi inputs expand to several applications.

With the latest digital amplification technology offering significant lower heat dissipation, the VDA1000 has combined the warmth of analog sound and high power output within its compact and portable design.

Functions

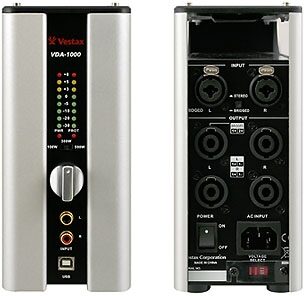

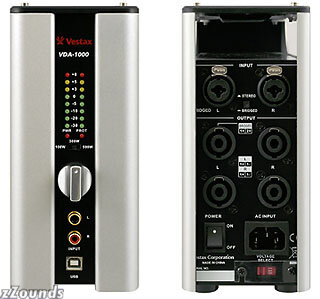

The rear panel is equipped with industrial combo jacks which enable connection for both balanced XLR and 1/4inch phono plugs. LINE (RCA) and USB digital input is available on the front panel enabling connection with any kind of device.

Power output is selectable from 100W+100W / 300W+300W / 500W+500W (4 ohms). A maximum 1000W output is possible when selecting BTL mode.

SPEAKON connectors applied for easy connecting and disconnecting.
A must feature for mobile DJs.

Technical Info

Audio Section
Slew Rate (8W) : 50V/Us

Gain : 32 dB

S/N ratio : 105 dB/A

Distortion : <0.5%(THD, DIM, SMPTE)

Bandwidth : 10 Hz - 30KHz

Impedance : 10 K ohm.

Damping factor 500Hz/8 ohm > 500

Power Amp Section
Bridged 8ohm = 1000W 16 ohm = 520 W

Power EIAJ, both channels driven:
- 4 ohm= 2 ~ 500W
- 8 ohm= 2 ~ 270W

Power continuous, both channels driven:
- 4 ohm= 2 ~ 390W(1KHz, 0.5% THD)
- 8 ohm= 2 ~ 240W(1KHz, 1% THD)
