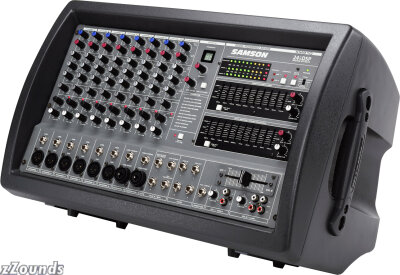

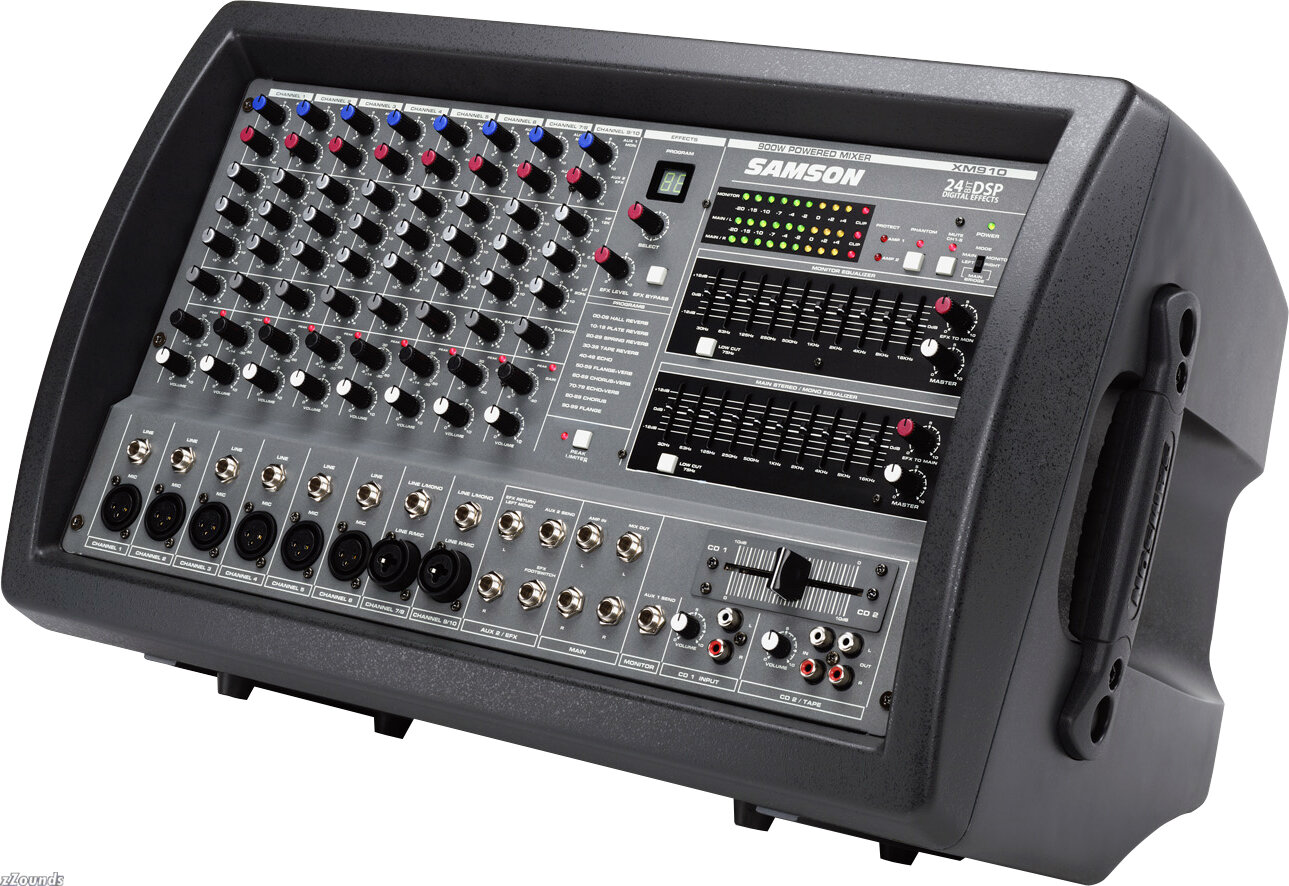

Samson's XM910, combining mixer, effects, equalization and amplifier power into a compact and portable, yet extremely powerful system, perfect for any gig big or small.
Features
10-channel, 900-watt stereo powered mixer featuring a high-impact molded plastic Kickback chassis
Studio quality 24-bit DSP stereo effects with 100 selectable presets of reverb, delay and chorus
Channel strips featuring low noise mic pre-amps with available 48-volt phantom power, 3-band equalization, DSP effect and monitor sends
10-band graphic EQ for the stereo main outputs, plus a 10-band EQ for the monitor output.
Dual CD inputs with trim and crossfader for instant DJ applications
Solid construction with convenient carry handle for easy transport
Technical Info
Rated Output Power: 2 X 450W at 4 Ohms @0.1% THD at 1KHz
Frequency Response:
- 20Hz~20KHz+/-0.7dB@1W Output into 8 Ohms (AMP OUT)
- 20 Hz~20KHz+/-0.4@+4dB Output into 10kOhms (MAIN OUT, MONITOR OUT, AUX 2 SEND)
Total Harmonic Distortion:
- Less than 0.06% at 20Hz~20KHz, 75W output into 4 Ohms (AMP OUT)
- Less than 0.1%@20 Hz~20KHz+14dB output into 10KOhms (MAIN OUT, MON OUT, AUX 2 SEND)
HUM & Noise: -121dB Equivalent Input Noise
- Average, RS+150 Ohms:
+/-100dB residual output noise (MAIN OUT, MONITOR OUT, AUX 2 OUT)
- With 22Hz~22KHz BPF:
+/-79dB (MAIN OUT, MONITOR OUT) Master level control at maximum, all channel level control at minimum.
+/-79dB (AUX 2) Master level control at maximum, all channel level controls at minimum
Maximum Voltage Gain:
- 67dB CH IN (MIC) to AMP OUT
- 63dB CH IN (MIC) to MAIN OUT, MONITOR OUT
- 54dB CH IN (MIC) to AUX 2 OUT
- 30dB CH IN (MIC) to REC OUT
- 32dB CH IN (LINE) to MAIN OUT, MONITOR OUT
- 26dB AUX IN to MAIN OUT
- 24dB TAPE IN to MAIN OUT
Crosstalk 1KHz: 70dB adjacent input, 70dB input to output
Input Channel Equalization:
- HIGH: 12KHz shelving (+/- 15dB Maximum)
- MID: 2.5KHz peaking (+/- 12dB Maximum)
- LOW: 80Hz shelving (+/- 15dB Maximum)
Meters: 9 POINT LED METERS (-20, -15, -10, -7, -4,-2, 0, +2, +4dB)
Graphic Equalizer: 10 bands (30, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz)
Internal DSP Effects: 24 BIT - 10 Presets each:
- 1 - Performance
- 2 - Hall Reverb
- 3 - Plate Reverb
- 4 - Spring Reverb
- 5 - Echo
- 6 - Flange + Verb
- 7 - Chorus + Verb
- 8 - Echo + Verb
- 9 - Chorus
- 10 - Flange
Phantom Power: +48V
CLIP Indicators: Turn on: THD> 0.1%
Foot Switch: DIGITAL EFFECT MUTE: ON/OFF
Speaker Output: 1/4 inch connector
General
- Power Requirement: 110V-240V, 50/60Hz
- Power Consumption: 950W, MAX.
- Weight: 40 lbs./18.2Kg
- Dimensions: 21 (W) x 14 (H) x 13-3/4 (D) inches
534 (W) x 356 (H) x 350 (D) mm
Combines a mixer, effects, equalization, and amplifier power in a compact and portable system! Ten channels, 900 stereo watts, dual CD inputs, and crossfader for DJ use. Solid and dependable.
