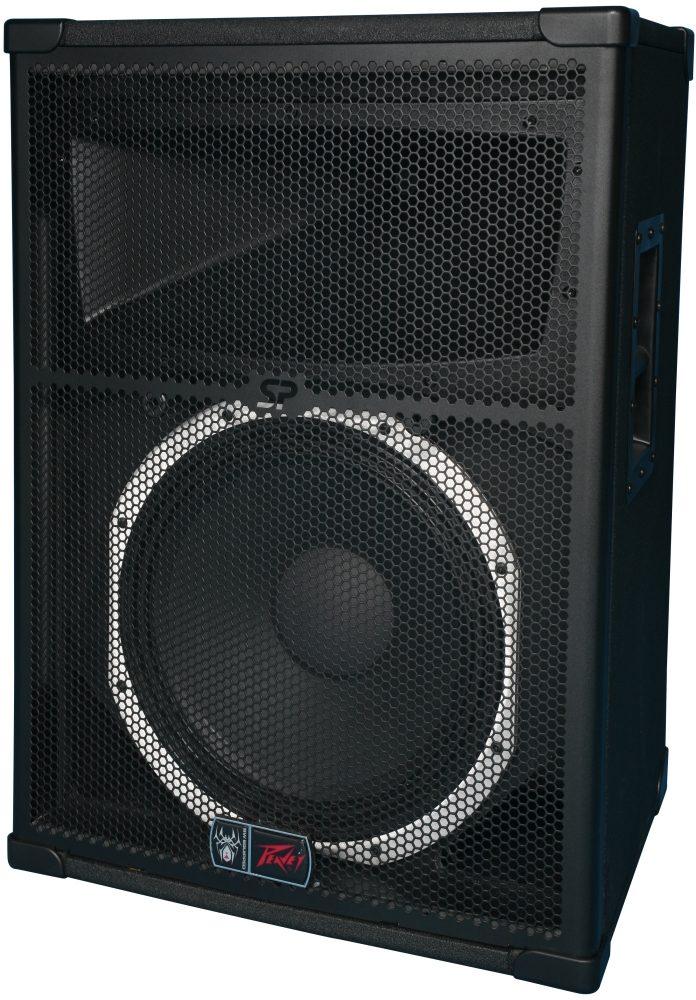

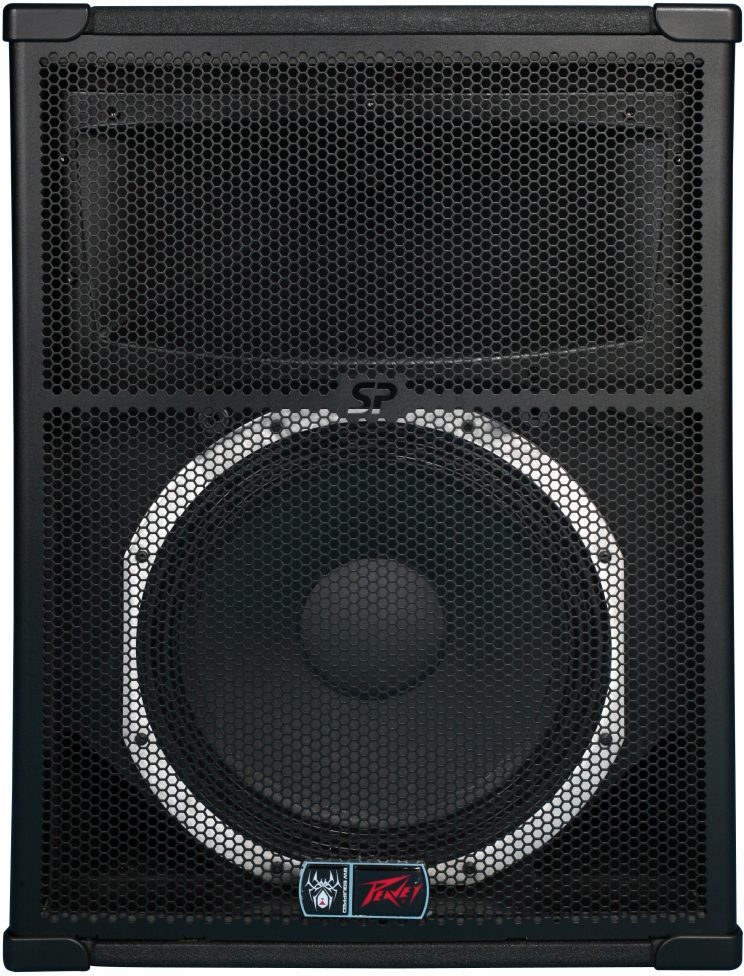

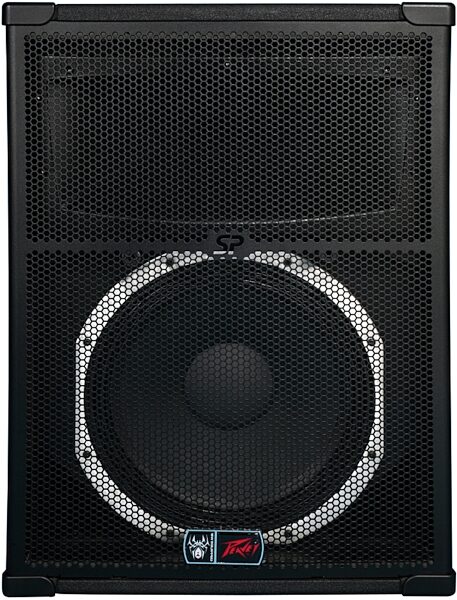

The legendary SP 5 has been a mainstay enclosure for more than two decades. Peavey's engineering team has completely redesigned this new SP 5 making it lighter weight and more robust sounding than ever. This two-way full range enclosure will easily handle 800 Watts of program power and peaks up to 1600 Watts. Featuring a 15 in. Scorpion Plus woofer with field replaceable basket, the SP 5 delivers plenty of bone-crushing bottom end while the exclusive Quadratic Throat Waveguide technology dramatically reduces horn distortion offering a much clearer sound that aims sound directly at the audience, not over their heads. Constructed of birch ply with carpet covering, the SP 5 is ready for just about any road gig or permanent install.
Features
Two-way, full-range sound reinforcement system
15 in. Scorpion Plus HO woofer with field-replaceable basket
RX 22 compression driver with ferrofluid cooling
Patented Quadratic Throat Waveguide technology
800 Watts program, 1600 Watts peak
Sound Guard III tweeter protection
Full-range inputs include a Neutrik Speakon 4 pin jack and two 1/4 inch phone jacks
Trapezoidal baltic birch enclosure
Stand-mount adapter
Technical Info
Frequency response, 1 meter on-axis, swept-sine in anechoic environment: 69 Hz to 17 kHz
Usable low frequency limit (-10 dB point): 50 Hz
Power handling
Full range: 400 Watts continuous, 800 Watts program, 1,600 Watts peak
Sound pressure level, 1 Watt, 1 meter in anechoic environment:
Full range: 99.0 dB SPL (2.83 V input)
Maximum sound pressure level (1 meter):
Full range:
125 dB SPL continuous
131 dB SPL peak
Radiation angle measured at -6 dB point of polar response:
90° horizontal by 40° vertical
The vertical main polar lobe is angled down 10° with respect to straight ahead being +10, -30
Transducer complement:
Low frequency section: 1x 15 in. SP-15825 Scorpion, Plus HO Woofer
High frequency section:
1x .875 in. exit / 51 mm voice coil
RXTM 22 compression driver on an asymmetrical Quadratic Throat
CD horn
Box tuning frequency: Low Frequency Section: 54 Hz
Crossover frequency (internal passive): Low Frequency High Frequency 1,800 Hz
Impedance (Z):
- Full Range:
- Nominal: 8.0
- Minimum: 5.9
Input connections: Full Range: two 1/4 in. phone jacks and one Neutrik four-pin Speakon jack
Enclosure materials and finish: Nine-ply Baltic birch plywood finished in black carpet
Dimensions (H x W x D):
- Front: 27.63 x 20.56 x 16.5 in. / 702 mm x 522 mm x 419 mm
- Rear: 27.63 x 14.8 x 16.5 in. / 702 x 378 x 419 mm
Net Weight: 56 lbs. (25.5kg)
One 15" Scorpion Plus HO woofer with horn. Handles 800 watts.
