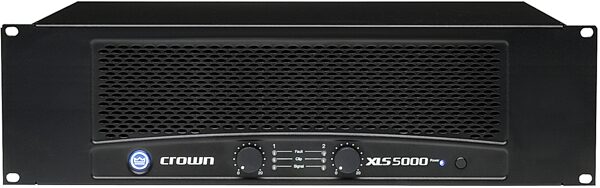

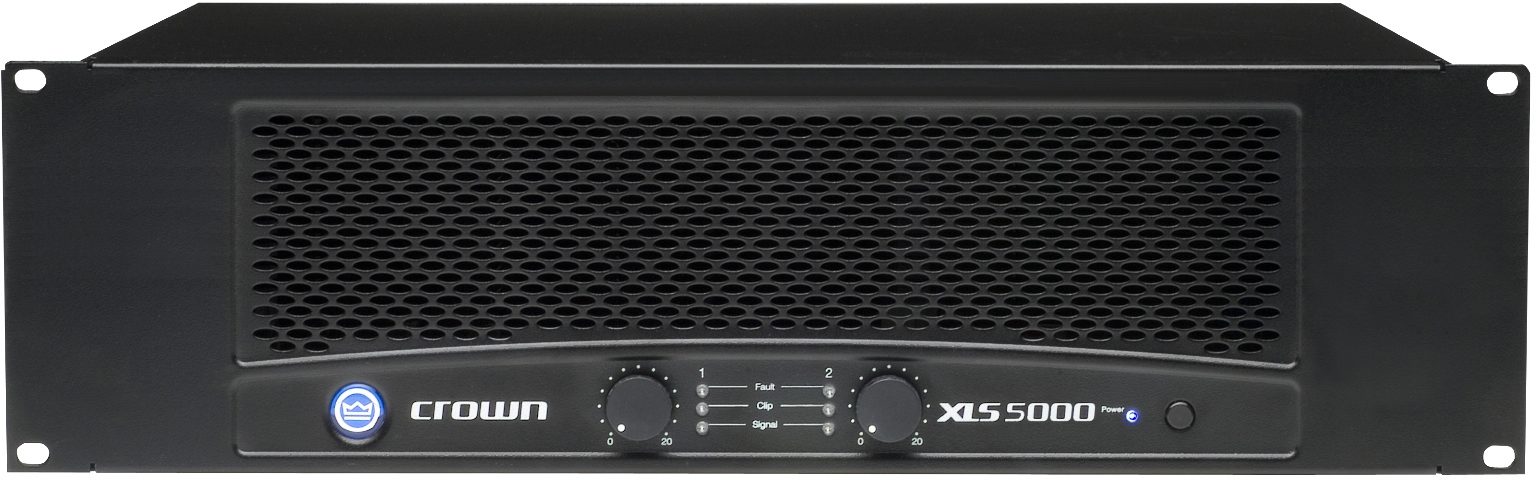

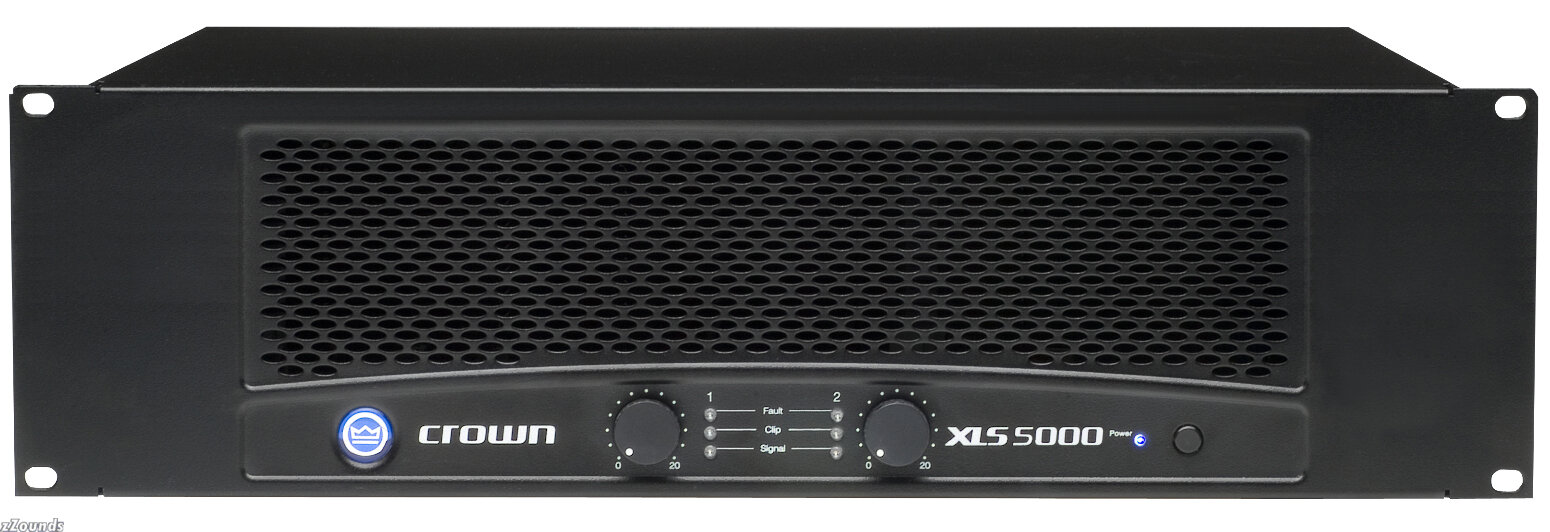

The XLS Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. The line consists of four models in a uniform, rugged 2U chassis, incorporating the best of tried-and-true design principles and innovative features.
XLS Series amplifiers are professional stereo power amplifiers engineered to meet demanding audio requirements reliably and within budget. Plus, every XLS Series amplifier is backed by Crowns unequaled Three-Year, No-Fault, Fully-Transferable Warranty that covers everything. With over five decades of experience designing and building rock-solid products, Crown is the standard in amp technology. So check out the affordable, Crown XLS Series. They are a powerful argument for quality and value!
Features
Reliable design incorporates many popular features
Housed in a rugged, all-steel 3U chassis
Efficient forced-air fans prevent excessive thermal buildup
Electronically balanced XLR inputs; touchproof binding post and Speakon outputs
Precision detented level controls, power switch, power LED, and six LEDs which indicate signal, clip and fault for each channel.
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
Technical Info
The following applies to units in Stereo mode with 8-ohm loads unless otherwise specified.
Performance
2500W @ 2 ohms stereo
1100W @ 8 ohms stereo
1800W @ 4 ohms stereo
3600W @ 8 ohms bridged
5000W @ 4 ohms bridged
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V.
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, 0.8 dB.
Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power:
>98 dB.
No weighting, below rated power:
>93 dB.
Total Harmonic Distortion (THD): <0.5%.
Intermodulation Distortion (IMD):
(60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%.
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200.
Crosstalk (below rated power)
at 1 kHz: +76 dB. at 20 kHz: +58 dB.
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced.
Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono.
Note: Users must have an available 20A power outlet (same outlet large appliances that use them i.e. refrigerators, washer/dryers, etc. use)
Weight XLS 5000: Net - 62.0 lb (27.7 kg), Shipping - 74.0 lb (33.6 kg)
