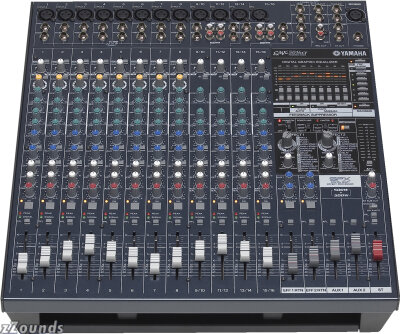

The Yamaha EMX5016CF delivers the convenience of an integrated powered mixer with input capacity, flexible features, and solid sound that critical live applications demand. It is remarkably compact and portable for a live sound system with this much capability. And thanks to leading Yamaha digital technology, the EMX5016CF also includes a number of innovations that make it easier than ever to achieve top-class sound in just about any venue. An impressive power output of 500 watts per channel means it can handle fairly large audiences, indoors or out. The EMX5016CF goes considerably beyond the standard definition of "powered mixer," entering the realm of serious sound reinforcement.
Features:
16 inputs (12 mic & 5 stereo line)
2x500W Class H power amplifiers
3-band EQ/mid sweep
Dual 32-bit SPX digital effect processors
Single-knob compressors on each mono input
9-band digital graphic EQ w/memories
FRC (Frequency Response Correction)
Feedback suppression (Auto and Manual)
3-Band output "Maximizer"
Lamp socket
Technical Info
Maximum Output Power Per side @ 0.5 % THD at 1 kHz:
- 500 W/4 Ohms
- 350 W/8 Ohms
Frequency Response: -3, 0, 1 dB 20Hz-20kHz, ref to the 1kHz output level, GAIN=MIN, PAD=OFF
Total Harmonic Distortion: Less than 0.3 % (THD+N) +14dBu output into 600 Ù @ 20 Hz-20 kHz
Hum & Noise: Equivalent Input Noise, -128 dBu, GAIN=MAX, 20 Hz-20 kHz, CH1-8 MIC
Crosstalk @ 1 kHz: -68 dB
Input Connectors:
- CH 1-8: XLR and Phone
- CH 9/10-15/16: XLR. Phone and Pin
Channel EQ:
- CH 1-8: HIGH (10 k, Shelving), MID (mono: 250-5 k, st: 2.5 k, Peaking), LOW (100, Shelving)
-CH 9/10-15/16: HIGH (10 k, Shelving), MID (st: 2.5 k, Peaking), LOW (100, Shelving)
Phantom Voltage: 48 V
Digital Graphic Equalizer: 9 Band (63, 125, 250, 500, 1 k, 2 k, 4 k, 8 k, 16 kHz), Preset x 3, User preset x 3
Digital Effects: SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs x 2
Power Amp. Mode: L/R, AUX1/MONO, AUX1/2
Foot Switch: Effect On/Off
Dimensions: 17-3/8 inches Wide x 19-3/8 inches Deep x 6-1/8 inches High
Weight: 11 kg (24.2 lbs.)
Power Requirements/Consumption:
- 120 V 60 Hz, 500W
- 220-240 V 50 Hz, 500W
