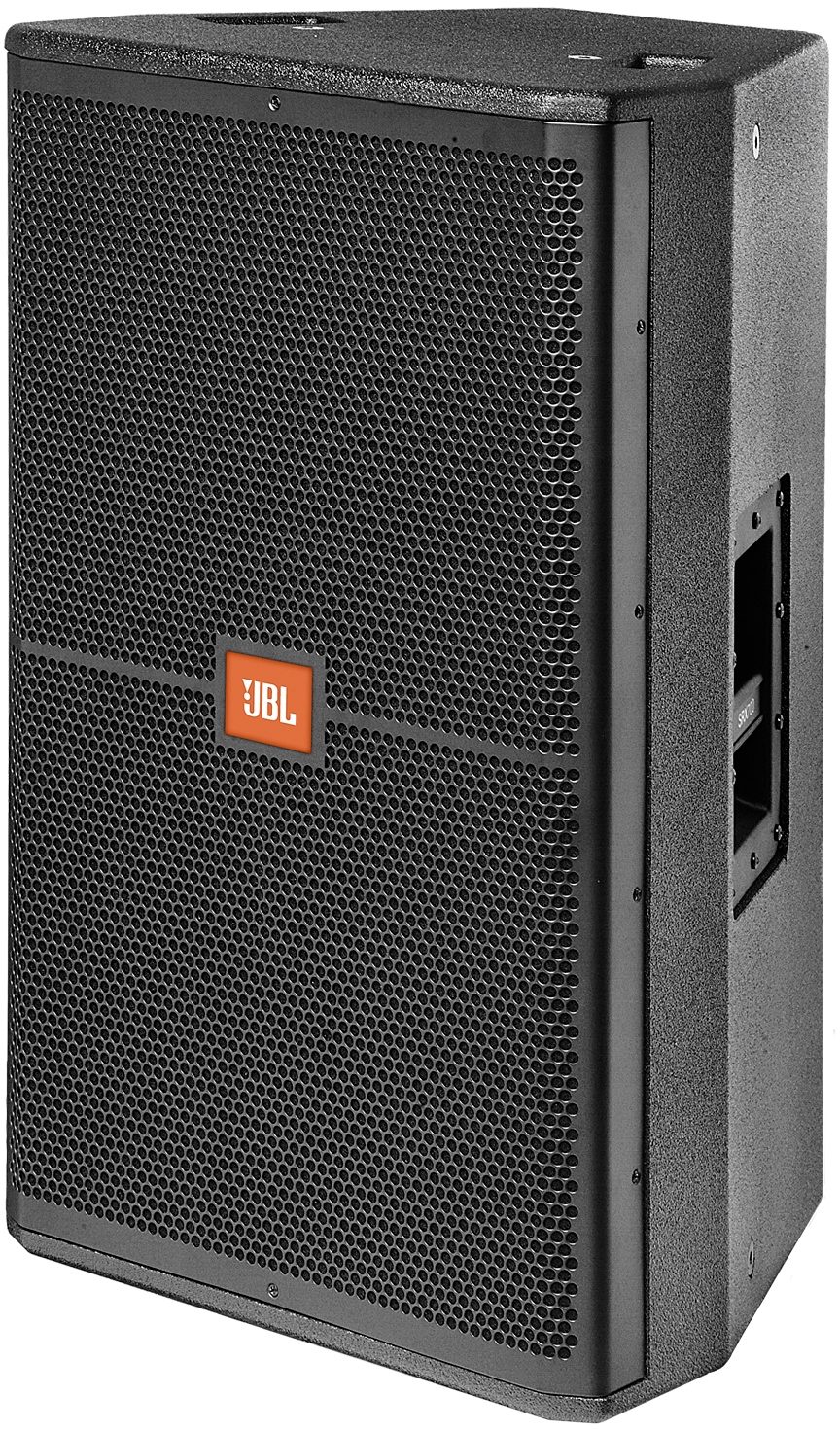

JBL SRX715 2-Way Loudspeaker (800 Watts, 15")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main
JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main
JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main
JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main JBL SRX715 2-Way Loudspeaker (800 Watts, 15"), Main
zZounds Gear Experts Say...
Surprisingly lightweight for its powerful output, this 800-watt JBL loudspeaker comprises a neodymium compression driver and 15" Differential Drive woofer.

The SRX715 offers the highest level of performance available from a portable, pole or tripod mountable speaker. The 2265H Differential Drive woofer handles 800 watts (continuous) while weighing only 48 lbs (22kg). A 2431H 3-inch diaphram, neodymium compression driver on a 75 degree x 50 degree horn makes the SRX715 the best choice for general purpose sound reinforcement, live performance, music playback or speech. When the application calls for increased low-frequency extension, add the SRX728S or SRX718S subwoofer.

Frequency Range (-10 dB): 43 Hz - 20 kHz

Frequency Response (+/-3 dB): 53 Hz - 20 kHz

Coverage Pattern: 75 degrees x 50 degrees nominal

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 1.2 kHz

Power Rating (Continuous1; Program; Peak):
- Passive: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp LF: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp HF: 75 Watts; 150 Watts; 300 Watts

Maximum SPL2: 131 dB SPL peak

System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer with neodymium magnet and dual voice-coils

HF Driver: 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium magnet compression driver

Nominal Impedance:
- Passive: 8 ohms
- Bi-amp LF: 8 ohms
- Bi-amp HF: 8 ohms

Active Tunings: dbx DriveRack, all models.

Enclosure: Trapezoidal, 15 mm, 11-ply birch plywood

Suspension / Mounting: Dual-angle (0 degrees or -10 degrees) 35 mm pole socket

Transport: 2 x steel handles

Finish: Black DuraFlex finish

Grille: Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.

Removable JBL badge and punched JBL logo.

Input Connectors: Neutrik Speakon NL-4 (x2)

Dimensions (H x W x D): 28 in x 17.3 in x 16 in (711 mm x 439 mm x 406 mm)

Net Weight: 48 lbs. (22 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 800-336-4525
Web: https://jblpro.com/en/support for pro audio, https://support.jbl.com for consumer/home audio
Spec Sheet

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (18 ratings)
Submitted December 23, 2008 by a customer from woh.rr.com

"SRX715 is a very good unit."

Overall: 4.5 out of 5 stars
(see rating details)
I don't generally give 10's!
Sound
Very flat (good) response right out of the box, needs very little EQ. Sounds great, really.
Ease of Use
Very light for a 15 inch two way.
Quality
Very nicely done. Looks good, holds up well.
The Wow Factor
Just something about JBL quality in their best gear. The low priced stuff is not the same at all. (i.e. JRX series)

Musical Background:

Promoter/talent buyer

Musical Style:

This is generally used as a playback system for outdoor movies. See bugflix.com
32 of 49 people (65%) people found this review helpful. Did you?
