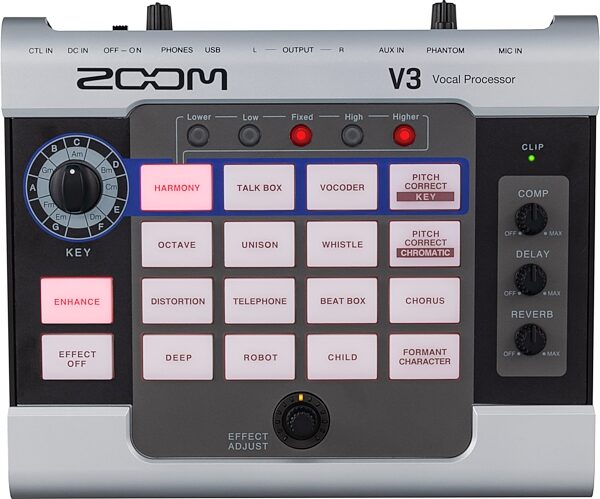

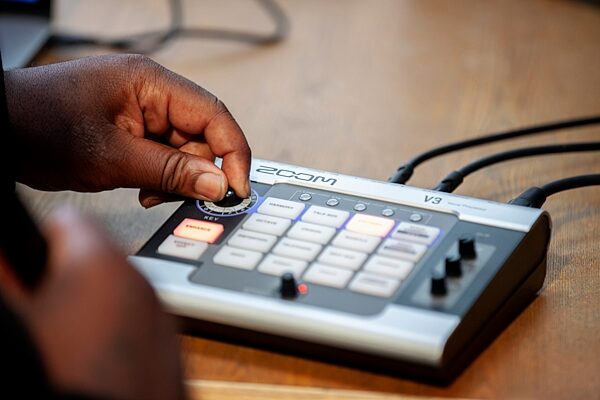

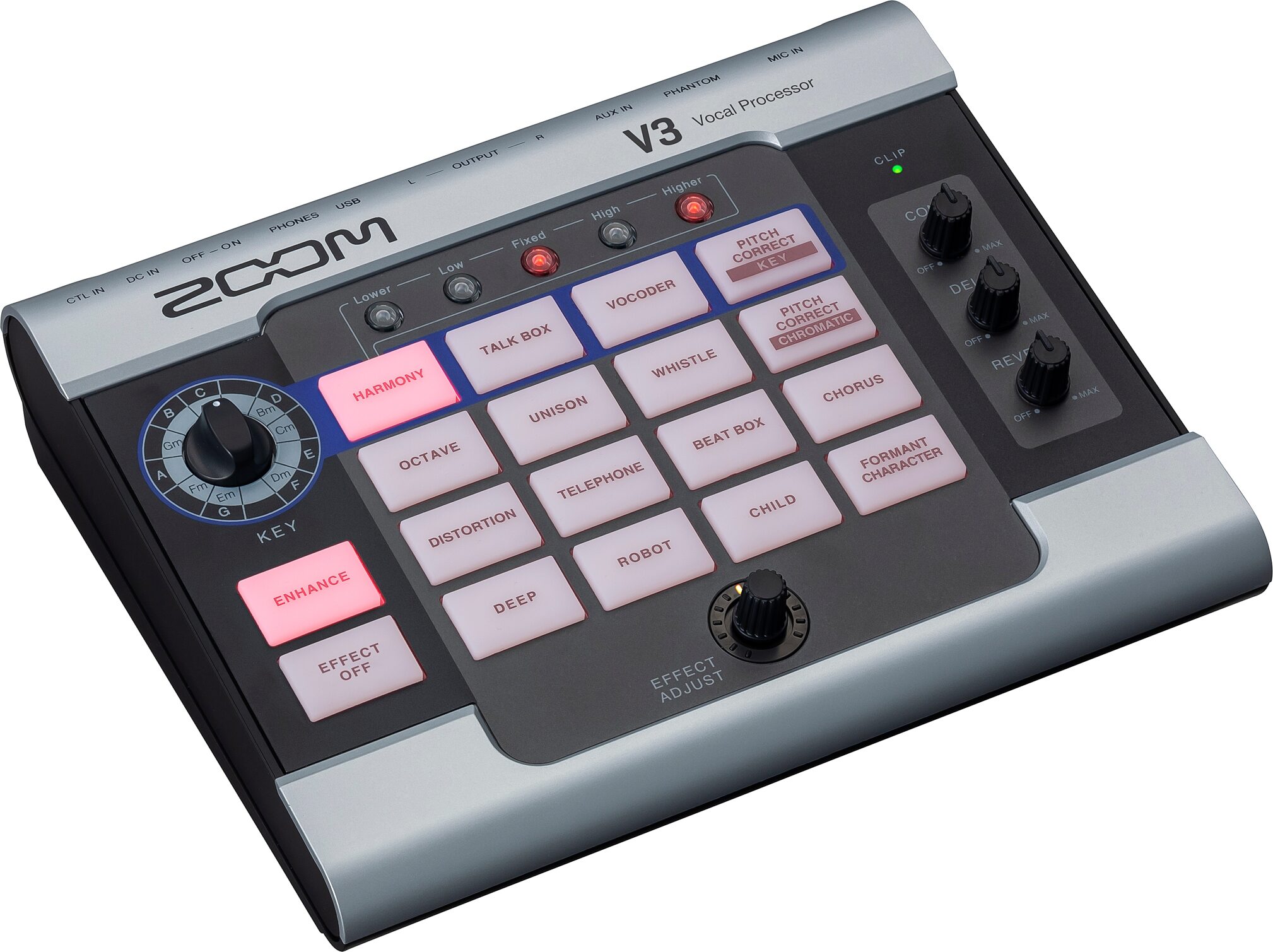

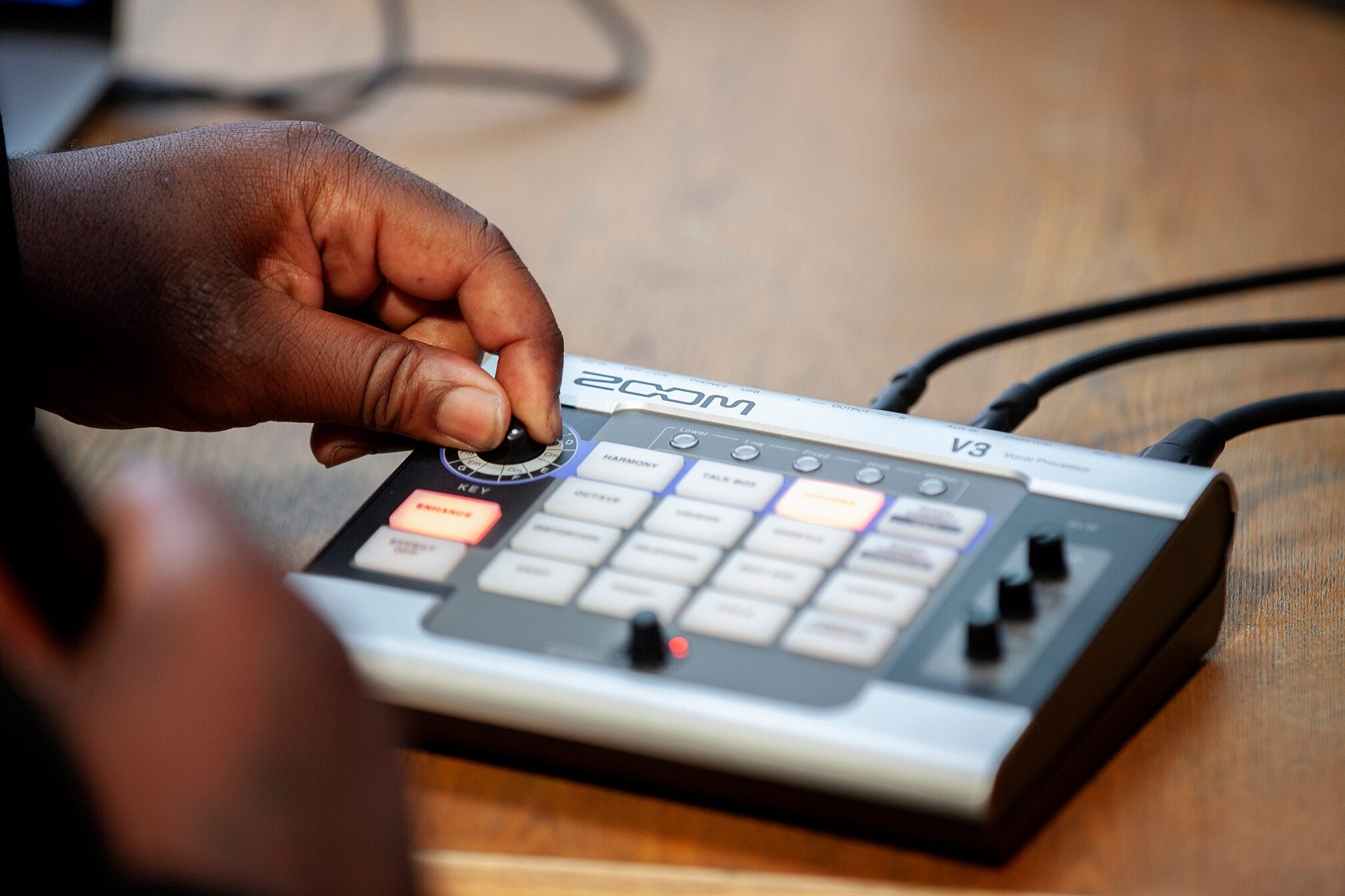

Zoom V3 Vocal Effects Processor

V3 MULTI-EFFECTS VOCAL PROCESSOR:
- Effects: 16 types
- Concurrent effects: 5
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit 128\0xD7 oversampling
- D/A conversion: 24-bit 128\0xD7 oversampling
- Signal processing: 32-bit
- Frequency response: 20 Hz-20 kHz (+1 dB/'3 dB) (10 kOhm load)

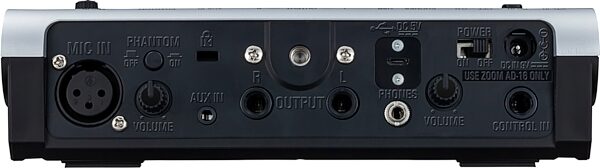

INPUTS:
MIC IN: XLR jack
- Input gain: +3 - +40 dB
- Maximum input level: +4 dBu
- Input impedance: 3 kOhm or higher (1 kHz)
- Phantom power: +48 V

AUX IN: Stereo mini jack
- Rated input level: '10 dBu
- Input impedance (line): 22 kOhm

OUTPUTS:
L/R OUT: Unbalanced TS jacks
- Maximum output level: +6 dBu
- Output impedance: 100 Ohm

PHONES: Stereo mini jack
- Maximum output level: 20 mW + 20 mW (into 32 Ohm load)

- Equivalent input noise (when phantom power off): -125 dBu or less (A-weighted, 150 Ohm input, +40 dB input gain)
- Noise floor (residual noise): -75 dBu
- Control input: FS01/FP02M input

POWER:
- Bus-powered via the USB port when used as a USB audio interface (When using a cable designed ONLY for power, other USB functions cannot be used.)
- Optional ZOOM AD-16, AC adapter (9 V DC 500 mA, center negative)

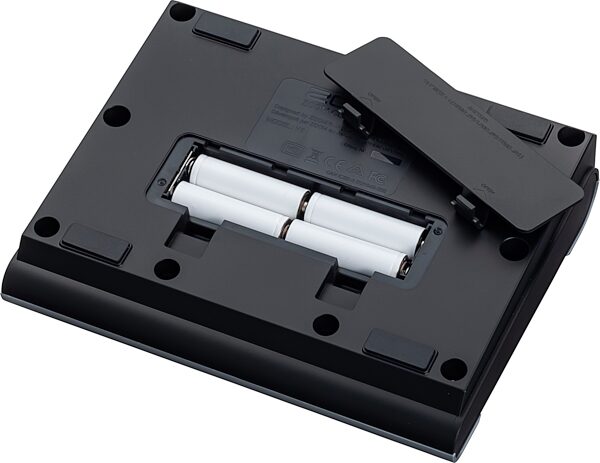

- 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)

USB:
- Connector: Micro USB
- Audio interface operation: 2-in/2-out USB 2.0 Full Speed, 44.1 kHz, 16/24/32-bit

WEIGHT AND DIMENSIONS:
- External dimensions (W x D x H): 7.5" x 5.9" x 2" (190 x 150 x 50 mm)
- Weight: 0.59 kg (excluding batteries)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2 lbs
Shipping Dimensions: 9 x 7 x 3 in
Manufacturer Part Number (MPN): ZV3
If you have additional warranty questions, please contact the manufacturer at 631-542-5270
