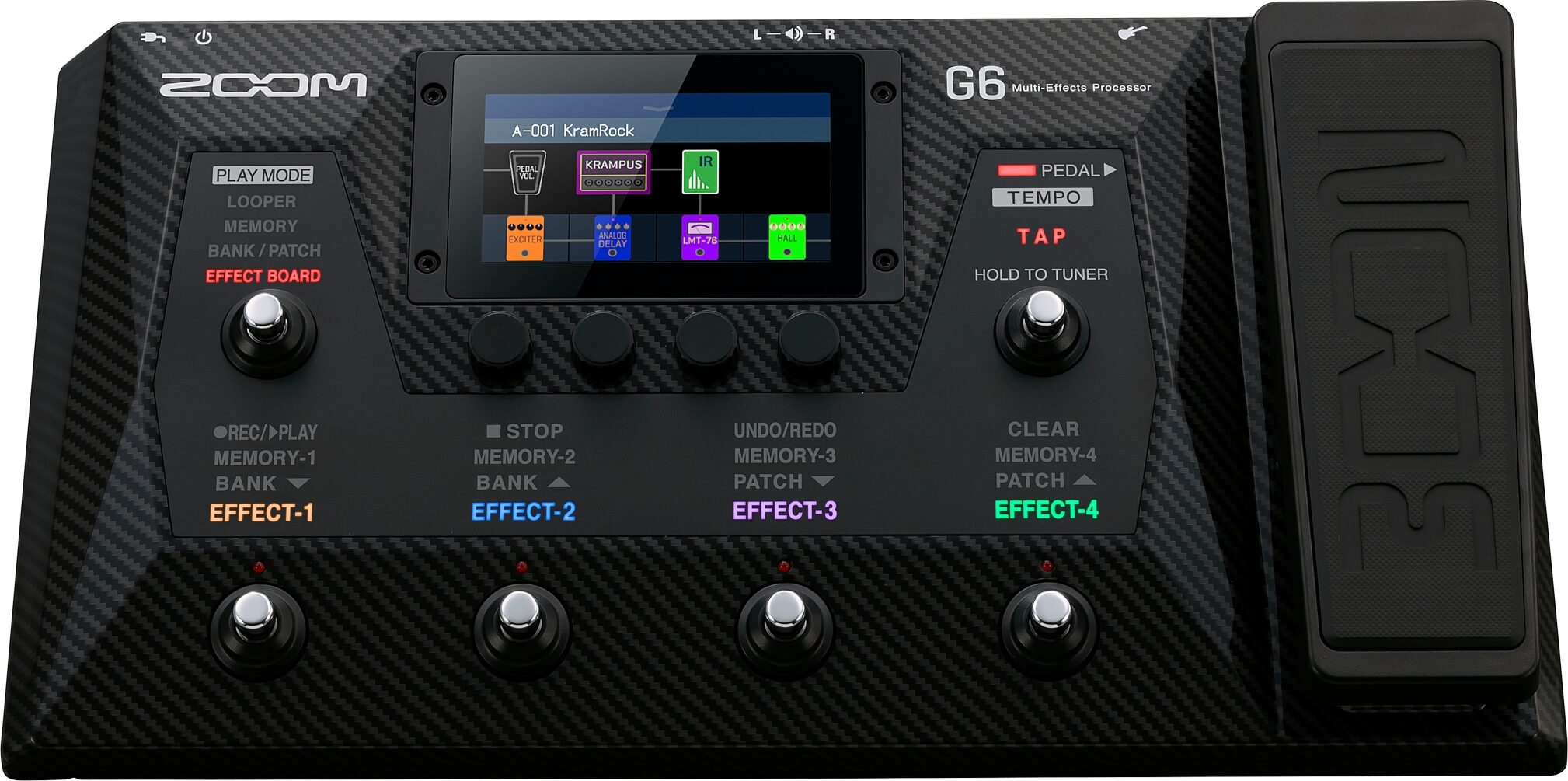

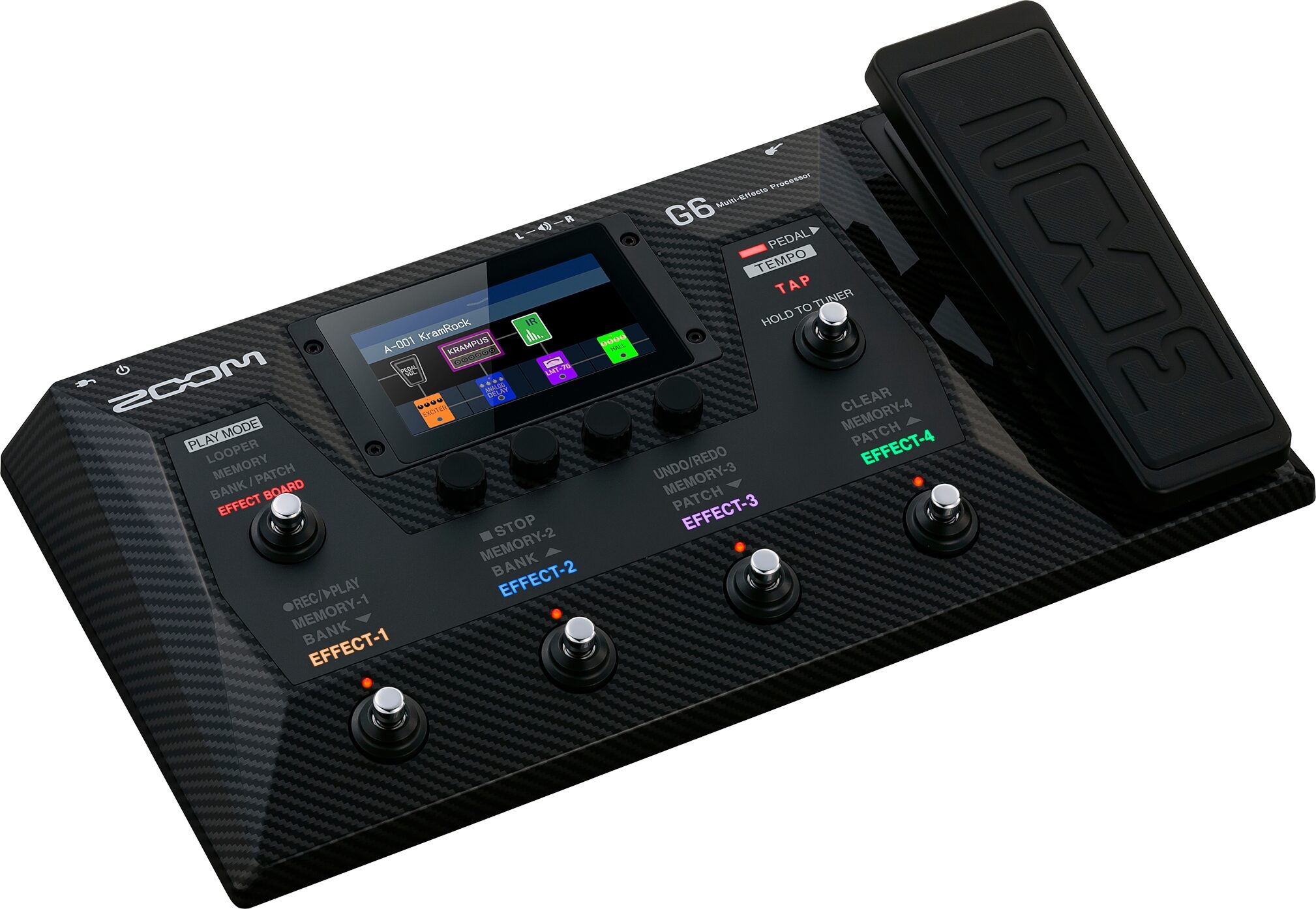

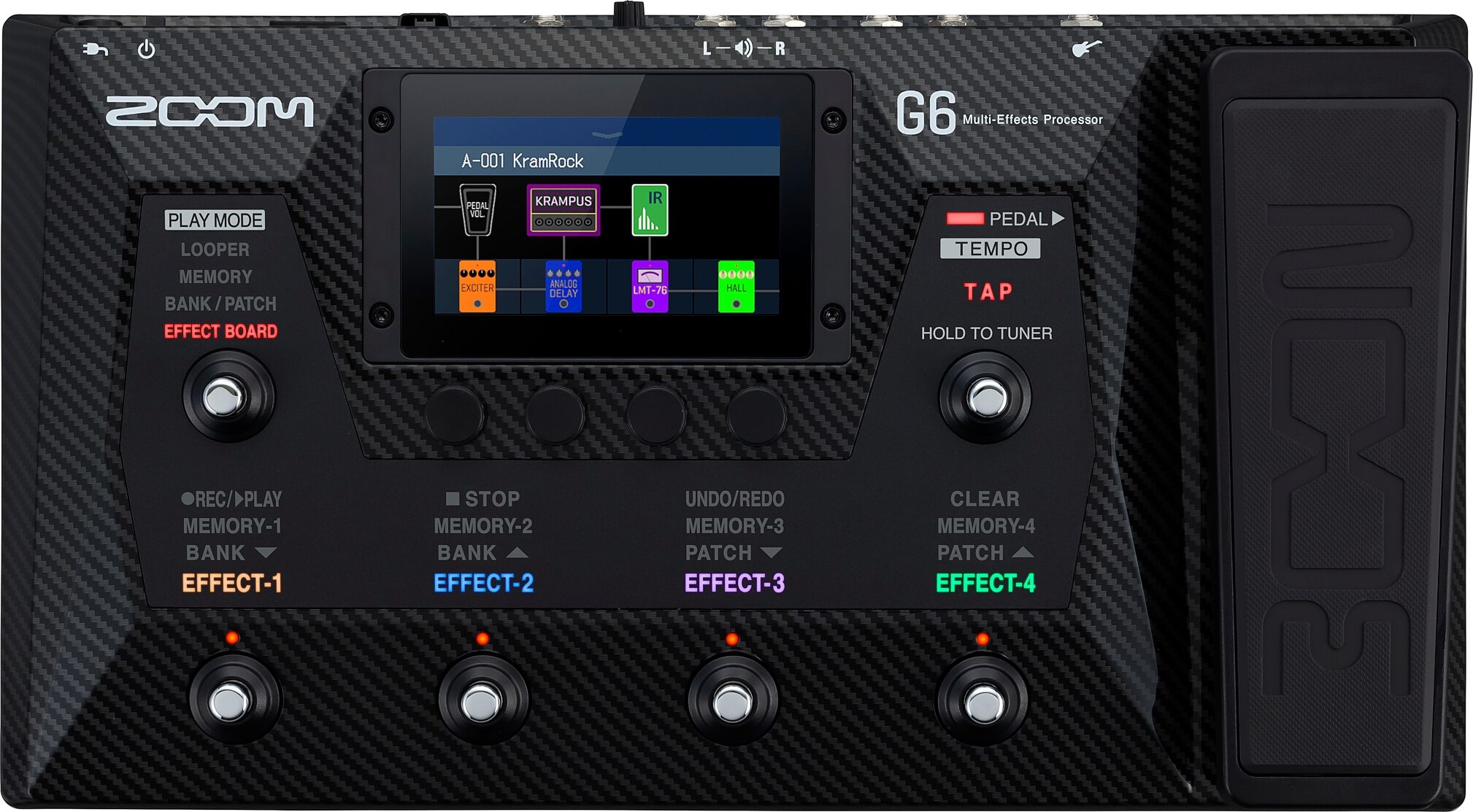

Zoom G6 Guitar Multi-Effects Pedal

Unlock the full potential of your creativity with the G6. This pedal includes a host of effects, along with a 45-second looper and a speaker cabinet sim.
Jaw dropping effects combined with powerful amp modeling, the G6 gives you more sonic possibilities than ever before.

Drag and Drop

Your sounds may be complex but building them shouldn't be. With easy-to-use, application driven technology, the G6's 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

Amps + Cabs

All the best amps in amp history are in here (and a few new ones, too), along with 70 pre-loaded, precisely recorded impulse responses (IR) and room to add more than 100 of your own.

The Right Sound

The G6 also delivers the ultimate collection of Zoom's legendary guitar effects and tones, including exclusive Distortion and Modulation effects.

Plan Ahead

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to seven effects.

Play Modes

The four Play Modes on the G6 will change the touchscreen and footswitch layout to give you quick access to the controls you need.

Looper: Use the Looper to add layers to your sound. Create loops up to 2 hours by recording to an SD/SDXC card.

Memory: Ideal for organizing your patches, the Memory Mode allows the foot switches to activate one of the 4 patches in your bank.

Preset Banks: This mode lets you scroll up and down through your Banks and Patches by clicking the corresponding foot switch.

Effects Board: This mode provides read more a visual representation of your pedal chain. By clicking the assigned foot switch, you can turn on or off an effect in your patch.

Features:


- Integrated pedal board with 6 stomp switches and expression/volume pedal
- Ultimate Zoom FX processor technology with custom amp modeling
- 4.3" color LCD touch-screen interface
- Chain up to 7 effects + amp emulation
- IR load function for speaker cabinet simulation
- New Play Mode Footswitch provides instant access to different play modes
- Easy-to-see backlit panel with color-coded stomp effects
- Built-in USB audio interface (2-in / 2-out)
- 68 rhythm patterns
- 45-second onboard looper; expandable up to 2 hours with an optional SD card.
- Compatible with Zoom Guitar Lab
- Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Max number of simultaneous effects: 9 effects
User patches: 240
Sampling frequency: 441. kHz
A/D Conversion: 24-bit 128x oversampling
D/A conversion: 24-bit 128x oversampling
Signal Processing: 32-bit
Frequency characteristics: 20 Hz - 20 kHz (+0.5 dB/ -0.5 dB) (10k - load)
Display: 4.3" TFT color LCD(480x272)
Inputs:
Input:
- Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 500 k Ohm
Return:
- Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 1M Ohm
AUX IN:
- Stereo mini jack
- Rated input level: -10 dBu
- Input impedance (line): 10k Ohm
Outputs:
Output R:
- Standard mono phone jack
- Maximum output level: +11.4 dBu (when output impedance 10 k +/- or higher)
Output L/Mono [phones]:
- Standard mono phone jack
- Maximum output level: +11.4 dBu (when output impedance 10 k +/- or higher)
- Headphones 24 mW + 24 mW (at 32 ohm load)
Send:
- Standard stereo phone jack
- Maximum output level: +11.4 dBu (when output impedance 10K +/- or higher)
Input S/N: 123 dB
Power: AC adapter (9V DC 500mA, center negative)(ZOOM AD-16)
USB:
- Port: USB 2.0 Micro-B/Supported cable type: Micro-B
- Guitar Lab: UBS 1.1 Full Speed
- Audio Interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in, 2 out
- Use a USB cable that supports date transfer. USB bus power is not supported.
SD card:
- Standards: Cards that support SD/SDHC/SDXC specifications (Class 10 or higher)
- Looper: 44.1kHz/16-bit stereo WAV
- IR: 44.1-192kHz, 16/24/32-bit WAV
Remote: ZOOM BTA-1 or other dedicated wireless adapter
External Dimensions (D x W x H): 228 x 418 x 65 mm
Weight: 1.94 kg
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 6.75 lbs
Shipping Dimensions: 22 x 13 x 4 in
Manufacturer Part Number (MPN): ZOO ZG6
Blemished
Shipping Weight: 6.4 lbs
Shipping Dimensions: 22 x 13 x 4 in
Manufacturer Part Number (MPN): MBP ZOOZG6
