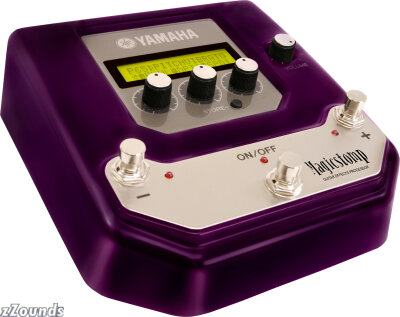

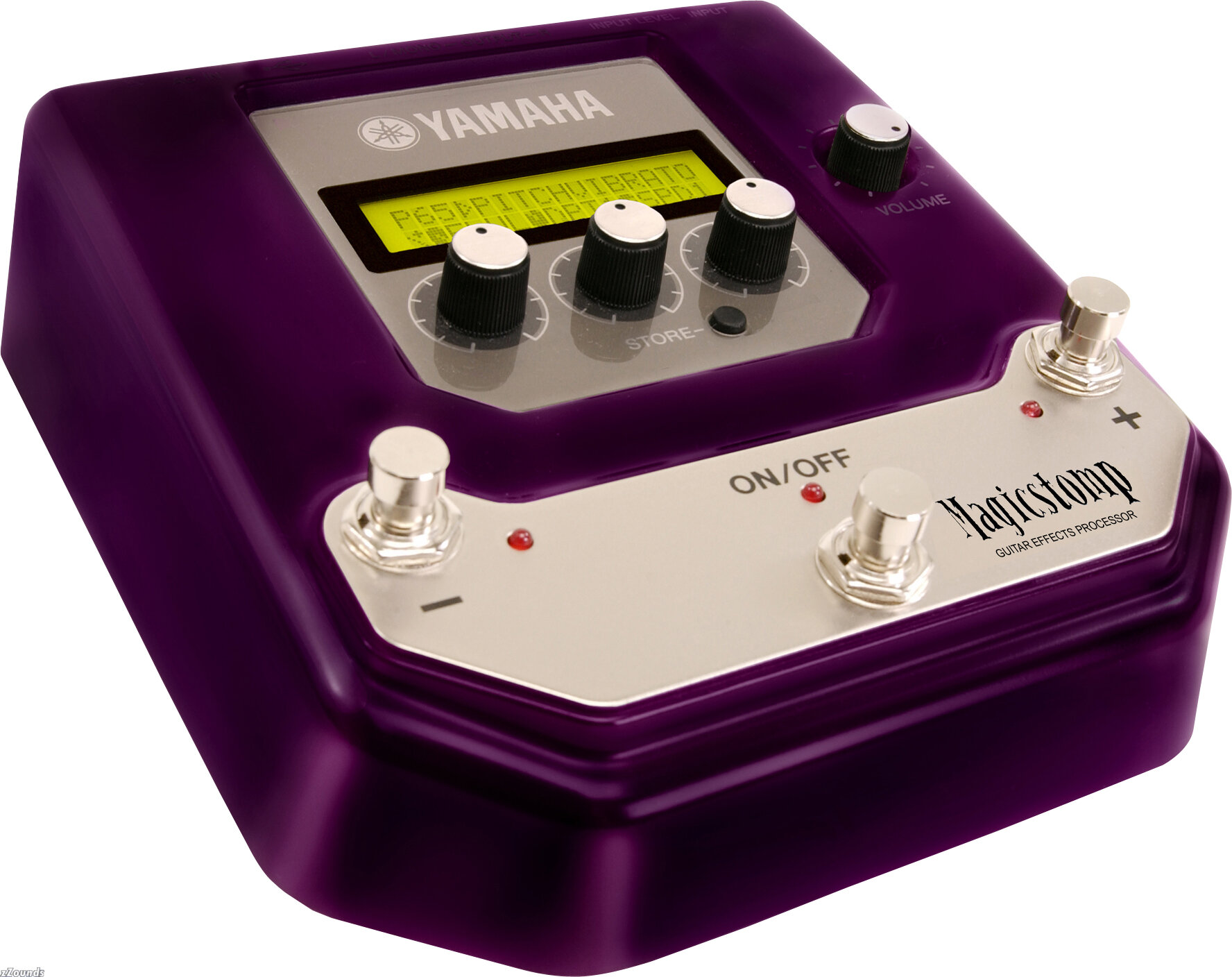

Yamaha Magicstomp II Guitar Effects Processor

Digital Section:
-- EDigital signal processing effector

-- Includes special editor application, "Sound Editor for MAGICSTOMP"

-- Patch select: 2 modes

-- Built-in chromatic auto tuner

Communications:
-- Receive: parameter change, bulk in (1 patch), bulk in (99 patch)

-- Transmit: bulk out (99 patch)

Controller/switch:
-- Knob x 4: control 1, 2, 3, volume

-- Push switch x 4: -, +, on/off, store

-- Slide switch x1: input level (high/low)

-- Display: 16 x 2 character LCD (w/back light) LED x 3 (-, +, on/off)

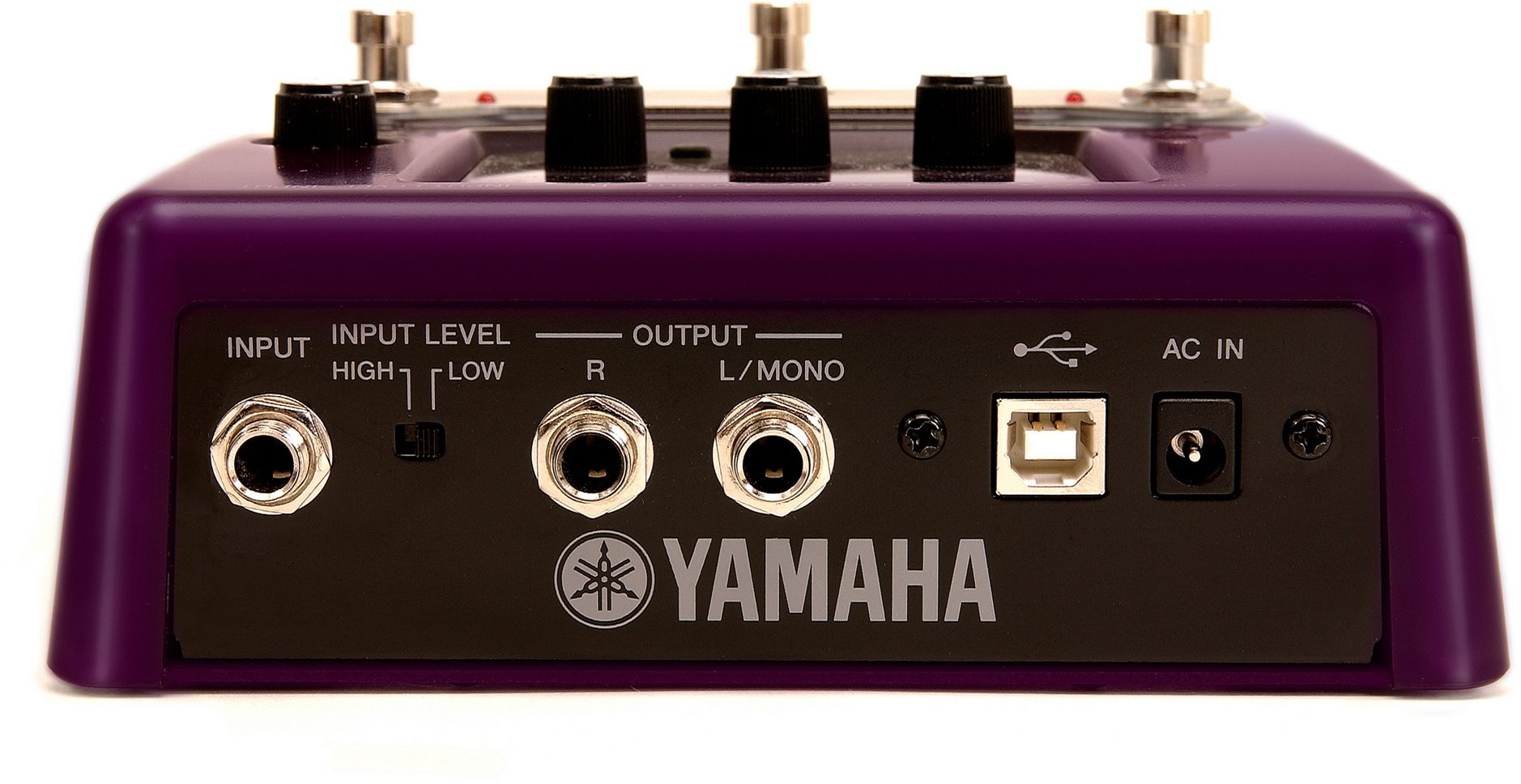

Connections:
-- Input: standard monaural phone jack

-- Output L/mono, R: standard monaural phone jack

-- USB

-- AC in

A/D converter: 24 bit + 3 bit floating

D/A converter: 24 bit

Sampling frequency: 44.1 kHz

Memory allocations:
-- Preset: 99

-- User: 99

Input Level/Impedance:
-- Input high: -25dBm/1 M

-- Input low: -15dBm/1 M

Output level/impedance:
-- Output L/mono, R: 0dBm/1 k

Additional output:
-- Headphone output

Power:
-- Exclusive power adapter (AC-10)

-- AC output: AC 12 V, 1 A

Power consumption: 12 W

Dimensions (W x H x D): 6-7/16 x 2-7/16 x 6-15/16 in. (164 x 62 x 176mm)

Weight: 2 lbs (910g)

System Requirements for Windows
Sound Editor for MAGICSTOMP:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional

-- Computer: 166 MHz or higher; Intel Pentium/Celeron processor

-- Available memory: 32 MB or more

-- Hard disk: 2 MB or more

USB MIDI Driver:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional

-- Computer 166 MHz or higher; Intel Pentium/Celeron processor

-- Available memory: 32 MB or more (64 MB or more is recommended)

-- Hard disk: 2 MB or more.

System Requirements for Macintosh
Sound Editor for MAGICSTOMP:
-- OS: Mac OS 8.6 through Mac OS 9.22
(The Mac OS X and Mac Classic environments are not supported)

-- Computer: a Macintosh computer with a PowerPC or later CPU

-- Available memory: 16 MB or more

-- Hard disk: 32 MB or more

-- Display: 800 x 600, 32,000 colors or more

USB MIDI Driver:
-- OS: Mac OS 8.5 through Mac OS 9.22 (The Mac OS X and Mac classic environments are not supported)

-- Computer: a Macintosh computer with a USB connector and a PowerPC or later

-- Memory: 64 MB or more (128 MB or more is recommended)

* Turn off virtual memory.

-- Hard disk: 2 MB or more

-- Other: OMS 2.3.8 (included in the CD-ROM in the package)

* Minimum system requirements -- The system requirements above may differ slightly depending on the particular operating system.
