Yamaha CHR12M 12-Inch Passive PA Speaker
Quality components and a wood cabinet give the Yamaha CHR12 12-inch passive PA speaker a rich, deep sound and long projection over a wide dispersion area.
Overview

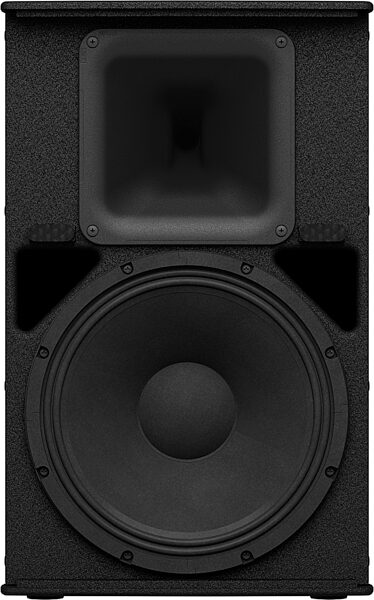

The CHR12 2-way loudspeaker is a versatile design offering integral rigging and optional bracketry for ease of installation. It offers an easily rotatable HF horn with 60 x 90 degree dispersion mated to a 1.4" HF compression driver and a high compliance 12" LF woofer for extremely clear voice reproduction and musicality. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha's high-end CZR Series, the CHR12 offers best-in-class sound quality and durability.
- 1.4" voice coil HF driver mated to a rotatable (H)90* x (V)60* Constant Directivity Horn
- Dual 35mm pole sockets allow straight 0* or a 7* downtilt if required
- Maximum 124dB SPL of output and wide frequency response range of 54Hz-20kHz
- 3 rigging points (Top x 2, Rear x 1) for M10
- A clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 12-inch LF driver that provides excellent low frequency response
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Features:
- 12" LF driver with a 2.5" voice coil- 1.4" voice coil HF driver mated to a rotatable (H)90* x (V)60* Constant Directivity Horn
- Dual 35mm pole sockets allow straight 0* or a 7* downtilt if required
- Maximum 124dB SPL of output and wide frequency response range of 54Hz-20kHz
- 3 rigging points (Top x 2, Rear x 1) for M10
- A clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 12-inch LF driver that provides excellent low frequency response
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Specs
System Type: 2-way Speaker, Bass-reflex
Frequency Range (-10dB): 54Hz - 20kHz
Coverage Angle: H90* x V60* (Rotatable)
Crossover Frequency: 2.0 kHz
Sensitivity (1W, 1m): 94dB SPL (*2)
Maximum SPL: 124dB SPL (*2)
Nominal Impedance: 8 Ohm
LF Driver Diameter: 12" cone
LF Voice Coil Diameter: 2.5"
LF Magnet: Ferrite
HF Driver Diaphragm: 1.4"
HF Type: 1" throat compression driver
HF Magnet: Ferrite
I/O Connectors: SpeakON NL4MP x 2 (Parallel)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handles: Top x1, Side x2
Rigging: Top x1, Side x2
Dimensions (WxHxD): 359 mm (14.1")x 578 mm (22.8") (with rubber feet)x 340 mm (13.4")
Weight: 17.1 kg (37.7 lbs)
Frequency Range (-10dB): 54Hz - 20kHz
Coverage Angle: H90* x V60* (Rotatable)
Crossover Frequency: 2.0 kHz
Sensitivity (1W, 1m): 94dB SPL (*2)
Maximum SPL: 124dB SPL (*2)
Nominal Impedance: 8 Ohm
LF Driver Diameter: 12" cone
LF Voice Coil Diameter: 2.5"
LF Magnet: Ferrite
HF Driver Diaphragm: 1.4"
HF Type: 1" throat compression driver
HF Magnet: Ferrite
I/O Connectors: SpeakON NL4MP x 2 (Parallel)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handles: Top x1, Side x2
Rigging: Top x1, Side x2
Dimensions (WxHxD): 359 mm (14.1")x 578 mm (22.8") (with rubber feet)x 340 mm (13.4")
Weight: 17.1 kg (37.7 lbs)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 43.55 lbs
- Shipping Dimensions: 25 x 18 x 17 in
- Manufacturer Part Number (MPN): CHR12
Note: Unpowered speaker, requires separate power amplifier.
