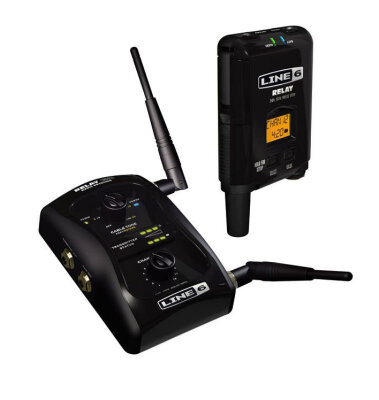

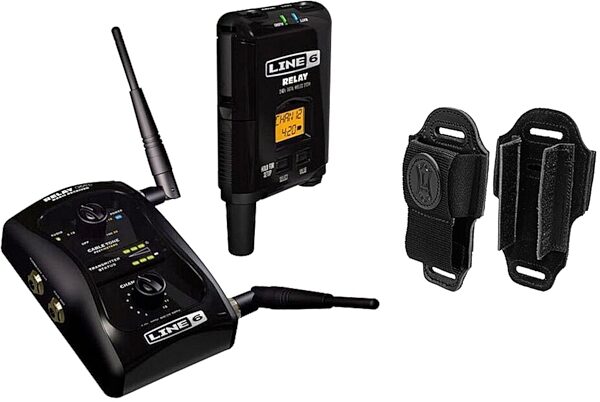

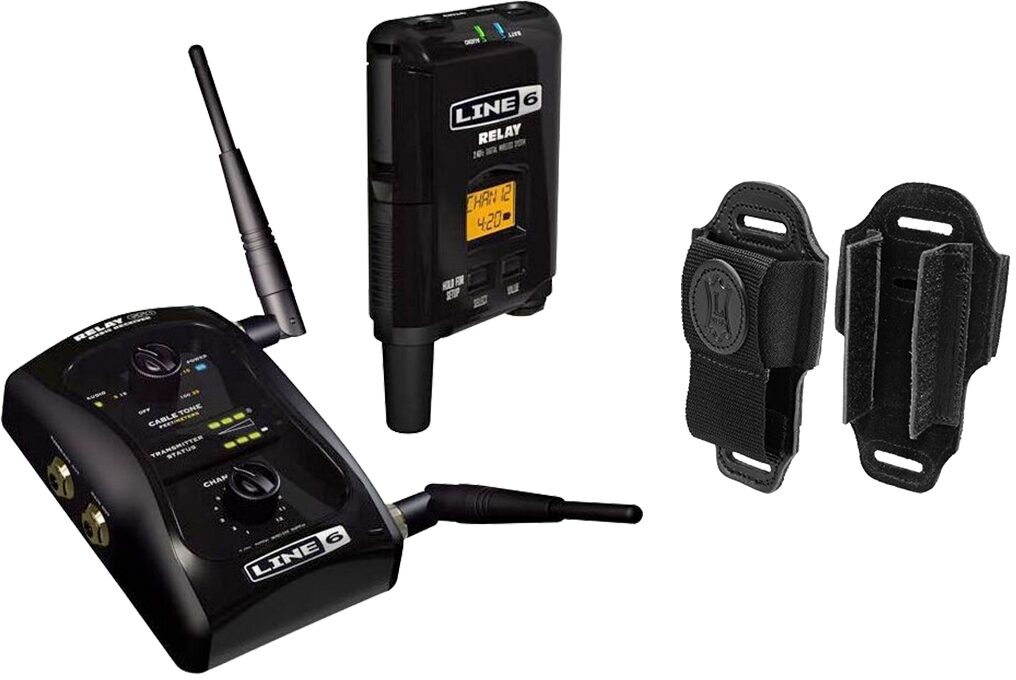

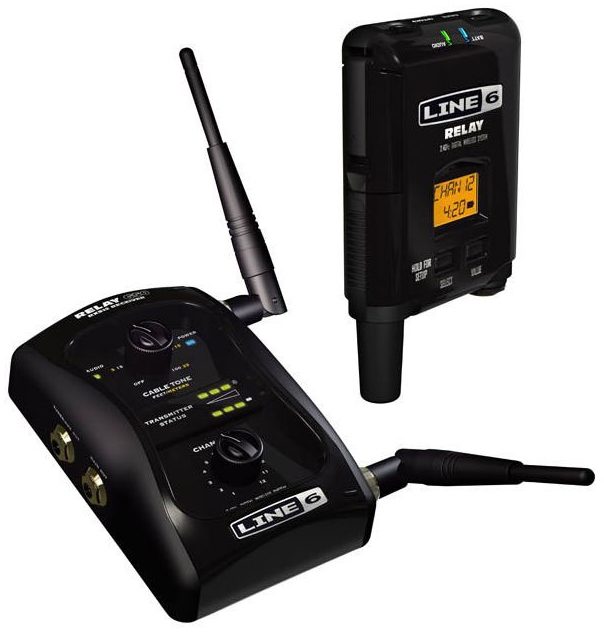

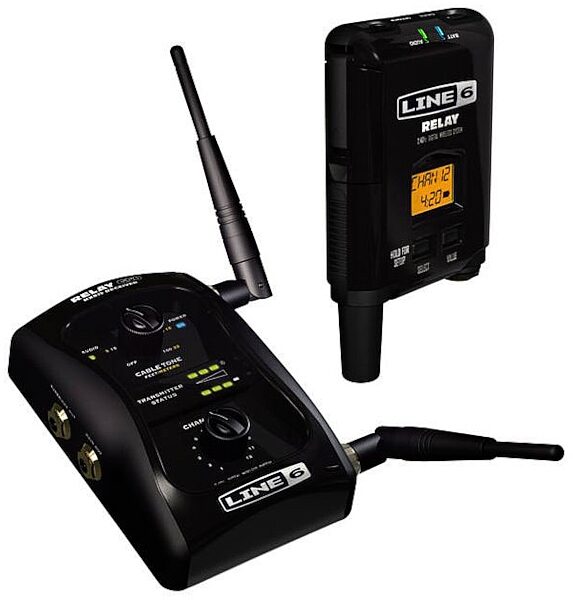

Line 6 Relay G50 Digital Wireless Guitar System

Pop this Line 6 wireless receiver into your pedalboard, clip the transmitter to your strap, and get ready to rock -- without tripping on your guitar cable.

With a Line 6 Relay G50 digital wireless guitar system, you can break free from your amp and pedalboard! This wireless system features 12 user-selectable channels, a wide 10 Hz to 20 kHz frequency response, 2.4 GHz band broadcast for interference-free performance, compander-free operation so your tone won't sound squashed, and much more. To get started, just add the system's stompbox-style receiver to your pedalboard, clip the transmitter to your guitar strap, and choose a channel.

Power Up and Play without Ever Tripping on a Cable

The Relay G50 digital wireless guitar system works right out of the box, allowing you to enjoy playing guitar wirelessly without having to scan for open channels or reference Web sites for rules and restrictions. The Relay G50 wireless rig features 24-bit A/D conversion with a wide 10 Hz to 20 kHz frequency response and dynamic range of up to 118 dB -- so you'll preserve the full, natural tone of your guitar or bass without adding noise.

Compander-Free Operation

Older analog VHF of UHF wireless systems use companding (compression and expansion) to send and receive audio -- which can squash your dynamics and suck the life out of your tone. Unlike those analog systems, the Relay G50 sends a full-bandwidth, 24-bit digital signal, so you get the sound you're used to from a wired system. Line 6's exclusive Virtual Wire Transmission (VWT) technology provides excellent transient response, full-range frequency response, and wide dynamic range. read more

Cable Tone Simulation Onboard

When you plug into a guitar amplifier or pedalboard with an analog cable, your tone is affected by the impedance of that cable. So if you've dialed in your amp's tone settings while plugged in, you may notice your wireless system sounding a little too bright or present in comparison. Take the edge off your tone, and add the sound of your cable back into the mix with the Line 6 Relay G50's built-in cable tone simulator. Just flip the Cable Tone switch on the receiver to put Line 6's DSP expertise to work modeling the sound of a 15-foot or 30-foot analog cable. Now, you can switch back and forth between wired and wireless without having to adjust the tone settings on your amplifier.

Sayonara, Interference

Digital Channel Lock (DCL) technology automatically locks out all sources of interference so that when you perform, you hear just your guitar, not static. Likewise, the system operates in the 2.4 GHz broadcast band, which avoids interference caused by TV stations, public safety broadcasts, cell phone towers, and other high-powered sources.

Check out our overview of the Line 6 Relay G50 Digital Wireless Guitar System:


Features:

- 200-foot range lets you keep your distance from the receiver without affecting sound quality
- Broad 10 Hz to 20 kHz frequency response
- 118 dB dynamic range -- preserves your the dynamics of your signal
- 24-bit A/D conversion for high-quality sound
- Broadcasts in the 2.4 GHz band for interference-free operation
- 12 user-selectable channels so there's always an open channel
- Find open channels right out of the box, with no scanning, searching, or hassle
- VWT technology mimics the functionality of a guitar cable
- Cable Tone Simulator lets you switch between wired and wireless without having to adjust the tone settings on your amp
- EQ settings match the sound of a guitar cable so you can keep your tone
- Encrypted data stream provides added signal protection
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Metal Stompbox-style System
- Transmission Format: Line 6 proprietary digital audio transmission
- Frequency Response: 10Hz - 20kHz
- Dynamic Range: 120 dB
- RF Carrier Frequency: 2.4 GHz
- Compatible Channels: 12
- Transmission Range: 200 feet line-of-sight (may vary due to local conditions)
- FCC Approval: Part 15 approved, no user-license required

TBP12 Transmitter
- A/D Conversion: 24-bit Delta Sigma, 128 times oversampling
- Input Impedance: 1.3 M-Ohm
- Connectors: TA4F unbalanced input
- Controls: Power On/Off, Channel Select
- LEDs Display: Power, Audio Status
- LCD Display: Channel Number, Battery Life
- Battery Life: Approx. 8 hours (2x AA alkaline batteries)

RXS12 Receiver
- D/A Conversion: 24-bit Delta Sigma, 128 times oversampling
- LEDs Display: Power On, Data Link, Audio Status
- LCD Displays: Channel Number, Transmitter Battery Life
- Power Requirements: DC-1g power supply (9VDC)

Connections:
- 1/4-inch output
- Tuner pass-thru

Controls:
- Power On/Off
- Channel Select
- Cable Tone Simulator
Dimensions and Weight in Packaging
(2.4GHz)
Shipping Weight: 2.5 lbs
Shipping Dimensions: 12 x 11 x 3 in
Manufacturer Part Number (MPN): 99-123-0105

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 818-575-3600

Line 6 Relay G50 Wireless Guitar System

Line 6 Relay digital wireless guitar systems are hassle-free and work right out of the box. Power up, pick a channel, and go! Put analog wireless to shame. All channels in all Relay digital wireless systems work all the time -- there's no website to reference and no need to scan for open channels.

Perfectly placed ins and outs, metal stompbox-style reciever, internally mounted antennas; the Relay G50 digital wireless system is the perfect addition to any pedal board.

Features:

- 200-foot range; 12 user-selectable channels
- Broad 10Hz-20kHz frequency response
- Superior 118 dB dynamic range with Zero compression
- Broadcasts in the 2.4 GHz band: optimal for guitar wireless
- Find open channels right out of the box--no scanning, no searching, no hassle
- EQ settings match the sound of a guitar cable so you can keep your sound
- Encrypted data stream provides additional signal protection

VWT

Exclusive VWT (Virtual Wire Transmission) technology ensures full-range frequency response, excellent transient response, and wide dynamic range -- just like a high-quality guitar cable.

Superior Specs

Relay digital wireless systems produce full-range tones with 10Hz-20kHz frequency response, exceedingly low noise with up to 120dB dynamic range, and studio-quality resolution with 24-bit A/D conversion. Comparably priced analog wireless systems offer 50Hz-15kHz frequency response and >90dB dynamic range. This wreaks havoc on your tone, especially if you use a high-gain amp.

Cable Tone Simulation

Using a cable and a wireless system? Now you can switch back and forth without having to adjust the tone settings on your amplifier. Relay digital wireless systems feature a Cable Tone Simulator, which lets you match the sound of your Relay to the sound of your cable.

Compander-Free

Companders squash your signal and ruin your tone. Analog wireless systems require companders but Relay wireless systems do not. Remaining compander-free enables Relay to deliver a beautiful high-end sparkle, thunderous low-end punch, and touch response that analog wireless systems simply cannot deliver.

Digital Channel Lock

Exclusive DCL (Digital Channel Lock) technology automatically locks out all sources of interference. The only sound that will come out of your amplifier is you -- not static, not Top 40 radio, just you. Guaranteed.

2.4 GHz broadcast: What about Wi-Fi?

Worried about interference caused by 2.4 GHz WiFi networks and Bluetooth devices? Don't be. Relay digital wireless systems use uniquely addressed and encoded digital transmission technology. Your tone will make it from your transmitter to your receiver free of interference.

The best way to avoid interference? Don't get in its way. Relay digital wireless systems broadcast in the 2.4 GHz band, which successfully avoids interference caused by TV stations, public safety broadcasts, cell phone towers, and other high-powered sources.

Full Quality, No Matter What

Whether you're playing two feet from your Relay or at the edge of its range, you get the same great specs: full frequency response, superior dynamic range, cable-inspired dependability, and 24-bit A/D conversion.
