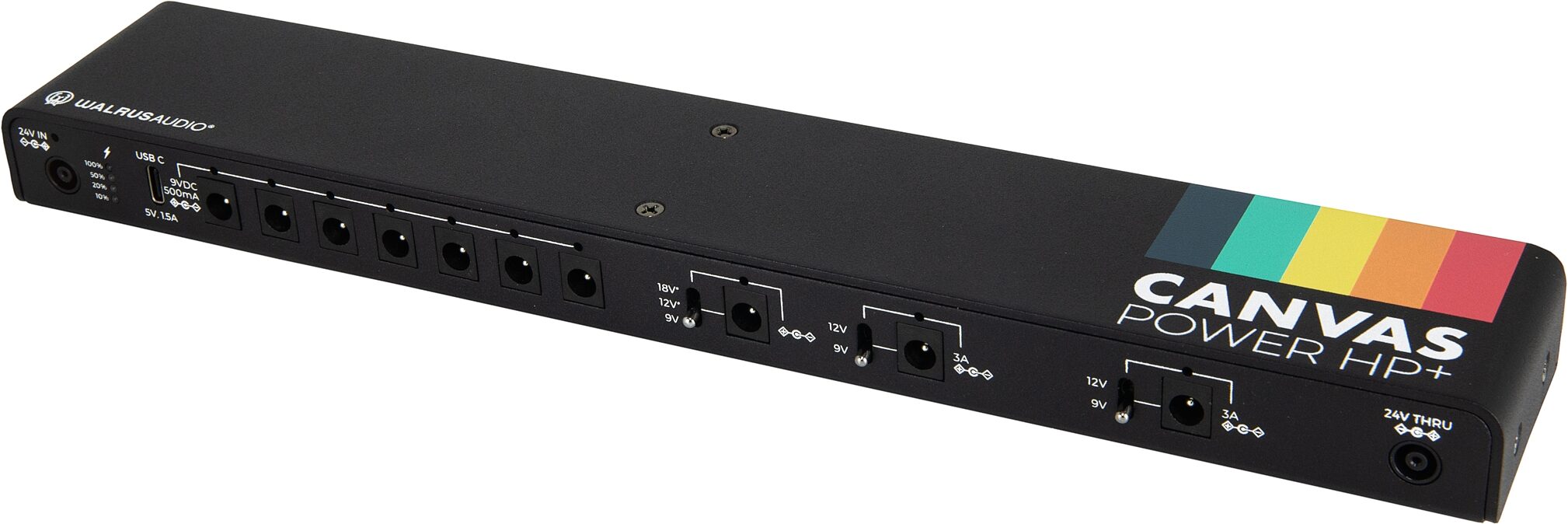

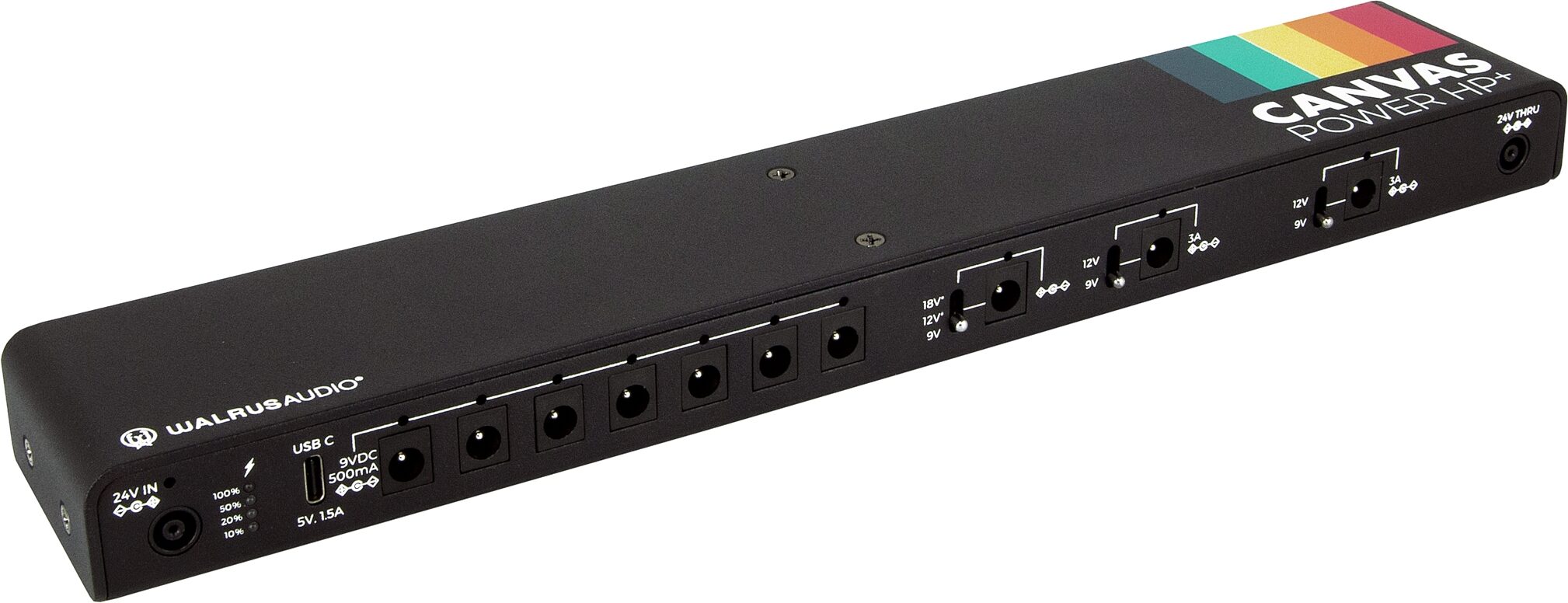

Canvas Power HP Plus Link is the perfect power solution for hybrid rigs running pedals, modelers, and/or multi-effect pedals, allowing you to power even the thirstiest of devices with two 3A (three-amp, or 3,000mA) outputs. HP Plus Link also includes seven isolated power outputs delivering up to 500mA of clean power at 9V, plus a 9/12/18V variable output. The 3A outputs can switch between 9V and 12V to power high-voltage pedals.

HP Plus brings simplicity and modularity to powering your modeler, multi-effect unit, or high-powered pedals. With two ports delivering up to 3A each and seven ports of silent, isolated, clean 9V power (up to 500mA each), HP Plus is perfect for hybrid rigs using pedals and modelers like the Quad Cortex, HX Series, and more. Canvas Power series is built using modern switch-mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered, ensuring plenty of power with incredibly low noise.

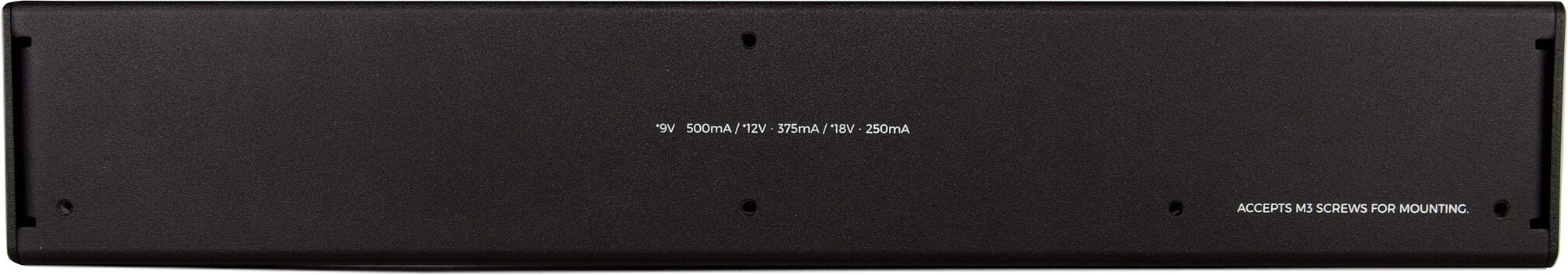

The super-slim 1.2-inch design allows Canvas Power Supplies to fit under nearly any pedalboard, and the included universal mounting brackets mean you don't have to worry about your power supply shifting when you're hustling to your next gig.

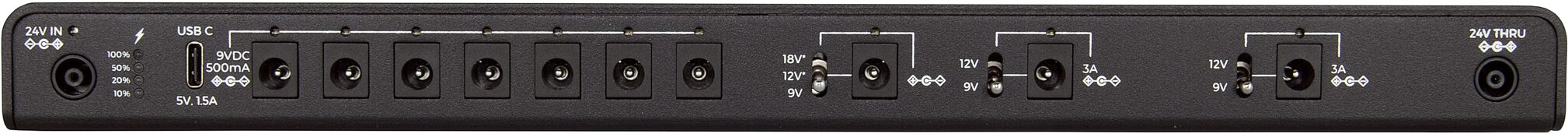

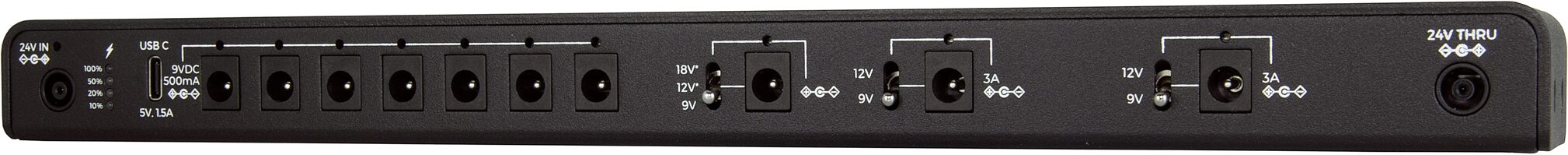

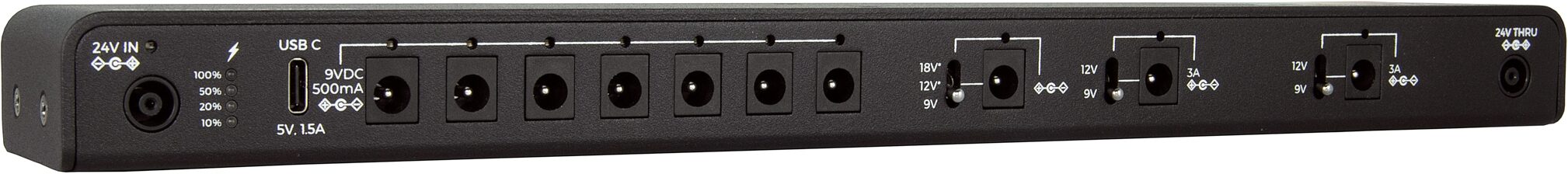

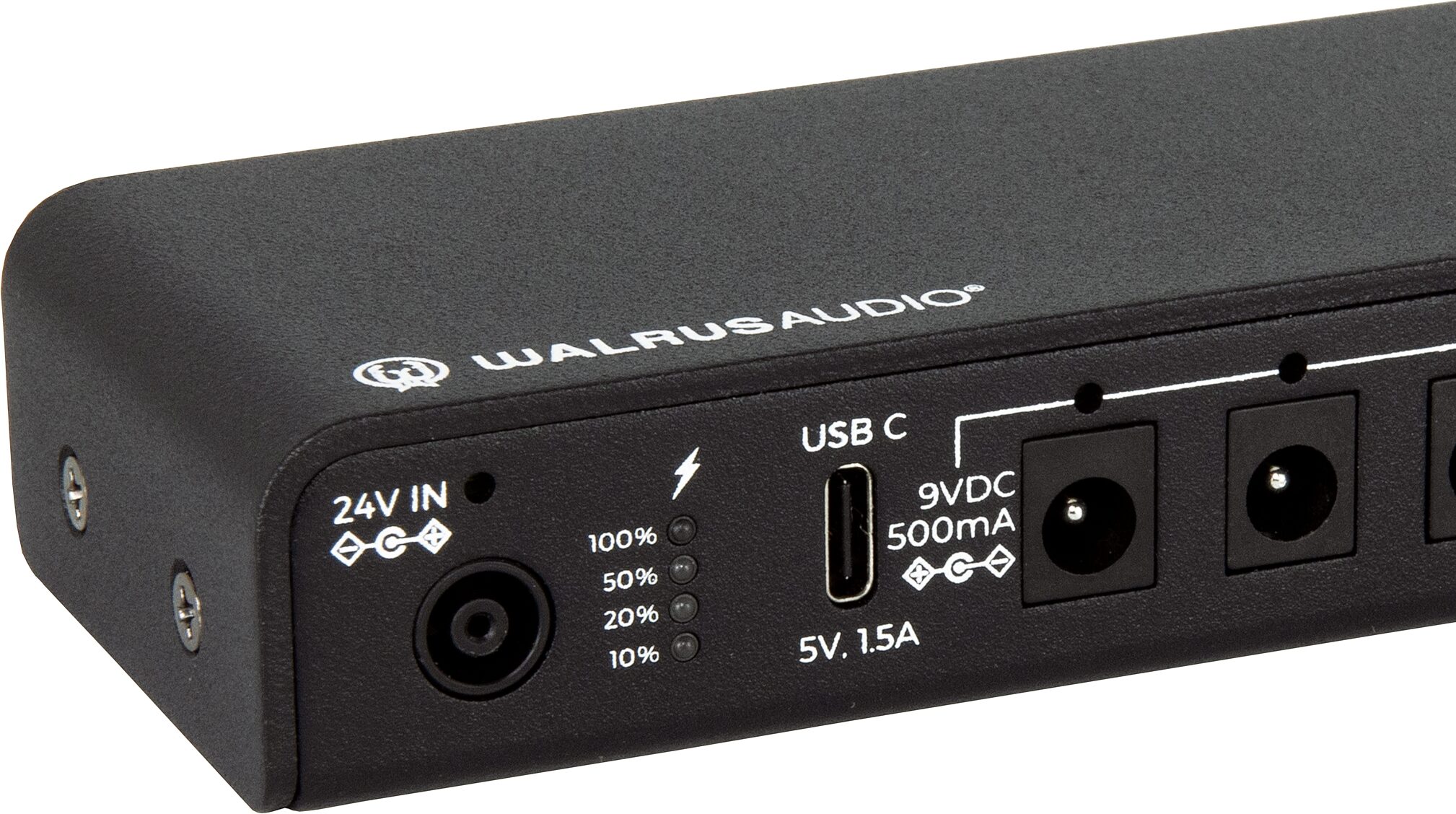

The onboard LED power meter clearly shows how much power is being consumed, and each output has its own LED indicator to show when it's actively delivering power.

Walrus Audio also developed custom 2.1mm barrel cables with a 90-degree plug on one end and their super-short straight plug on the… read more other, giving you maximum flexibility for fitting these power supplies into tight spaces. Of course, they also accept standard 2.1mm barrel cables, but they won't be nearly as cool.

Linkable Power Options:
HP Plus is available as a standalone power supply or as a linkable unit that connects to another power supply via a 24V power link, allowing your Canvas Power setup to grow with your needs without adding another cable to the wall.

Features:

- Two 3A outputs with selectable 9V or 12V
- Seven isolated 9V outputs (up to 500mA each)
- 9V/12V/18V variable output
- Modern switch-mode architecture = clean, quiet power
- Optional linkable configuration using a 24V power link
- 1.2-inch design fits under nearly any pedalboard
- Custom 2.1mm cables with short straight and right-angle plugs
- LED output indicators + onboard power meter

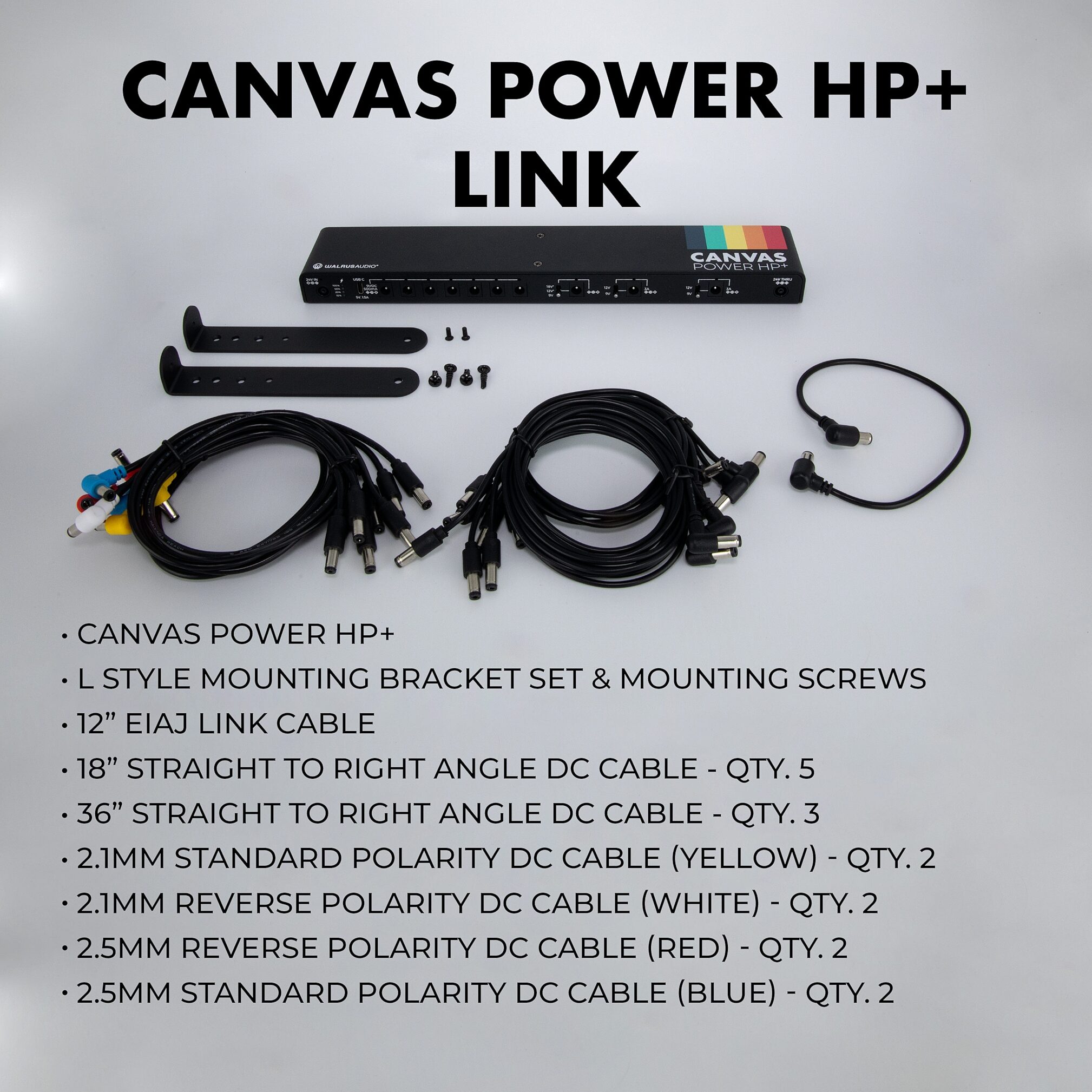

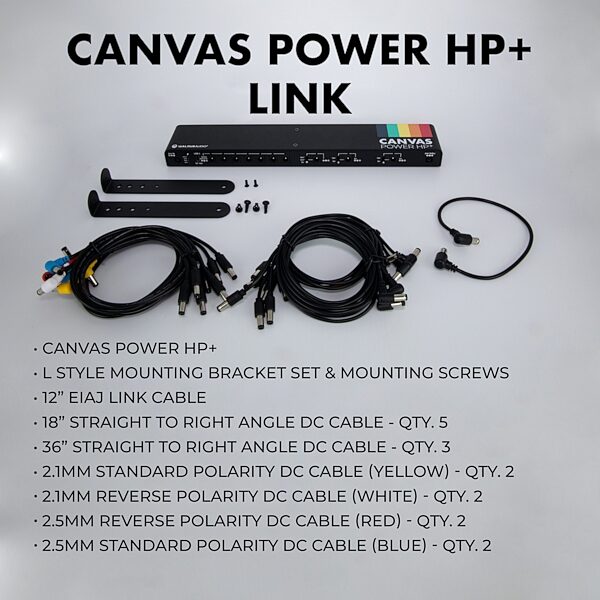

What's in the Box?
- 1 x Canvas Power Supply
- 18" Straight to right angle DC Cable - Qty. 5
- 36" Straight to right angle DC Cable - Qty. 3
- 2.1mm Standard Polarity DC Cable (Yellow) - Qty. 2
- 2.1mm Reverse Polarity DC Cable (White) - Qty. 2
- 2.5mm Reverse Polarity DC Cable (Red) - Qty. 2
- 2.5mm Standard Polarity DC Cable (Blue) - Qty. 2
- 12" EIAJ Link cable

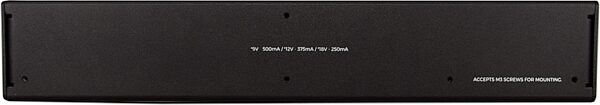

- L style mounting bracket set
- M3 Hex Key
