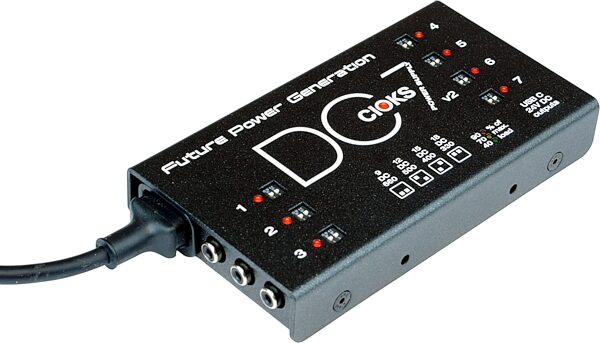

The Cioks DC7 V2 Pedal Power Supply is an updated version of the award-winning DC7, an industry standard for powering effects pedals after its 2018 release. It remains the thinnest, most flexible power supply on the market and it has now been updated with a USB-C outlet delivering three times the power the original USB-A outlet did (15W instead of 5W). DC7 v2 has been also optimized to run more efficiently and therefore cooler than the original DC7 did while still providing enough power to kickstart a small sun.

With a one-inch profile and a weight of just 1.1 lb, DC7 v2 uses advanced two-stage switch-mode technology to deliver up to 48W across 9 outlets. The DC7 v2 features 7 isolated DC outlets, each with four selectable voltages and up to 6W with 660 mA at 9V per outlet and a 24V auxiliary output.

This means DC7 v2 can easily power multiple high-current pedals and devices such as the Line6 HX series and the Neural DSP Quad Cortex product range without problems or noise of any kind.

DC7 v2 can be expanded with CIOKS 4, CIOKS 8 and Crux (plus other compatible 24V-powered units) for even more isolated outputs and flexibility. Paired with the updated CIOKS Flex cables, it remains the most versatile, reliable and noise-free pedalboard power solution available.

Features:

- Groundbreaking 1-inch profile
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable… read more voltages on each outlet (9, 12, 15 and 18V)
- 5V USB-C outlet with max. 3A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 100 to 240V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and TempleAudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
- 12 Flex cables included
- Expandable with CIOKS 4 Expander, CIOKS 8 Expander, CIOKS Crux and other compatible units with 24V input voltage for additional isolated outputs
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
