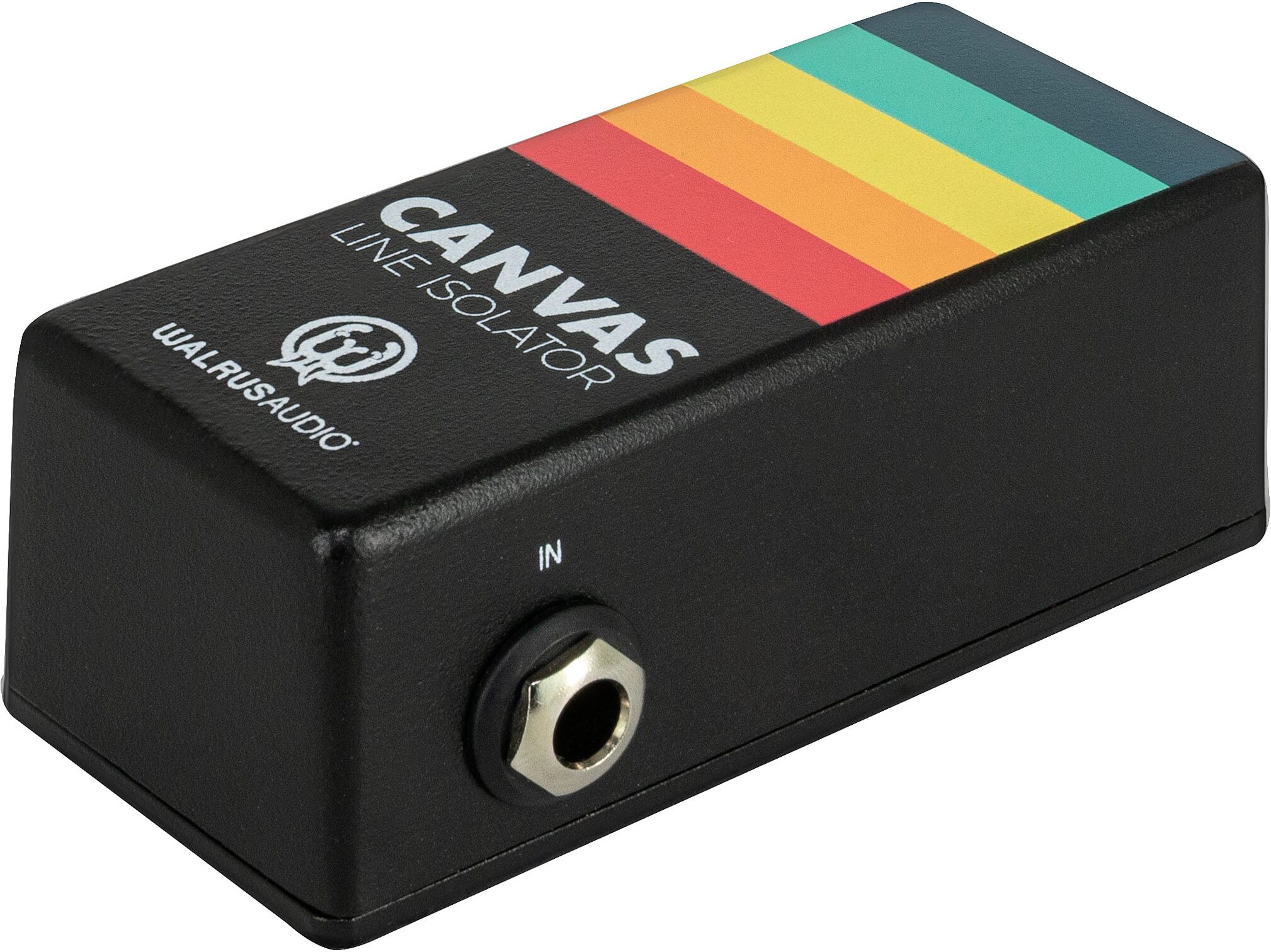

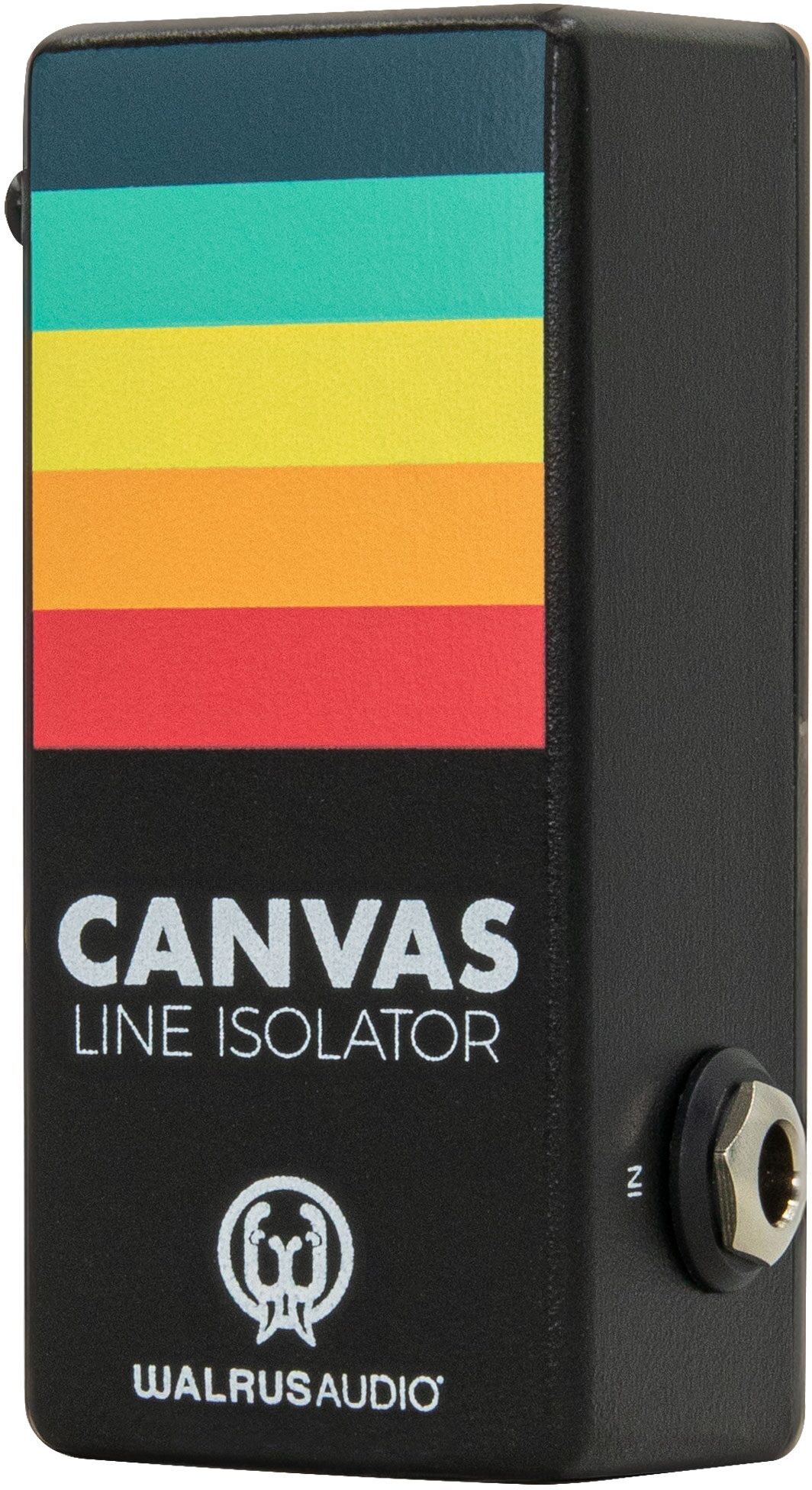

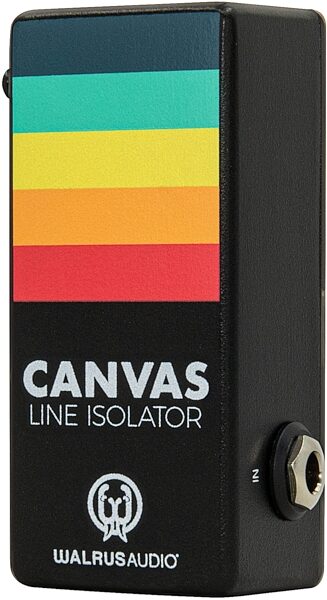

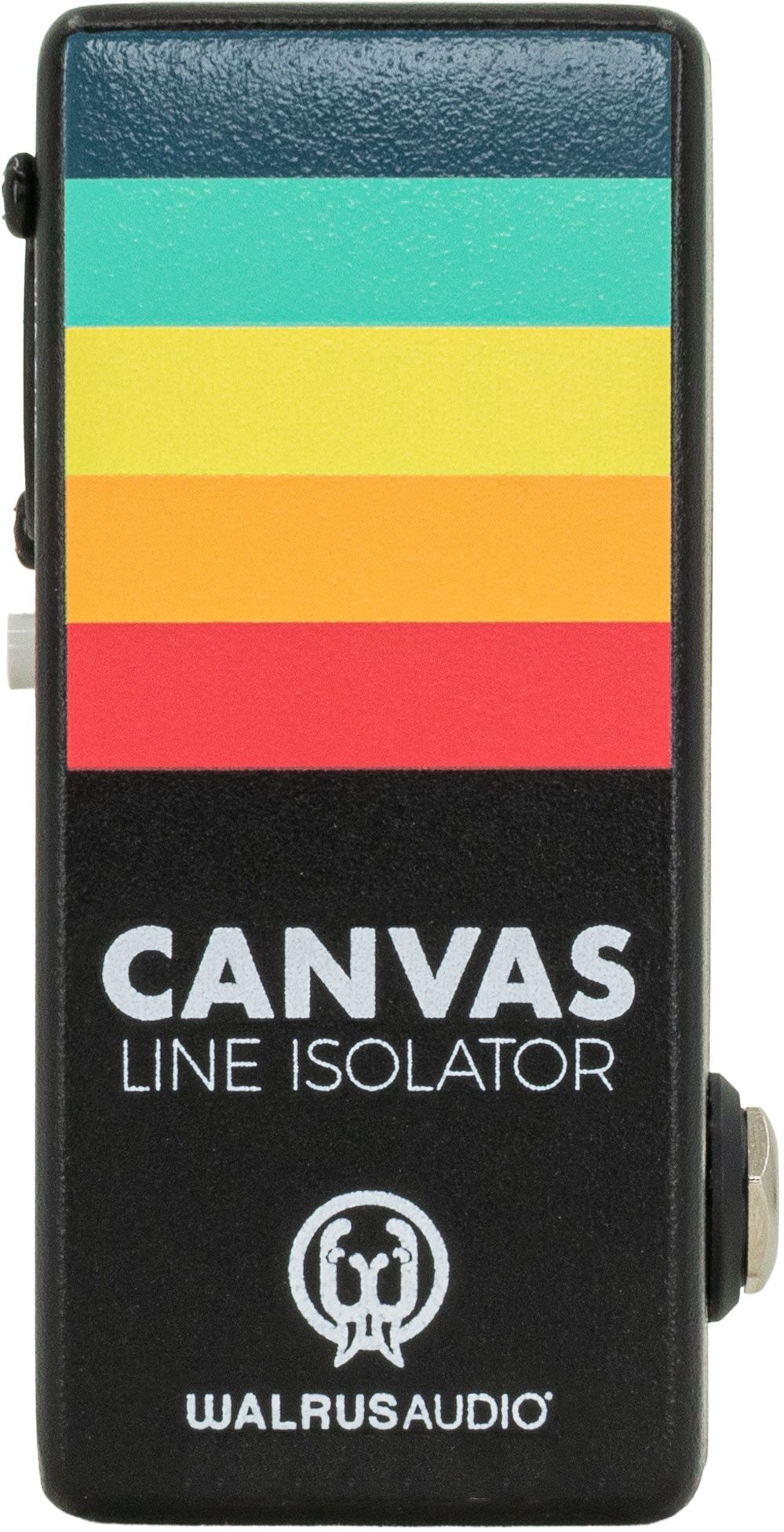

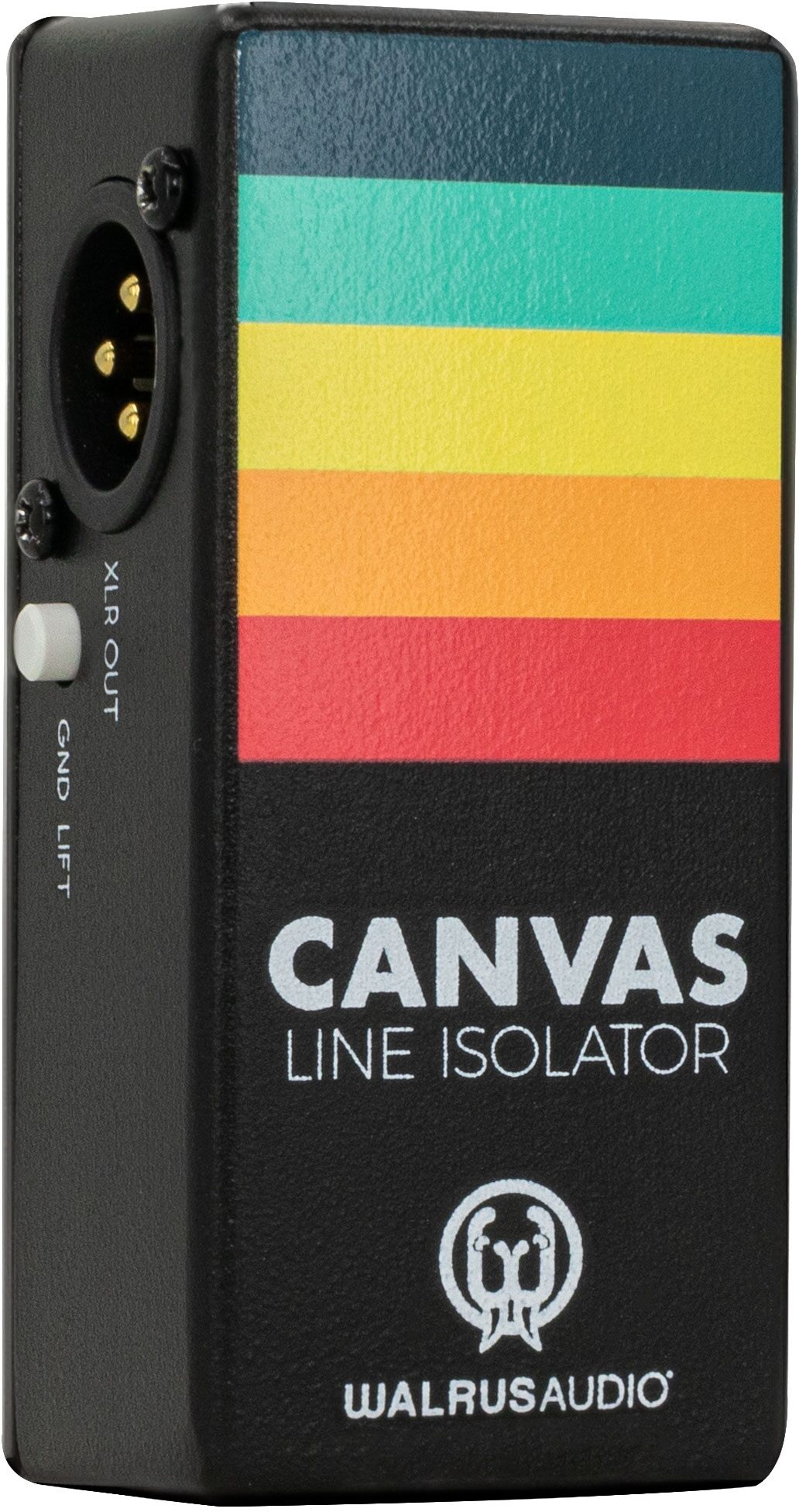

The Walrus Canvas Nano Line Isolator (LI) is a compact line isolator designed to be an ideal fit for busy pedalboards or fly rigs where space is limited. It removes resistance between you and your audience, giving you a pristine sonic foundation to build your masterpiece on. From houses of worship to the dive bar downtown, Canvas Nano is built to be the performance tool that goes wherever you are making your music.

Canvas Nano is a passive device that converts your unbalanced signal into a balanced signal for interfacing properly with your recording interface or mixer at front-of-house. If you're using an amp-in-a-box (DSP Guitar Rig), like our ACS1, or running an active acoustic or active bass guitar direct, then the Canvas Nano is your bridge to the front-of-house. The signal will remain at full volume and be converted to a balanced signal via the transformer connected to the XLR output. Less preamp gain will be required in LI mode. The Canvas Nano packs everything you need from a LI into a compact enclosure designed to look great right on top of your board.

You are the artist. Your sound is the paint, and this is your canvas.

Need a stereo solution? Check out the Canvas Stereo Dual DI/LI.

Features:

- Compact design perfect for tight pedal board layouts or small fly rigs.
- Flat frequency response from 20Hz-20kHz

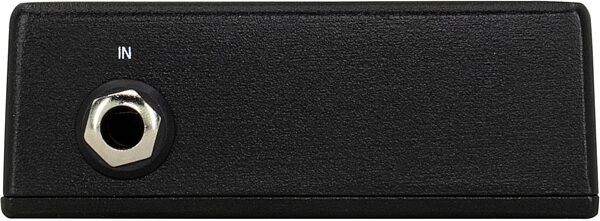

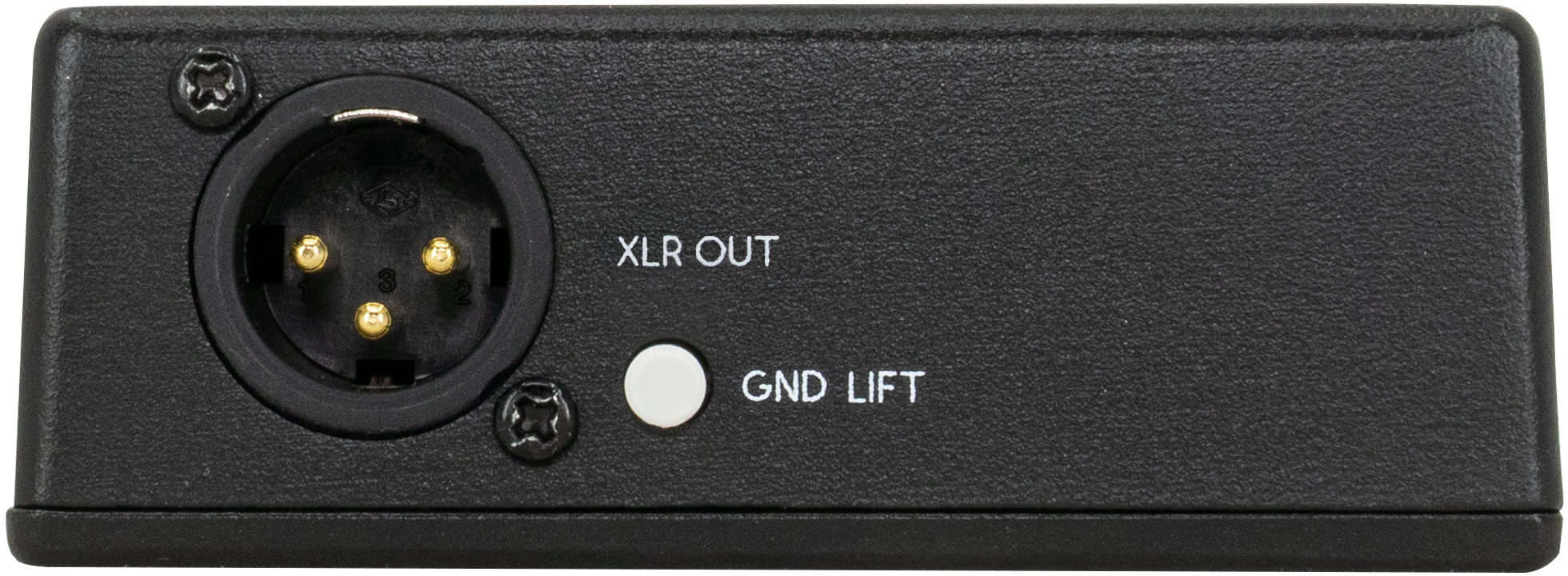

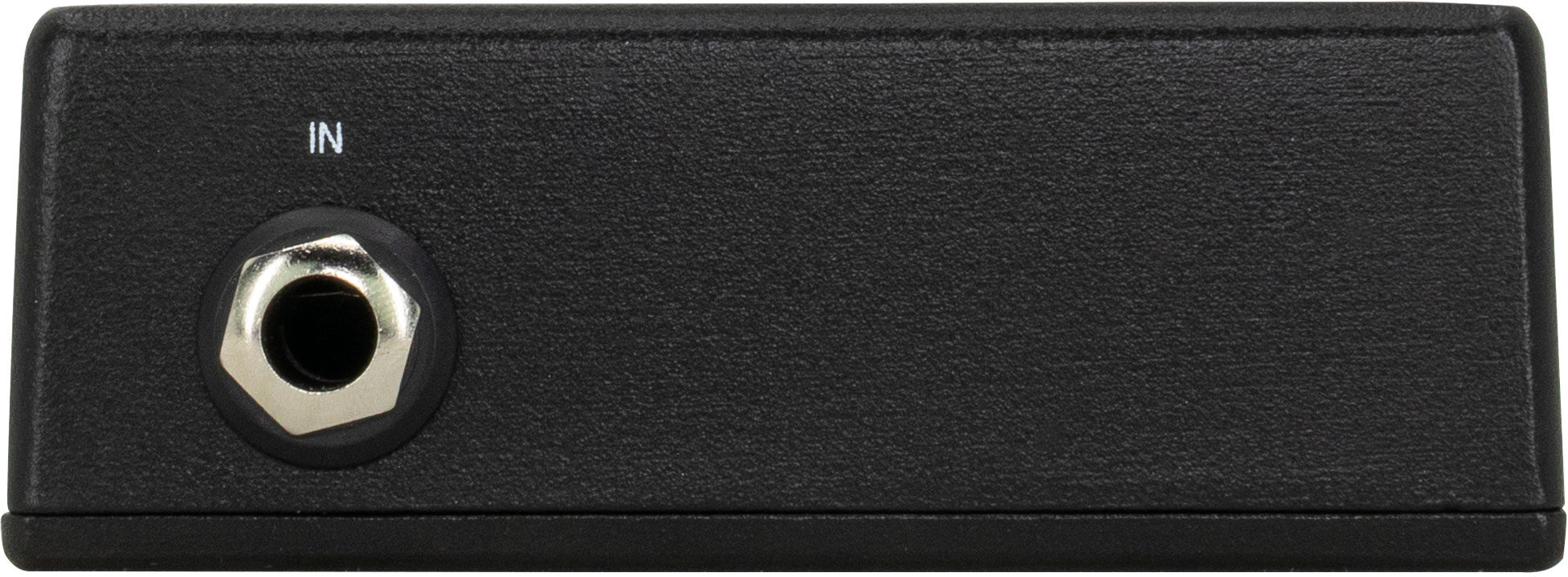

- Converts 1/4" unbalanced input to XLR balanced output.
- Transformer isolated output.
- GND Lift: Isolates the GND pin on XLR to help reduce hum if… read more present. Leave out for normal operation.
- Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
- Passive device, no power source required.

DI or LI?

Not sure if you need a DI or LI? When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you want to interface with.

For a general guide:
High Impedance (above 1kO), Use a DI
Low Impedance (below 1kO), Use a LI

See also: Canvas Mono D.I. / L.I. and Canvas Stereo D.I. / L.I.
