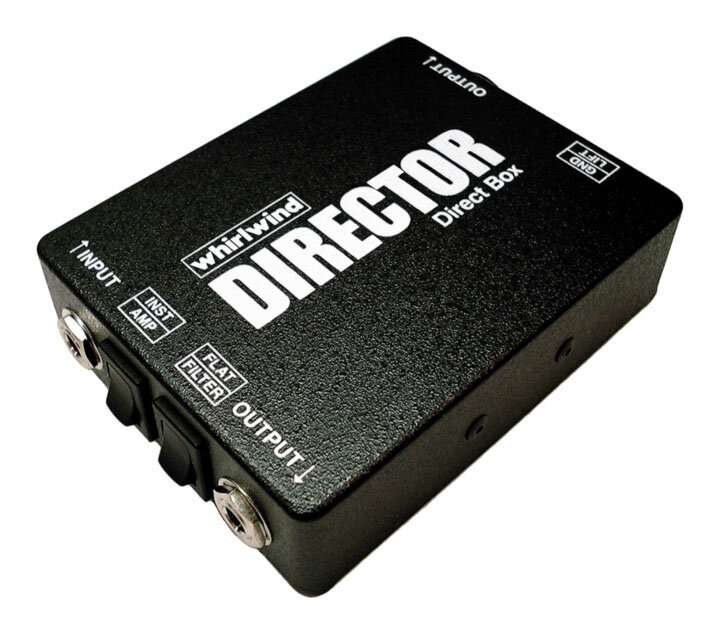

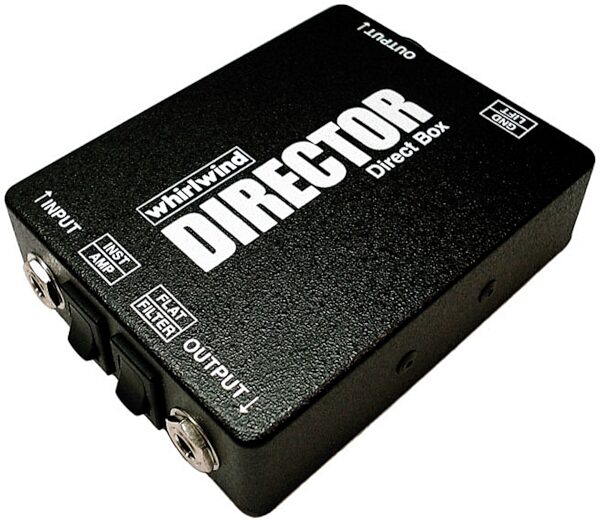

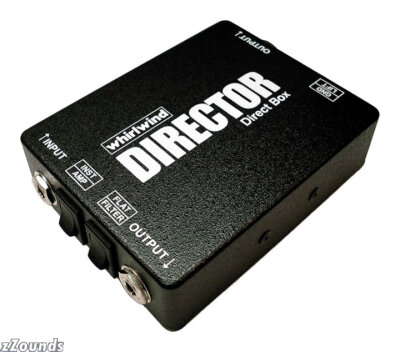

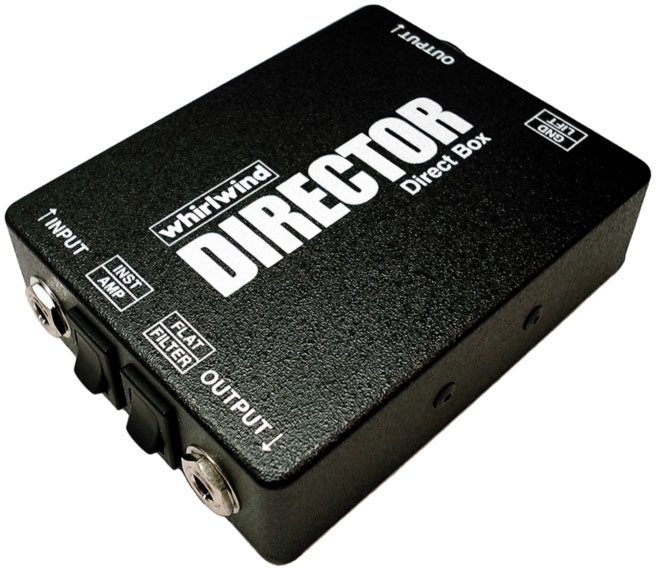

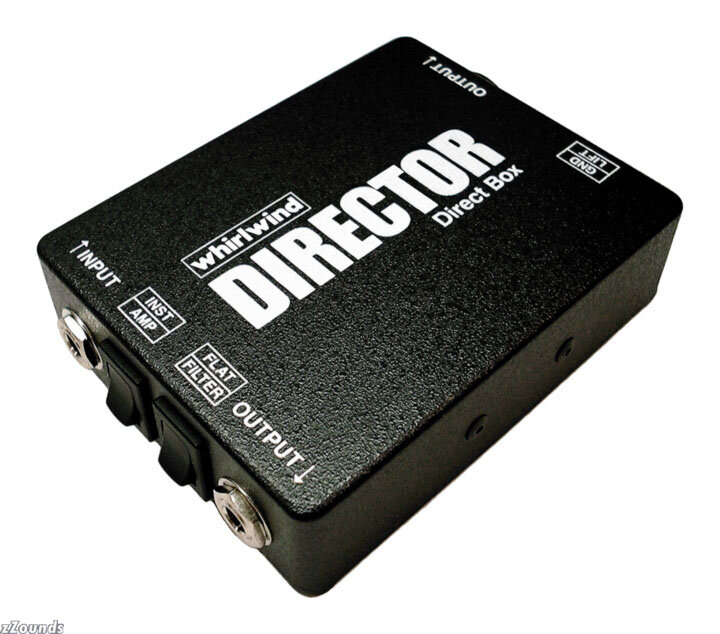

Whirlwind Director Premium Direct Box

Transfer an unbalanced component to a balanced mic with this direct box from Whirlwind. It features 1/4-in parallel wired in/out jacks and a 30dB pad switch.

This premium direct box converts an unbalanced line, instrument, or speaker level signal to low impedance balanced mic level.

1/4 in. parallel wired in/out jacks

Ground Lift switch to help eliminate hum and buzz

30dB pad switch for selecting between line/instrument or speaker level input signals

Switchable high cut filter to eliminate amplifier noise

Uses Whirlwind's TRHL-M transformer with mu metal shield that's riveted, not glued, to the chassis

Input Impedance: 20K Ohms

Output Impedance: 150 Ohms

Signal Loss (input to output): -20dB (pad out),-50dB (pad in)

Frequency Response: 20 - 20KHz +/- 1dB
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.8 lbs
Shipping Dimensions: 7 x 4 x 2 in
Manufacturer Part Number (MPN): DIR

For support or warranty questions, please contact the manufacturer:
Phone: 888-733-4396
