Warm Audio WA-14 Large-Diaphragm Condenser Microphone

zZounds Gear Experts Say...
Warm Audio set out to reproduce the classic brass CK12 capsule. The result? This gem of a multi-pattern condenser -- an homage to the vintage 414 microphone.

Based on the classic condenser microphone that has been used on countless hit records. The WA-14 utilizes classic circuit topology, including the coveted all-brass CK12 capsule design and a custom premium CineMag USA transformer. The WA-14 can be used on an array of sources, which includes: punchy warm and intimate lead vocals, aggressive guitars and heavy percussion. The WA-14 provides a realism and thickness that is true to the vintage sonics, but now at an affordable price.

Featuring a custom wound transformer by boutique CineMag USA transformers and an all discrete signal path featuring polystyrene, tantalum and WIMA capacitors. The WA-14 also features Warm Audio's high quality "Lens Kondensator" LK-12-B-60V capsule, which is a reproduction of the vintage, all-brass, edge-terminated CK12 dual backplate/dual membrane capsule.

Features:

- Large diaphragm condenser microphone with variable pad and three polar patterns
- Features "Lens Kondensator" LK-12-B-60V reproduction of the edge-terminated, dual backplate, all-brass vintage CK12 capsule
- Custom CineMag USA transformer

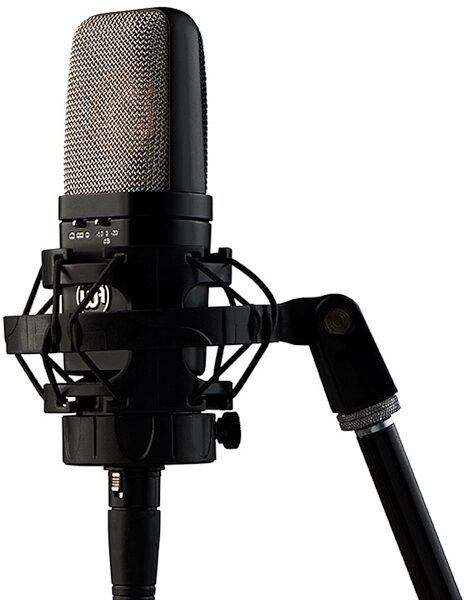

- Includes shock mount
- Frequency range: 20Hz to 20kHz
- Output pad: 0dB, -10dB, -20dB
- Cardioid, figure of eight and omnidirectional patterns
- Impedance: 150 ohms
- Connector: 3-pin XLR
- Requires +48V phantom power
- Color: black (painted)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Type: Large-diaphragm transformer-balanced condenser microphone
- Capsule: WA-12-B-60V CK12-style capsule with dual diaphragm, all-brass, edge-terminated
- Diaphragm Size: 1 inch (25.4mm), 24k gold-sputtered 6 micron NOS PET film (mylar)
- Polar Pattern: Cardioid, omnidirectional, and figure-8 (switchable)
- Frequency Response: 20Hz - 20kHz
- Sensitivity: 9mV/Pa
- Max SPL: 165dB (with -20dB pad engaged)
- Equivalent Noise Level: 16dB(A) self-noise
- Output Impedance: 150 ohms
- Power Requirements: 48V phantom power
- Connector: 3-pin gold-plated XLR

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 2.5 lbs
  • Shipping Dimensions: 12 x 9 x 5 in
  • Manufacturer Part Number (MPN): WA14
