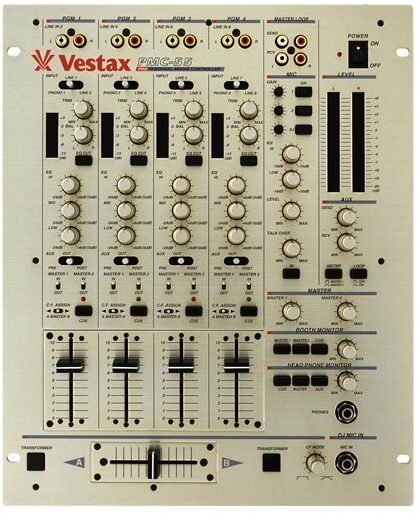

Vestax PMC55 4-Channel Club Mixer

No longer available at zZounds

zZounds Gear Experts Say...

High end sound. Lots of input options.

Overview

The Vestax PMC-55 DJ Mixer is a superb, high-end club mixer that has an incredibly accurate high-end frequency response and a wide, deep bottom end. The PMC-55 uses high quality Voltage Controlled Amplification (VCA) chips that not only increase the life of the fader, but also give the fader a more solid response. With no less than 12 input options, including 8 top panel input options for easy access, this mixer applies some of the most amazing technology available producing some warm beautiful mixes along the way.

Features
Powerful 4/7 channel mixing instrument with 4 phono and 8 line inputs

3-Band Eq. with Cut function

Various effect processing facilities on each channel

Special programmable protect functions for save PA-operation

Faders user replaceable 60mm input fader and 60mm cross fader

Line inputs and effects connection on front panel for visiting players and mobile effects

Specs

Input
Phono inputs: stereo (RIAA -42dBv; RCA) x 4

Line inputs: stereo (-10dBv; RCA) x 8

Mic. Inputs: (-60dBv; 1/4 in.) x 3

Effects return: stereo (-10dBv; RCA) x 4

Master loop return: stereo (-10dBv; RCA)

Aux. return: stereo (-10 dBv; 1/4 in.) x 2

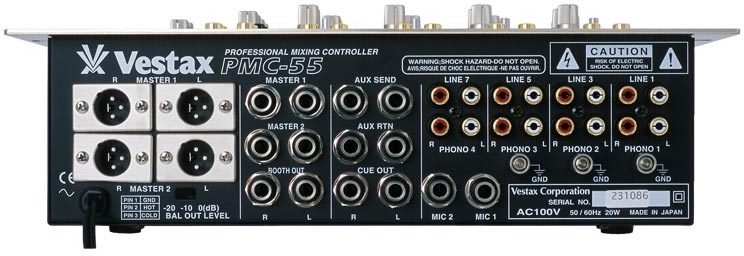

Output
Master out 1: stereo (0/-10/-20dBv selectable; XLR balanced, 0dBv; 1/4 in. unbalanced)

Master out 2: stereo (0/-10/-20dBv selectable; XLR balanced, 0dBv; 1/4 in. unbalanced)

Booth out: stereo (0 dBv; 1/4 in.)

Cue out: stereo (0dBv; 1/4 in.)

Monitor headphone out: stereo (80 mW; 1/4 in.)

Aux. send: stereo (-10dBv; 1/4 in.)

Effects send: stereo (-10 dBv; RCA) x 4

Master loop send: stereo (-10dBv; RCA)

Channels

4/7 Channels, (4 stereo, 3 mono)

Channels 1-4: Input switch phono/line/line; Input trim (hidden program switch -20dB/-10dB/0dB)

Balance control: L-R; Eq. switch: in-out; 3-band equaliser: low +6/-24 dB at 80 Hz, mid +6/-24 dB at 500Hz, high +6/-24 dB at 8kHz (Every single Equaliser has a boost cancel switch to +0/-24dB range); LED bar level indicator

Aux. selector: pre-out-post; Assign switches: master 1 in-out, master 2 in-out

Cue switch: off-on with LED indicator, crossfader assign switch A-master-B; Input fader 60mm (user replaceable)

Channels 5-7 (Mic): Volume control, off-on switch; Equaliser: low +/- 16dB, high +/- 16dB; level control; talkover control; talkover button: in-out

Master Section
Master 1: output level, Master 2: output level, stereo output level bar display switchable to Master 1 or Master 2

Aux: aux send control; aux receive control; loop switch: on-off

Booth monitor: select switches, Master 1, Master 2, or Cue. Booth monitor volume control

Monitor: Phones level control; Select switches: Cue, Master or Aux

Crossfader: Channel A-B; Transformer button A,B; crossfadercurvecontrol

Frequency Response: 20 Hz - 20 kHz +0/-1dB

Signal to Noise: >120dB;

Total Harmonic Distortion: < 0,01%

Dimensions: (W x H x D) 13 in. (330mm) x 4.4 in. (112mm) x 15.74 in. (400mm);

Weight: 15.4 lbs (7.0kg)

Power Supply: Mains AC
