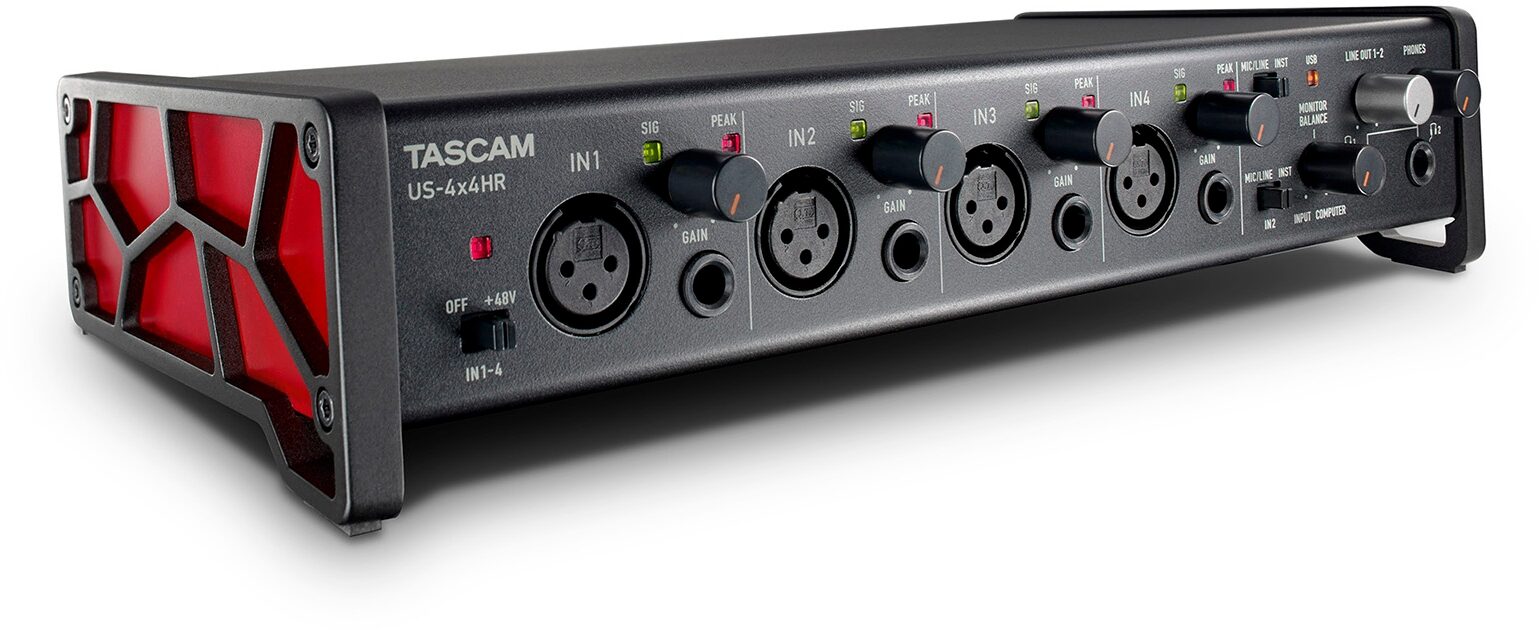

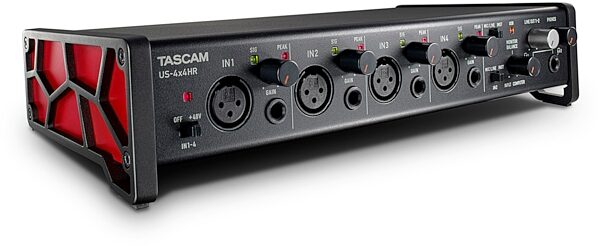

TASCAM US-4X4HR 4x4 USB Audio Interface

Get 4 mic/line inputs, great-sounding audio, and legendary TASCAM build quality with the US-4X4HR, a USB interface that comes with seriously useful software.

The US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and an improved audio performance, thanks to the enhanced audio circuit.

Optimal interface for home recording with 4 mic/line input, USB bus power, and 2 headphone outputs.

The US-4x4HR is equipped with 4 mic/line inputs with guitar input support on IN 1-2 plus 2 headphone outputs that can be put to use in various music/multi-media production environments such as vocal/guitar simultaneous recordings and multitrack recordings. The unit is also equipped with a USB-C port to be powered by USB bus power.

Natural, crisp & clear sound quality, thanks to the implemented Ultra-HDDA Mic Preamp with 192 kHz support

High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. The in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Equipped with MIDI IN/OUT

MIDI IN/OUT enable MIDI external devices such as keyboards, drum machines, controllers, etc. to be synchronized and controlled.

Compatible with iPad and other iOS devices

The US-1x2HR can be used as an interface for iPad and other iOS devices.

Zero-latency direct monitoring function

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without read more any sound delay during both recordings and performances.

Create quality content with bundled software

The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 25 GB sound library encompassing more than 2,000 different musical instruments. In addition, Antares AUTO-TUNE UNLIMITED, the industry standard for pitch correction and vocal effects, is also bundled and can be used free of charge for up to 3 months.

Audio interface engine

Capitalizing on experience being one of the pioneers in manufacturing USB audio interfaces, TASCAM achieved further stability with their native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

Loopback function and OBS support

The loopback function allows the audio from the computer to be returned to the streaming software during live streaming with any compatible OS. Stereo/monaural audio switch is also possible. The unit also supports OBS, which is widely used worldwide.

Interface for podcasts and live streaming

The 4 mic/line inputs and USB bus power makes it possible to use this interface for podcasts and live streaming.

Interface for web conferences

The US-2x2HR can be used in web conferences to help improve the audio quality.

Robust metal casing

The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek, eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.


- 4-in/4-out USB audio interface
- Supports up to 24-bit/ 192kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 4 XLR/TRS combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
- Combo TRS line inputs with guitar input support on IN1-2
- TRS line outputs 1-2/3-4
- Two headphone outputs
- Equipped with MIDI IN/OUT terminals
- USB Type-C connection (USB C- A cable included)
- Powered by USB bus power *
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software: Steinberg Cubase LE, Cubasis LE3; IK Multimedia Sample Tank 4 SE; Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
read less

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 5 lbs
Shipping Dimensions: 13 x 8 x 5 in
Manufacturer Part Number (MPN): US-4X4HR
