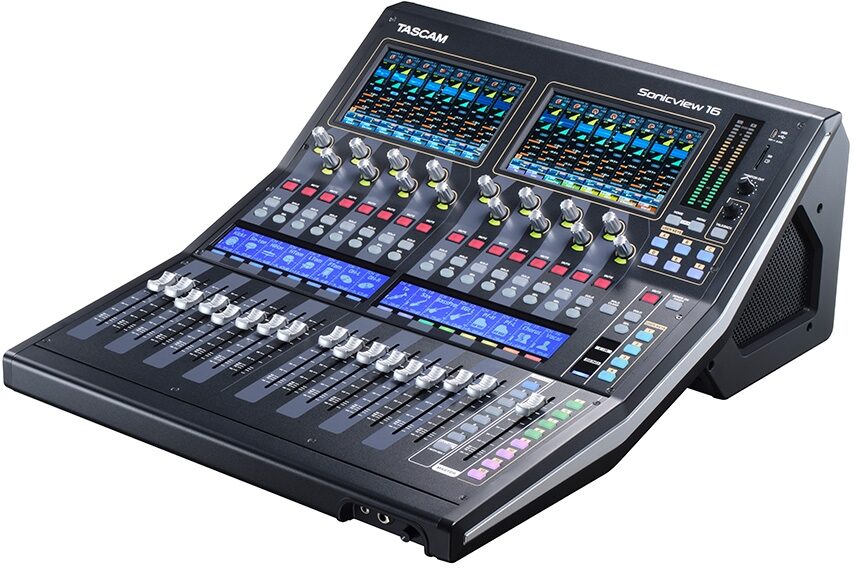

TASCAM Sonicview 16XP Digital Mixer, 32-Channel

With Dante networking, internal 54-bit float-point mixing, and plenty of DSP horsepower, the Sonicview 16XP lets you forget the mixer and focus on the mix.

TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a higher standard. With TASCAM Sonicview, TASCAM has created a line of digital recording and mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview recording mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, built-in multi-track SD recording, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview recording mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

Sonicview 16XP vs. Sonicview 24XP

Two TASCAM Sonicview models are available, which differ in frame size and the number of physical inputs, mic preamps, faders, and touch screens. The TASCAM Sonicview 16XP offers 16 physical input channels with motorized faders and TASCAM's top-of-the-line Class 1 HDIA microphone preamps, while the TASCAM Sonicview 24XP provides 24. The TASCAM Sonicview 16XP, with its smaller frame size, can be rack-mounted. read more Internally, the architecture of the two models are the same, with a generous 44 input channels (40 mono channels and 2 stereo channels), 4 stereo FX return channels, 22 flex output buses, and the L/R main bus.
read less

- Processing Capability:
- Input: 52 [Monaural: 40, Stereo: 2 (Stereo),Fx Return: 4 (Stereo)]
- Bus: 32 [AUX/GROUP Switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)]
- Built-in Fx: 4

- Input Ports:
- 96 kHz: Max 152 ports
- 48 kHz: Max 248 ports
- MIC/LINE: 16
- Stereo (RCA): 4 (2xStereo)
- Dante: 32 (96 kHz), 64 (48 kHz)
- SLOT: 32x2 (96 kHz), 64x2 (48 kHz)
- USB Audio: 32
- Built-in Player: 2 (1xStereo)
- OSC: 1

- Output Ports:
- 96 kHz: Max 148 ports
- 48 kHz: Max 244 ports
- LINE: 16
- Dante: 32 (96 kHz), 64 (48 kHz)
- SLOT: 32x2 (96 kHz), 64x2 (48 kHz)
- USB Audio: 32
- MONITOR OUT (Analog): 2 (1xStereo)
- Built-in Recorder: 2 (1xStereo)

- I/O Ports:
- Analog Insert I/O: 2 I/O (MIC/LINE Input 7/8)

- Digital Signal Processing:
- Mixer Engine: 96 kHz/54 bit floating point
- ADC: 96 kHz, 32 bit
- DAC: 96 kHz, 24 bit
- Digital I/O sampling rate: 96 kHz, 48 kHz

- Analog Audio Inputs/Outputs:
- MIC/LINE inputs (1-16 channels):
- Connector: XLR-3-31 equivalent (1:GND,2:HOT,3:COLD)
- Max input level: +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
- Min input level: -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
- Input impedance: 5.0k or more
- Phantom power: +48V available

- LINE inputs (9-16 channels):
- Connector: Connector: 6.3mm(1/4")TRS phone jack, Balanced (TIP: HOT, RING: COLD, SLEEVE: GND)
- Max input level: +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
- Min input level: -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
- Input impedance: 5.0k or more

- INSERT (7-8 channels):
- Connector: 6.3mm(1/4")TRS phone jack (TIP: SEND, RING: RETURN, SLEEVE: GND)

- Max input level: +18dBu
- Nominal Input level: -2dBu
- Input impedance: 5.0k or more

- Max input level: +18dBu
- Nominal Input level: -2dBu
- Input impedance: 100k or less

- TALKBACK inputs:
- Connector: XLR-3-31 equivalent (1: GND,2: HOT,3: COLD)
- Max input level: +10dBu
- Min input level: -65dBu
- Gain range: 0 - 55dB
- Input impedance: 5.0k or more
- Phantom power: +48V available

- Stereo (RCA) inputs (1-2):
- Connector: RCA pin jack
- Max input level: +6dBV (1.995Vrms)
- Nominal Input level: -10dBV (0.316Vrms)
- Head room: 16dB
- Input impedance: 10k or more

- LINE Outputs (1-16 channels):
- Connector: XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
- Nominal output level:
+6dBu (D.ref: -9dBFS)
+4dBu (D.ref: -14dBFS, -16dBFS)
+4dBu or 0dBu (D.ref: -18dBFS, -20dBFS)
- Max output level:
+15dBu (D.ref.: -9dBFS, A.ref.: +6dBu)
+18dBu (D.ref.: -14dBFS, A.ref.: +4dBu)
+20dBu (D.ref.: -16dBFS, A.ref.: +4dBu)
+18dBu (D.ref.: -18dBFS, A.ref.: 0dBu)
+20dBu (D.ref.: -20dBFS, A.ref.: 0dBu)
+22dBu (D.ref.: -18dBFS, A.ref.: +4dBu)
+24dBu (D.ref.: -20dBFS, A.ref.: +4dBu)
- Output impedance: 100 or less

- MONITOR Outputs (L,R):
- Connector: XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
- Max output level: +24dBu
- Nominal output level: +4dBu
- Output impedance: 100 or less

- Headphone Output:
- Connector: 6.3mm(1/4") stereo phone jack and 3.5mm stereo mini phone jack
- Max output power: 100mW + 100mW (32 load, when connected to only one side)

- Digital Audio Inputs/Outputs:
- USB Audio:
- Connector: Type-B
- Input: 32ch *USB to Sonicview
- Output: 32ch *Sonicview to USB
- Sampling rate: 48 kHz, 96 kHz
- Bit depth: 32 bit

- Dante (Primary/Secondary):
- Connector: etherCON Cat5e compatible
- Number of channels: 64 channels (48 kHz), 32 channels (96 kHz)
- Ethernet: 1000BASE-T (IEEE802.3ab)
- Cable: CAT5e STP
Supports Redundant mode and Switched mode

- Control Inputs/Outputs:
- GPIO: DSUB25pin female, inch type
- Input circuit: pull up (5V)
- Output circuit: Open corrector
- Output impedance: 10
- Voltage Resistance: 20V
- Max Current: 35mA
- Max supply current (+5V): 50mA

- Connector: 6.3mm(1/4")TS phone jack (TIP:SIG, SLEEVE: GND)

- ETHERNET (for control):
- Connector: RJ-45
- Ethernet: 100BASE-TX, 1000BASE-T
- Protocol: TCP/IP

- Other Inputs/Outputs:
- Connector: BNC (Unbalanced)
- Input level: 0.5Vpp - 5Vpp
- Impedance: 75 +/-10%
- Input frequency: 48 kHz, 96 kHz
- Allowable frequency deviation: +/-100ppm

- Connector: BNC (Unbalanced)
- Output level: equivalent to 5V TTL
- Output frequency: 48kHz, 96kHz
- Impedance: 75 +/-10%

- USB (Top panel): For Keyboard, and Mass Storage
- Connector: Type-C
- Standard: USB2.0 HIGH SPEED (480Mbps)
- Bus power: 5V-0.5A
- Class: HID, Mass storage

- USB (Rear panel): For Audio Interface (Dedicated driver required)
- Connector: Type-B
- Standard: USB2.0 HIGH SPEED (480Mbps)

- Lamp:
- Connector: XLR 4pin female (1:N.A., 2:N.A., 3:GND, 4:+12V)
- Supply voltage: 0V-12V (Adjustable brightness)
- Max power: 5W
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 39 lbs
Shipping Dimensions: 28 x 24 x 14 in
Manufacturer Part Number (MPN): TAS SONICVIEW16XP
