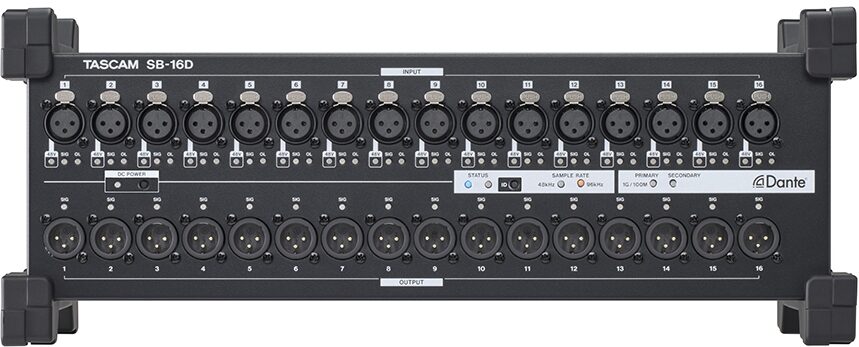

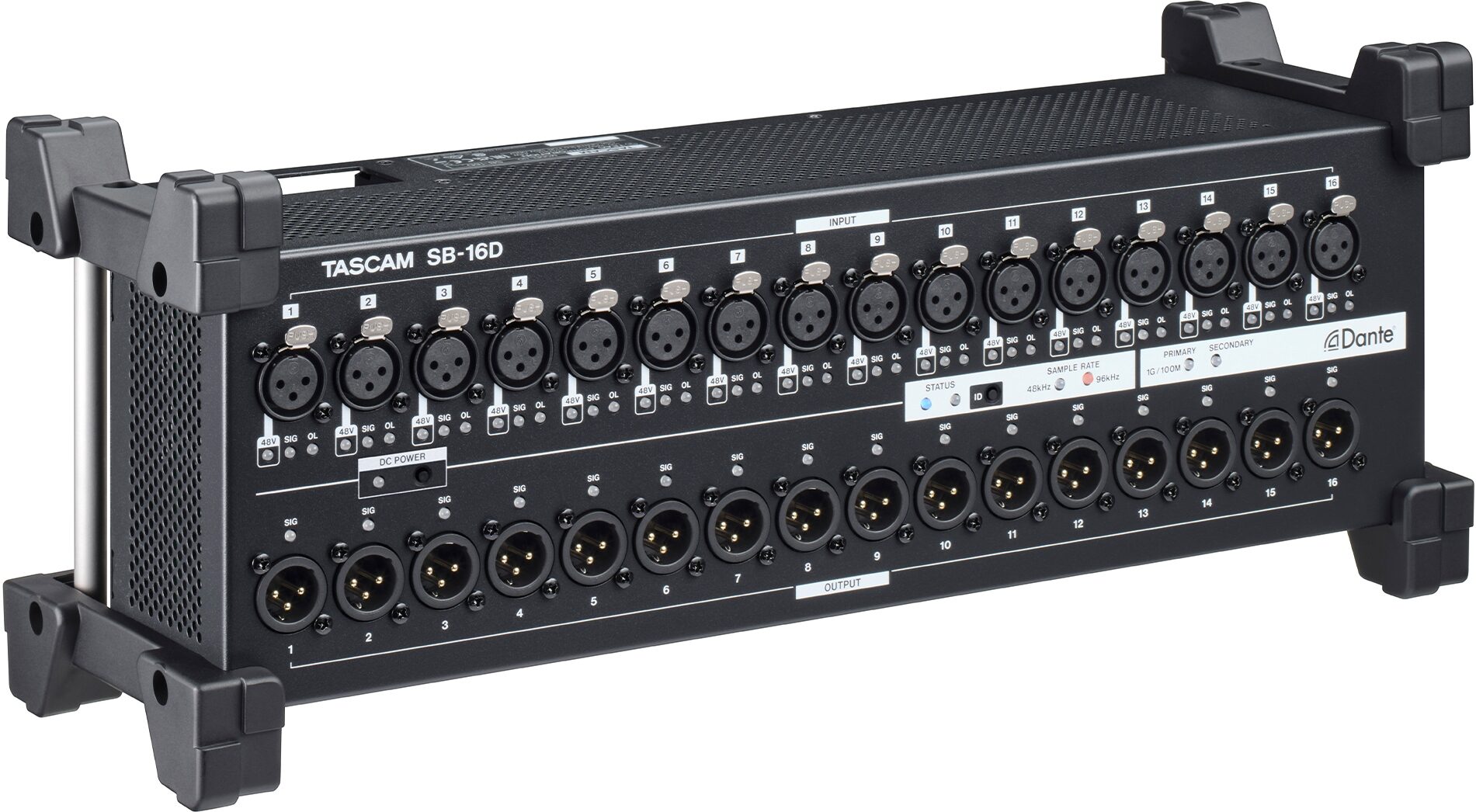

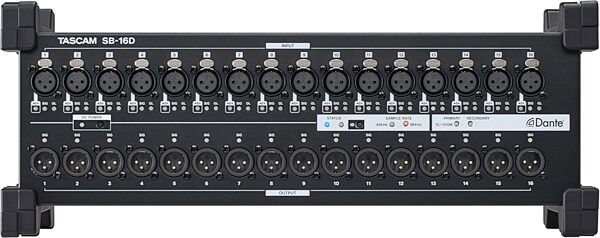

TASCAM SB-16D 16-Input/16-Output Dante Stage Box
zZounds Gear Experts Say...
Set up your stage the easy way with SB-16D, a Dante-networked stage box with Class 1 HDIA preamps, 32-bit ADC, and full integration with Sonicview mixers.
Overview

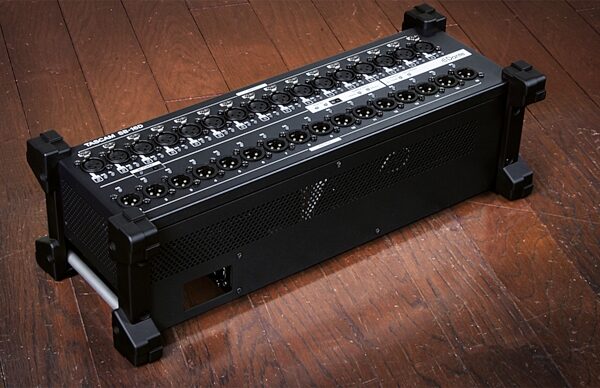

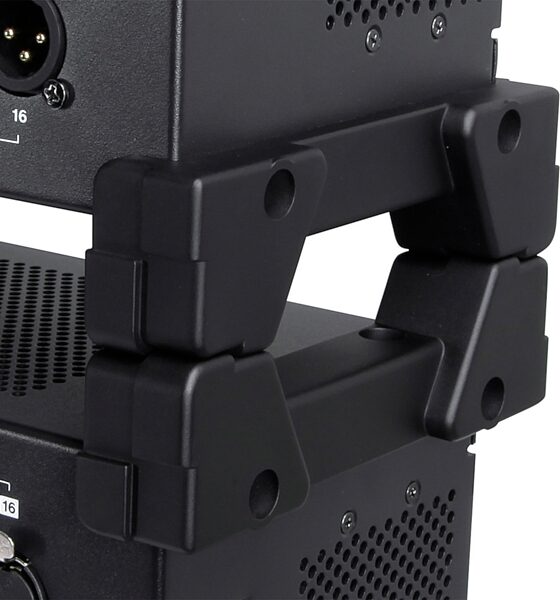

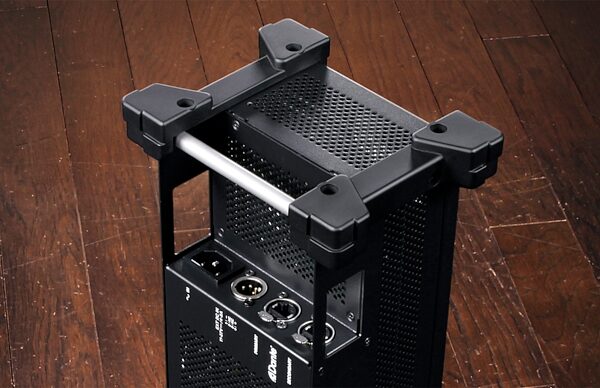

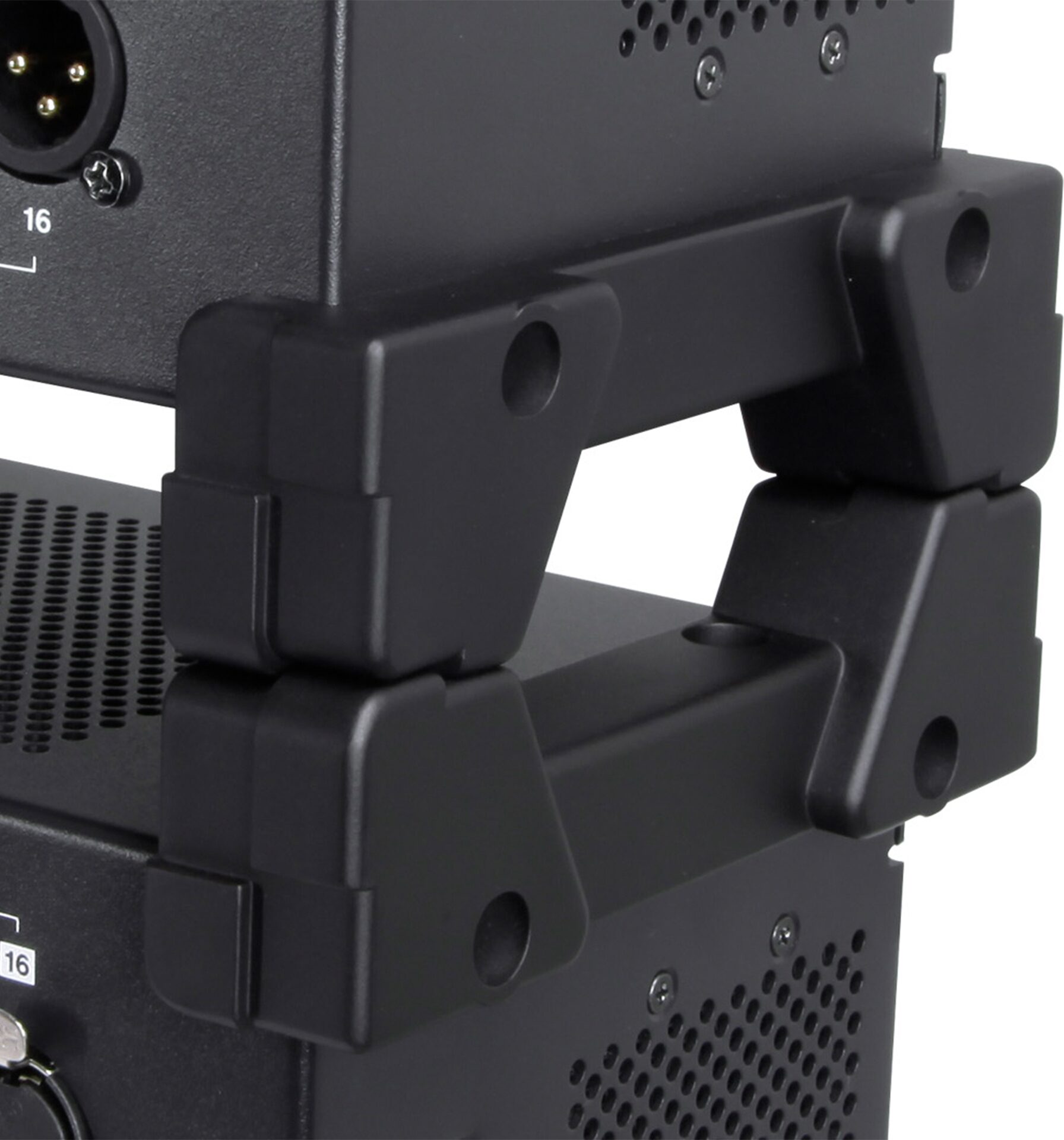

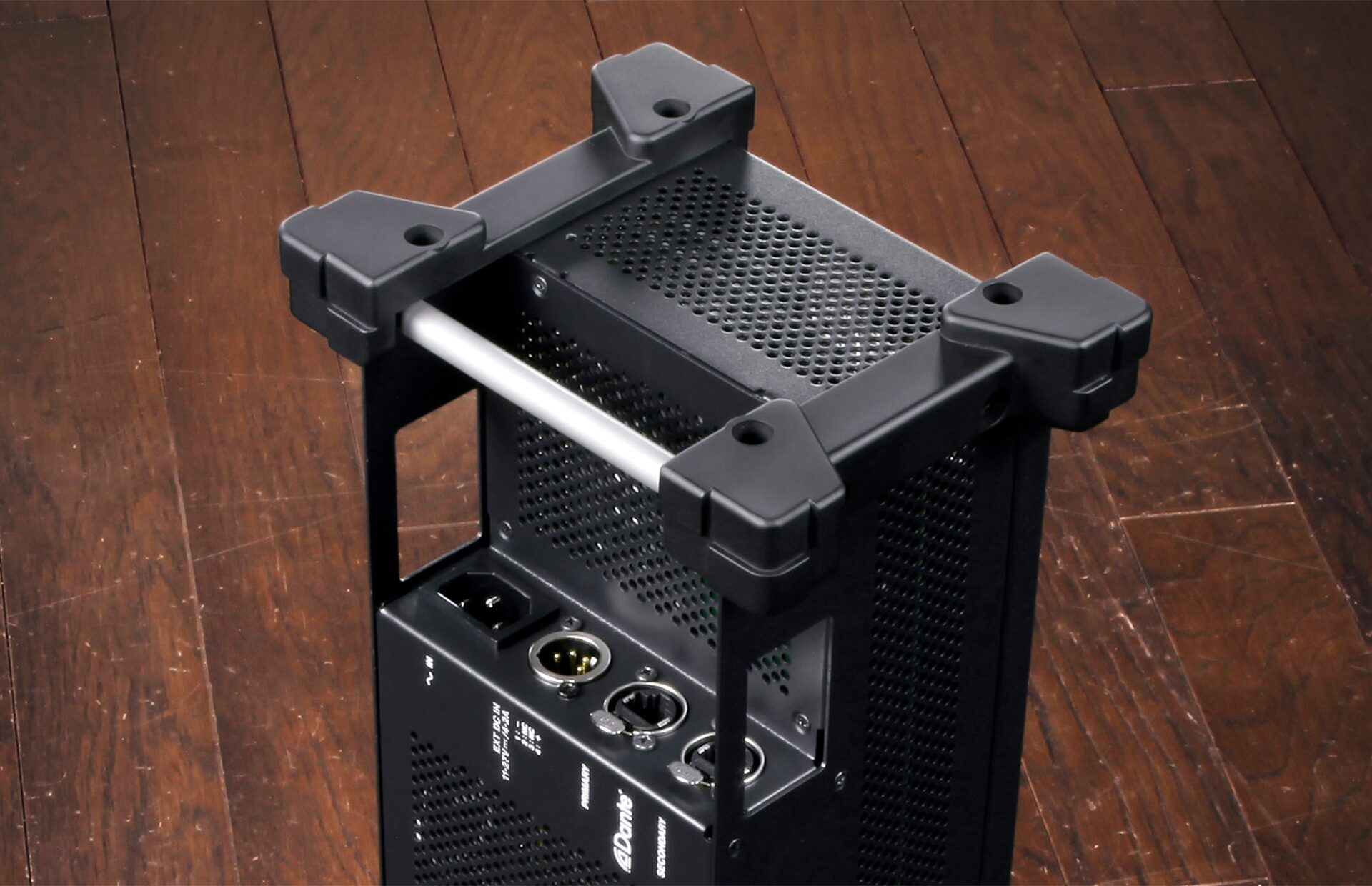

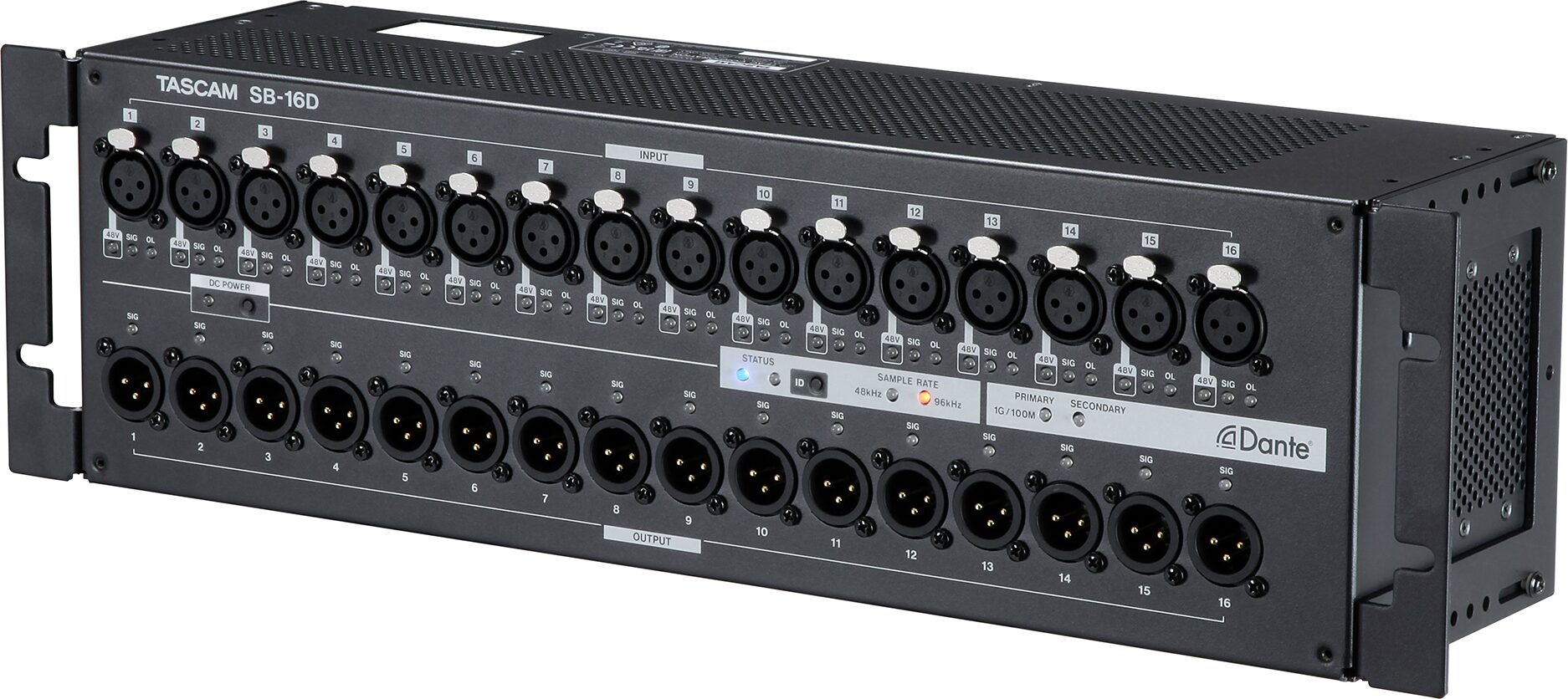

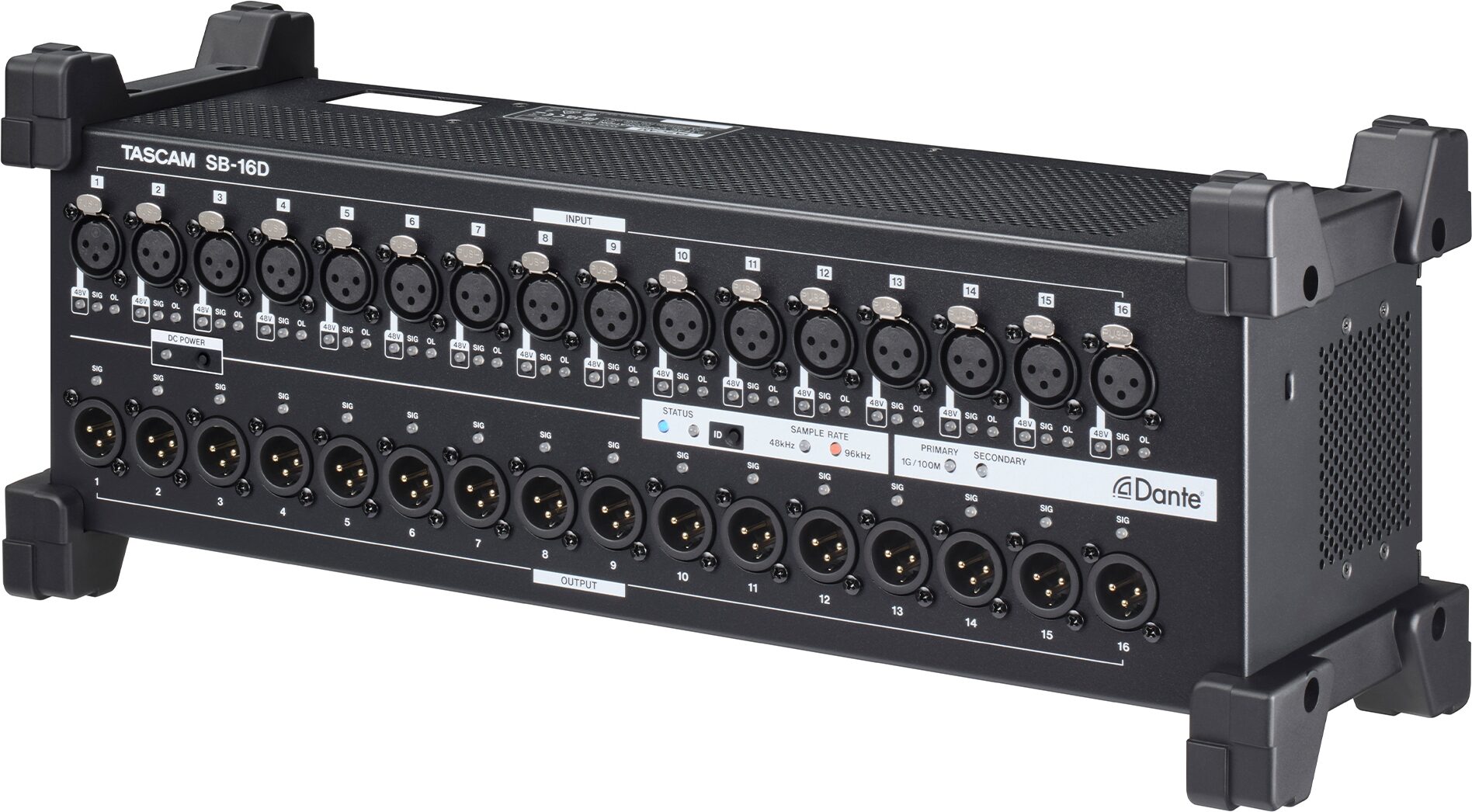

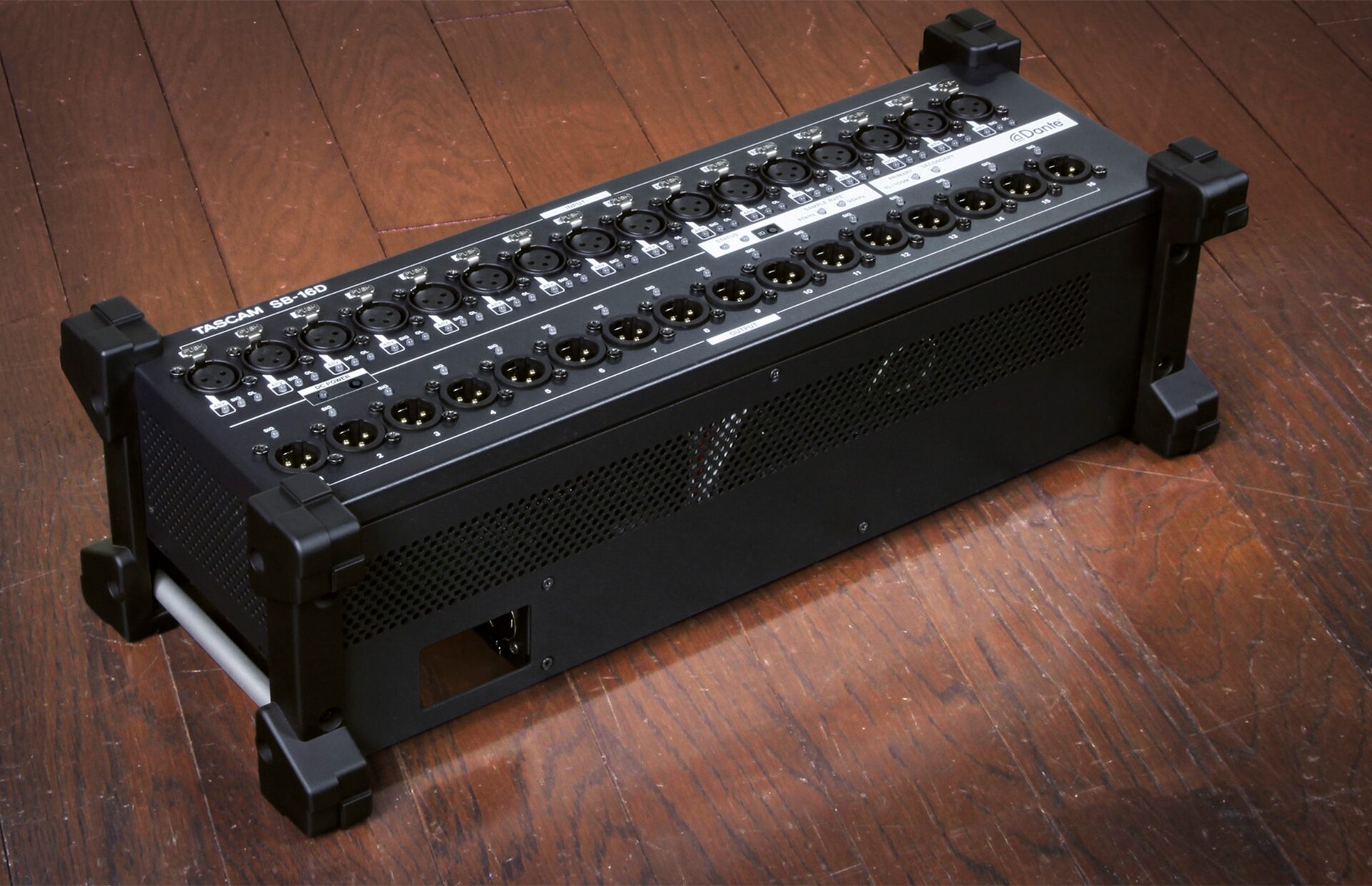

Offering the same performance and hardware quality as TASCAM Sonicview recording and live mixers, TASCAM SB-16D Dante-networked 16-in/16-out stage boxes offer all the advantages of Dante networking, combined with seamless integration with TASCAM Sonicview recording mixers. The stage boxes can be used as a floor stage box or rack mounted, and multiple stage boxes can be used simultaneously in a Dante network.

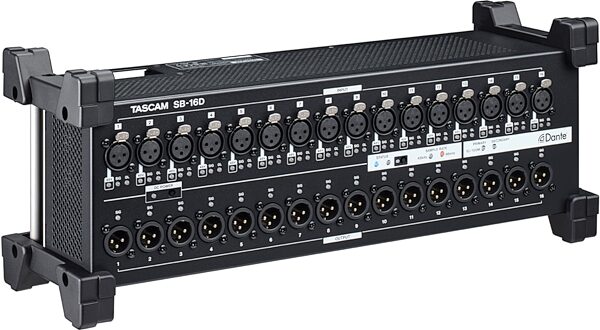

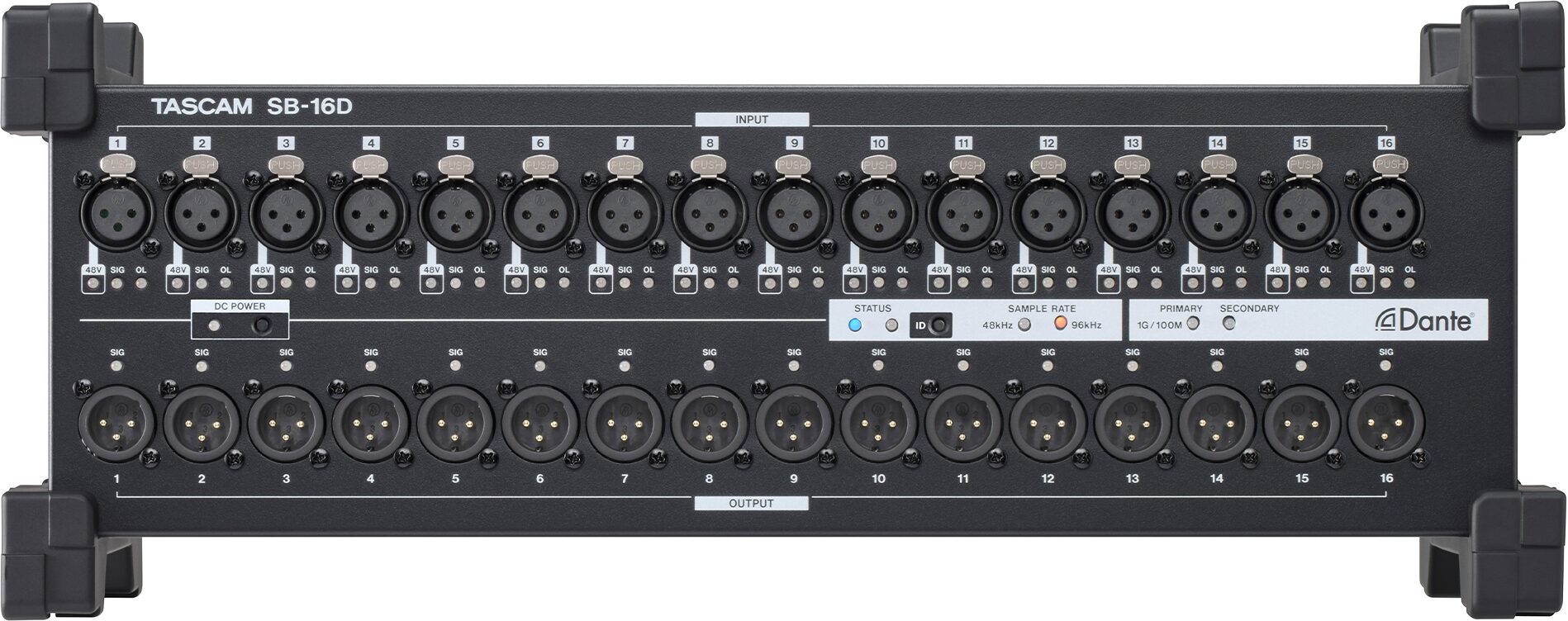

16-in/16-out Dante analog converter with built-in 32-bit ADC & Class 1 HDIA mic preamps. Controllable with TASCAM IO Control app or with TASCAM Sonicview series.
16-in/16-out Dante analog converter with built-in 32-bit ADC & Class 1 HDIA mic preamps. Controllable with TASCAM IO Control app or with TASCAM Sonicview series.
Specs
- Input Channels: 16
- Output Channels: 16
- Mic Preamps: 16 x TASCAM Class 1 HDIA (High Definition Instrumentation Architecture)
- Sample Rate: 96 kHz
- Bit Depth: 32-bit
- Connectivity Protocol: Dante

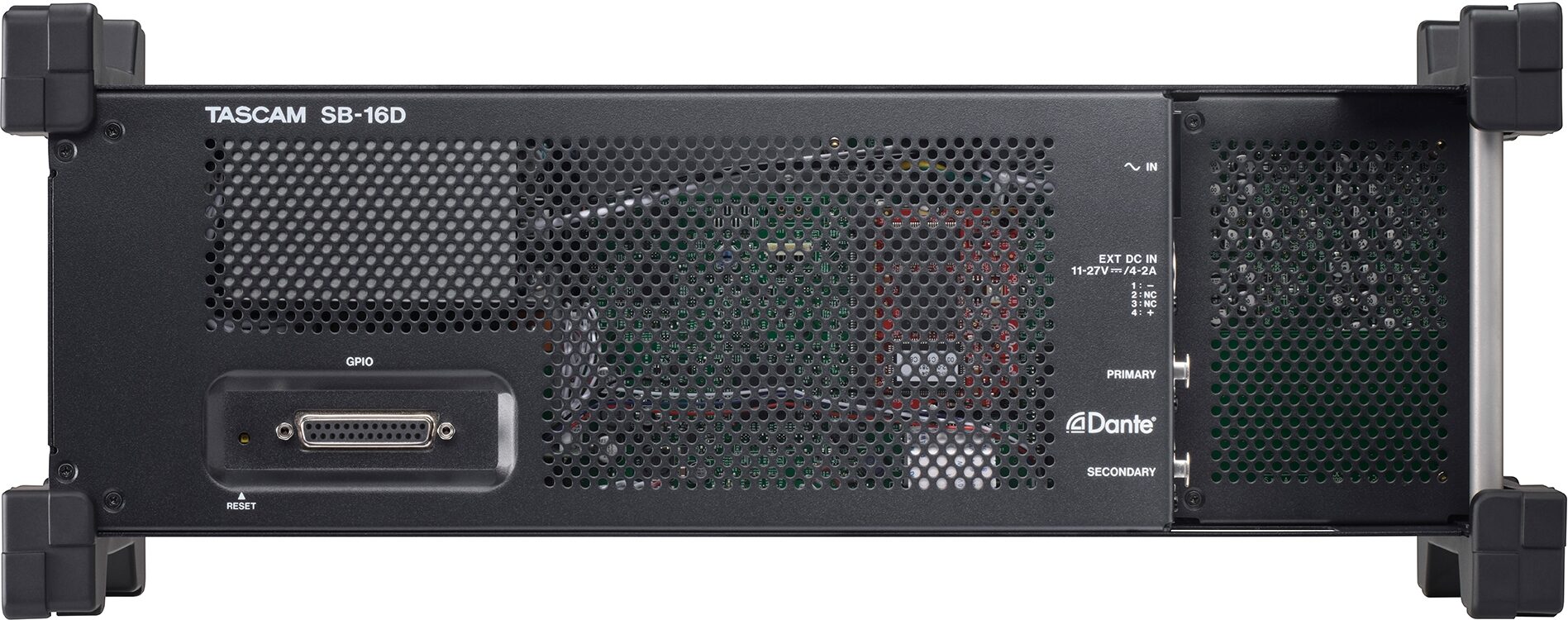

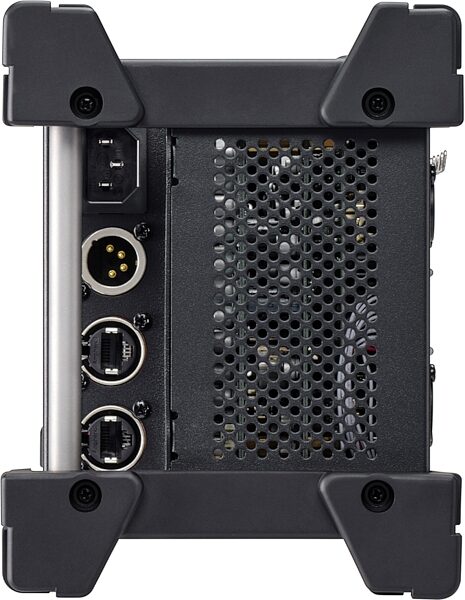

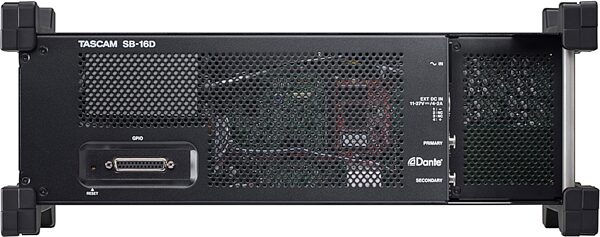

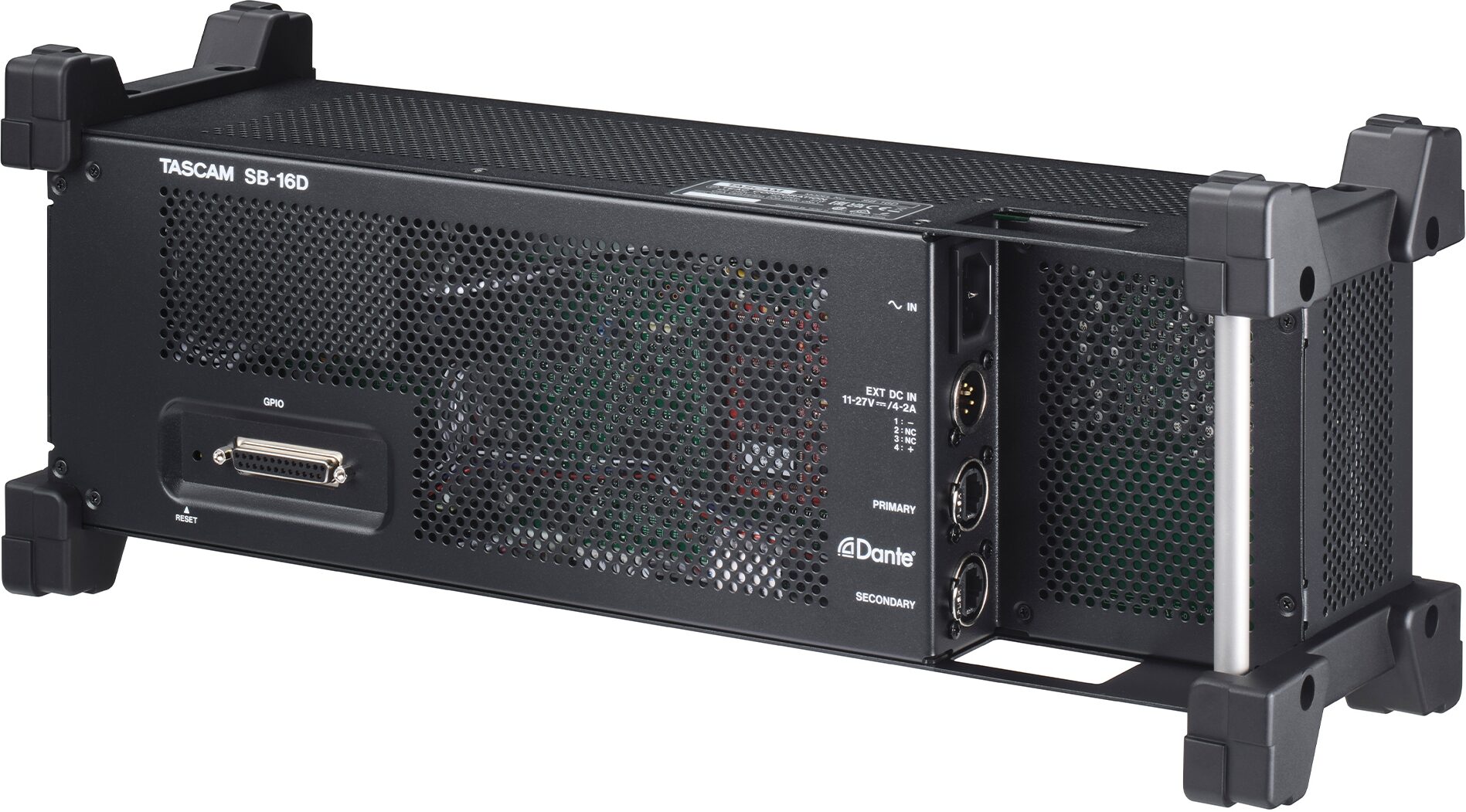

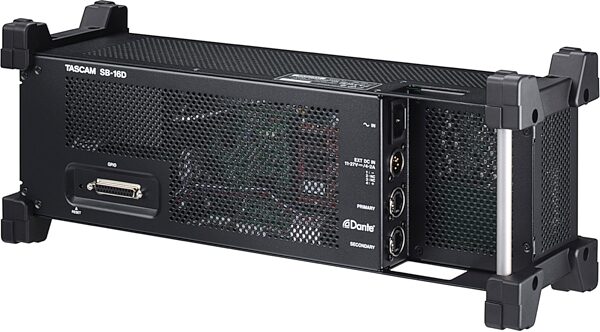

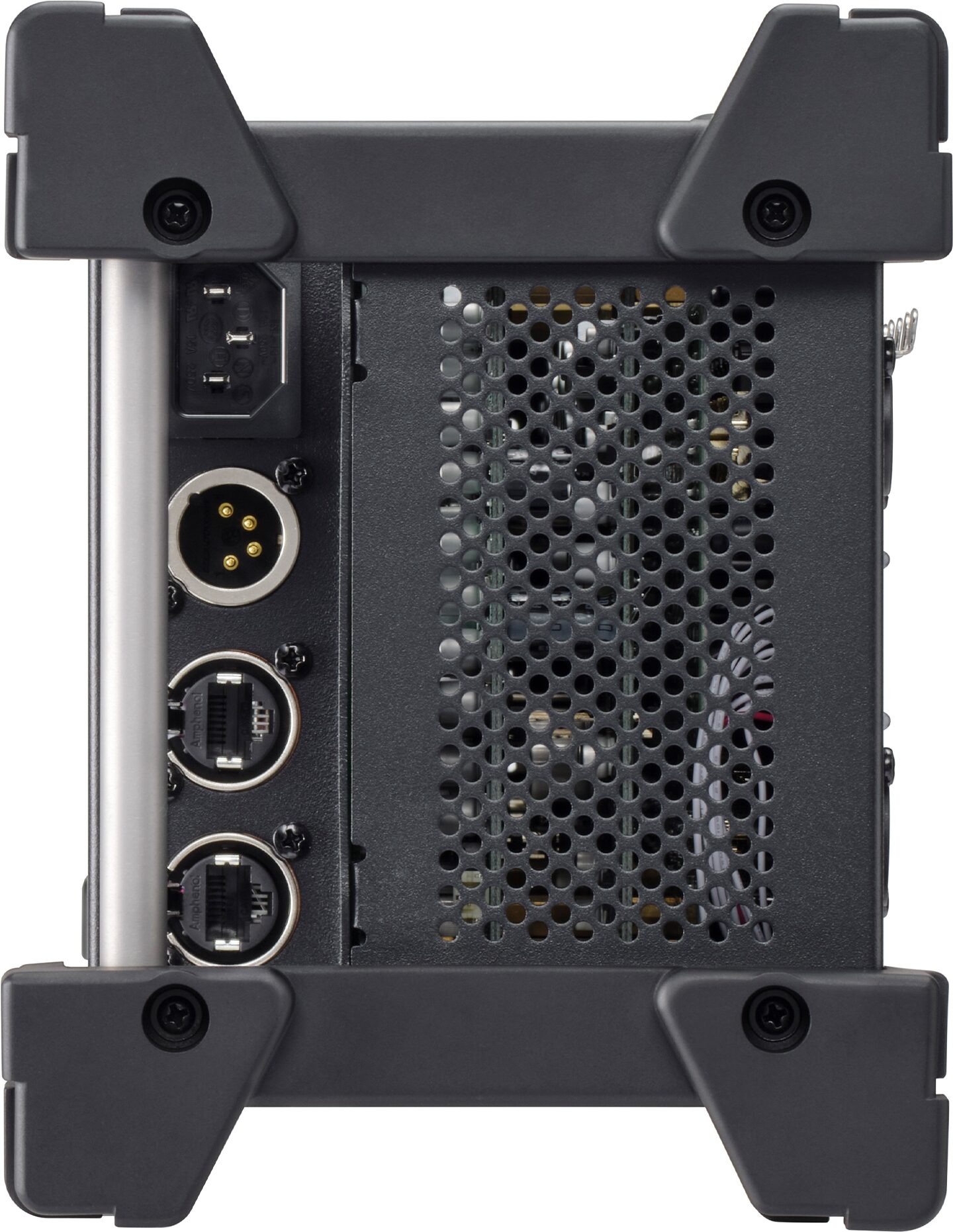

- Network Interface: 2 x etherCON-compatible Dante ports with redundancy
- Frequency Response: 20 Hz - 20 kHz +0 dB, -0.5 dB (48 kHz); 20 Hz - 40 kHz +0 dB, -1.0 dB (96 kHz)
- Dynamic Range: ≥110 dB (Mic/Line input to Dante output); ≥111 dB (Dante input to Line output, 48 kHz); ≥112 dB (Dante input to Line output, 96 kHz)
- Total Harmonic Distortion (THD): ≤0.002% (Mic/Line to Dante); ≤0.002% (Dante to Line output)
- Phantom Power: +48V switchable per channel
- Maximum Input Level: +32 dBu
- Power Requirements: 44W
- Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
- Output Channels: 16
- Mic Preamps: 16 x TASCAM Class 1 HDIA (High Definition Instrumentation Architecture)
- Sample Rate: 96 kHz
- Bit Depth: 32-bit
- Connectivity Protocol: Dante
- Network Interface: 2 x etherCON-compatible Dante ports with redundancy
- Frequency Response: 20 Hz - 20 kHz +0 dB, -0.5 dB (48 kHz); 20 Hz - 40 kHz +0 dB, -1.0 dB (96 kHz)
- Dynamic Range: ≥110 dB (Mic/Line input to Dante output); ≥111 dB (Dante input to Line output, 48 kHz); ≥112 dB (Dante input to Line output, 96 kHz)
- Total Harmonic Distortion (THD): ≤0.002% (Mic/Line to Dante); ≤0.002% (Dante to Line output)
- Phantom Power: +48V switchable per channel
- Maximum Input Level: +32 dBu
- Power Requirements: 44W
- Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 17 lbs
- Shipping Dimensions: 24 x 16 x 10 in
- Manufacturer Part Number (MPN): SB-16D
