TASCAM MH-8 Headphone Amplifier

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

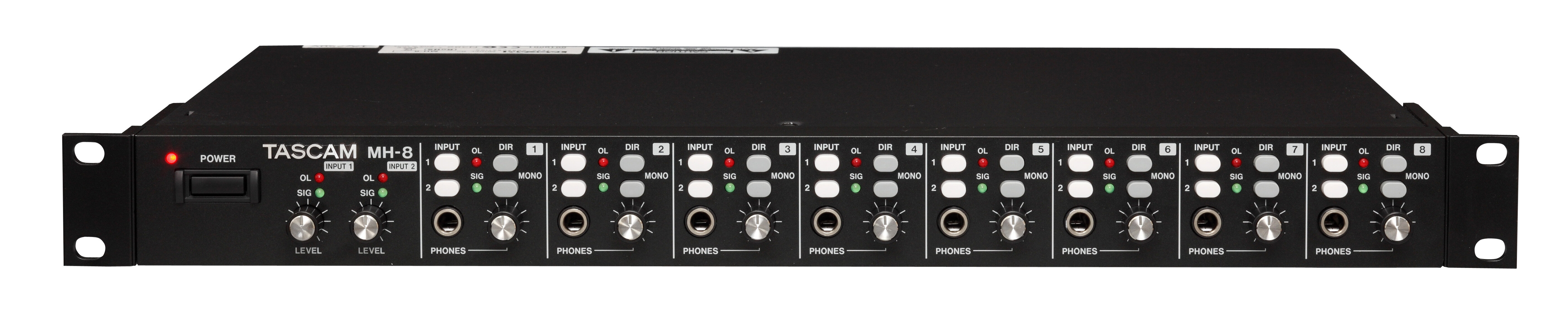

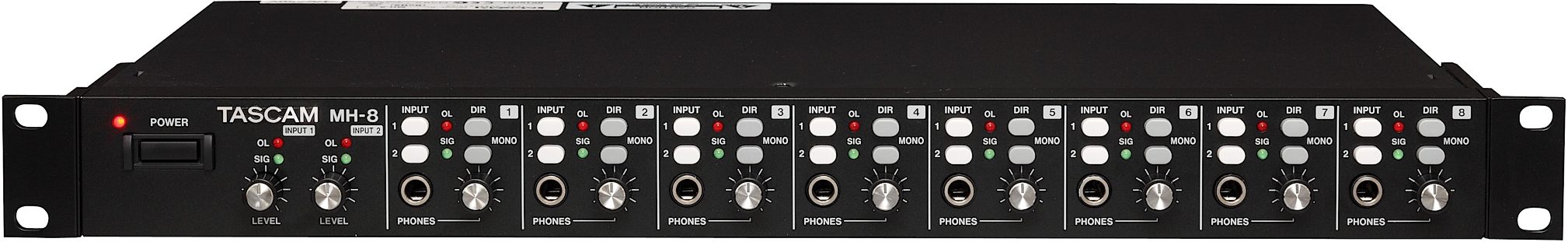

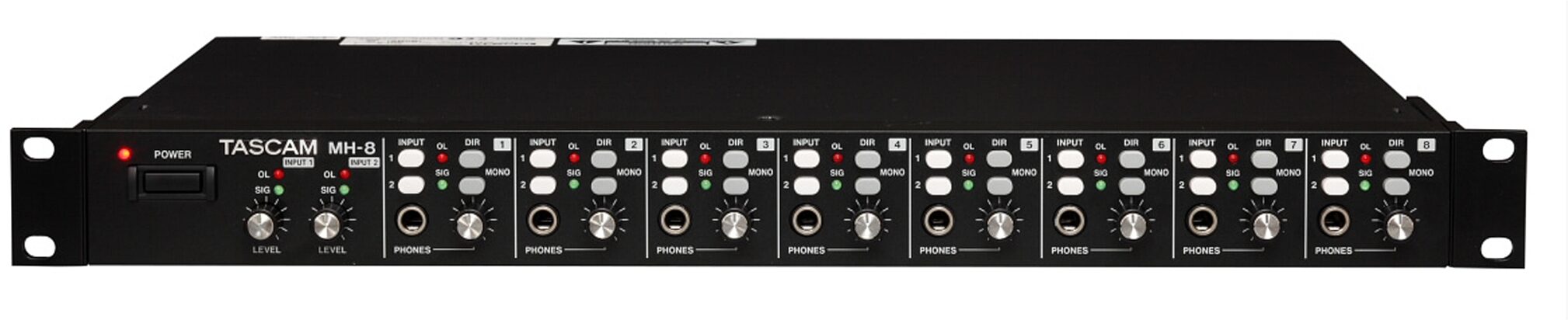

open zoom image for TASCAM MH-8 Headphone Amplifier, New, Main

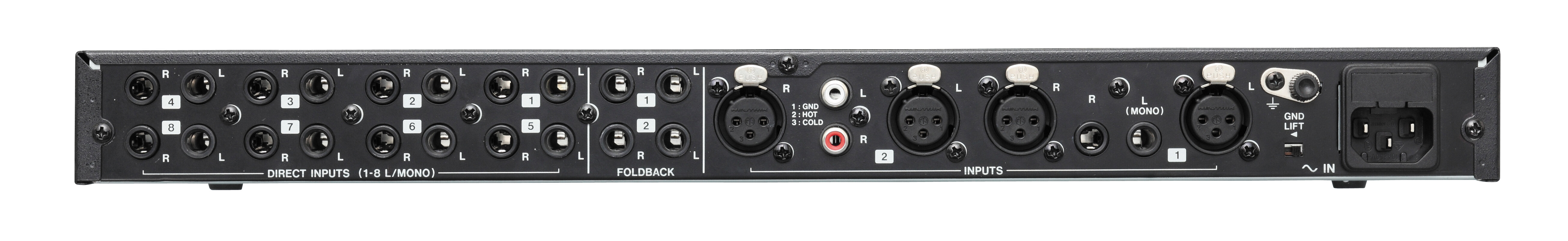

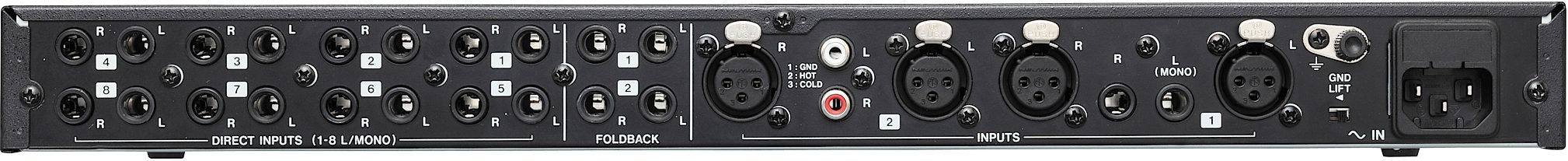

open zoom image for TASCAM MH-8 Headphone Amplifier, New, Rear
open zoom image for TASCAM MH-8 Headphone Amplifier, New, Action Position Back
TASCAM MH-8 Headphone Amplifier, New, Main TASCAM MH-8 Headphone Amplifier, New, Rear TASCAM MH-8 Headphone Amplifier, New, Action Position Back
zZounds Gear Experts Say...
This super-flexible headphone amp gives you 8 headphone outputs, 2 pairs of XLR/RCA/TRS stereo inputs, and 8 pairs of direct inputs for each output channel.

TASCAM's MH-8 is the ultimate headphone amplifier for studio, stage and installation. Each of the eight stereo outputs gets 250mW per side with three switchable sources available. Two stereo inputs can be shared to any of the outputs, and individual stereo direct inputs are available for each of the eight channels. A headphone out can select any one of these inputs, or mix several together. A set of foldback outputs allow you to chain other TASCAM MH-8s into a system.

Features:

- (8) stereo 1/4" headphone outputs
- 250mW + 250mW @ 32ohm per channel
- Each headphone output switchable to input 1, input 2 and direct input source (or a combination of the three)
- Master input gain controls
- (16) 1/4" TRS balanced direct inputs
- (4) XLR balanced inputs (Channels 1 & 2)
- (2) 1/4" TRS balanced inputs (Chan 1)
- (2) RCA unbalanced inputs (Chan 2)
- (4) TRS balanced foldback outputs
- Ground lift switch and terminal

TASCAM MH-8 Applications

- Music retailer listening station
- Recording studio monitoring
- In-ear stage monitor distribution
- Tradeshow headphone distribution
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Amplifier Type: 8-channel stereo headphone amplifier
- Number of Channels: 8
- Output Power: 250mW + 250mW per channel (32Ω)
- Frequency Response: 20Hz - 50kHz ±3dB (PHONES outputs)
- Total Harmonic Distortion (THD): 0.05% or less (PHONES outputs at 100mW + 100mW 32Ω)
- Signal-to-Noise Ratio (SNR): 85dB or greater (PHONES outputs, A-weighted, 20kHz LPF)
- Input Impedance: 56kΩ (XLR/TRS inputs)
- Input Connectors: 2 x XLR balanced (Input 1), 2 x XLR balanced (Input 2), 2 x 1/4" TRS balanced (Input 1), 2 x RCA unbalanced (Input 2), 16 x 1/4" TRS direct inputs
- Output Connectors: 8 x 1/4" stereo headphone outputs, 4 x 1/4" TRS foldback outputs
- Power Supply: Built-in power supply (no AC adapter required)
- Supported Headphone Impedance: Optimized for 32Ω headphones

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 10.5 lbs
  • Shipping Dimensions: 22 x 16 x 6 in
  • Manufacturer Part Number (MPN): MH-8

For support or warranty questions, please contact the manufacturer:
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
