TASCAM DA-3000SD 2-Channel DSD/PCM Master Recorder
zZounds Gear Experts Say...
Put the DA-3000SD in your rack to capture stereo recordings in DSD up to 5.6 MHz, or PCM up to 192 kHz, with 2 channels of TASCAM's pristine A/D conversion.
Overview
The TASCAM DA-3000SD combines a top-of-the-line reference-grade master recorder and AD converter for high-sample rate, musically correct recording. Utilizing premium components, the DA-3000SD carries on the legacy as the industry standard in professional master recording and top-level AD/DA conversion for recording engineers.
- AD/DA direct mode can be used as a phase coherent pure standalone AD/DA converter
- Rich input and output selection: analog XLR, RCA; PCM digital S/PDIF, AES/EBUDSD SDIF-3 and DSD-raw
- Equipped with high-precision TCXO (less than 1ppm)
- Premium isolated BurrBrown PCM1795 converters, one for each channel
- Cascade function supported recording 2 mono files
- Automatic file closing function to prevent the loss of recorded data if the batteries run out.
- WORLD IN/OUT/THRU
- Support SDXC (up to 512G)
- Highly visible 24-dot level meter
- Equipped with 128x64 dots OLED display
- Mark function
- Panel Lock function
- Dedicated USB keyboard terminal for folder/file name input and external control
- Oscillator function
- Outputs volume control
- USB memory for playback or mutual copying with SD cards.
- Supports wireless remote control (RC-10)
- 1U rack-mountable
Professional Stereo Master Recorder with Superior AD/DA Converters
Following in its critically acclaimed predecessors footsteps, the DA-3000SD is a must-have master recorder and professional grade monitoring device in a single… read more rack mountable unit.
Bouncing a recording in a DAW alone cannot capture the quality afforded by the DA-3000SD as a master recorder. When used as an AD/DA conversion unit in a DAW production environment, noise free superior monitoring is second-to-none as the clarity and depth of audio is enhanced and allowed to shine.
Masterful Audio with PCM 192kHz, DSD 2.8/5.6MHz Recording
For recording, the DA-3000SD supports audio capture at 192 kHz for PCM as well as 2.8 and 5.6 MHz for DSD, the highest quality recording format commercially available. Based on project needs, users can select which recording method best matches the music's characteristics and save the settings. Multiple units can be synchronized for sample-accurate recording and playback, allowing for the creation of a DSD multitrack recording environment. Recording directly to SD card media makes transportation and storage of sessions simple and easy-to-handle.
Utilizing High-Quality Audio Circuitry for AD/DA Conversion
An EI core transformer with separate windings for the digital and analog circuits is used in the power supply section, while the output audio circuit has a dual monaural configuration with two high-quality mono circuits to achieve an exceptional sonic profile. Additionally, all stages of the audio circuits have a balanced configuration to reduce noise on both input and output paths. Equipped with a TCXO (temperature compensated crystal oscillator), the DA-3000SD's clock generator boasts an accuracy of +/- 1ppm for digital audio processing with no jitter.

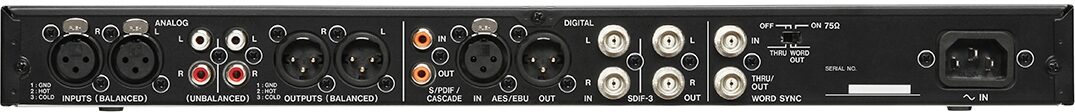

Wide Range of Input and Output Terminals
The unit is equipped with a diverse selection of input and output terminals for connection to a variety of studio equipment such as audio interfaces, microphone preamplifiers, dynamic processors, and more. Analog I/O ports are provided via XLR and RCA terminals, while PCM digital connectivity is provided through S/PDIF, RCA, coaxial, and AES/EBU connectors. DSD digital connections are handled through the use of BNC SDIF-3 terminals.
As a Portable High-Definition DA Converter
A highly portable piece of gear, the DA-3000SD can fit in a 1U backspace and be toted from studio to studio for detailed and reliable monitoring in any environment. Plus, with its WORD clock capability, the unit can double as a high-precision master clock generator, or sync it to an external clocking device for musically correct pure phase coherent audio.
As an A/D Converter/Recorder for Mastering
By sending stereo master from a DAW and recording them with the DA-3000SD, you can capture the master sound source at a higher resolution than possible with a DAW bounce alone. To insert vintage or other outboard equipment during the mastering process, place the DA-3000SD in the signal chain after the external hardware to capture the audio coloration in all its full, high-definition beauty.
As a DSD Multitrack Recorder
Both recording and playback synchronization is possible by cascading multiple units, enabling a DSD multitrack environment. By connecting eight DA-3000SD's, users can record up to 16 tracks at a time.
What's in the box:
- DA-3000SD x 1
- Power cord (3P) x 1
- RC-10 (Wireless remote controller) x 1
- Lithium coin cell battery (CR2025) x 1
- A rack-mounting screw kit x 1
- Owner's Manual (including warranty) x 1
read less
Features:
- PCM recording up to 192kHz, DSD recording up to 5.6MHz- AD/DA direct mode can be used as a phase coherent pure standalone AD/DA converter
- Rich input and output selection: analog XLR, RCA; PCM digital S/PDIF, AES/EBUDSD SDIF-3 and DSD-raw
- Equipped with high-precision TCXO (less than 1ppm)
- Premium isolated BurrBrown PCM1795 converters, one for each channel
- Cascade function supported recording 2 mono files
- Automatic file closing function to prevent the loss of recorded data if the batteries run out.
- WORLD IN/OUT/THRU
- Support SDXC (up to 512G)
- Highly visible 24-dot level meter
- Equipped with 128x64 dots OLED display
- Mark function
- Panel Lock function
- Dedicated USB keyboard terminal for folder/file name input and external control
- Oscillator function
- Outputs volume control
- USB memory for playback or mutual copying with SD cards.
- Supports wireless remote control (RC-10)
- 1U rack-mountable
Professional Stereo Master Recorder with Superior AD/DA Converters
Following in its critically acclaimed predecessors footsteps, the DA-3000SD is a must-have master recorder and professional grade monitoring device in a single… read more rack mountable unit.
Bouncing a recording in a DAW alone cannot capture the quality afforded by the DA-3000SD as a master recorder. When used as an AD/DA conversion unit in a DAW production environment, noise free superior monitoring is second-to-none as the clarity and depth of audio is enhanced and allowed to shine.
Masterful Audio with PCM 192kHz, DSD 2.8/5.6MHz Recording
For recording, the DA-3000SD supports audio capture at 192 kHz for PCM as well as 2.8 and 5.6 MHz for DSD, the highest quality recording format commercially available. Based on project needs, users can select which recording method best matches the music's characteristics and save the settings. Multiple units can be synchronized for sample-accurate recording and playback, allowing for the creation of a DSD multitrack recording environment. Recording directly to SD card media makes transportation and storage of sessions simple and easy-to-handle.
Utilizing High-Quality Audio Circuitry for AD/DA Conversion
An EI core transformer with separate windings for the digital and analog circuits is used in the power supply section, while the output audio circuit has a dual monaural configuration with two high-quality mono circuits to achieve an exceptional sonic profile. Additionally, all stages of the audio circuits have a balanced configuration to reduce noise on both input and output paths. Equipped with a TCXO (temperature compensated crystal oscillator), the DA-3000SD's clock generator boasts an accuracy of +/- 1ppm for digital audio processing with no jitter.
Wide Range of Input and Output Terminals
The unit is equipped with a diverse selection of input and output terminals for connection to a variety of studio equipment such as audio interfaces, microphone preamplifiers, dynamic processors, and more. Analog I/O ports are provided via XLR and RCA terminals, while PCM digital connectivity is provided through S/PDIF, RCA, coaxial, and AES/EBU connectors. DSD digital connections are handled through the use of BNC SDIF-3 terminals.
As a Portable High-Definition DA Converter
A highly portable piece of gear, the DA-3000SD can fit in a 1U backspace and be toted from studio to studio for detailed and reliable monitoring in any environment. Plus, with its WORD clock capability, the unit can double as a high-precision master clock generator, or sync it to an external clocking device for musically correct pure phase coherent audio.
As an A/D Converter/Recorder for Mastering
By sending stereo master from a DAW and recording them with the DA-3000SD, you can capture the master sound source at a higher resolution than possible with a DAW bounce alone. To insert vintage or other outboard equipment during the mastering process, place the DA-3000SD in the signal chain after the external hardware to capture the audio coloration in all its full, high-definition beauty.
As a DSD Multitrack Recorder
Both recording and playback synchronization is possible by cascading multiple units, enabling a DSD multitrack environment. By connecting eight DA-3000SD's, users can record up to 16 tracks at a time.
What's in the box:
- DA-3000SD x 1
- Power cord (3P) x 1
- RC-10 (Wireless remote controller) x 1
- Lithium coin cell battery (CR2025) x 1
- A rack-mounting screw kit x 1
- Owner's Manual (including warranty) x 1
Specs
Media/Storage
Supported Media:
- SD: SDHC card (4GB~32GB), SDXC card (64GB~512GB)
- SD Ejection Method: Push-push type
- USB: USB flash drive
Recording and Playback Format:
- PCM Freq. Response: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- PCM Bit Rate: 16bit / 24bit
- Recording: BWF (.wav)
- Playback: BWF (.wav), WAV (.wav)
- DSD: 2.8224 / 5.6448 MHz
- Recording and Playback: DSDIFF (.dff), DSF (.dsf)
- Number of channels: 2ch (Stereo/Mono x2)
Analog Inputs
Unbalanced:
- Connector: RCA pin jacks
- Nominal Input Level: -10dBV
- Max Input Level: +6dBV
- Minimum input level: -22dBV
- Input impedance: 22k- or more
Balanced:
- Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
- Nominal Input Level: +4dBu (+6dBu at Max Input Level set to +15dBu)
- Max Input Level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
- Minimum input level: -8dBu (-6dBu at Max Input Level set to +15dBu)
- Input Impedance: 10k- or more
Analog Outputs
Unbalanced:
- Connector: RCA pin jacks
- Nominal Output Level: -10dBV
- Max Output Level: +6dBV
- Output Impedance: 200- or less
Balanced:
- Connector: XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
- Nominal Output Level: +4dBu (+6dBu at Max Input Level set +15dBu)
- Max Output Level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
- Output Impedance: 100- or less
Digital Inputs
S/PDIF, CASCADE:
- Balance: Unbalanced
- Connector: RCA pin jacks
- Format: IEC60958-3 (S/PDIF)
- Input Frequency (SRC OFF): 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- Input Frequency (SRC ON): 32-216kHz
- Allowable Frequency Deviation: +/-100ppm (SRC OFF)
AES/EBU:
- Balance: Balanced
- Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
- Format: AES3-2003 / IEC60958-4 (AES/EBU)
- Input Frequency (SRC OFF): 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- Input Frequency (SRC ON): 32-216kHz
- Allowable Frequency Deviation: +/-100ppm (SRC OFF)
SDIF-3:
- Balance: Unbalanced
- Connector: BNC Connector x 2 (L/R)
- Format: SONY SDIF-3 / DSD-raw
- Clock Frequency: 44.1kHz
Digital Output
S/PDIF, CASCADE:
- Balance: Unbalanced
- Connector: RCA pin jacks
- Format: IEC60958-3 (S/PDIF)
- AES/EBU: Balance
- Connector: XLR-3-32equivalent (1: GND, 2: HOT, 3: COLD)
- Format: AES3-2003 / IEC60958-4 (AES/EBU)
SDIF-3:
- Balance: Unbalanced
- Connector: BNC Connector - 2 (L/R)
- Format: SONY SDIF-3 / DSD-raw
- Clock Frequency: 44.1kHz
WORD SYNC IN:
- Connector: BNC Connector
- Input level: 5V TTL equivalent
- Input Impedance: 75- +/-10%
- Input Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Allowable Frequency Deviation: +/-100ppm
WORD SYNC THRU/OUT:
- Connector: BNC Connector
- Output Level: 5V TTL equivalent
- Output Impedance: 75- +/-10%
- Output Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Frequency Stability: +/-1ppmor less (Ta=25-C)
USB
- Connector: USB Type-A
- PLAY/COPY Protocol: USB 2.0 HIGH SPEED (480Mbps)
- REMOTE Protocol: USB 1.1 FULL SPEED (12Mbps)
- Power Rating: DC 5.0V, 0.2A
General
Infrared receiver: RC-10 Supported (Wireless Remote Controller)
Headphone Output:
- Connector: 6.3mm (1/4') Stereo Phone Jack
- Max Output: 45mW + 45mW (32- load, Distortion: 0.1%)
Power Supply: AC120V (for North America), AC230V
Power Consumption: 24W
Dimensions (WxHxD):
- Metric: 483 - 45 - 305 mm
- Imperial: 19.02 - 1.78 - 12.01 inch
Weight:
- Metric: 4.1 kg
- Imperial: 9.04 lb
Temperature rating: 0-+40-C
Supported Media:
- SD: SDHC card (4GB~32GB), SDXC card (64GB~512GB)
- SD Ejection Method: Push-push type
- USB: USB flash drive
Recording and Playback Format:
- PCM Freq. Response: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- PCM Bit Rate: 16bit / 24bit
- Recording: BWF (.wav)
- Playback: BWF (.wav), WAV (.wav)
- DSD: 2.8224 / 5.6448 MHz
- Recording and Playback: DSDIFF (.dff), DSF (.dsf)
- Number of channels: 2ch (Stereo/Mono x2)
Analog Inputs
Unbalanced:
- Connector: RCA pin jacks
- Nominal Input Level: -10dBV
- Max Input Level: +6dBV
- Minimum input level: -22dBV
- Input impedance: 22k- or more
Balanced:
- Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
- Nominal Input Level: +4dBu (+6dBu at Max Input Level set to +15dBu)
- Max Input Level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
- Minimum input level: -8dBu (-6dBu at Max Input Level set to +15dBu)
- Input Impedance: 10k- or more
Analog Outputs
Unbalanced:
- Connector: RCA pin jacks
- Nominal Output Level: -10dBV
- Max Output Level: +6dBV
- Output Impedance: 200- or less
Balanced:
- Connector: XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
- Nominal Output Level: +4dBu (+6dBu at Max Input Level set +15dBu)
- Max Output Level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
- Output Impedance: 100- or less
Digital Inputs
S/PDIF, CASCADE:
- Balance: Unbalanced
- Connector: RCA pin jacks
- Format: IEC60958-3 (S/PDIF)
- Input Frequency (SRC OFF): 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- Input Frequency (SRC ON): 32-216kHz
- Allowable Frequency Deviation: +/-100ppm (SRC OFF)
AES/EBU:
- Balance: Balanced
- Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
- Format: AES3-2003 / IEC60958-4 (AES/EBU)
- Input Frequency (SRC OFF): 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
- Input Frequency (SRC ON): 32-216kHz
- Allowable Frequency Deviation: +/-100ppm (SRC OFF)
SDIF-3:
- Balance: Unbalanced
- Connector: BNC Connector x 2 (L/R)
- Format: SONY SDIF-3 / DSD-raw
- Clock Frequency: 44.1kHz
Digital Output
S/PDIF, CASCADE:
- Balance: Unbalanced
- Connector: RCA pin jacks
- Format: IEC60958-3 (S/PDIF)
- AES/EBU: Balance
- Connector: XLR-3-32equivalent (1: GND, 2: HOT, 3: COLD)
- Format: AES3-2003 / IEC60958-4 (AES/EBU)
SDIF-3:
- Balance: Unbalanced
- Connector: BNC Connector - 2 (L/R)
- Format: SONY SDIF-3 / DSD-raw
- Clock Frequency: 44.1kHz
WORD SYNC IN:
- Connector: BNC Connector
- Input level: 5V TTL equivalent
- Input Impedance: 75- +/-10%
- Input Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Allowable Frequency Deviation: +/-100ppm
WORD SYNC THRU/OUT:
- Connector: BNC Connector
- Output Level: 5V TTL equivalent
- Output Impedance: 75- +/-10%
- Output Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Frequency Stability: +/-1ppmor less (Ta=25-C)
USB
- Connector: USB Type-A
- PLAY/COPY Protocol: USB 2.0 HIGH SPEED (480Mbps)
- REMOTE Protocol: USB 1.1 FULL SPEED (12Mbps)
- Power Rating: DC 5.0V, 0.2A
General
Infrared receiver: RC-10 Supported (Wireless Remote Controller)
Headphone Output:
- Connector: 6.3mm (1/4') Stereo Phone Jack
- Max Output: 45mW + 45mW (32- load, Distortion: 0.1%)
Power Supply: AC120V (for North America), AC230V
Power Consumption: 24W
Dimensions (WxHxD):
- Metric: 483 - 45 - 305 mm
- Imperial: 19.02 - 1.78 - 12.01 inch
Weight:
- Metric: 4.1 kg
- Imperial: 9.04 lb
Temperature rating: 0-+40-C
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 11.9 lbs
- Shipping Dimensions: 22 x 16 x 6 in
- Manufacturer Part Number (MPN): DA-3000SD
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
New
$1,499.00
FREE -Day Shipping!
Get it
for
Get it
(or get it
with an order of
),
if you order within
Shipping to
This is a carousel with product cards. Use the previous and next buttons to navigate.
Related Accessories
Shure SM81 Cardioid Condenser Microphone
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
This is a carousel with product cards. Use the previous and next buttons to navigate.
Related Accessories
-
Shure SM81 Cardioid Condenser Microphone
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
-
This is a carousel with product cards. Use the previous and next buttons to navigate.
