TASCAM BO-16DX/IN 16-Channel XLR-F to D-Sub Adapter Breakout Box
zZounds Gear Experts Say...
Go from XLR to D-sub with this ultra-versatile input adapter. Rugged and rack-mountable, the BO-16DX/IN is perfect for broadcast, studio, and PA.
Overview
The TASCAM BO-16DX/IN is a rugged, rackmounted D-Sub to XLR audio input adapter designed for professional installation and live sound applications. 16 front-panel XLR Inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
- Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
Features:
- 16 XLR-F input connectors on the front panel- Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
Specs

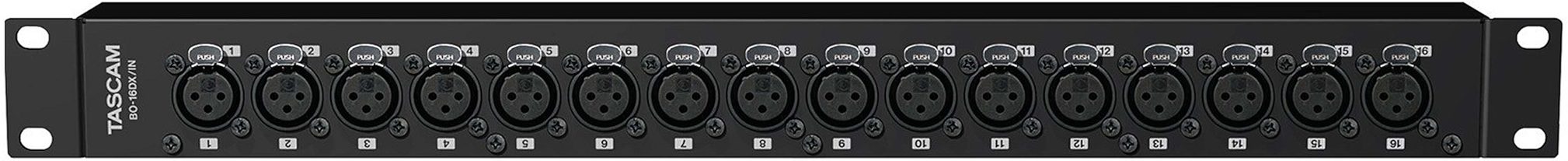

- Front Connectors: XLR 3-31 x 16 (1 GND, 2 HOT, 3 COLD)

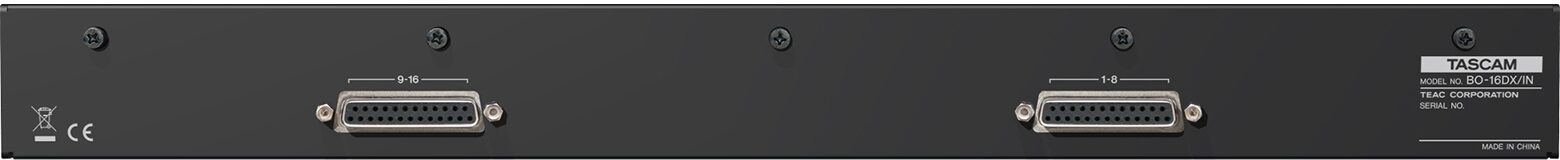

- Rear Connectors: D-sub 25-pin female x 2
- Attachment screws: No.4-40 UNC x 4 (inch-type)
- Dimensions (WxHxD): 19.0" x 1.7" x 2.1" (482.6 x 44.1 x 54.5 mm)
- Weight: 1.99 lbs (0.9 kg)
- Included items: Rackmount screw kit, Owner's Manual including warranty
- Rear Connectors: D-sub 25-pin female x 2
- Attachment screws: No.4-40 UNC x 4 (inch-type)
- Dimensions (WxHxD): 19.0" x 1.7" x 2.1" (482.6 x 44.1 x 54.5 mm)
- Weight: 1.99 lbs (0.9 kg)
- Included items: Rackmount screw kit, Owner's Manual including warranty
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 2 lbs
- Shipping Dimensions: 22 x 6 x 4 in
- Manufacturer Part Number (MPN): BO-16DX/IN
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
New
$319.00
FREE -Day Shipping!
Get it
for
Get it
(or get it
with an order of
),
if you order within
Shipping to
