Strymon Ojai R30 High Current DC Power Supply

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

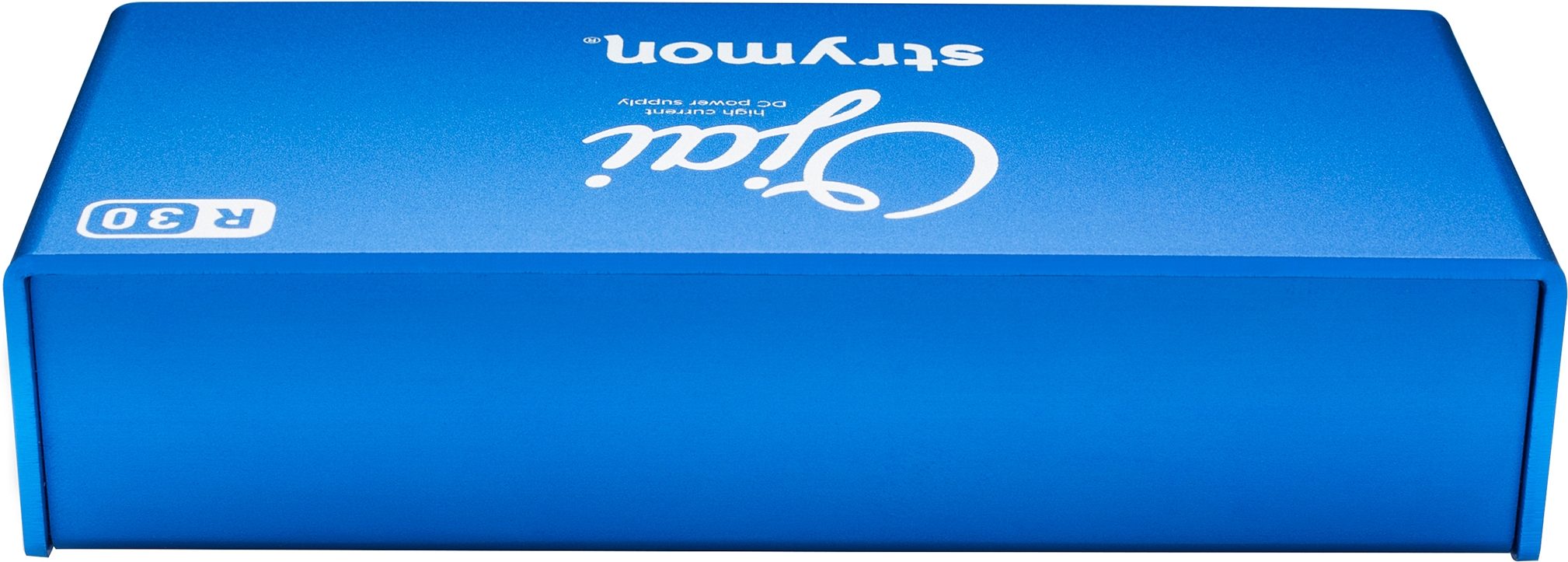

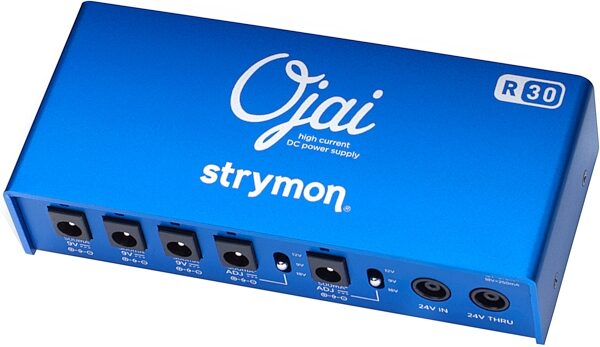

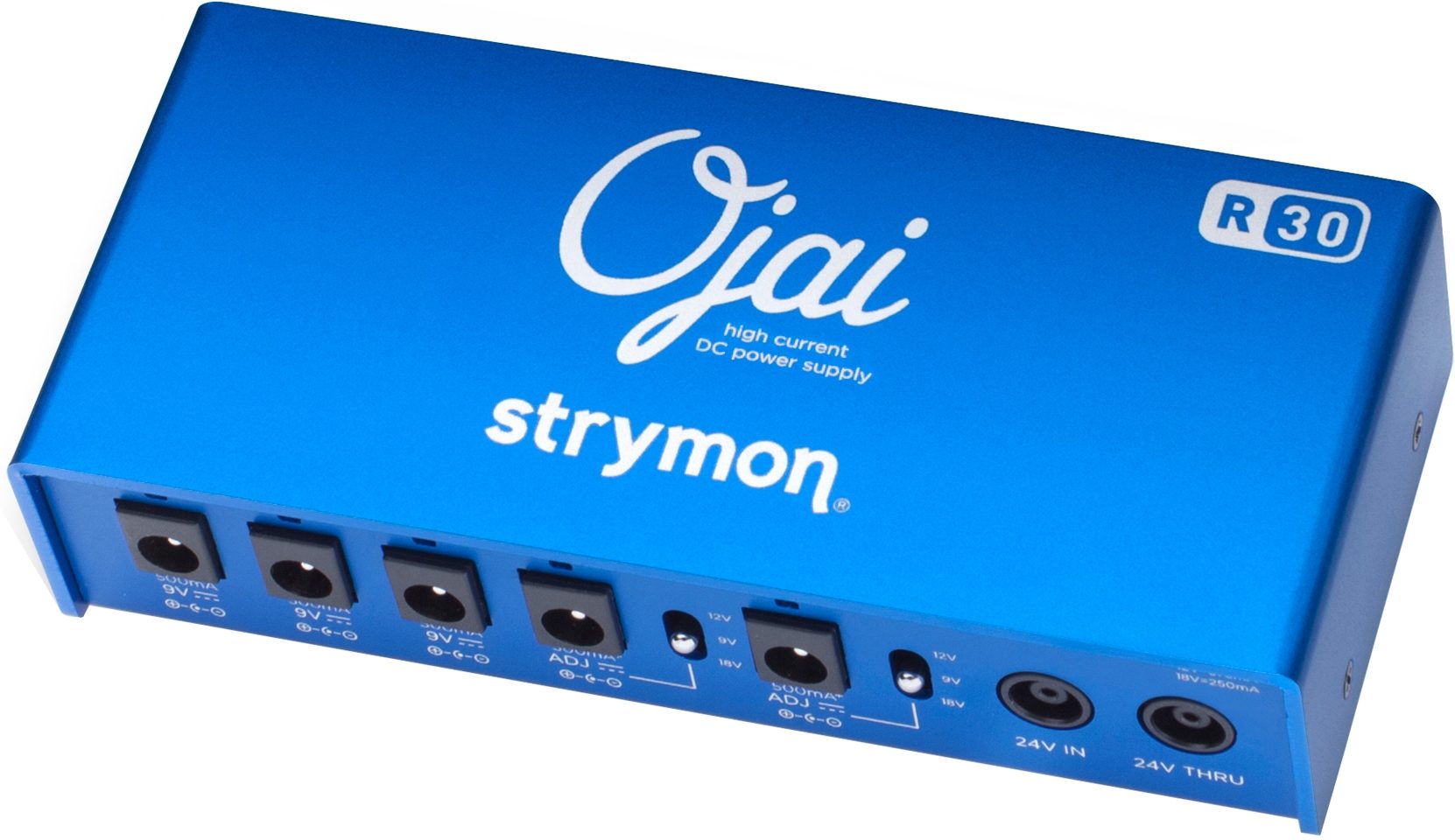

Strymon Ojai R30 High Current DC Power Supply, Action Position Back
Strymon Ojai R30 High Current DC Power Supply, Action Position Back
Strymon Ojai R30 High Current DC Power Supply, Action Position Back
Strymon Ojai R30 High Current DC Power Supply, Action Position Back Strymon Ojai R30 High Current DC Power Supply, Action Position Back Strymon Ojai R30 High Current DC Power Supply, Action Position Back
zZounds Gear Experts Say...
The Ojai R30's dual-stage topology, pre-regulated outputs, isolated feedback, and multi-stage filtering ensures clean power for your 9V, 12V and 18V effects.

Power your pedals with Ojai R30--the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30's dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.

Dual Isolation:

Ojai R30's all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

World Tour Ready:

With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

Never run out of outputs:

Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to the Zuma power supply (sold separately).

Features

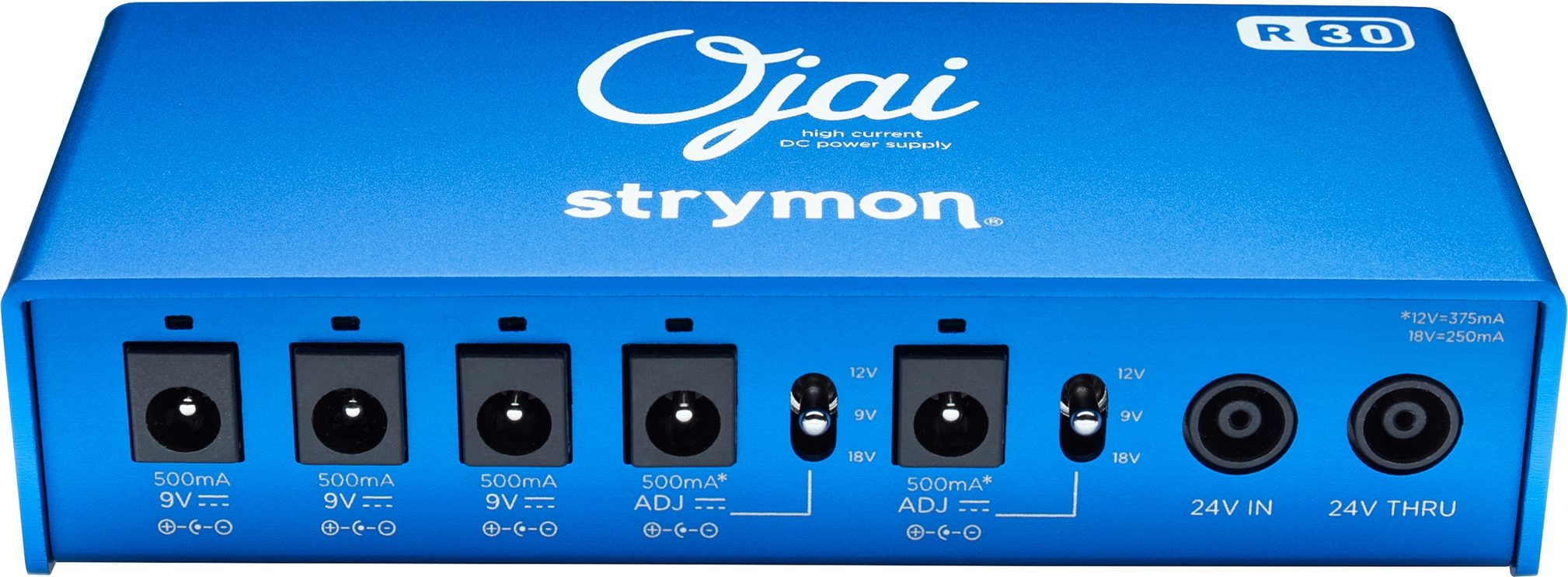

- Five (5) high current, fully isolated outputs with center-negative polarity
- Three (3) dedicated 9V DC outputs (500mA)
- Two (2) selectable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- 500mA per output powers nearly any pedal
- Five (5) pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18" length)
- 24V power adapter (PS-124)… read more and IEC power cable included
- 24V Thru jack allows connection to additional Strymon Ojai units (sold separately)
- Five (5) individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility ensures no-hassle international touring
- Energy efficient, compact design
- Lightweight and rugged anodized midnight blue aluminum chassis
- Ultra low profile design fits under nearly any pedalboard
- Designed and built in the USA read less

- Ojai R30 Dimensions: 5.1" x 2.3" x 1.15" (130mm x 58mm x 29mm)
- Ojai R30 Weight: 6.0 oz. (171g)
- PS-124 Dimensions: 4.2" x 2.15" x 1.25" (107mm x 55mm x 32mm)
- PS-124 Weight: 4.7 oz. (133g)
- Ojai R30 Input: 24V DC, center-positive
- Ojai R30 9V DC Outputs: Three 9V DC, 500mA, center-negative
- Ojai R30 Adjustable Outputs: Two Selectable 9V (500mA), 12V (375mA), or 18V (250mA) DC, center- negative
- PS-124 Input: 100-240V AC 50/60Hz
- PS-124 Output: 24V DC, 1000mA, 24W max EIAJ-05 center-positive output
