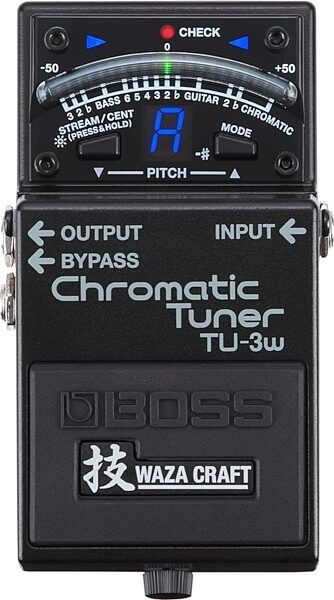

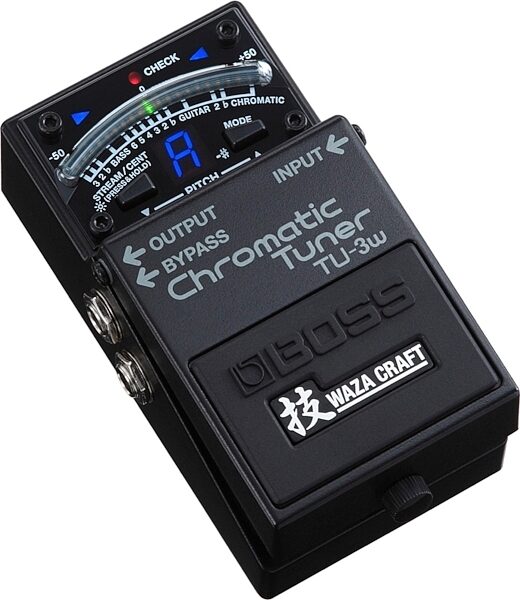

Boss TU-3W Waza Craft Chromatic Tuner Pedal

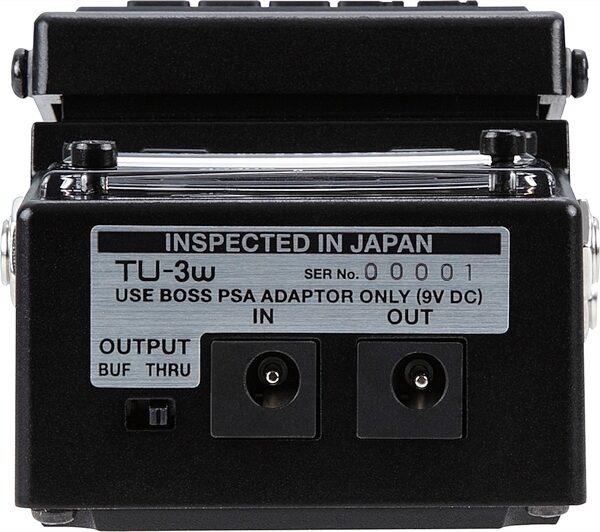

Boss TU-3W Waza Craft Chromatic Tuner Pedal, New, Rear

Featuring the same tuning precision as the original TU-3, the Waza Craft version also adds the option to switch the buffer off for a true bypassed signal.

Overview

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the Waza Craft series. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail.

Features:

- The world's leading stompbox tuner, enhanced with Waza innovation and craftsmanship
- Superior tuning and premium signal buffer in one pedal
- Tuning functions are identical to the industry-standard TU-3
- Refined audio circuitry for exceptionally pure signal pass-through
- Buffer can be turned off for true-bypass operation
- BOSS five-year warranty

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Tuning Range: C0 (16.35 Hz) -- C8 (4,186 Hz)
- Reference Pitch: A4 = 436 -- 445 Hz (1 Hz step)
- Tuning Accuracy: +/- 1 cent

Modes:
- Chromatic
- Chromatic flat x2
- Guitar
- Guitar flat x2
- Bass
- Bass flat x3

Display Mode:
- Cent mode
- Stream mode

Power Supply:
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (sold separately)

- Bypass: Buffered bypass or True bypass

Controls:
- Pedal switch
- OUTPUT switch (BUF/THRU SW)
- MODE button
- STREAM/CENT button

- Nominal Input Level: -20 dBu
- Input Impedance:1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance 10 k ohms or greater
- Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors:
- INPUT jack
- OUTPUT jack
- DC IN jack
- DC OUT jack
 
Current Draw:
- 60 mA (DC 9 V)
- 110 mA (DC 9 V, when High Brightness mode is on)

Expected battery life:
- Alkaline: Approx. 6 hours
- Carbon: Approx. 0.5 hours

Accessories:
- Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Alkaline battery (9V, 6LR61)

Options (sold separately)
- AC adaptor: PSA series
- Parallel DC cord: PCS-20A (DC Plug x8)

Size and Weight:
- Width: 73 mm, 2 7/8"
- Depth: 129 mm, 5 1/8"
- Height: 59 mm, 2 3/8"
- Weight (including battery) 460 g, 1 lb 1 oz

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 1.25 lbs; Shipping Dimensions: 6 x 4 x 3 in; Manufacturer Part Number (MPN): TU-3W
