Stanton SMX311 DJ Mixer, 3-Channel

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Stanton SMX311 DJ Mixer, 3-Channel, Main

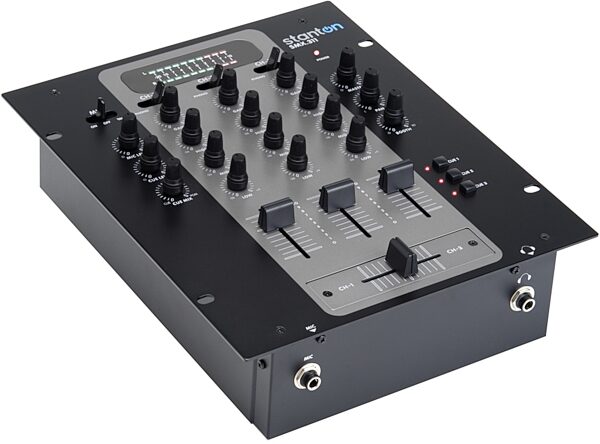

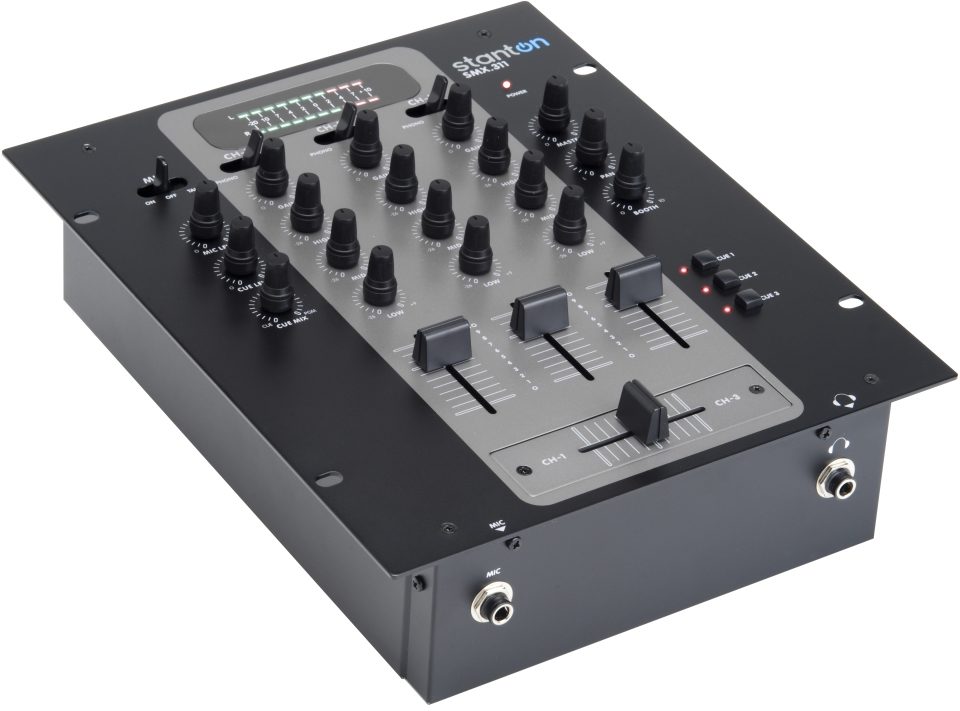

Stanton SMX311 DJ Mixer, 3-Channel, Angle

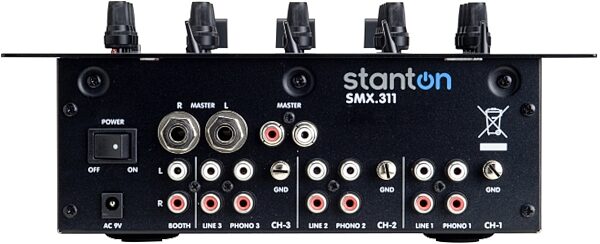

Stanton SMX311 DJ Mixer, 3-Channel, Head
Stanton SMX311 DJ Mixer, 3-Channel, Main Stanton SMX311 DJ Mixer, 3-Channel, Angle Stanton SMX311 DJ Mixer, 3-Channel, Head

The SMX.311 is Stanton's latest addition into the top selling SMX line of products created to provide an affordable line of mixer solutions to meet various DJ/audio applications. The SMX.311 is a 10 inch mixer with3-band EQ per 3 channels which allows up to 3 Phono/Line signals to be connected at once, along with a microphone on a separate channel. Equipped with versatile cueing and extended connectivity the SMX.311 is a great mixer for both the beginner and professional DJ.

Features

- 3 Channel Mixer with phono / line inputs
- Striking Black/gray color scheme
- Rugged aluminum design
- Microphone input with talk over control
- 3 Band EQ per channel (-26 dB to +9 dB)
- Replaceable crossfader with very low crosstalk
- Versatile cueing section with cue / master mix control
- Balanced master output for high quality connection to loud speakers
- Balance control for master output
- Booth output for connecting monitors in a DJ booth or recording
- 10 segment LED metering for master output

- Frequency Response: 20 Hz - 20 kHz +2/-3 dB
- THD+N (line) : < 0.02% at 20Hz to 20 kHz
- S/N Ratio: Line (ref to Max. Level) Dynamic Range -87 dB
- Max Output Level (Unity Gain- Line Input) : +18 dBV (8.0V) at load 100 k Ohm
- Crosstalk (Channel to Channel) : > 70 dB at 1kHz
- Fader Kill Crossfader: -80 dB at 1 kHz
- Channel fader: -75 dB at 1 kHz
- Mic Talkover: -14 dB
- Channel EQ:
- Hi: 9 +/- 2 dB at 13 kHz / -15 +/- 3 dB at 13 kHz
- Mid: 9 +/- 2 dB at 1 kHz / below -23 dB at 1 kHz
- Low: 9 +/- 2 dB at 70 Hz / below -23 dB at 70 Hz
- Line Inputs: Hx6 (RCA) x3 Stereo Line inputs, -14 dBV / 47 k Ohm
- Phono/Line Inputs: x6 (RCA) x3 Stereo Phono inputs, -50 dBV / 47 k Ohm
- Mic Input: x1 (1/4 in.) Mic input, -54 dBV / 10 k Ohm
- Master Outputs: x2 (1/4 in. TRS)
- Balanced/ 1 x2 (RCA) unbalanced, +4 dBu balanced / -10 dBV unbalanced
- Record Output: x2 (RCA) Stereo unbalanced output
- Booth Output: x2 (RCA) Stereo unbalanced output
- Headphone Output: x1 (1/4 inch TRS) Stereo output
- Dimensions (L x W x D) : 10 1/2 x 9 x 3 1/2 in. / 265 x 228 x 87mm
- Weight: 6.6 lbs (2.8 Kg)

For support or warranty questions, please contact the manufacturer:
Phone: 800-444-2766
Manual

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
