Stanton SA8 DJ Focus Signature Mixer

No longer available at zZounds
zZounds Gear Experts Say...
Individual direct outputs, P&G (Penny & Giles) crossfader, ergonomic layout

"From the mind of focus" comes the SA-8, the ultimate performance mixer. Never before has so much scrutiny been put into the layout of a scratch mixer, each feature was carefully arranged and placed according to a DJs natural hand movement (notice where the gain is). The SA-8 offers features for every type of DJ, either strictly scratch, live performance, production, or mix. This "studio-style" scratch mixer (designed by Focus) gives you the technology of a professional console mixer compacted and ergonomically arranged in a format that is preferred by top DJs.

Features
* Individual direct outputs for multi-track recording (each turntable signal can be sent separately though 2 stereo direct outputs)

Custom designed P&G (Penny & Giles) crossfader (additional CFF2crossfader included) and custom designed P&G linefaders

* All new "one of-a-kind" knobs & faders (a molded design to fit the DJ fingers)

An ergonomic layout so there is no bumping or cluttering of knobs during use

* Post Fader Cue so a DJ can listen to his scratches in the headphone while using the crossfader as normal

* Autocue eliminates the need for touching the cue pan (switching from Ch.1 to Ch. 2)

* Adjustable Rumble Filter allows the DJ to eliminate low end frequencies

Booth Output

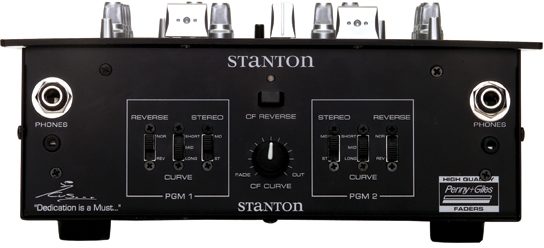

3-way adjustable curve control on linefaders

* OSII Optical Switch (for "noise-free" transforms)

Mono/Stereo Switch per channel

New screwless faceplate

Phono / Line / FX Toggle Switch

Multiple Outputs: 2-RCA (Unbalanced), read more 2-1/4 in. Direct Out ( Balanced), 1-1/4 in. Master (Balanced), Plus FX Send (1/4 in.)

Multiple Inputs: 2-RCA (Phono), 2-RCA (Line), 1-RCA (Aux), Plus FX Return (1/4 in.)

Program Reverse

2-Dual headphone outputs (2-1/4 in. and 2-1/8 in. minijack) w/ Headphone mute

* Original concept by DJ Focus
read less

THD+N: 0.05% at 1 kHz

Signal to Noise Ratio (ref: max level): 100 dB (main signal path)

Frequency Response: 20 Hz to 20 kHz +1/-2 dB

Mic EQ: Hi, Mid, Low +/- 10 dB
Channel EQ: Hi, Mid, Low +9, -20 dB

Fader Kill: -80 dB

Line Inputs: 2 (RCA) x 2 channels, -10 dBV /37 kOhm

Phono Inputs: 2 (RCA) x 2 channels, -50 dBV / 47 kOhm

Aux Inputs: 2 (RCA) -10 dBV / 22 kOhm

Return Inputs: 2 (1/4 in.), -10 dBV / 22 kOhm

Send Output: 2 (1/4 in.), -10 dBV

Master Output: 2 (1/4 in.) Balanced/ (RCA) unbalanced, +4 dBu balanced / -10 dBV unbalanced

Program Outputs: 2 (1/4 in.) Balanced x 2 channels, +4 dBu / 100 Ohms

Booth Output: 2 (RCA), -10 dBV / 100 Ohms

Headphone Output: 2 (1/4 in.), greater than 32 Ohm load

Dimensions (LxWxD): 12.6 x 9.25 x 4.7 in. (32.0 x 23.5 x 12.0 cm)

Weight: 7.26 lbs (3.3 kg )
