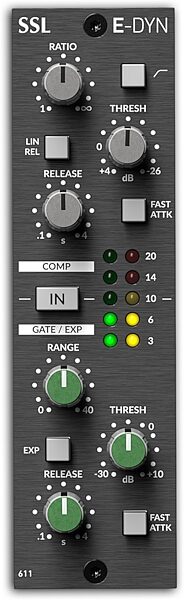

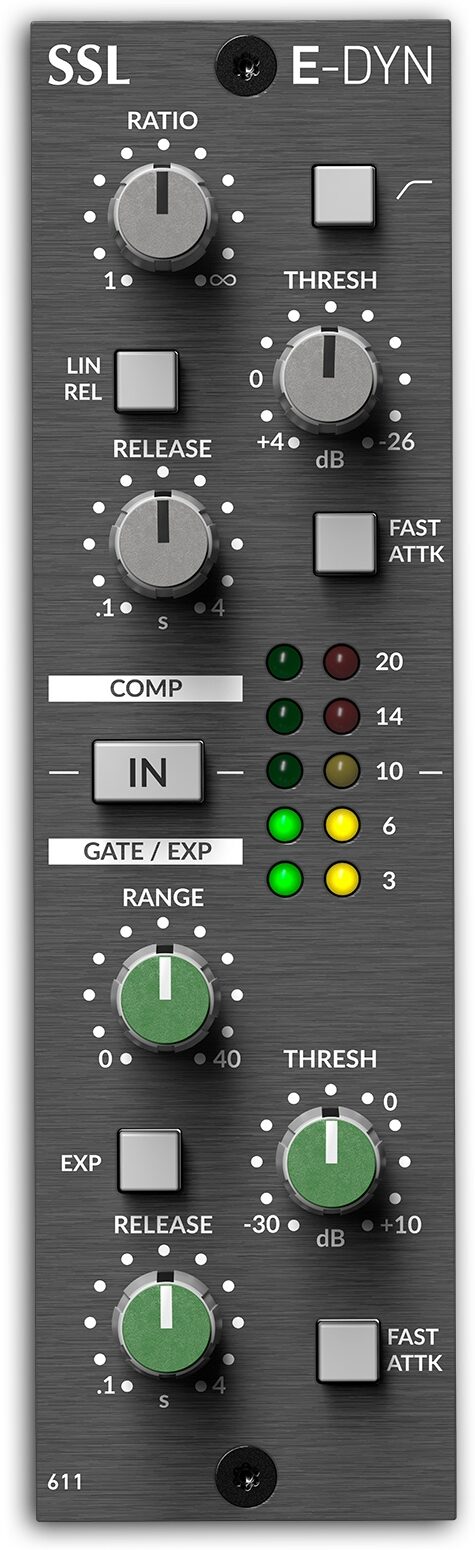

Solid State Logic SSL E-Dyn Mk2 E-Series 500-Series Dynamics Processor

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Solid State Logic SSL E-Dyn Mk2 E-Series 500-Series Dynamics Processor, New, Action Position Back
open zoom image for Solid State Logic SSL E-Dyn Mk2 E-Series 500-Series Dynamics Processor, New, Action Position Back
Solid State Logic SSL E-Dyn Mk2 E-Series 500-Series Dynamics Processor, New, Action Position Back Solid State Logic SSL E-Dyn Mk2 E-Series 500-Series Dynamics Processor, New, Action Position Back
zZounds Gear Experts Say...
Dial in dynamics like they did on SSL's classic 4000 E Series consoles, thanks to this 500-series module's flexible compressor/limiter and expander/gate.

The E Series Dynamics Module for 500 Series racks reproduces the legendary sonic signature of an early 80s classic, the SL 4000 E console channel strip, which was featured on countless recordings from the 1980s. The E Series Dynamics Module includes a compressor/limiter and an expander/gate, both of which remain true to the circuitry and key components that define the sound of the original SL 611E Series channel strip.

A true RMS converter is used in the side chain, while the gain element features an all-discrete design identical to the Class A VCA chip found in the original unit. The compressor provides additional switching options to bypass the over-easy curve and to utilize a linear release instead of the more common logarithmic curve. This results in a compressor with three distinct voices, each possessing its own musical character.

Features:

- Immortal SSL 4000 Series circuitry
- Class A VCA replication
- Expander/Gate
- Based on the classic 611E console channel strip

- Type: Compressor/limiter and expander/gate
- Channels: 1
- Sidechain Input: Internal sidechain with true RMS converter
- Ratio: Variable
- Attack Time: Fast attack: 3ms for 20dB gain reduction, normal attack when off
- Release Time: Switchable logarithmic or linear release curves
- Knee: Switchable over-easy/hard-knee operation
- Power Requirements: 500 Series rack (API lunchbox compatible)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.7 lbs
  • Shipping Dimensions: 8 x 6 x 2 in
  • Manufacturer Part Number (MPN): 729719X2

For support or warranty questions, please contact the manufacturer:
Web: https://support.solidstatelogic.com/
SSL 500 Series E DYN Module User Guide
