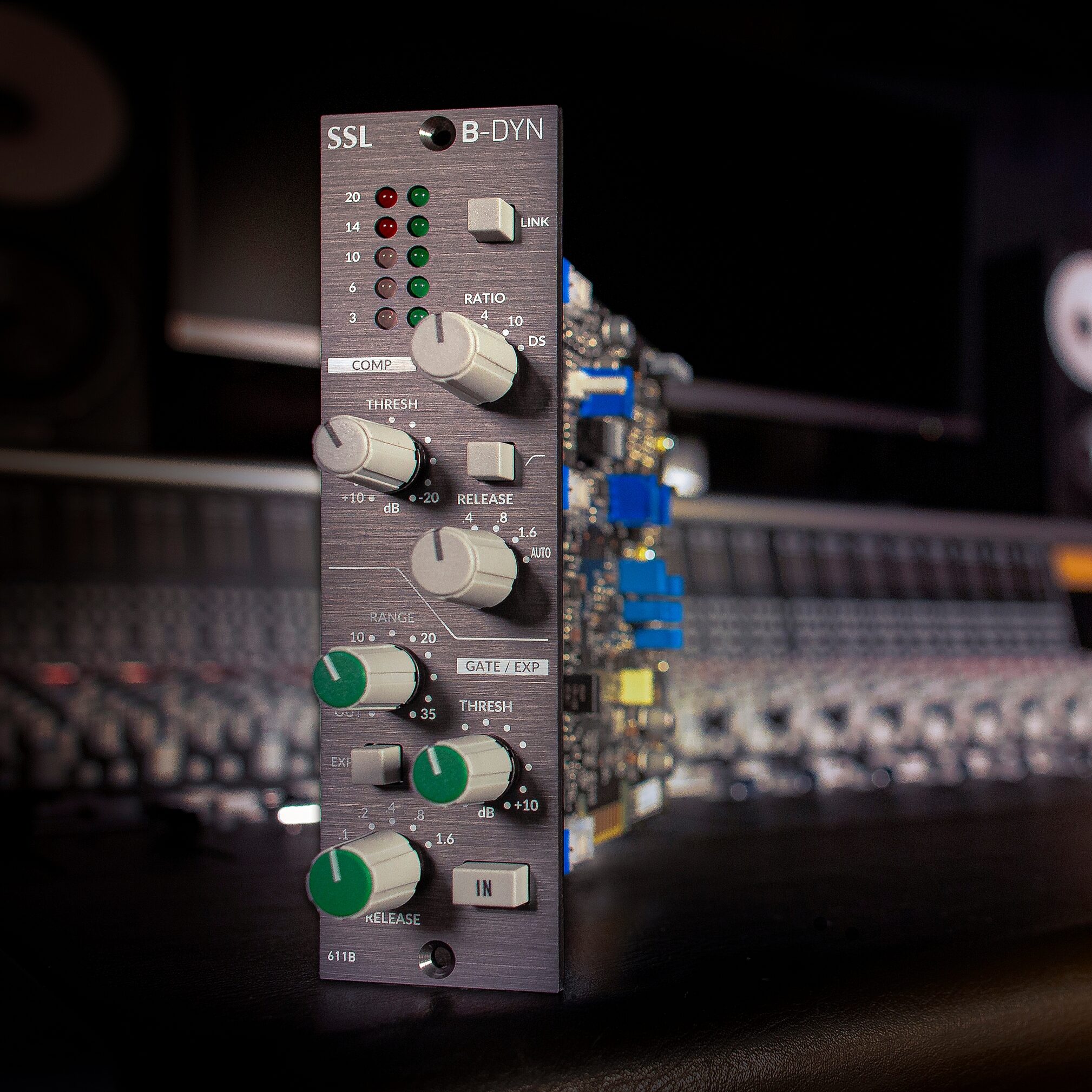

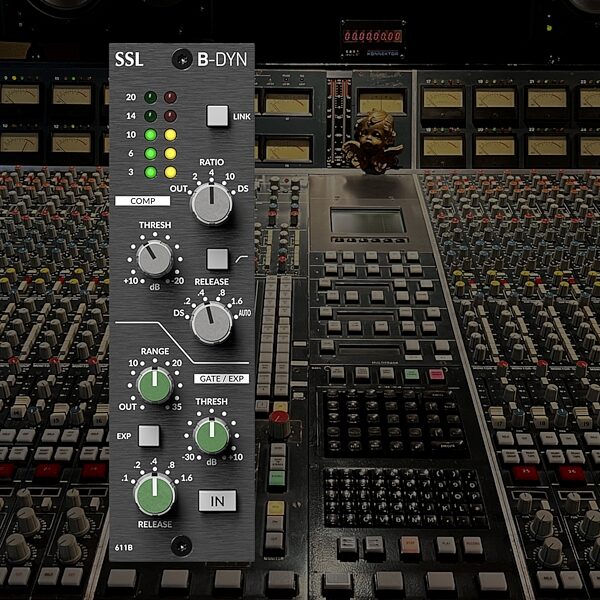

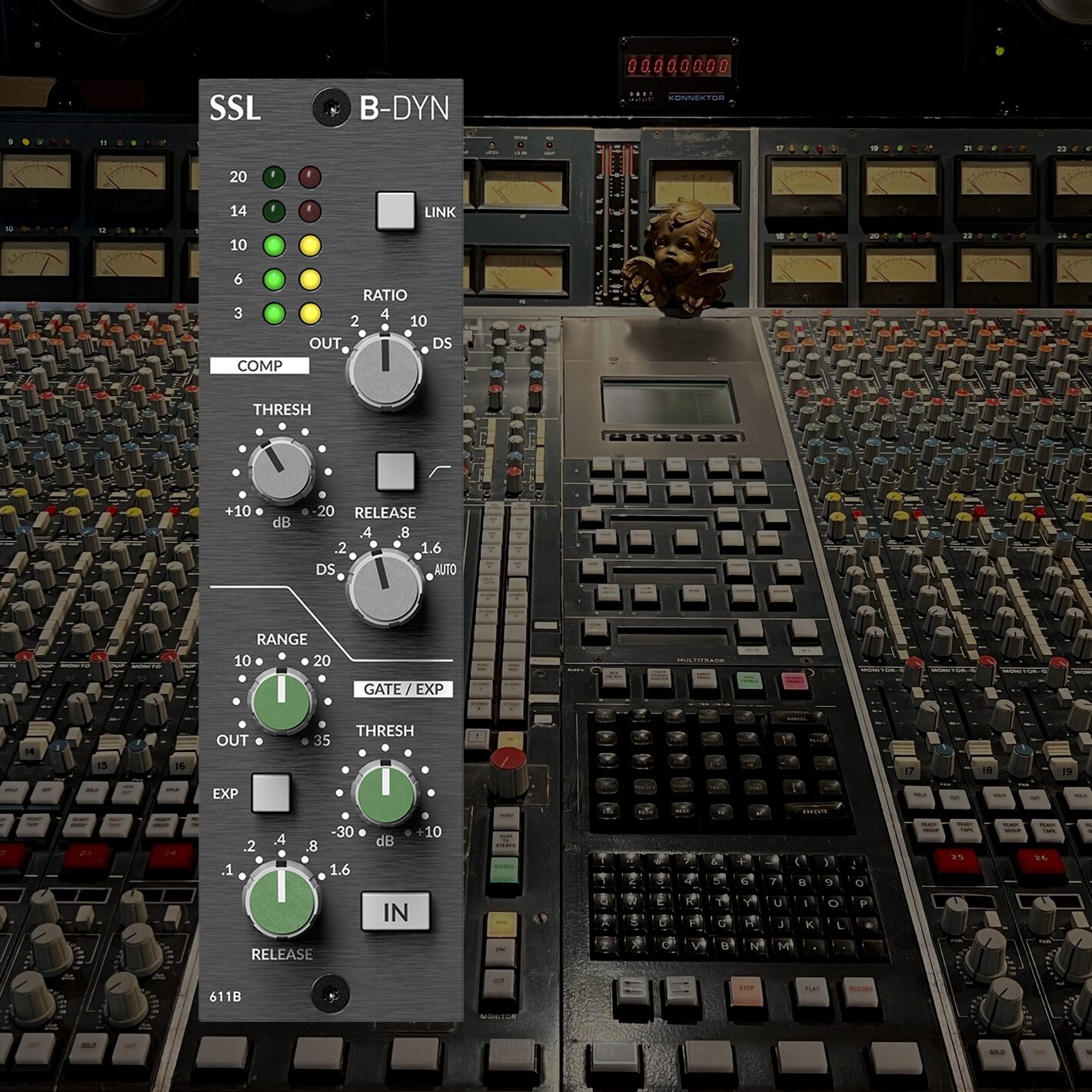

The 4000 B Dynamics (B-DYN) 500 series module takes the dynamics processor found in the channel strip of the SL 4000 B console and puts it into 500 Series format. Released in 1976, the 4000 B was the first console ever manufactured by Solid State Logic and was famously used in 'The Stone Room' at Virgin's Townhouse Studio (London), Le Studio (Montreal), and Record Plant (LA). It was responsible for countless iconic records, including Phil Collins' 'In the Air Tonight' and Peter Gabriel's 'Intruder', which feature characterful compression on drums and vocals. The B-DYN module allows users to add heavily coloured, grabby, saturated compression from one of the rarest studio consoles ever made to their production toolkit.

Features:

- Authentic recreation of the SL 4000 B console's dynamics processing
- Design based on the SSL Bus Compressor
- Compressor/Limiter & Gate/Expander
- Feedback design with Peak sensing for aggressive 'grabby' character
- Fixed compression ratios, 2:1, 4:1 & 10:1 with an additional 'DS' mode
- Fixed release times, DS, .2, .4, .8, 1.6 & renowned 'Auto'
- Auto make-up gain
- Sidechain high-pass filter
- Stereo Link mode
- (vintage) SSL flavour for your productions

Its own unique sonic signature
The dynamics Section in the SL 4000 B console channel strip was unlike any other SSL channel dynamics module that followed, using the fader VCA as its gain element, rather than a dedicated VCA. It had a design similar to the topology of the SSL Bus Compressor.… read more This VCA 'feedback' design has been inherited by the B-DYN module, offering characterful and coloured compression, with its unique sonic signature - very different from the later E and 9000 Series. These similarities are also evident from B-DYN's 'Auto' release setting, which offers a program-dependent release time as found on the Bus Compressor.

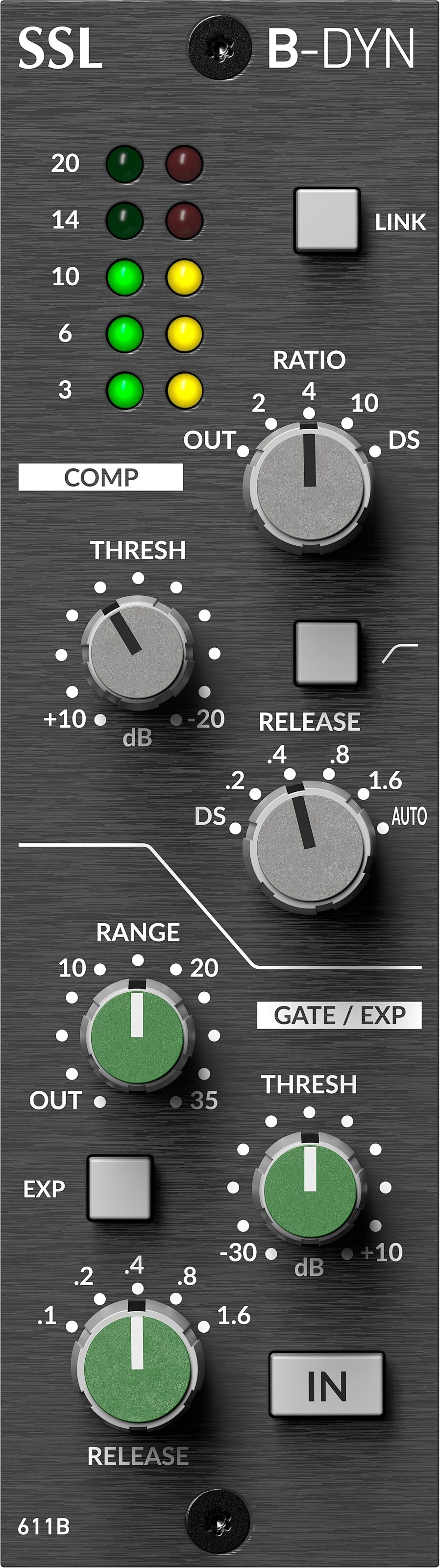

Compressor/Limiter
RATIO - Stepped compression ratios 2:1, 4:1, 10:1, and 'ds'. The 'ds' setting is a fixed 10:1 with an additional sidechain filter. When 'out, the compressor is bypassed.
THRESH - Whenever a signal exceeds the level this control sets, the compressor will start acting at the ratio set by the RATIO control. The THRESH'old control also provides automatic make-up gain. A slight improvement to the linearity of this control has been made in the module over the original channel strip control. This helps with Threshold tuning using the smaller scale 500 series knobs.
HPF - A 6dB/Oct 185 Hz High Pass Filter in the compressor sidechain to help reduce bass pumping effects
RELEASE - Switched/fixed release ranges from .2 ms to 1.6 ms with additional 'DS' & AUTO release options.
DS - The De-Ess mode changes the attack time from approx 30 ms to 2 ms.

De-Ess (DS) Mode
By setting COMPRESSOR RATIO and RELEASE controls to 'DS', the B-DYN module is optimized to reduce sibilance (De-Essing). The De-Ess ratio is 10:1 with filtered S/C input signal, delivering broadband compression triggered by sibilance typically in vocal sources. The 'DS' release automatically varies in response to the processed signal between release rates of 30 & 50 ms. This is a much faster minimum release than expected from an SSL Dynamics section. The Attack time is also reduced to a quick 2 ms, slightly faster than the E-Series Dynamic module on its FAST setting.

Gate/Expander
The B-DYN Gate & Expander section can act as a 20:1 Gate or as a 2:1 Expander when the EXP button is pressed.
RANGE - Controls the maximum amount of gain reduction applied by the gate/expander. When set to 'out', the gate/expander is bypassed.
THRESH - Sets the threshold above which the gate/ expander will be opened.
RELEASE - Sets how long the signal remains audible after the gate/expander closes.
EXP - Switches the gate to expander mode with a gentle curve, for subtler control of level below the threshold.
The attack time of the expander/gate is a fast 0.2 ms.
