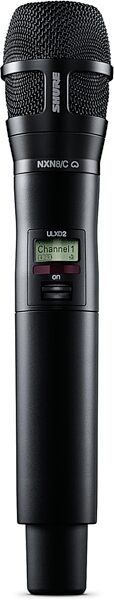

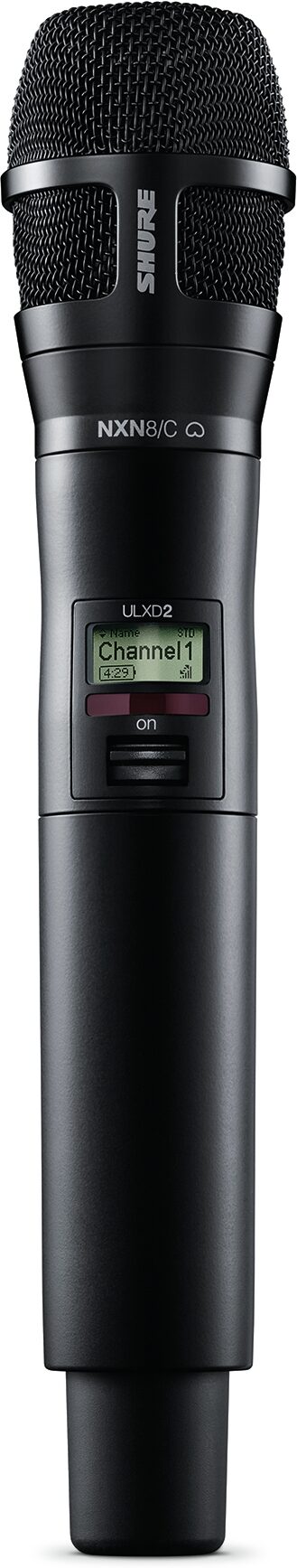

Shure ULXD2/N8CB Handheld Wireless Transmitter with Nexadyne 8/C Microphone Capsule

No longer available at zZounds

zZounds Gear Experts Say...

Experience Shure's revolutionary Nexadyne mic technology plus rock-solid ULX wireless performance with the ULXD2/N8CB transmitter.

Overview

Available here with a Nexadyne 8/C microphone capsule, the Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. Offering premium 20 Hz - 20 kHz audio quality, advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads (including SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C, and more), the ULXD2 delivers uncompromising wireless performance for professional sound reinforcement applications.

Features:

- 20 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
- Interchangeable Shure microphone cartridges, including the legendary SM58
- >120 dB dynamic range
- 1, 10, and 20 mW selectable RF output power
- 5 segment battery fuel gauge
- Optional Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect (sold separately)
- Up to 11 hours continuous use with 2 x AA batteries
- Backlit LCD with easy to navigate menu and controls
- 100 meter (300 ft) operating range
- Rugged metal construction
- Frequency and power lockout

Nexadyne 8/C Dynamic Mic
The Nexadyne 8/C Dynamic Vocal Microphone is a cardioid dynamic microphone for professional vocal performance. Nexadyne 8 microphones feature patented Shure Revonic dual-engine technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high performing microphone line that combines… read more state-of-the-art acoustic signal processing and exceptional cardioid polar pattern linearity. The clean and natural cardioid pattern of the Nexadyne 8/C allows vocals to easily reach every corner of the venue. Built with the industry-standard of consistency, durability, and performance that only Shure can provide.

Features:

- Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
- Industry-leading Shure reliability standards provides innovation with confidence
- Dent-resistant hardened grille
- Ships with protective zipper case, mic clip and brass stand adapter
- XLR connection with black finish
- Wireless head versions available in black or nickel finish, compatible with all Shure handheld transmitters with interchangeable microphone capsules

Specs

ULXD2
Gain Offset Range: 0 to 21 dB (in 3 dB steps)
Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW
- Shure SB900: >12 hours
- Alkaline: 11 hours
Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
Weight: 340 g (12.0 oz.), without batteries
Housing: Machined aluminum
Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
System Gain Setting = +20: 120 dBV, A-weighted, typical
Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW

Nexadyne 8/C
Type: Dynamic (moving coil)
Polar Pattern: Cardioid
Frequency Response: 50 to 20,000 Hz
Output Impedance: 300 Ohm
Sensitivity (Open circuit voltage @1 kHz, typical): -54.0 dBV/Pa (2.00 mV), 1 Pa = 94 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 258 g
Connector: Three-pin professional audio (XLR), male
Housing: Die-cast aluminum with black paint
