Shure ULXD2/N8CB Nexadyne 8/C Transmitter

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

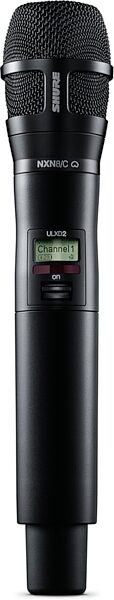

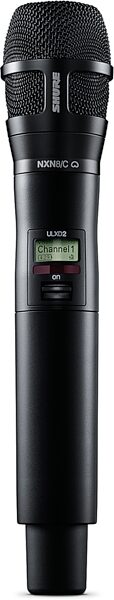

Shure ULXD2/N8CB Nexadyne 8/C Transmitter, Band G50, Action Position Front
Shure ULXD2/N8CB Nexadyne 8/C Transmitter, Band G50, Action Position Front
Shure ULXD2/N8CB Nexadyne 8/C Transmitter, Band G50, Action Position Front Shure ULXD2/N8CB Nexadyne 8/C Transmitter, Band G50, Action Position Front
zZounds Gear Experts Say...
Experience Shure's revolutionary Nexadyne mic technology plus rock-solid ULX wireless performance with the ULXD2/N8CB transmitter.

The ULXD2 Transmitter
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-DTM Digital Wireless Systems. Offering premium 20 Hz - 20 kHz audio quality, advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads, the ULXD2 delivers uncompromising wireless performance for professional sound reinforcement applications. The ULXD2 is offered with SM58, SM86, SM87A, Beta 58A, Beta 87A, and Beta 87C.

Features:

- 30 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
- Interchangeable Shure microphone cartridges, including the legendary SM58
- >120 dB dynamic range
- 1, 10, and 20 mW selectable RF output power
- 5 segment battery fuel gauge
- Optional Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect (sold separately)
- Up to 11 hours continuous use with 2 x AA batteries
- Backlit LCD with easy to navigate menu and controls
- 100 meter (300 ft) operating range
- Rugged metal construction
- Frequency and power lockout

Nexadyne 8/C Dynamic Mic
The Nexadyne 8/C Dynamic Vocal Microphone is a cardioid dynamic microphone for professional vocal performance. Nexadyne 8 microphones feature patented Shure Revonic dual-engine technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high performing microphone line that combines state-of-the-art acoustic signal… read more processing and exceptional cardioid polar pattern linearity. The clean and natural cardioid pattern of the Nexadyne 8/C allows vocals to easily reach every corner of the venue. Built with the industry-standard of consistency, durability, and performance that only Shure can provide.

Features:

- Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
- Industry-leading Shure reliability standards provides innovation with confidence
- Dent-resistant hardened grille
- Ships with protective zipper case, mic clip and brass stand adapter
- XLR connection with black finish
- Wireless head versions available in black or nickel finish, compatible with all Shure handheld transmitters with interchangeable microphone capsules
read less

ULXD2
Gain Offset Range: 0 to 21 dB (in 3 dB steps)
Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW
- Shure SB900: >12 hours
- Alkaline: 11 hours
Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
Weight: 340 g (12.0 oz.), without batteries
Housing: Machined aluminum
Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
System Gain Setting = +20: 120 dBV, A-weighted, typical
Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW

Nexadyne 8/C
Type: Dynamic (moving coil)
Polar Pattern: Cardioid
Frequency Response: 50 to 20,000 Hz
Output Impedance: 300 Ohm
Sensitivity (Open circuit voltage @1 kHz, typical): -54.0 dBV/Pa (2.00 mV), 1 Pa = 94 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 258 g
Connector: Three-pin professional audio (XLR), male
Housing: Die-cast aluminum with black paint
Dimensions and Weight in Packaging
Band G50
Shipping Weight: 1.5 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): ULXD2/N8CB=-G50
Band H50
Shipping Weight: 1.5 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): ULXD2/N8CB=-H50
Band J50A
Shipping Weight: 1.5 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): ULXD2/N8CB=-J50A

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
