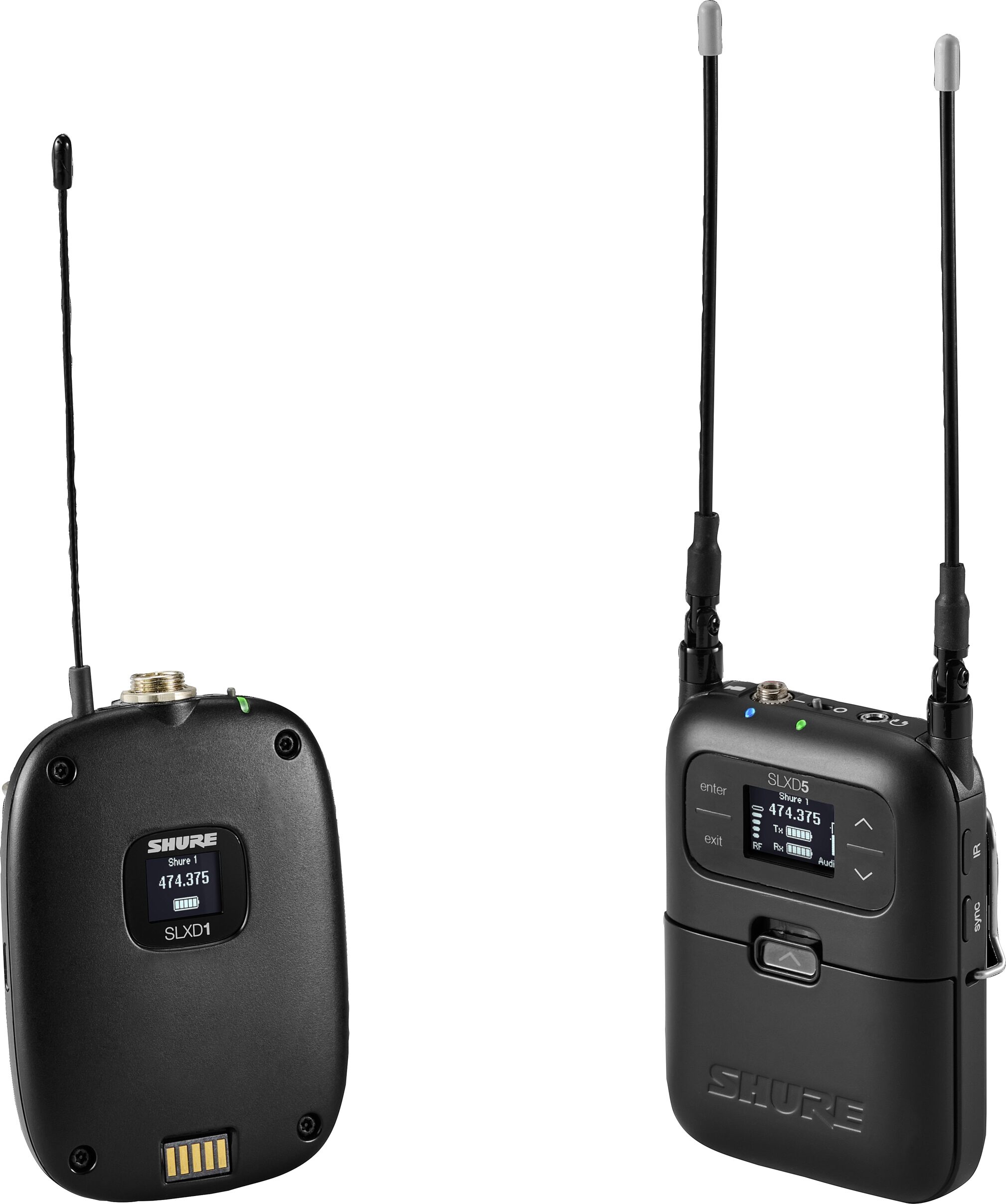

Shure SLXD15 Portable Digital Wireless Bodypack System
This Shure wireless system gives you a SLXD5 battery-powered receiver and SLXD1 bodypack transmitter, compatible with any TA4F mini-XLR lav mic or cable.
Overview
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations.
Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

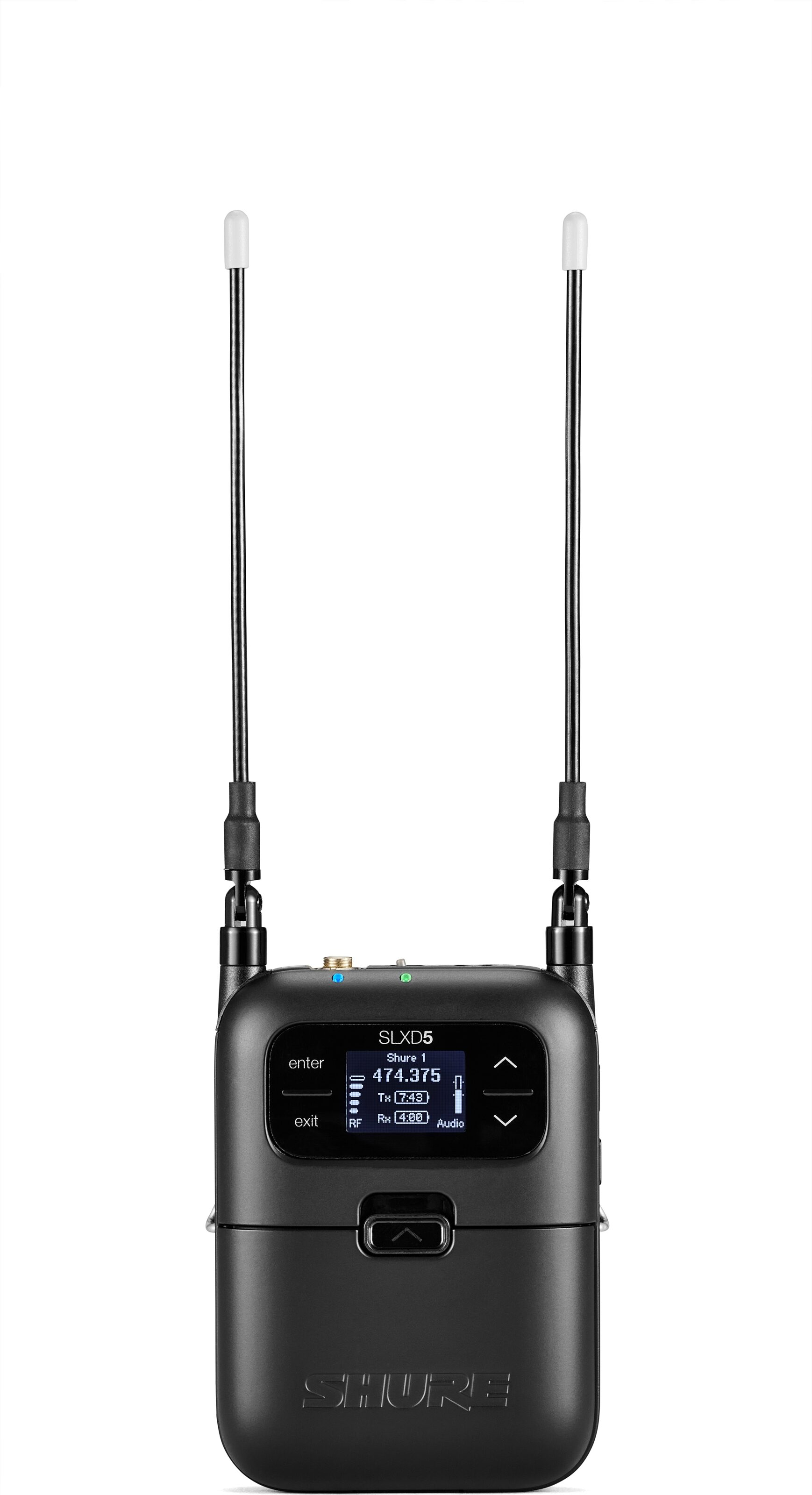

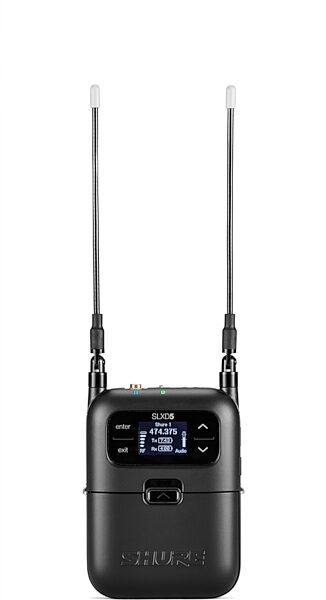

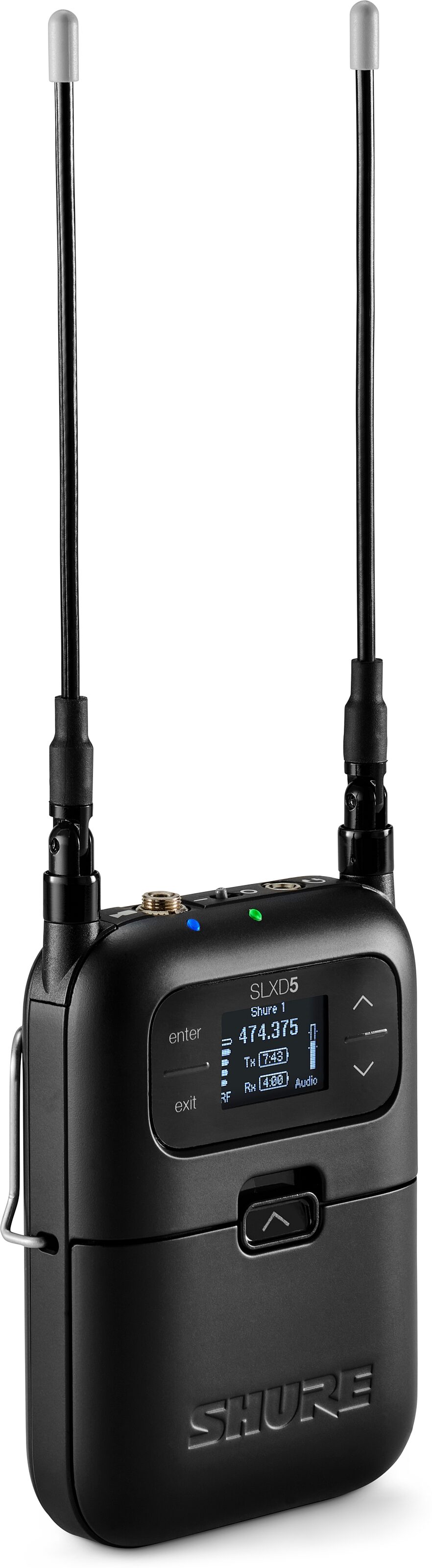

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non conductive cold shoe mount adapter and a zippered carrying pouch.
SLXD5 Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Transparent… read more 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Rugged metal construction
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction
In The Box:
- Two (2) Zippered Carrying Pouches
- WA311 Non-Conductive Cold Shoe Mount Adapter
- 1/8"-to-1/8" audio cable
- 1/8"-to-XLR (male) audio cable
- 4 AA Alkaline Batteries
read less
Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non conductive cold shoe mount adapter and a zippered carrying pouch.
SLXD5 Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Transparent… read more 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Rugged metal construction
SLXD1 Features:
- Transparent 24-bit digital audio- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction
In The Box:
- Two (2) Zippered Carrying Pouches
- WA311 Non-Conductive Cold Shoe Mount Adapter
- 1/8"-to-1/8" audio cable
- 1/8"-to-XLR (male) audio cable
- 4 AA Alkaline Batteries
Specs
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Weight: 3.1 oz (89 g)
- Housing: PC/ABS
- AUDIO INPUT:
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MO
- Maximum Input: Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent:
- Input Noise (EIN): -118 dBV
- RF OUTPUT:
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.
- SLXD5:
- Weight: 1.8 lb (182 g)
- Housing: Aluminum
- Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
- Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
- RF INPUT:
- Spurious Rejection: >75 dB
- Typical Impedance: 50 O
- Phantom Power: Yes
- Protection: Yes
- Antenna Type: 1/4 Wave Whip
- AUDIO OUTPUT:
- Audio Frequence Response: 20 Hz - 20 kHz (+1, -3 dB)
- Connector Type: 1/8" (3.5 mm), \0xD72
- Configuration:
- Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
- Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
- Impedance:
- (Camera):
- Balanced (Mono) Line: 450 O
- Balanced (Mono) Mic: 240 O
- Dual Mono Line: 400 O
- Dual Mono Mic: 200 O
- Full Scale Output Camera (Balanced Line): 15 dBV
- Headphone: 13 mW @ 64 O Load
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
- Weight: 3.1 oz (89 g)
- Housing: PC/ABS
- AUDIO INPUT:
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MO
- Maximum Input: Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent:
- Input Noise (EIN): -118 dBV
- RF OUTPUT:
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.
- SLXD5:
- Weight: 1.8 lb (182 g)
- Housing: Aluminum
- Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
- Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
- RF INPUT:
- Spurious Rejection: >75 dB
- Typical Impedance: 50 O
- Phantom Power: Yes
- Protection: Yes
- Antenna Type: 1/4 Wave Whip
- AUDIO OUTPUT:
- Audio Frequence Response: 20 Hz - 20 kHz (+1, -3 dB)
- Connector Type: 1/8" (3.5 mm), \0xD72
- Configuration:
- Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
- Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
- Impedance:
- (Camera):
- Balanced (Mono) Line: 450 O
- Balanced (Mono) Mic: 240 O
- Dual Mono Line: 400 O
- Dual Mono Mic: 200 O
- Full Scale Output Camera (Balanced Line): 15 dBV
- Headphone: 13 mW @ 64 O Load
- Dimensions and Weight in Packaging
- Channel J52
- Shipping Weight: 2.1 lbs
- Shipping Dimensions: 16 x 8 x 3 in
- Manufacturer Part Number (MPN): SLXD15-J52
- G58
- Shipping Weight: 2.33 lbs
- Shipping Dimensions: 16 x 8 x 3 in
- Manufacturer Part Number (MPN): SLXD15-G58
- Warehouse Resealed, G58
- Shipping Weight: 2.33 lbs
- Shipping Dimensions: 16 x 8 x 3 in
- Manufacturer Part Number (MPN): SLXD15-G58
- H55
- Shipping Weight: 2.1 lbs
- Shipping Dimensions: 16 x 8 x 3 in
- Manufacturer Part Number (MPN): SLXD15-H55
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
